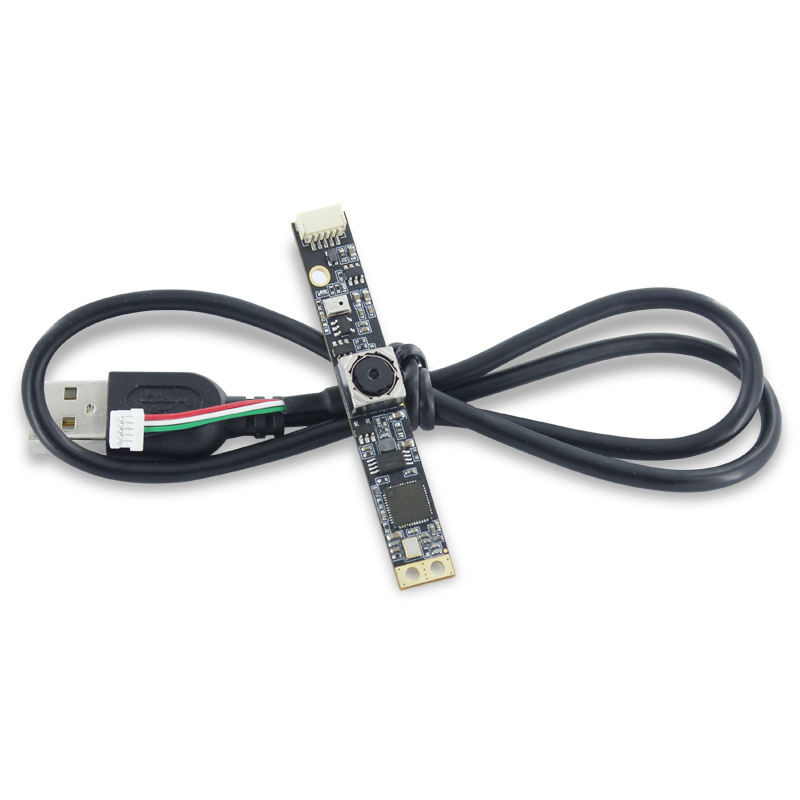

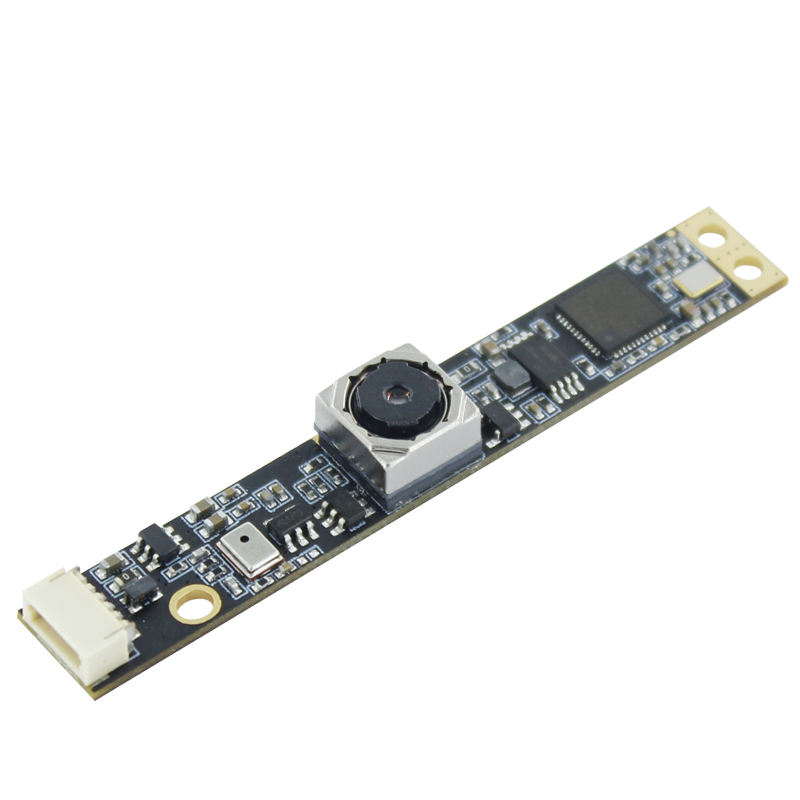

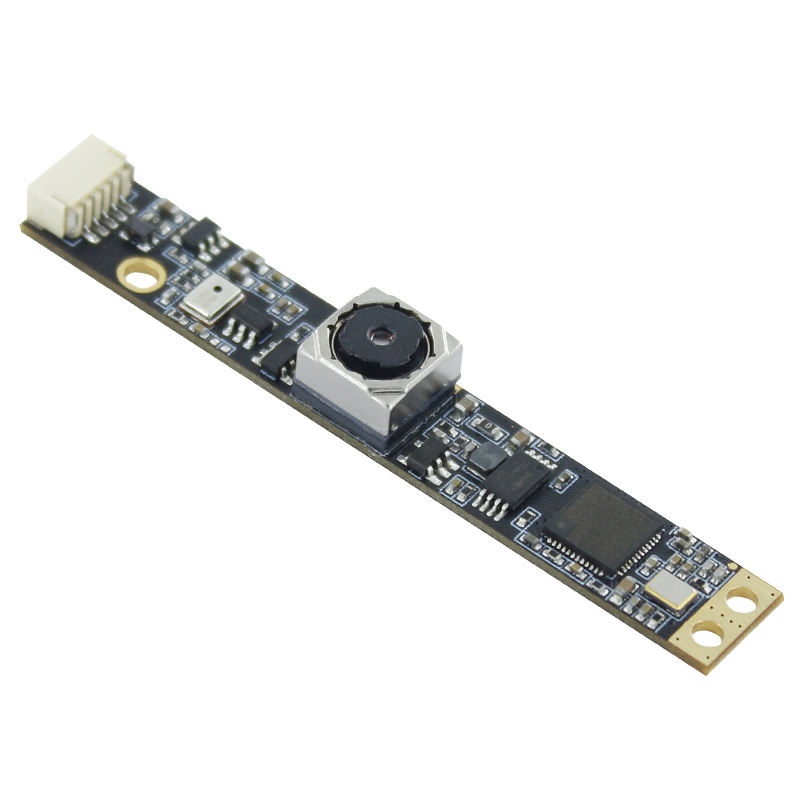

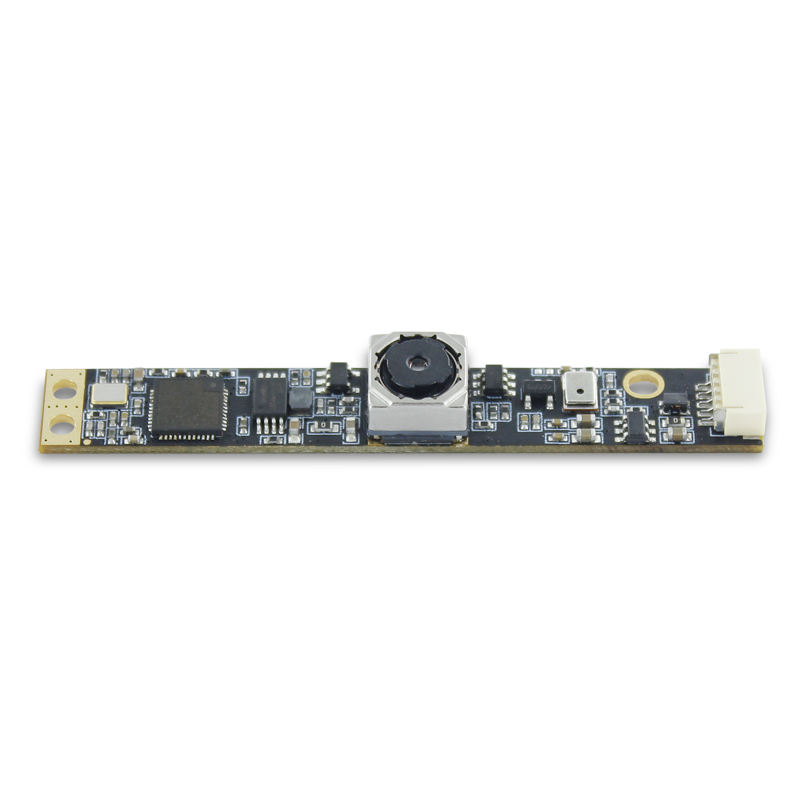

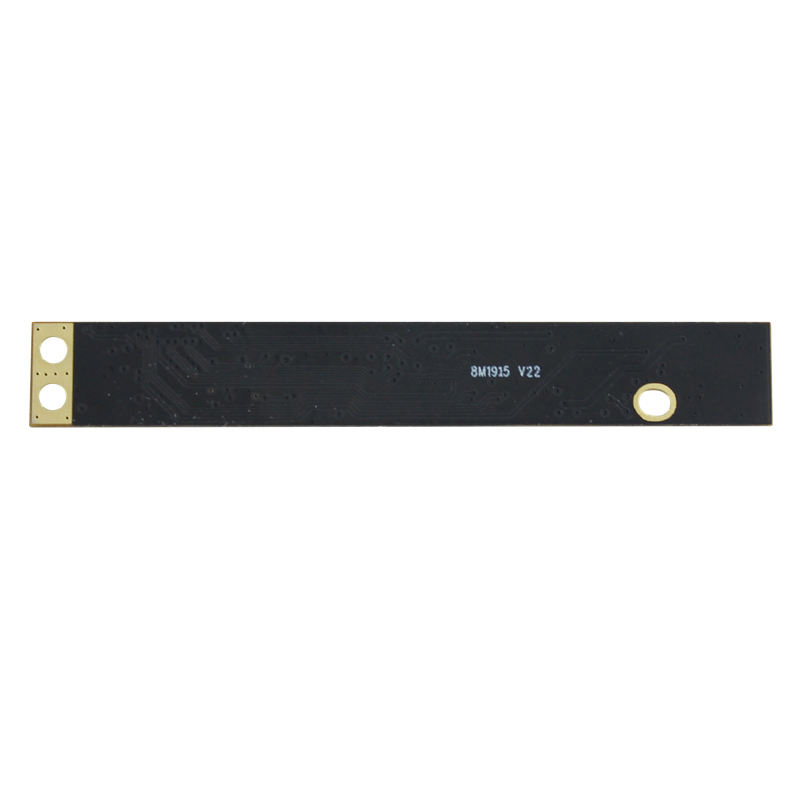

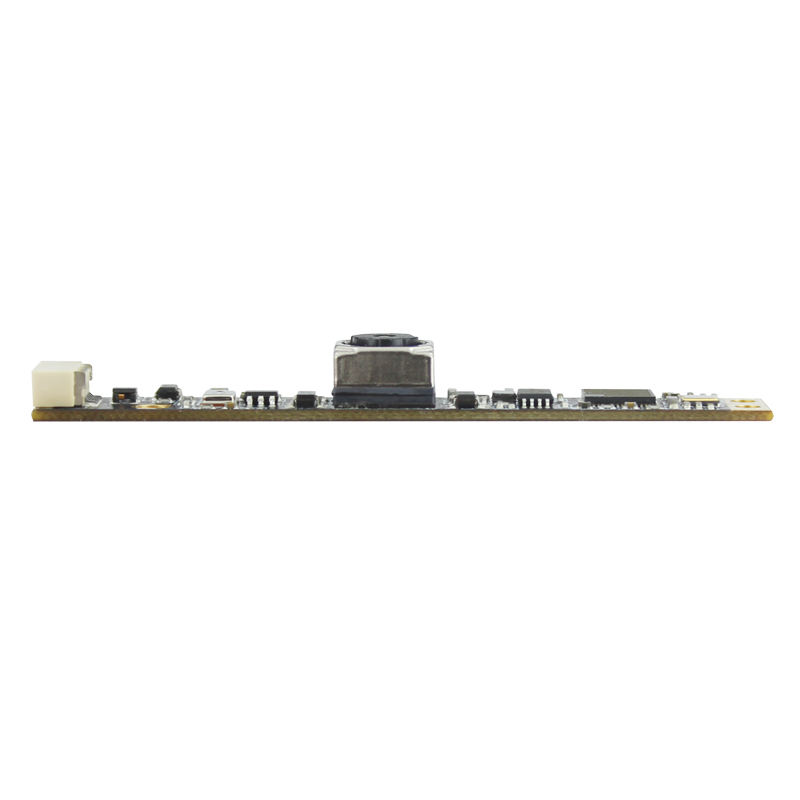

3264*2448 15FPS 2.4mm autofocus camera module IMX179 8mp cmos sensor camera module
$39.60
Availability:
In stock
Out of stock
Variations
Product Attributes
Product Description
Product Description
| Product name | 8 mp notebook, advertising machine, all-in-one machine, facial recognition camera module | ||
| Module No. | BM8M1915 V22 | ||

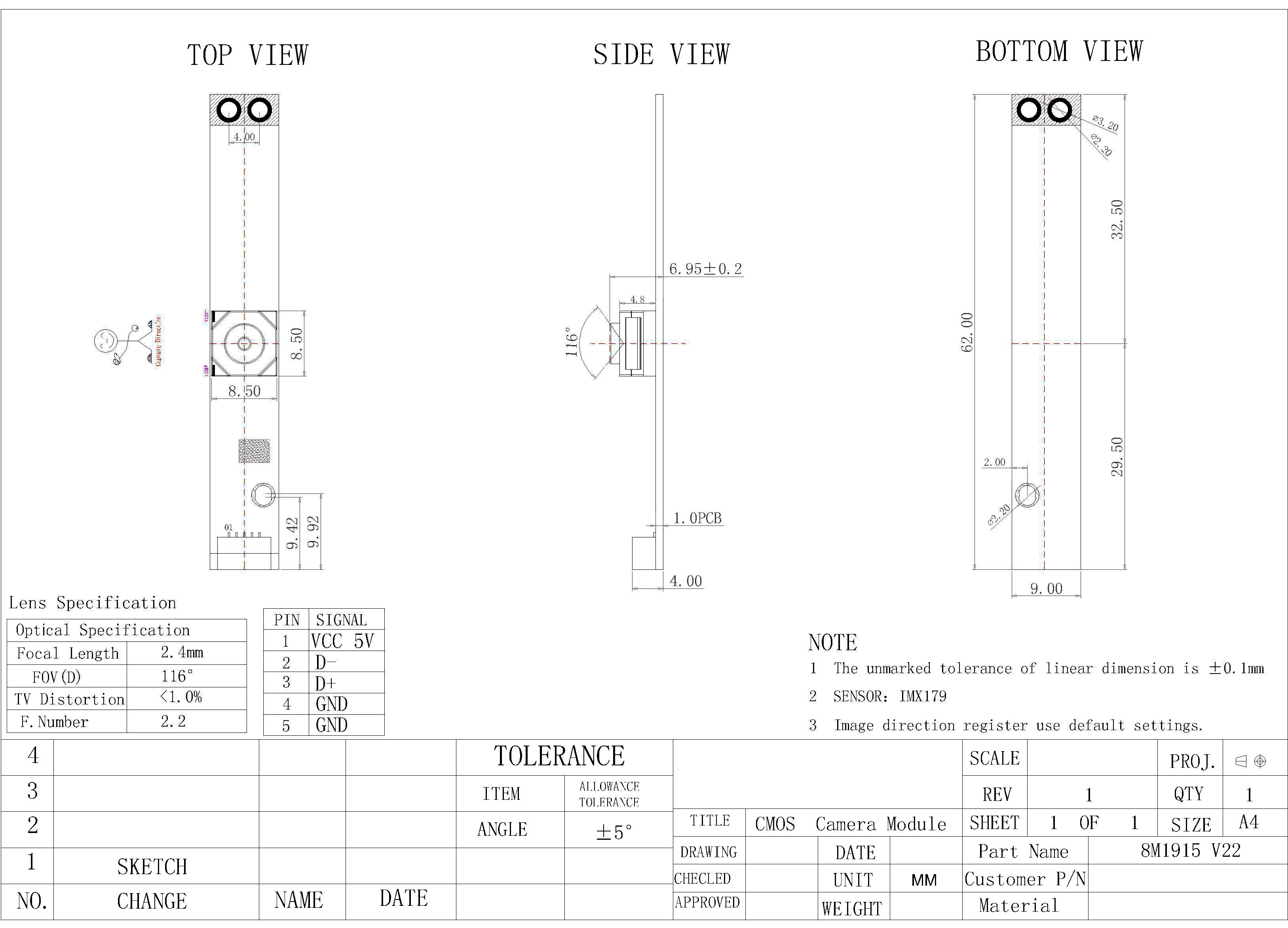

| Module Size | 62mm × 8.5mm × 6.95mm±0.2MM | ||
| Features | 1. 8 MP notebook, advertising machine, all-in-one machine, facial recognition camera module 2. maximum resolution, format, frame rate: 3264*2448 mJPEG 15FPS 3. Built-in digital microphone 4.standard advertising machine all-in-one machine structure, hole location 5. Digital microphone | ||
| Temperature (Operation) | -30°C to 70°C | ||
| Temperature (Stable Image) | 0°C to 50°C | ||
| Assembly technique | SMT (ROSH) | ||
| Focus | Auto | ||
| Object distance | 30CM-infinity | ||
| Resolution | 600LW/PH (Center) | ||
| PCB printing ink | Black | ||
| interface | USB 2.0 | ||
| Power suuply | USB bus power | ||
| supply voltage | DC 5V±5% | ||
| Maximum Power consumption | 940 mW | ||
| Operating system request | Win XP/win 7,8 / vista /android 4.0/ mac /Linux with uvc | ||
| Sensor | IMX179 (1/3.2" ) | ||
| Seneor Package | PLCC,Bare Die | ||
| Maximum resolution | 3264*2448 | ||
| Sensitivity | 700mV /(lux-sec) | ||
| Pixel Size | 1.4µm x 1.4µm | ||
| Maximum Image Transfer Rate | MJPEG 640x480 30FPS / YUY2 640x480 30FPS
| ||
| S/N Ratio | 44db | ||
| Max Dynamic Range | 83db | ||
| Shutter type | Electronic rolling shutter | ||
| AGC/AEC/Whiter balance | Auto | ||
| Output Formats | YUY2/MJPEG | ||
| Microphone | Support | ||
| Lens Construction | 5P | ||
| F/No | 2.2 | ||
| EFL | 2.4 mm | ||
| FOV | 116° | ||
| TV Distortion | <1.0% | ||
| Relative Illumination (Sensor) | 70% | ||
| IR Filter | 650±10nm | ||
| Module Package | Anti-electrostatic tray | ||
| Certifications | FCC/CE/ROSH |
Effect Picture
