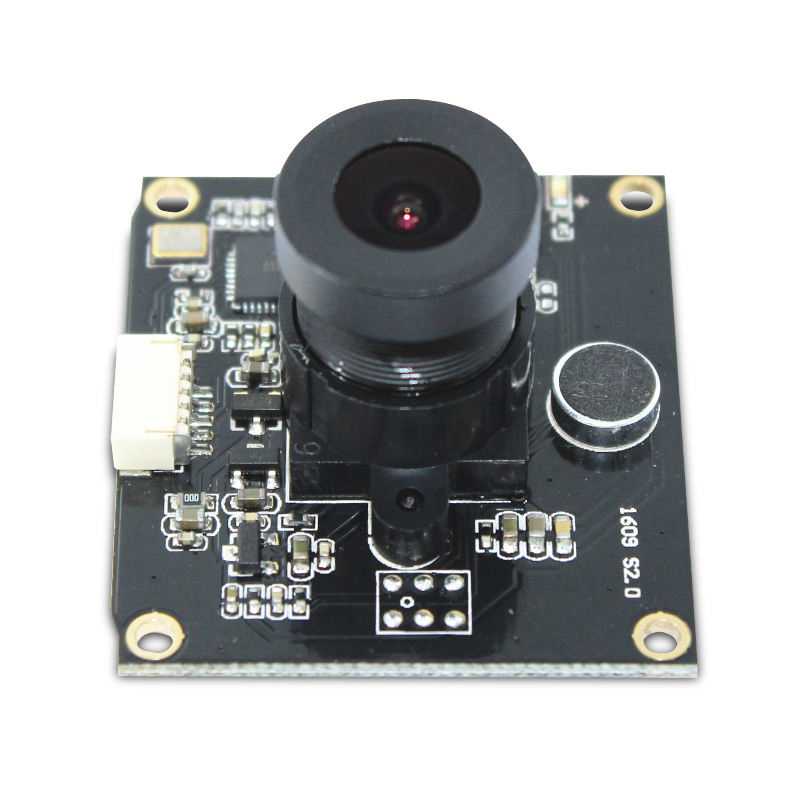

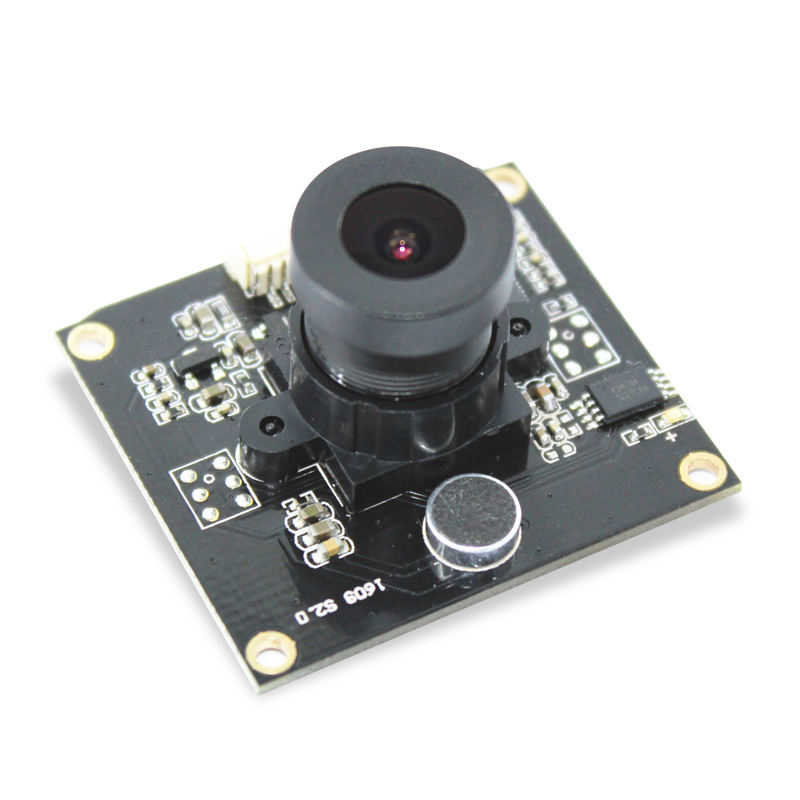

2MP 1600*1200 HD CMOS OV2643 ATM All-in-one machine USB2.0 Camera module with Microphone
$15.60
Availability:
In stock
Out of stock
Variations
Product Attributes
Product Description
Product Description
| Module No. | 1609 S2.0 |

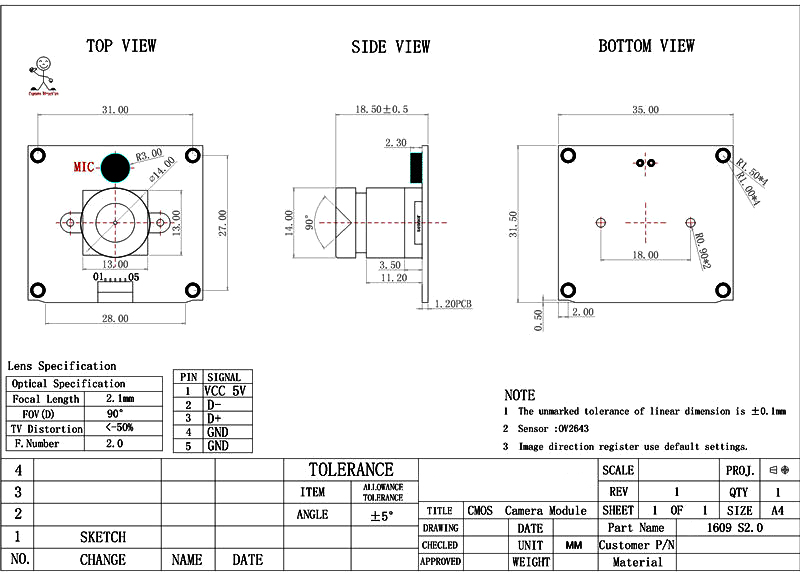

| Module Size | 35mm × 31.5mm × 18.5mm±0.5MM |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | Fixed |
| Object distance | 30CM-infinity |
| Resolution | 600LW/PH (Center) |
| PCB printing ink | black |
| interface | USB 2.0 |
| Power suuply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption | 400 mW |
| Operating system request | Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc |
| Sensor | OV2643 (1/4" ) |
| Seneor Package | CSP,Bare Die |
| Maximum resolution | 1600*1200 |
| Sensitivity | 1250mV /（lux-sec） |
| Pixel Size | 2.2µm x 2.2µm |
| Maximum Image Transfer Rate | MJPEG 320x240 30FPS / YUY2 320x240 30FPS MJPEG 352x288 30FPS / YUY2 640x480 30FPS MJPEG 640x480 30FPS / YUY2 800x600 15FPS MJPEG 800x600 30FPS / YUY2 1280x720 8FPS MJPEG 1280x720 30FPC / YUY2 1280x1024 8FPS MJPEG 1280x1024 30FPC / YUY2 1600x1200 4FPS |
| S/N Ratio | 39 db |
| Max Dynamic Range | 66 db |
| Shutter type | Electronic rolling shutter |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2/MJPEG |
| Microphone | NO |
| Lens Construction | 4G+IR |
| F/No | 2.0 |
| EFL | 2.6 mm |
| FOV | 90° |
| TV Distortion | <-50% |
| Relative Illumination (Sensor) | 70% |
| IR Filter | 650±10nm |
| Module Package | Anti-electrostatic tray |
| Certifications | FCC/CE/ROSH |
2MP computer MINI Camera Module
1.It is with 60MM*8MM*4.6MM size, it can be installed in ATM Machine, Laptop computer, Advertising Machine
2. it is free driver, with standard UVC protocol for window /Linux/Android system.
Details Images

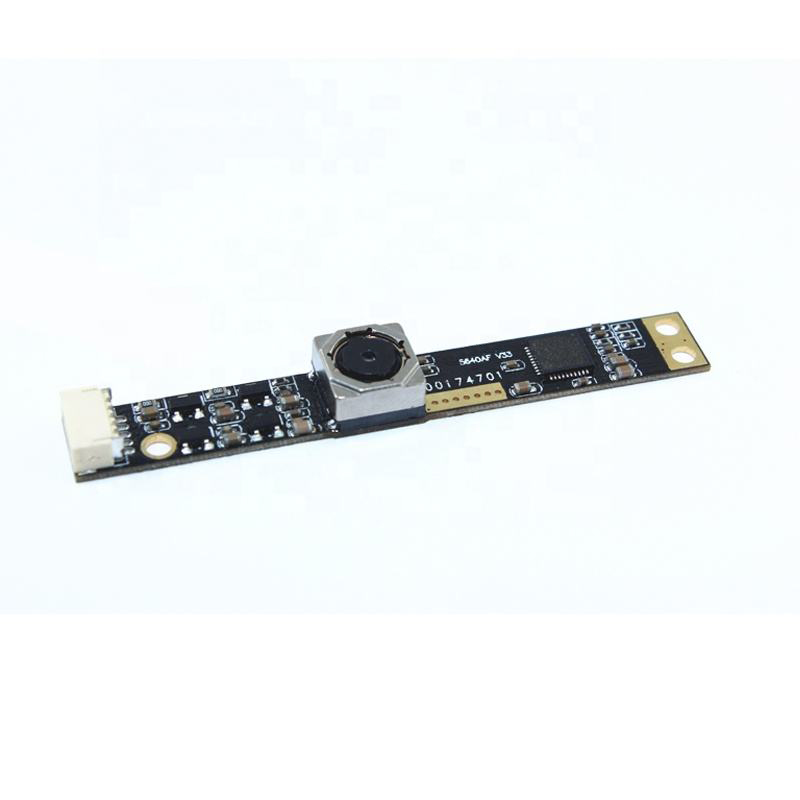

2MP laptop camera module
it is can be used many equipment with regular size

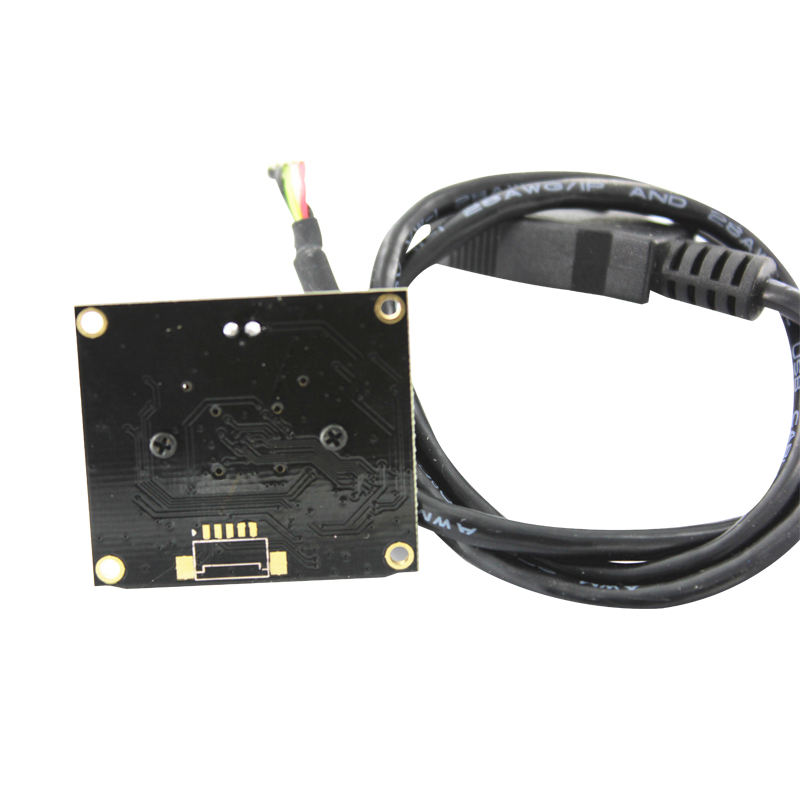

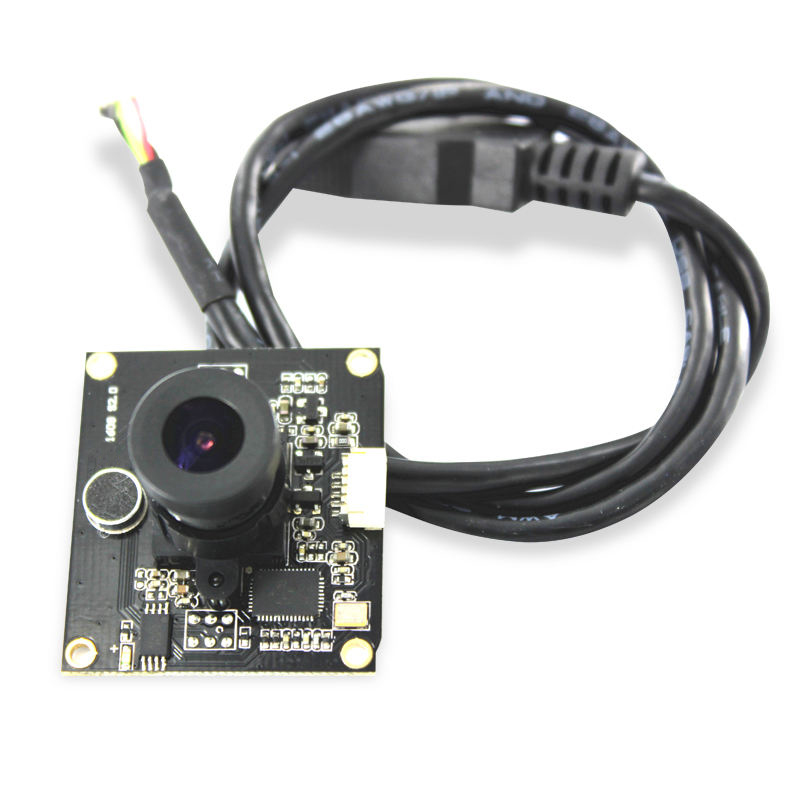

with usb cable , we can supply customization service
Product Usage
Product usage introduction
it is can be used in ATM machine. computer, All-in-one machine
Description of product use effect
it is also can be used in retail machine
