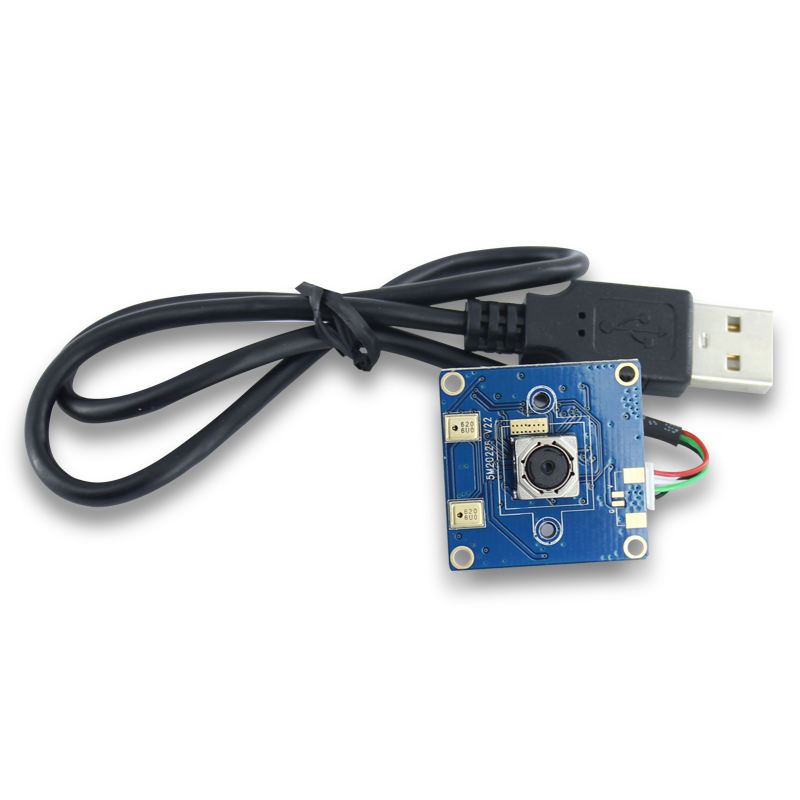

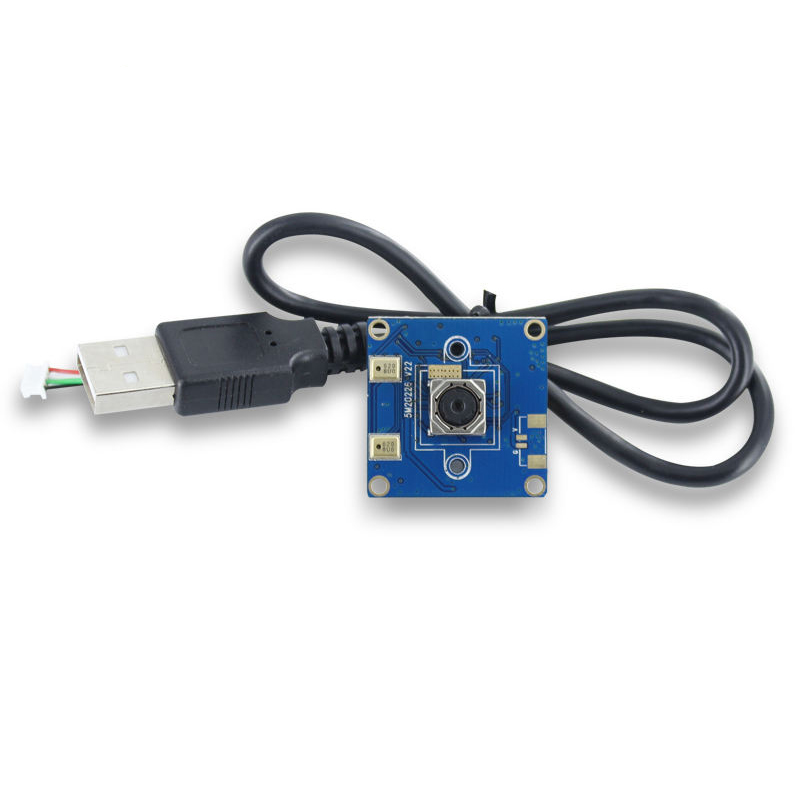

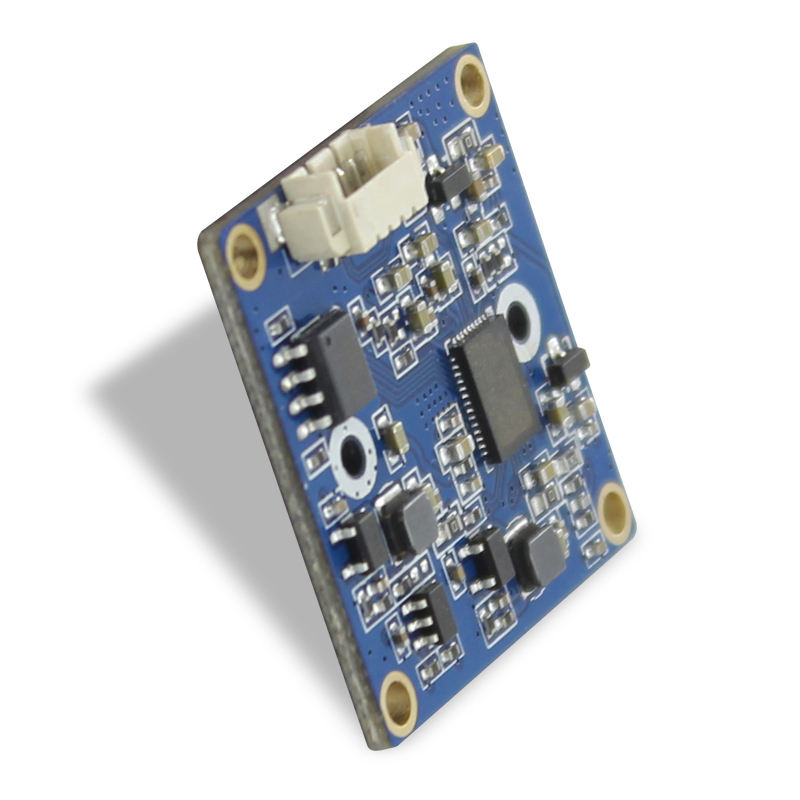

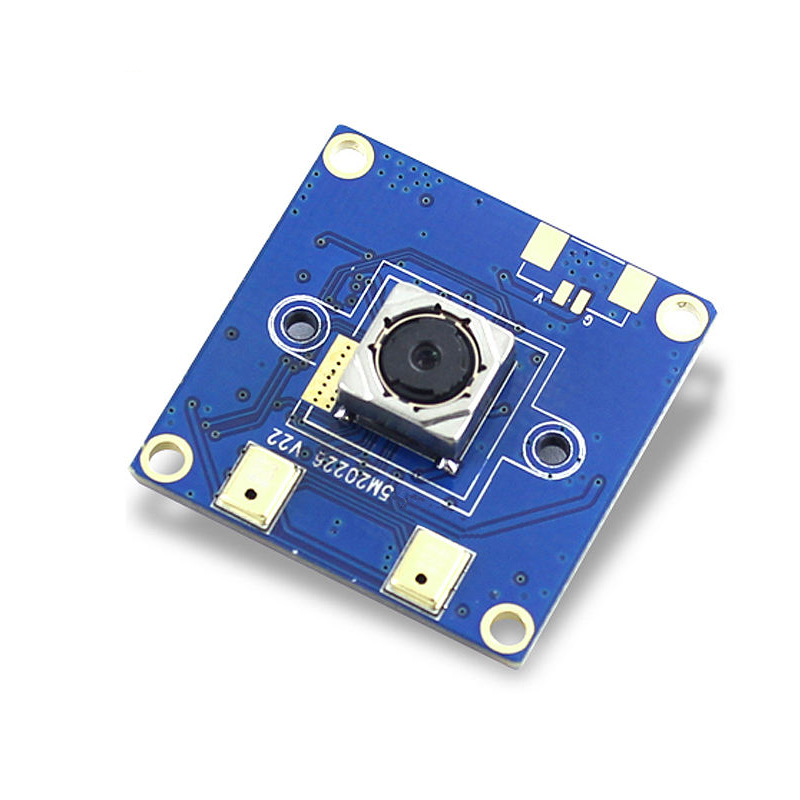

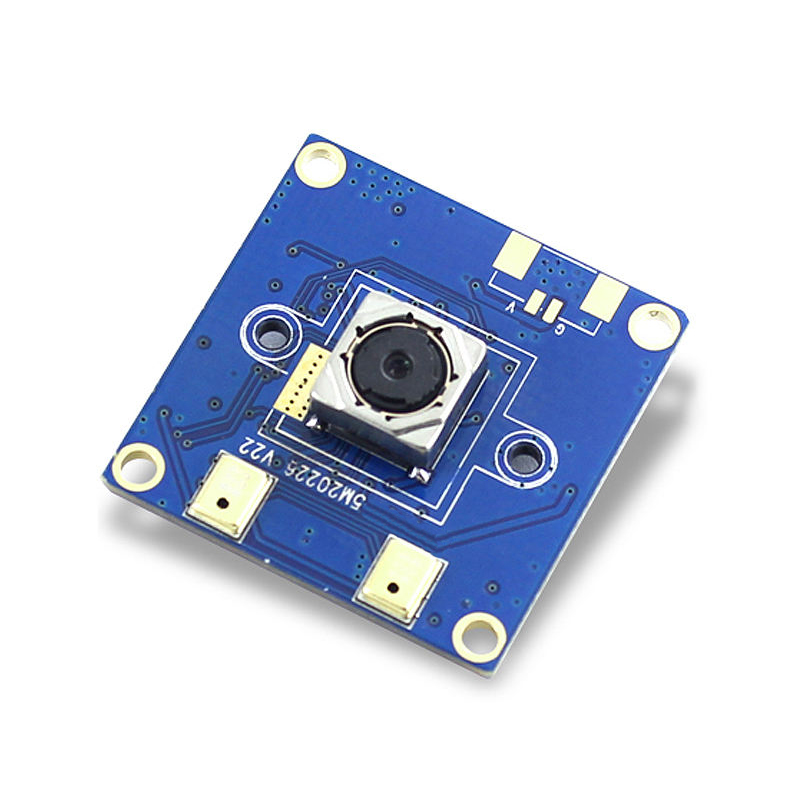

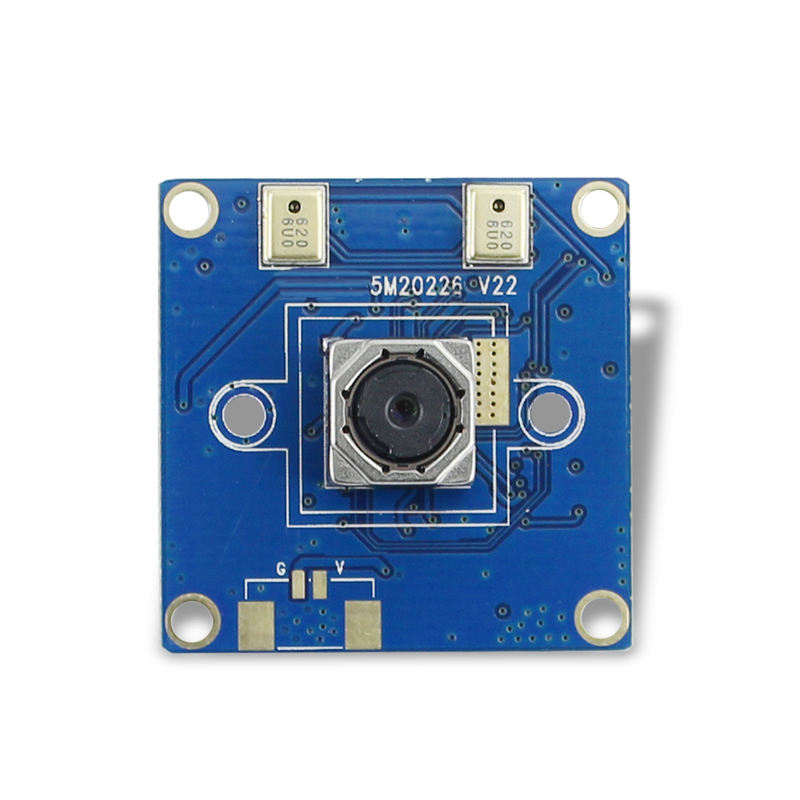

5Mp Hd 2592*1944 30Fps Usb Power Af/Ff Data Communication Ov5693/5648 Camera Module
$26.40
Availability:
In stock
Out of stock
Variations
Product Attributes
Product Description
Product Description
| Product name | 5 megapixel 2K industrial camera, embedded built-in camera module | ||
| Module No. | BM5M20226 V22 | ||
| Module Size | 28mm × 28mm × 6.22mm±0.2MM | ||
| Features | 1. Focusable and fixed focus selection 2. 5693/5648 chips can share boards, 5693-5 million 30 frames, and 5648 has high typesetting documents and text effects | ||
| Temperature (Operation) | -20°C to 70°C | ||
| Temperature (Stable Image) | 0°C to 50°C | ||
| Assembly technique | SMT (ROSH) | ||
| Focus | Auto | ||
| Object distance | 30CM-infinity | ||
| Resolution | 800LW/PH (Center) | ||
| PCB printing ink | Black | ||
| interface | USB 2.0 | ||
| Power suuply | USB bus power | ||
| supply voltage | DC 5V±5% | ||
| Maximum Power consumption | 1000 mW(QSXGA) | ||
| Operating system request | Win XP/win 7,8 / vista /android 4.0/ mac /Linux with uvc | ||
| Sensor | OV5648 (1/4" ) | ||
| Seneor Package | PLCC,Bare Die | ||
| Maximum resolution | 2592*1944 | ||
| Sensitivity | 600mV /(lux-sec) | ||
| Pixel Size | 1.4µm x 1.4µm | ||
| Maximum Image Transfer Rate | MJPEG 640x480 30FPS / YUY2 640x480 30FPS
| ||
| S/N Ratio | 34db | ||
| Max Dynamic Range | 67db | ||
| Shutter type | Electronic rolling shutter | ||
| AGC/AEC/Whiter balance | Auto | ||
| Output Formats | YUY2/MJPEG | ||
| Microphone | Digital Microphone | ||
| Lens Construction | 5P | ||
| F/No | 2.2 | ||
| EFL | 3.0 mm | ||
| FOV | 70° | ||
| TV Distortion | <1.0% | ||
| Relative Illumination (Sensor) | 70% | ||
| IR Filter | 650±10nm | ||
| Module Package | Anti-electrostatic tray | ||
| Certifications | FCC/CE/ROSH |
