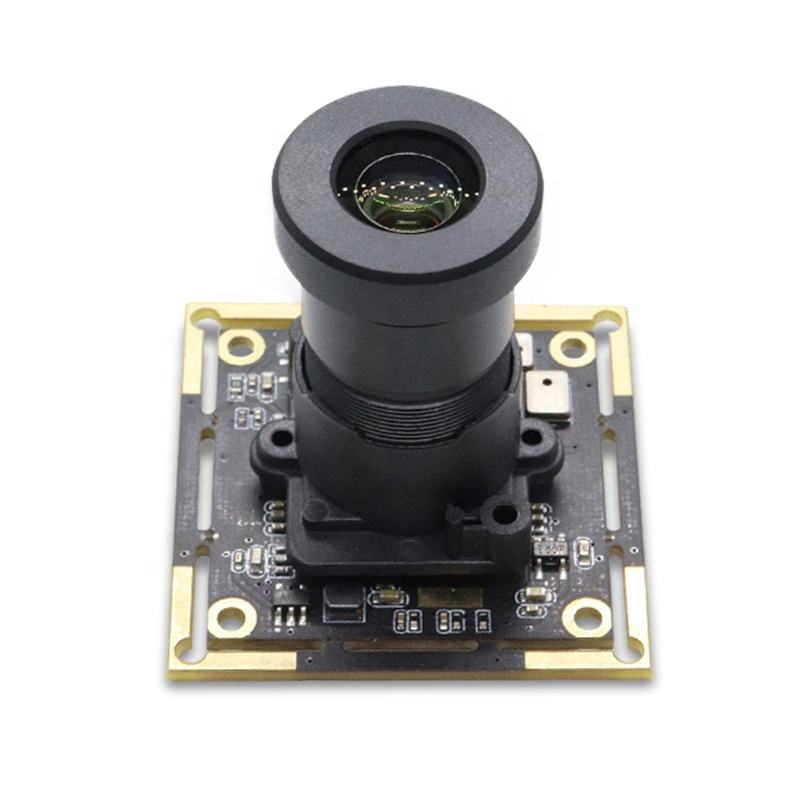

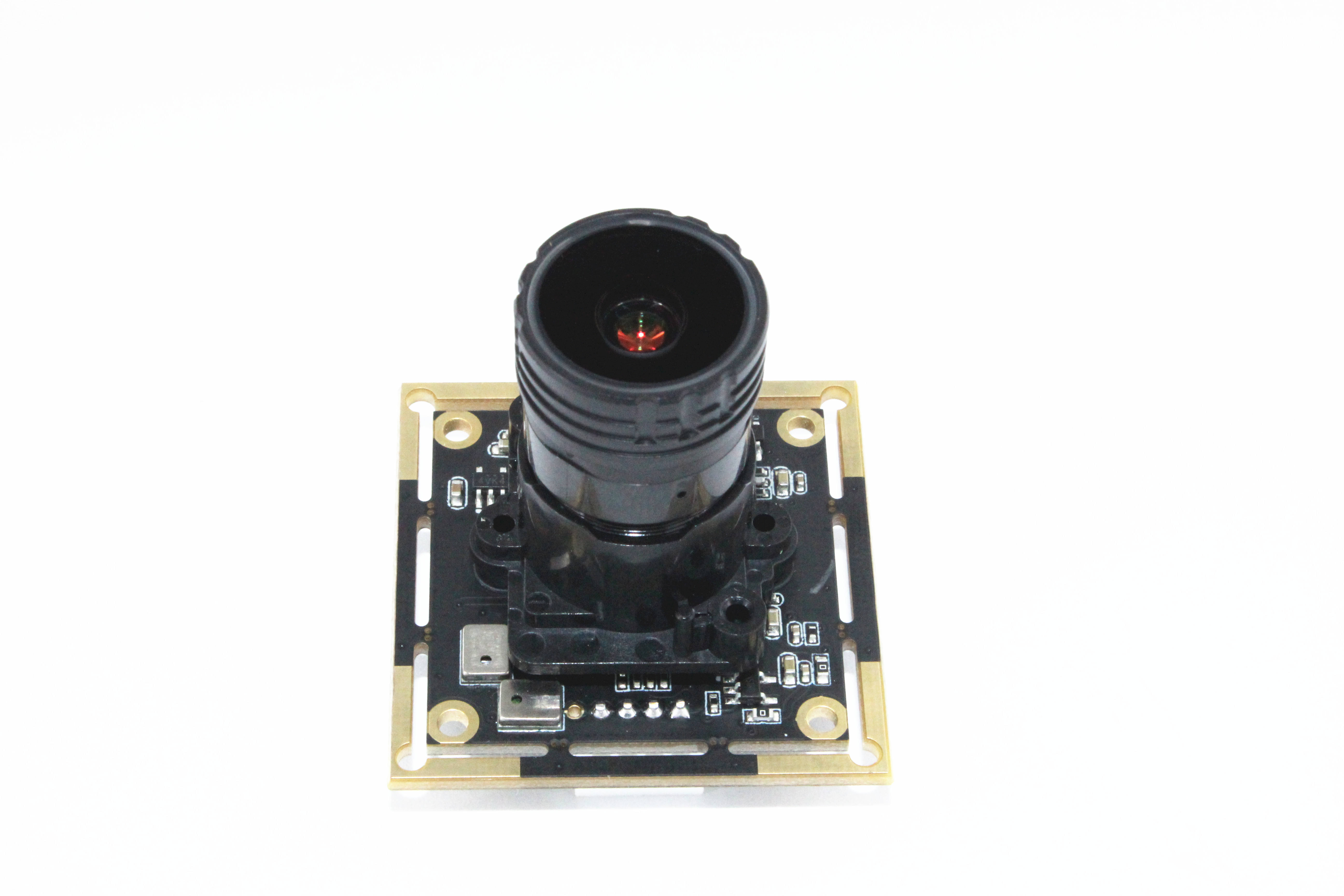

2MP Fixed Focus CMOS IMX291 Sensor camera module 4PIN Telephoto lens zoom camera module
$54.00
Availability:
In stock
Out of stock
Variations
Product Attributes
Product Description
Product Specifications
| Module No. | BM1917HD V33 |
| Module Size | 38mm × 38mm × 37.7mm±0.5MM |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | Fixed |
| Object distance | 30CM-infinity |
| Resolution | 600LW/PH (Center) |
| PCB printing ink | Black |
| interface | USB 2.0 |
| Power suuply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption | 1000 mW |
| Operating system request | Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc |
| Sensor | IMX291 (1/2.8" ) |
| Seneor Package | CSP,Bare Die |
| Maximum resolution | 1920*1080 |
| Sensitivity | 3300mV /（lux-sec） |
| Pixel Size | 2.9µm x 2.9µm |
Maximum Image Transfer Rate | MJPEG 320x240 30FPS / YUY2 320x240 30FPS MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 1280x720 30FPS / MJPEG 1920x1080 30FPS / |
| Output Formats | YUY2/MJPEG |
| Microphone | Support |
| FOV | 71° |
| Certifications | FCC/CE/ROSH |

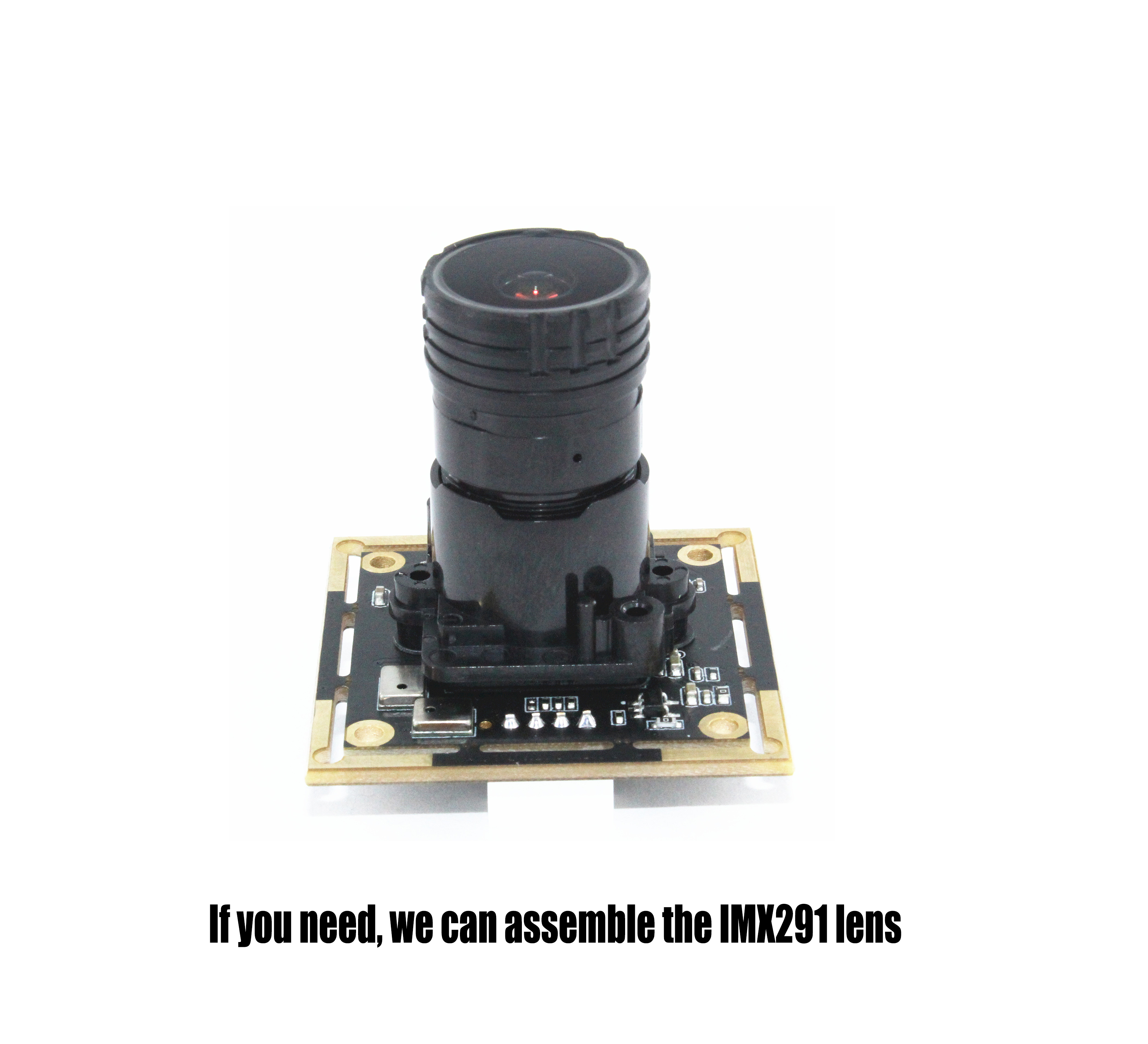

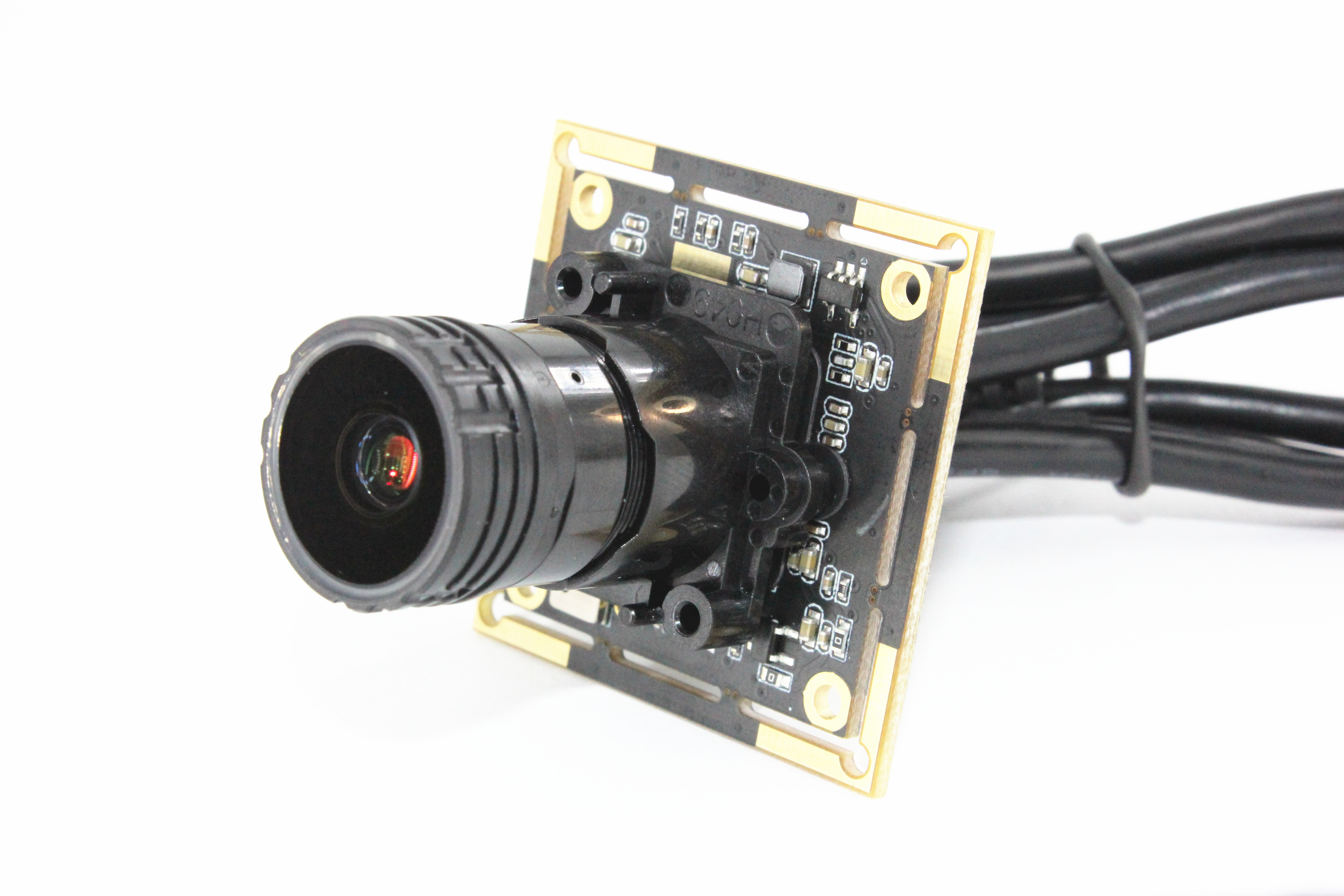

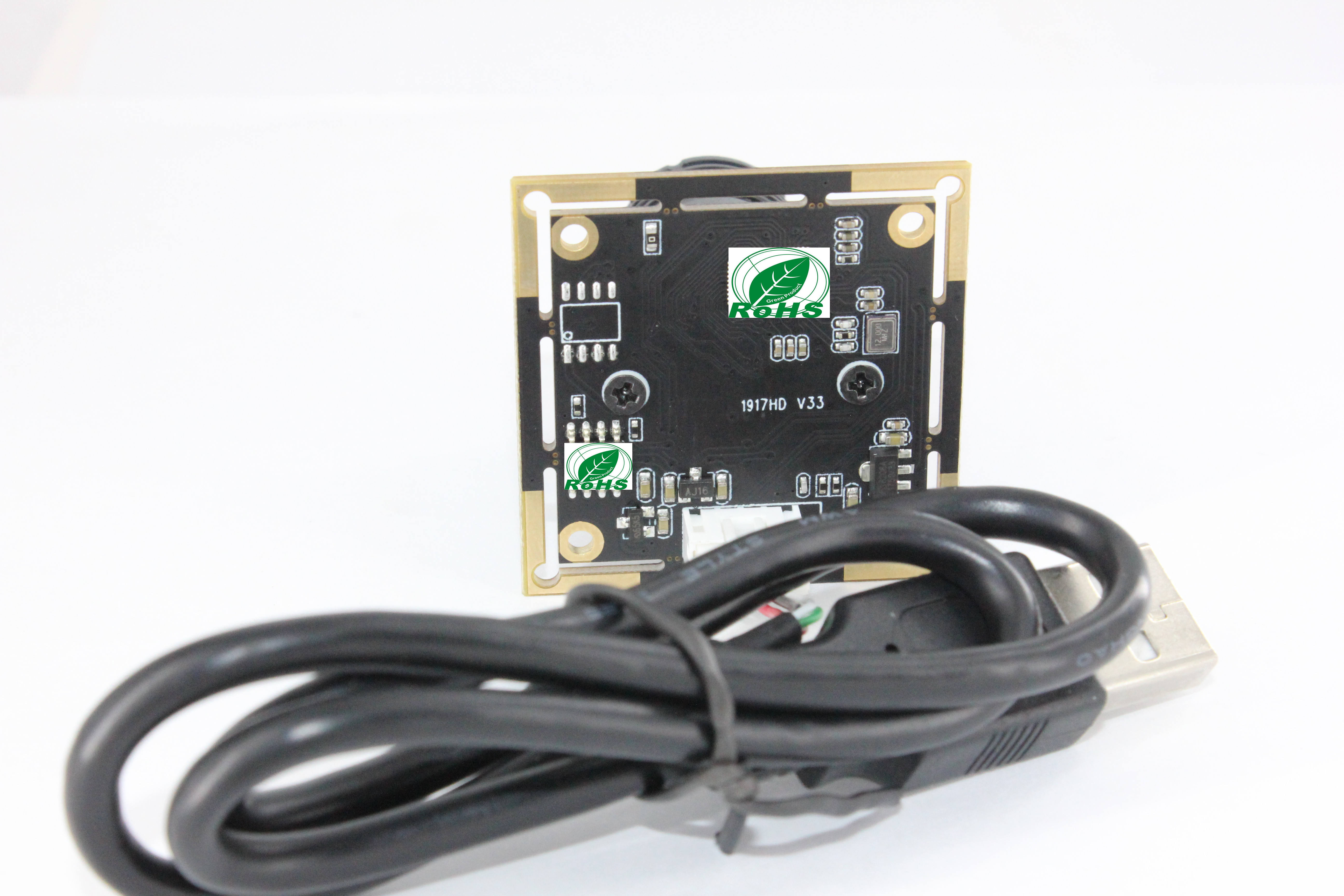

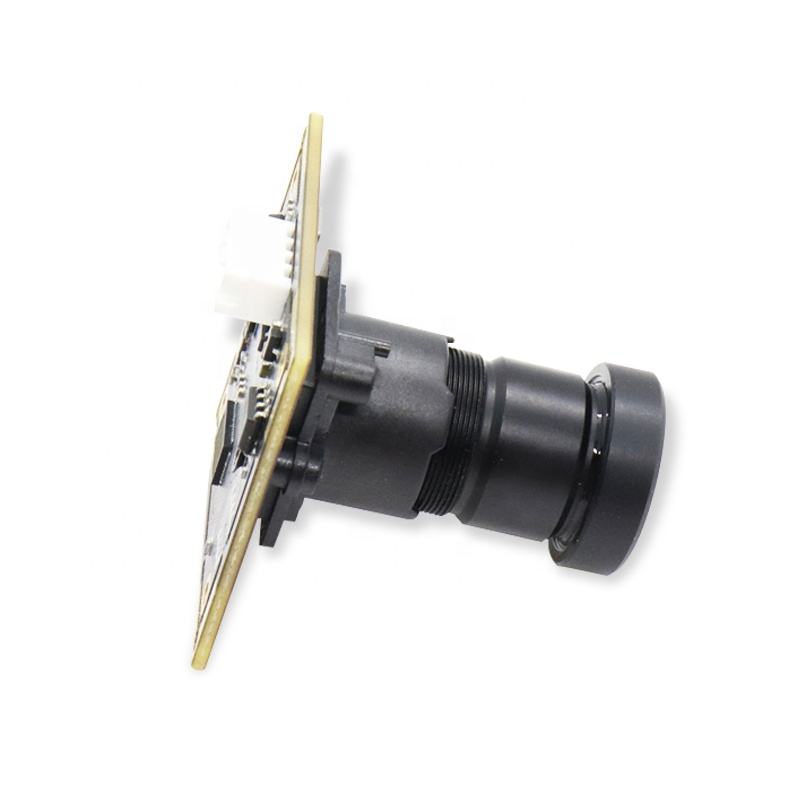

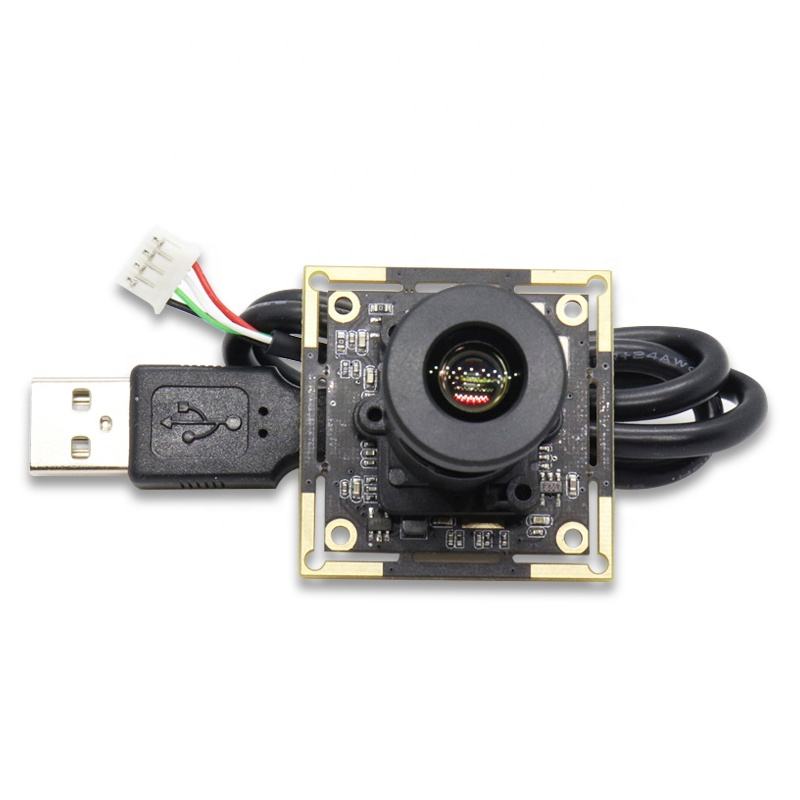

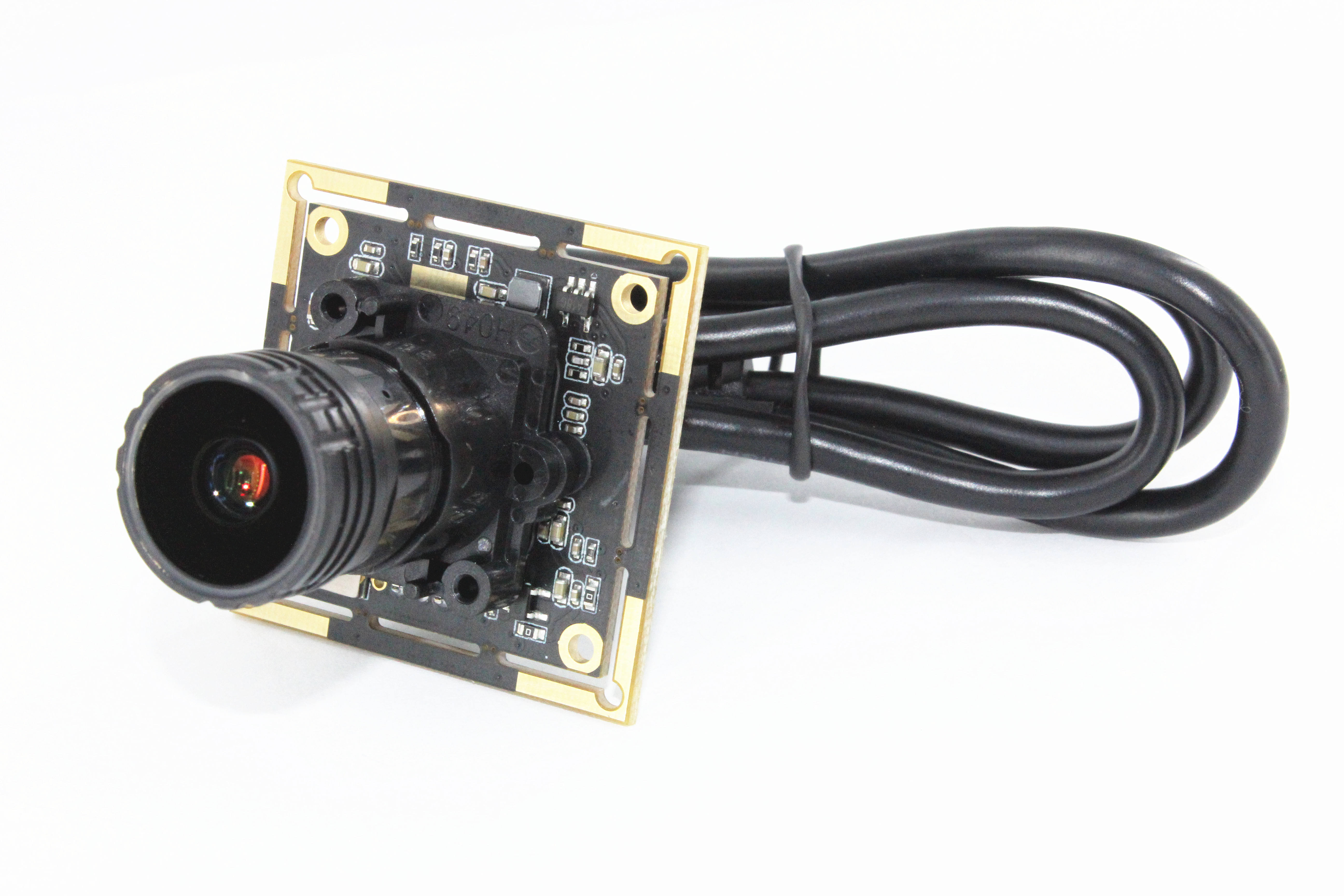

Detail Images

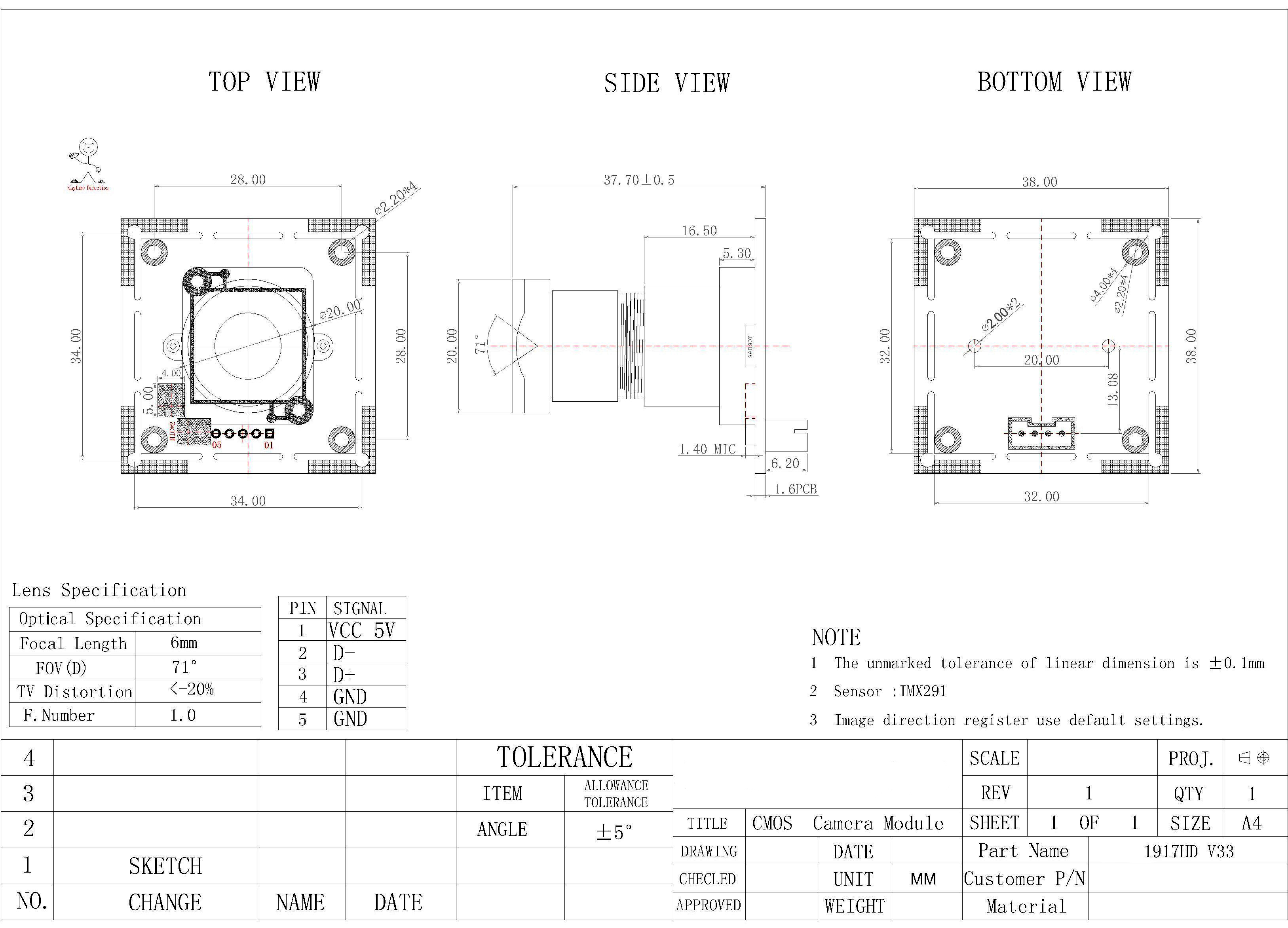

Product drawing
