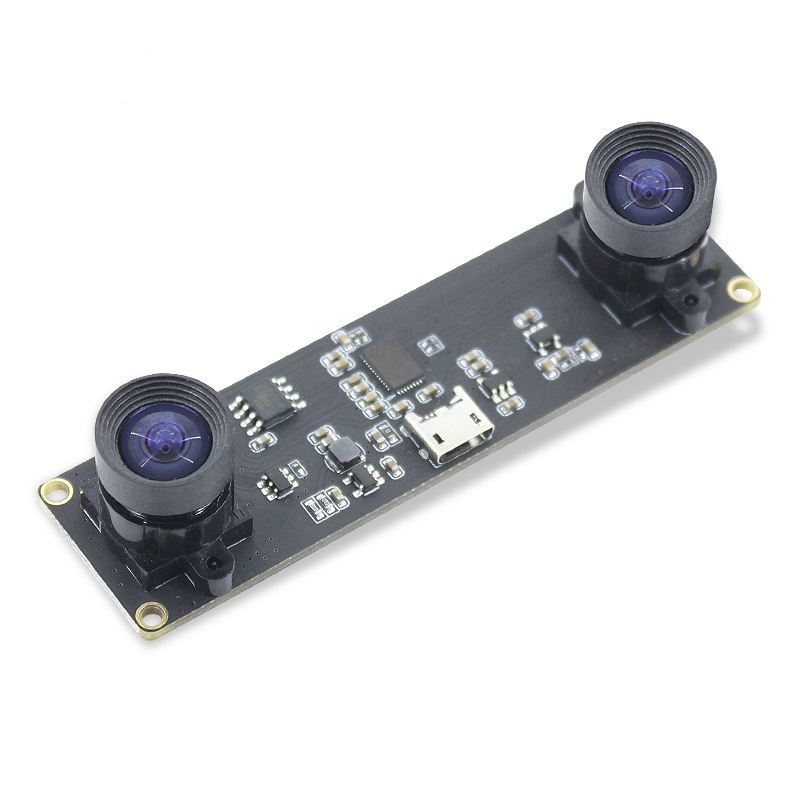

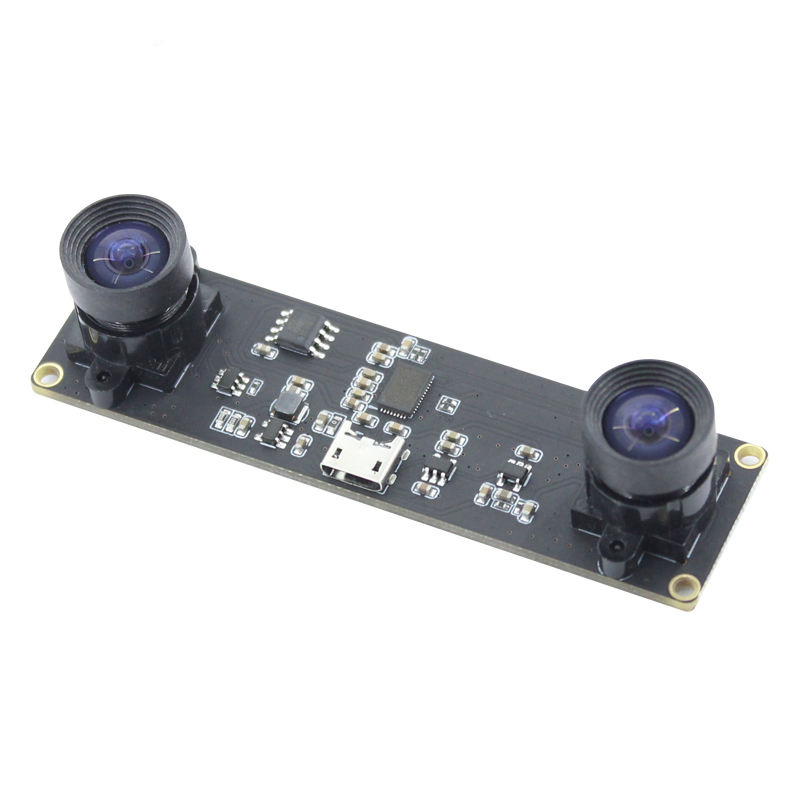

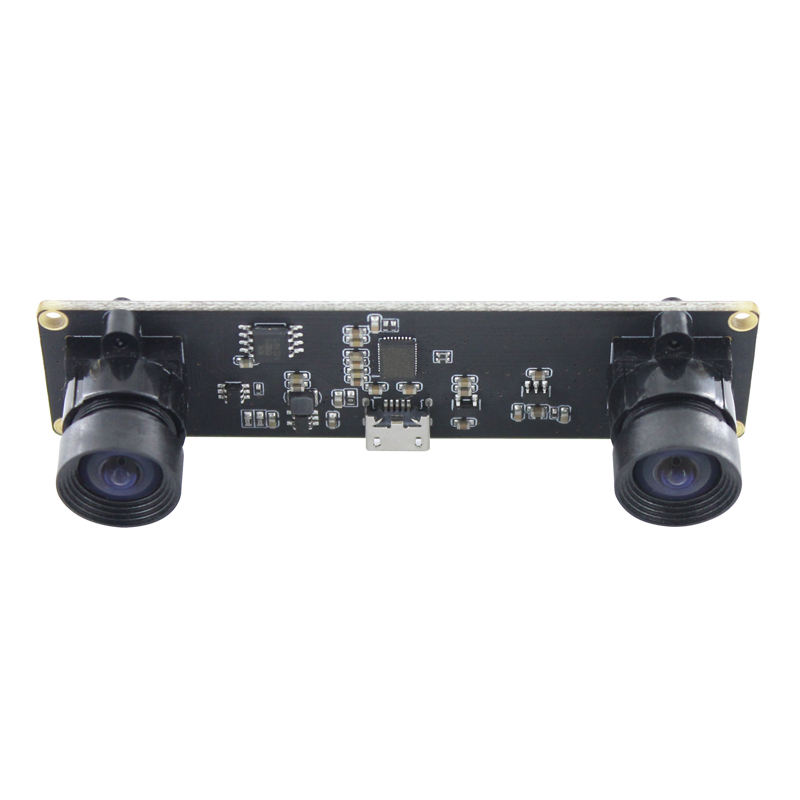

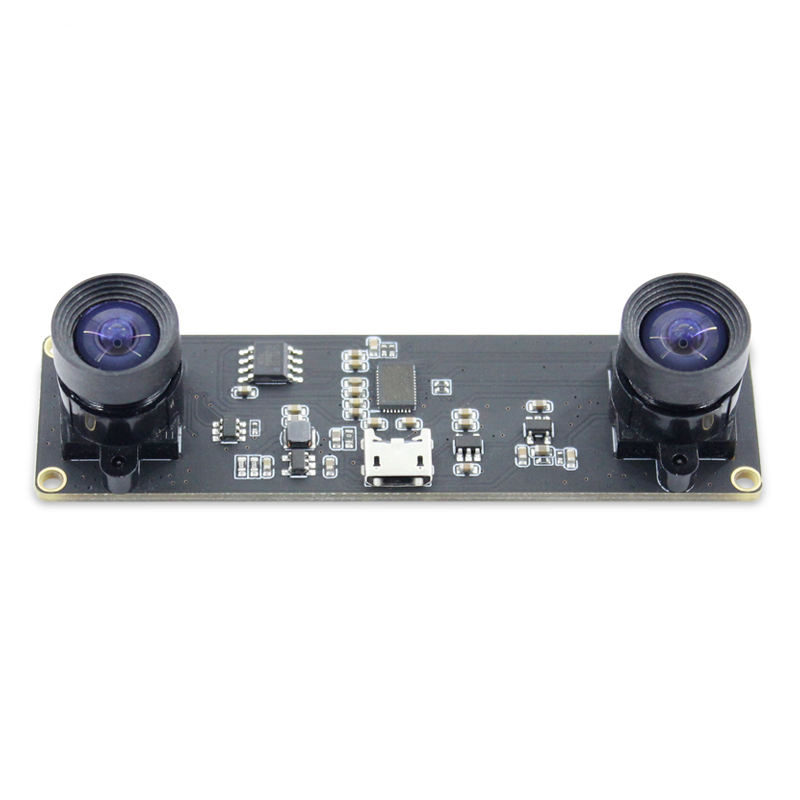

1Mp 105 Degree Usb Camera Module Hd Vr Ranging 3D Reconstruction Binocular Camera Module
$39.60
Availability:
In stock
Out of stock
Variations
Product Description
Product Description
| Product Name | 1MP 3D, VR ranging 3D reconstruction binocular synchronous camera module | ||

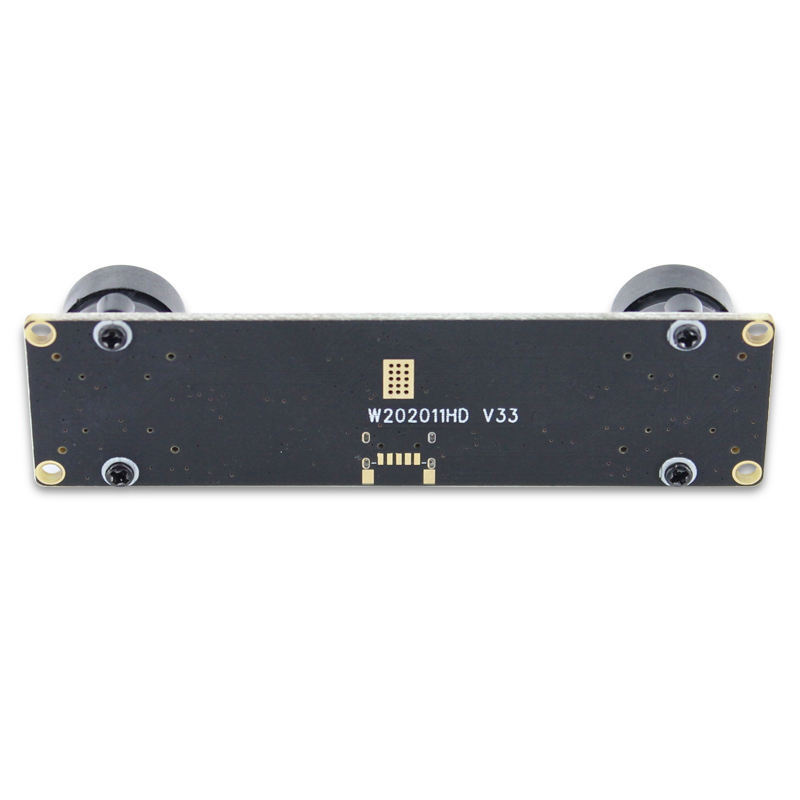

| Module No. | BMW202011HD V33 | ||
| Module Size | 80mm × 22mm × 16mm±0.5MM | ||
| Features | 1.VR ranging 2. 3D reconstruction | ||
| Temperature (Operation) | -30°C to 70°C | ||
| Temperature (Stable Image) | 0°C to 50°C | ||
| Assembly technique | SMT (ROSH) | ||
| Focus | Fixed | ||
| Object distance | 30CM-infinity | ||
| Resolution | 600LW/PH (Center) | ||
| PCB printing ink | Black | ||

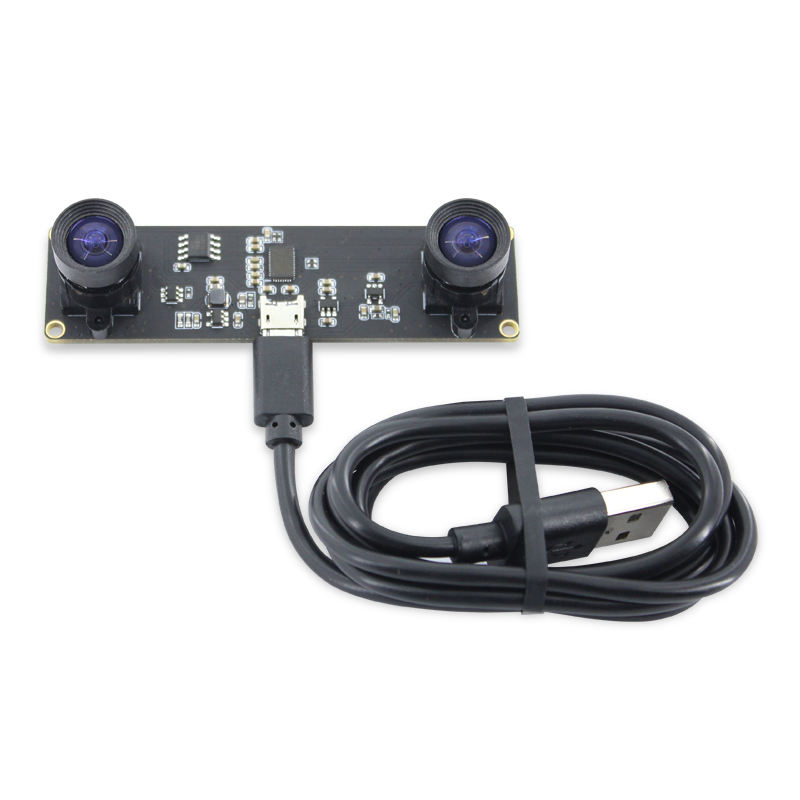

| interface | USB 2.0 | ||
| Power suuply | USB bus power | ||
| supply voltage | DC 5V±5% | ||
| Maximum Power consumption | 740 mW | ||
| Operating system request | Win XP/win 7,8 ,10/ vista /android 4.0/ mac /Linux with uvc | ||
| Sensor | JX-H62 (1/4" ) | ||
| Seneor Package | CSP,Bare Die | ||
| Maximum resolution | 2560*720 | ||
| Sensitivity | 2066mV /(lux-sec) | ||
| Pixel Size | 3µm x 3µm | ||
| Maximum Image Transfer Rate | MJPEG 640x472 30FPS / YUY2 640x472 30FPS MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 1280x480 30FPS / YUY2 1280x480 15FPS MJPEG 1280x712 30FPS / YUY2 1280x712 10FPS MJPEG 1280x720 30FPS / YUY2 1280x720 10FPS MJPEG 2560x720 30FPS / YUY2 2560x720 5FPS | ||
| S/N Ratio | 39 db | ||
| Max Dynamic Range | 72db | ||
| Shutter type | Electronic rolling shutter | ||
| AGC/AEC/Whiter balance | Auto | ||
| Output Formats | YUY2/MJPEG | ||
| Microphone | NO | ||
| Lens Construction | 2G2P | ||
| F/No | 2.4 | ||
| EFL | 2.4 mm | ||
| FOV | 105° | ||
| TV Distortion | <5% | ||
| Relative Illumination (Sensor) | 70% | ||
| IR Filter | 650±10nm | ||
| Module Package | Anti-electrostatic tray | ||
| Certifications | FCC/CE/ROSH |
Detailed Images
