Hot-selling 2MP 1080p HD fixed focus 30fps mini CMOS MX291 USB starlight camera module for Android System
$52.80
Availability:
In stock
Out of stock
Variations
Product Attributes
Product Description
Product Description
| Model No. | BM1917HD V33 | |
| Model Size | 38mm × 38mm × 37.7mm±0.5MM | |
| Temperature (Operation) | -30°C to 70°C | |
| Temperature (Stable Image) | 0°C to 50°C | |
| Assembly technique | SMT (ROSH) | |
| Focus | Fixed | |
| Object distance | 30CM-infinity | |
| Resolution | 600LW/PH (Center) | |
| PCB printing ink | black | |
| interface | USB 2.0 | |
| Power supply | USB bus power | |
| supply voltage | DC 5V±5% | |
| Maximum Power consumption | 1000 mW | |
| Operating system request | Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc | |
| Sensor | IMX291 (1/2.8" ) | |
| Seneor Package | CSP,Bare Die | |
| Maximum resolution | 1290*1080 | |
| Sensitivity | 3300 /（lux-sec） | |
| Pixel Size | 2.9µm x 2.9µm | |
| Maximum Image Transfer Rate | MJPEG 320x240 30FPS / YUY2 320x240 30FPS MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 1280x720 30FPS / MJPEG 1920x1080 30FPS / | |
| S/N Ratio | 42db | |
| Max Dynamic Range | 72db | |
| Shutter type | Electronic rolling shutter | |
| AGC/AEC/Whiter balance | Auto | |
| Output Formats | YUY2/MJPEG | |
| Microphone | Support | |
| Lens Construction | 4G | |
| F/No | 1.6 | |
| EFL | 4.2 mm | |
| FOV | 71° | |
| TV Distortion | <-20% | |
| Relative Illumination (Sensor) | 70% | |
| IR Filter | 650±10nm | |
| Module Package | Anti-electrostatic tray | |
| Certifications | FCC/CE/ROSH | |
| USB cable | 50CM 1M 2M 3M | |
1.The parameters of FOV are just for your reference, Different Lens has different FOV . 2.The frame rate is related to Light,operating system and so on, the frame rate exist a little error. If you mind it, please don’t make an order for it. Thank you for your understanding. | ||
Detail Images

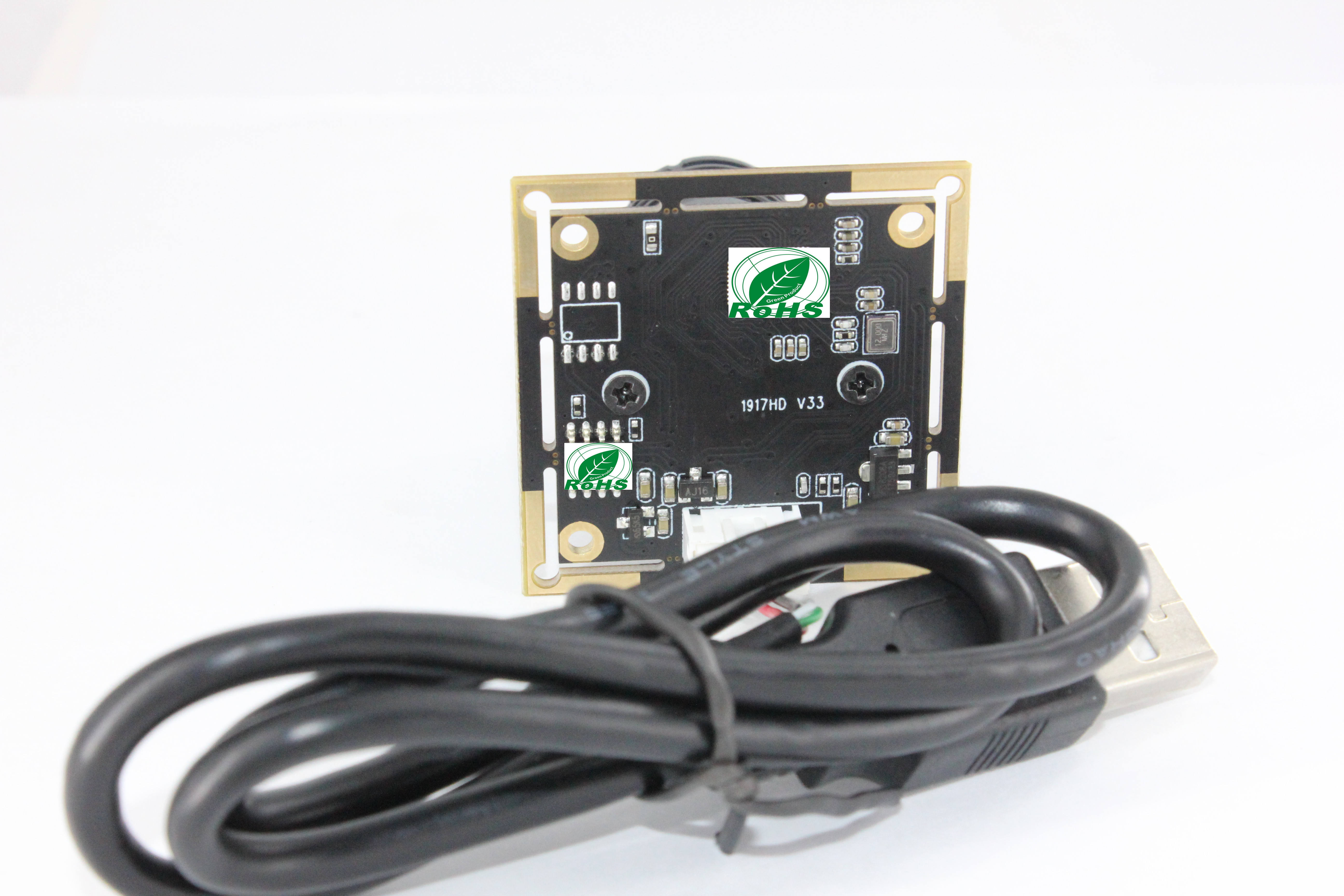

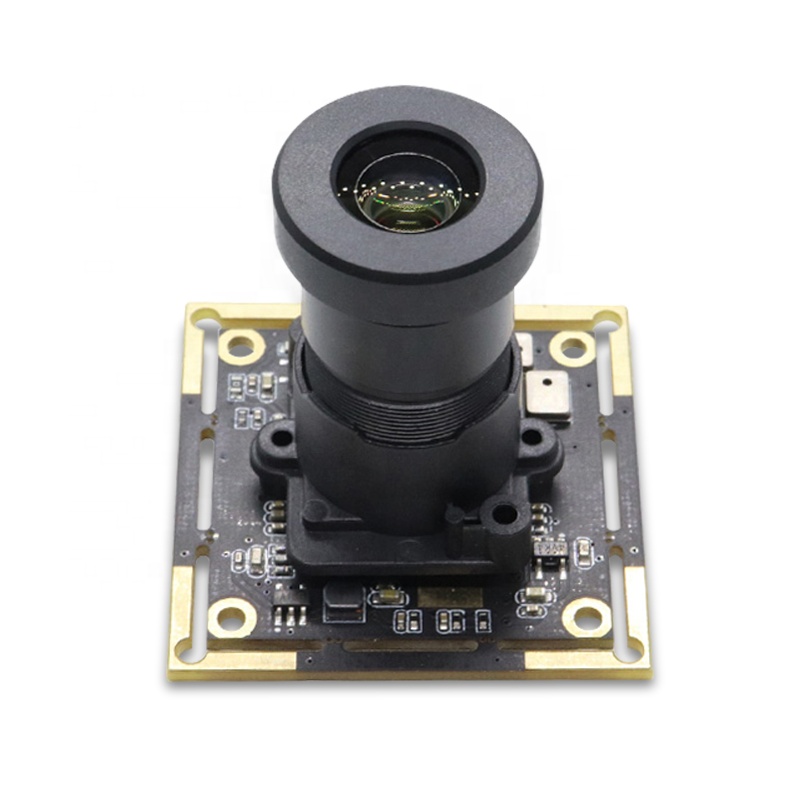

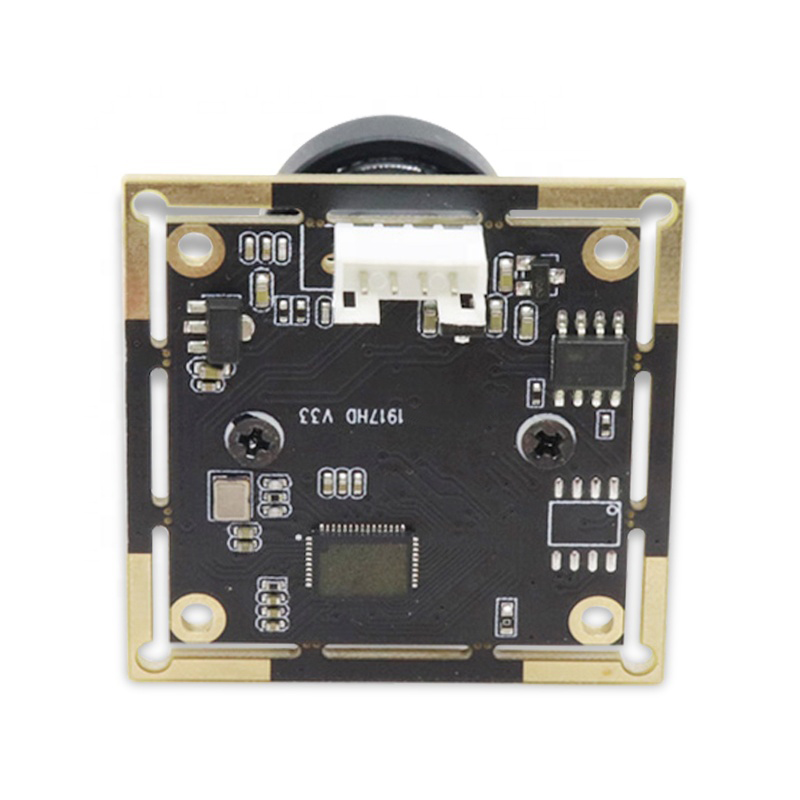

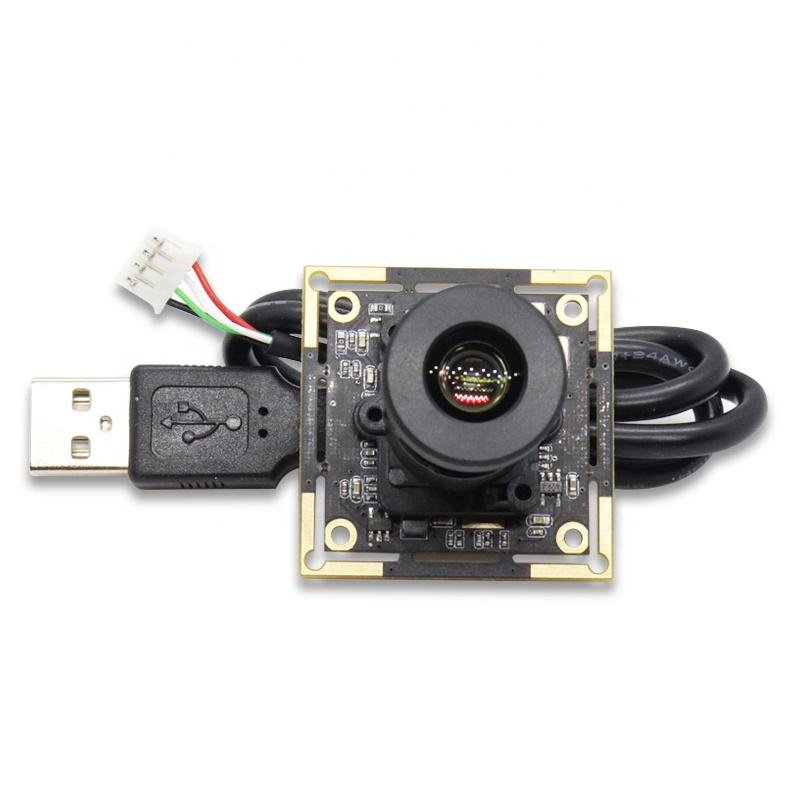

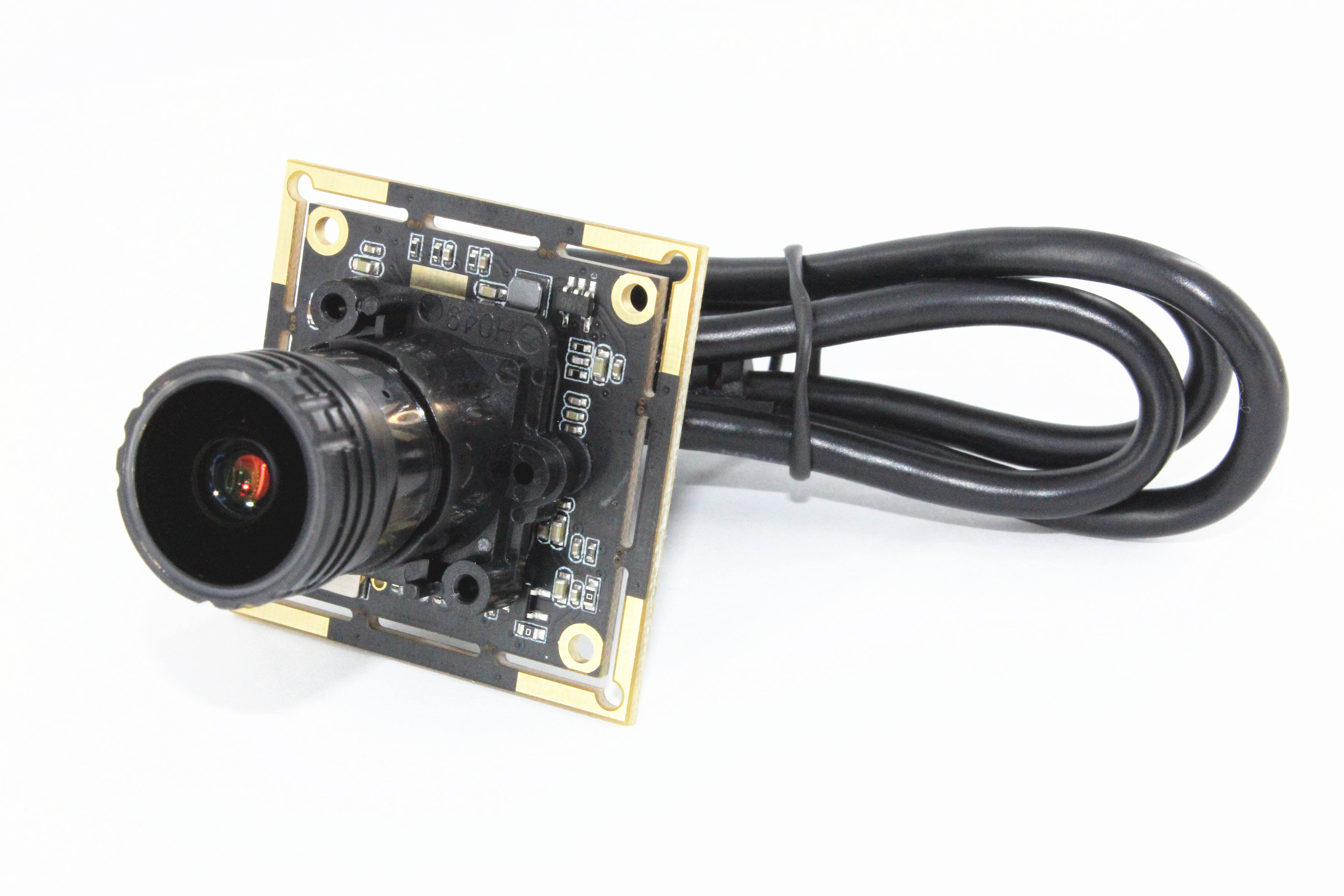

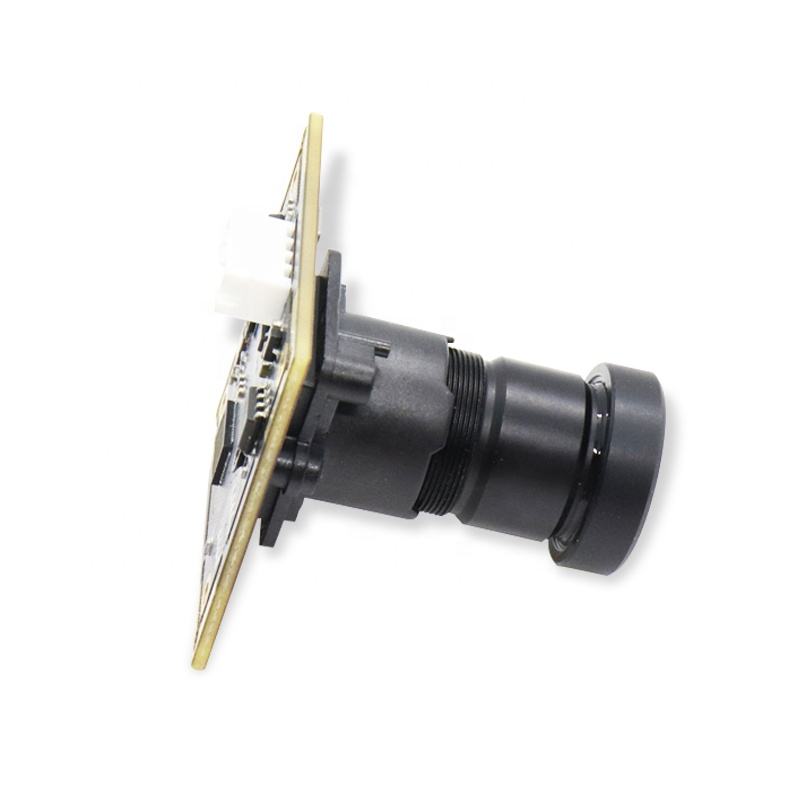

2MP starlight HD camera module
1.this is 2MP HD starlight camera module, the image effect is better when you use it at night.
2. it is free driver, with standard UVC protocol for window /Linux/Android system.
