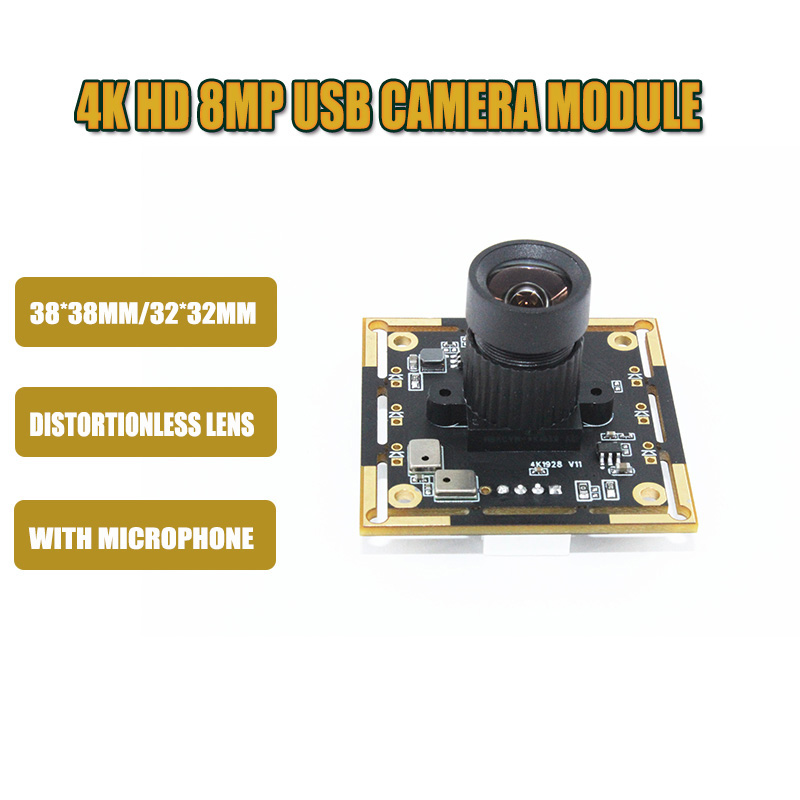

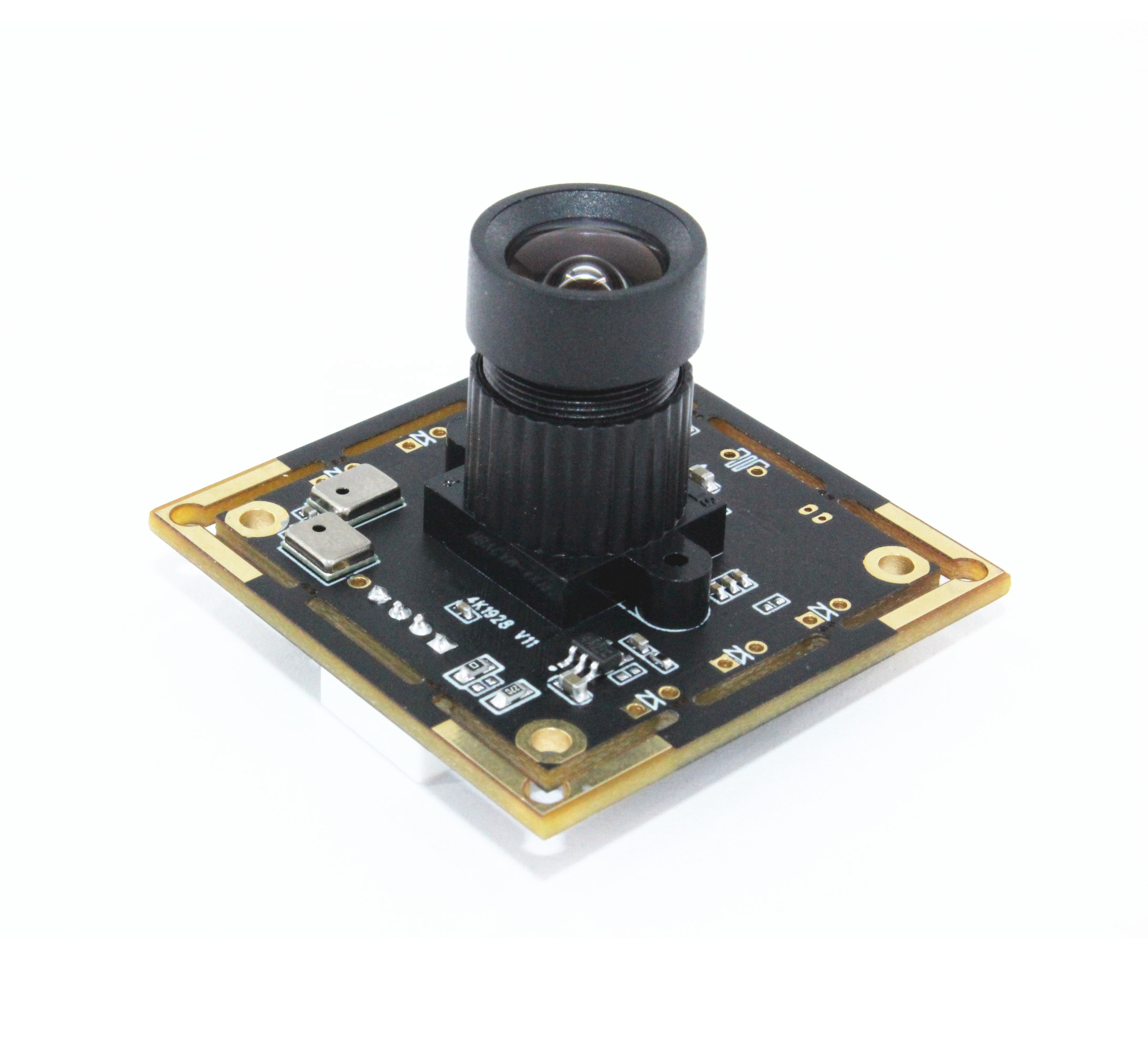

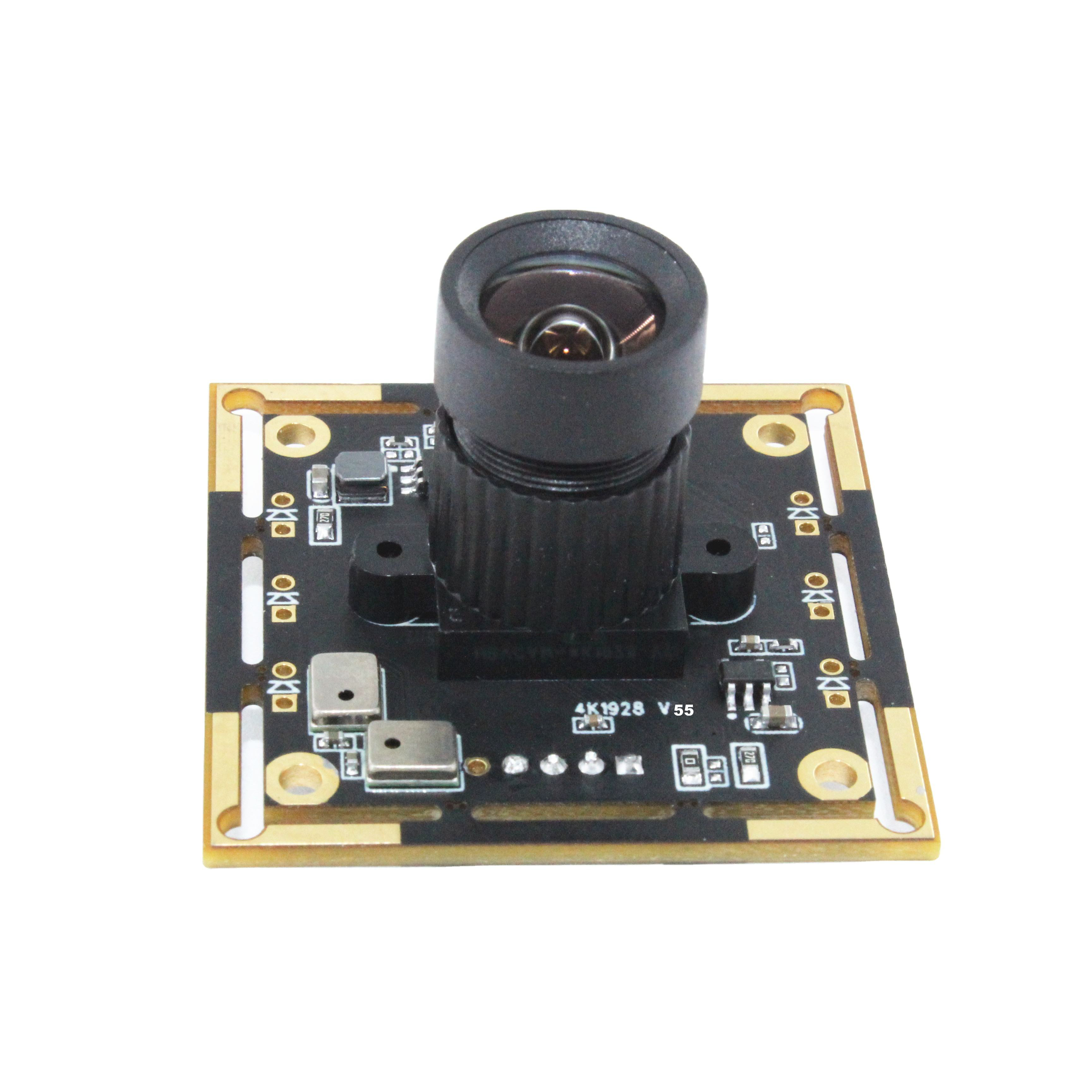

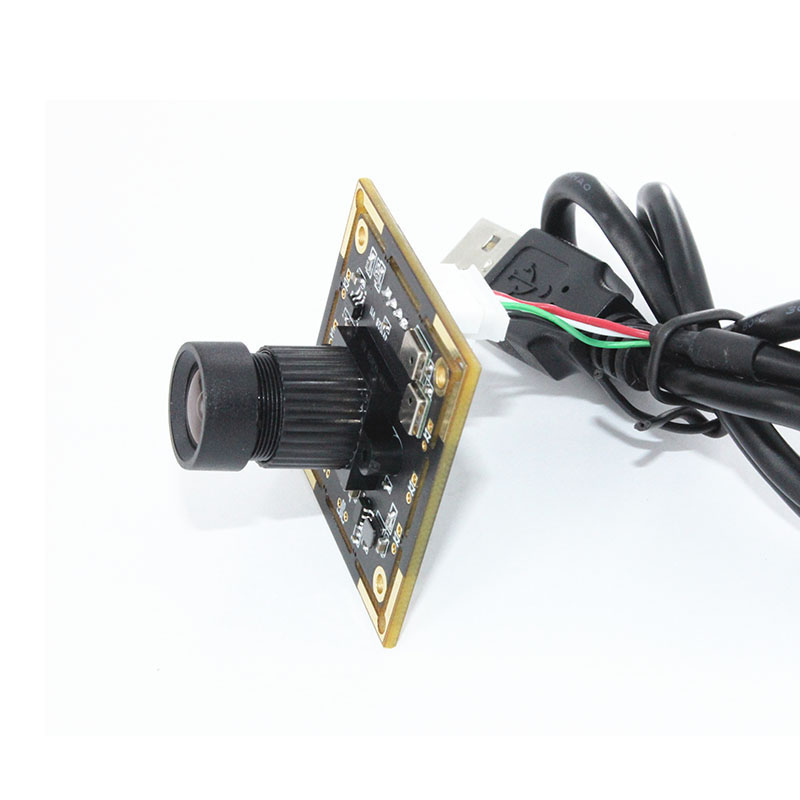

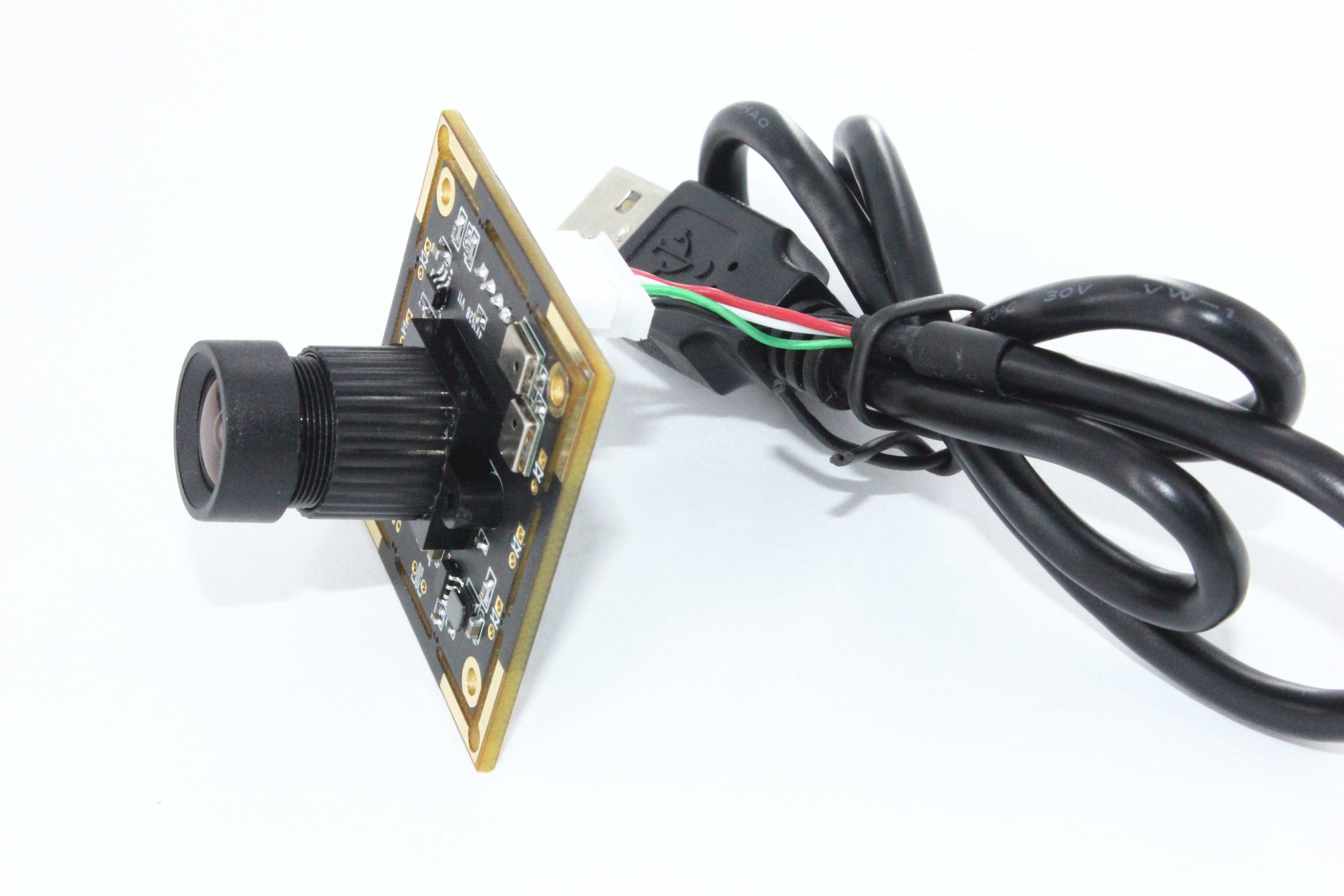

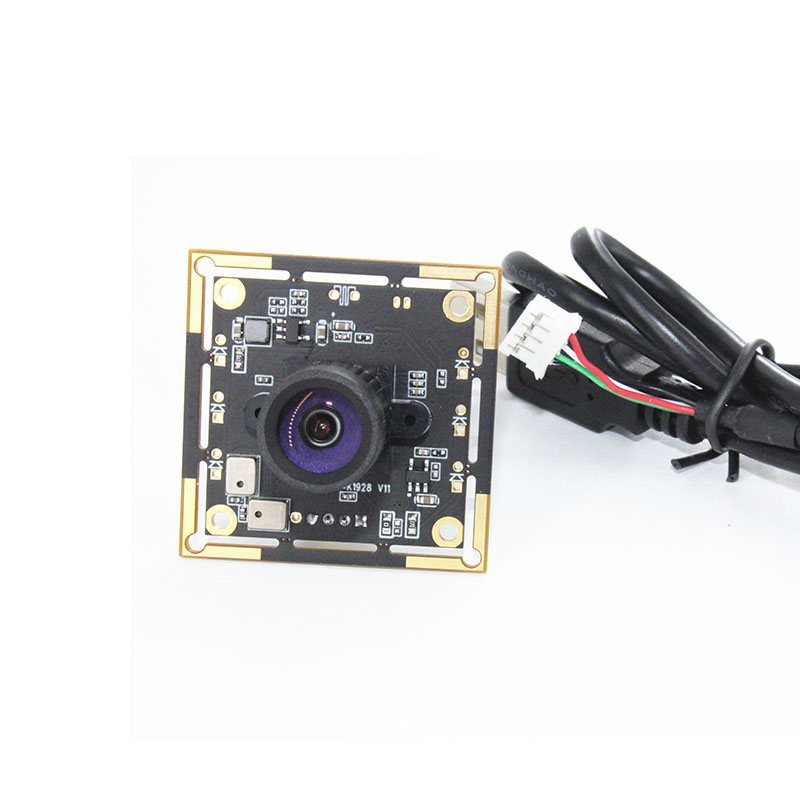

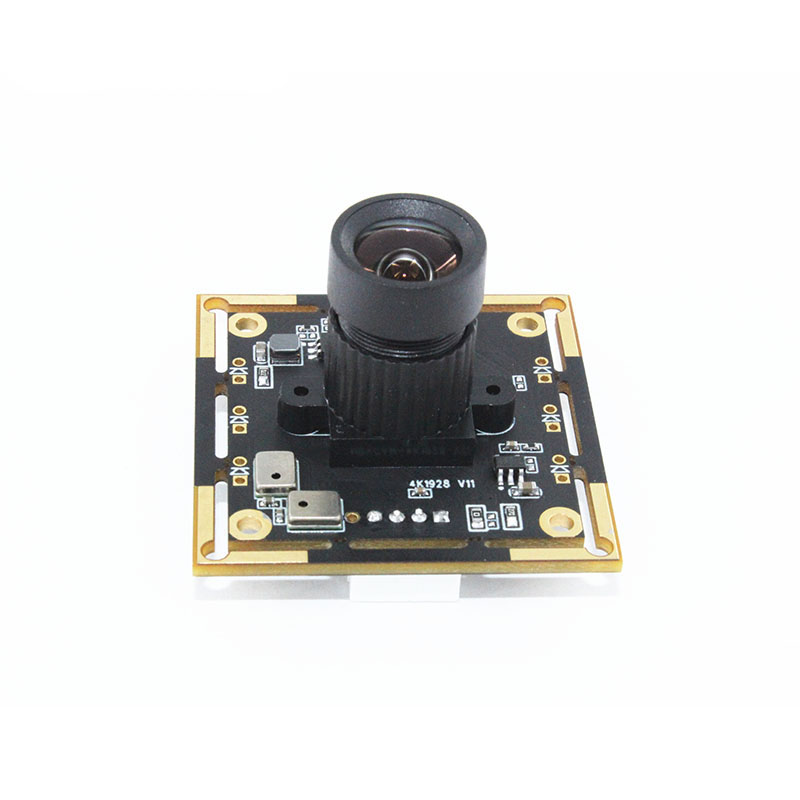

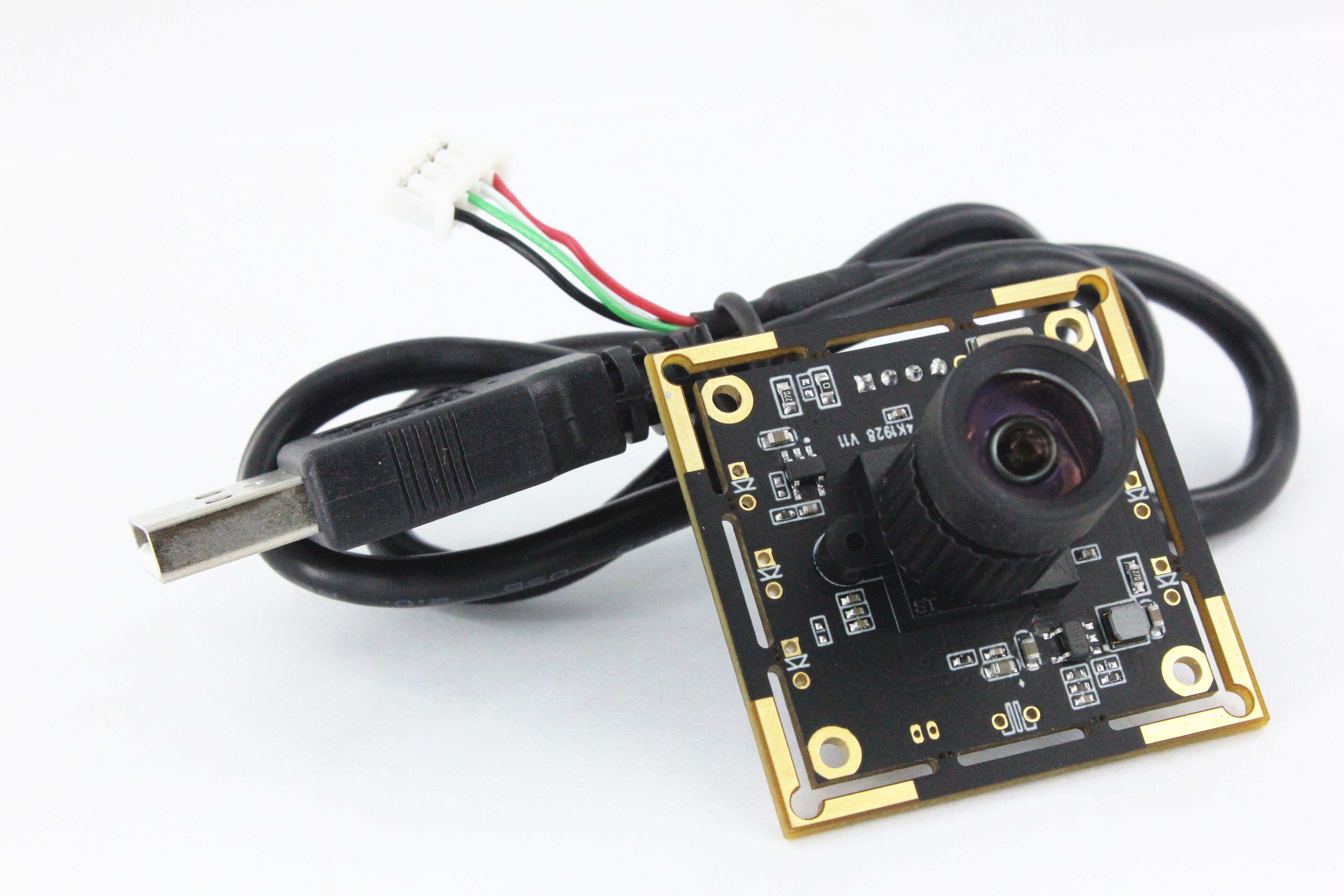

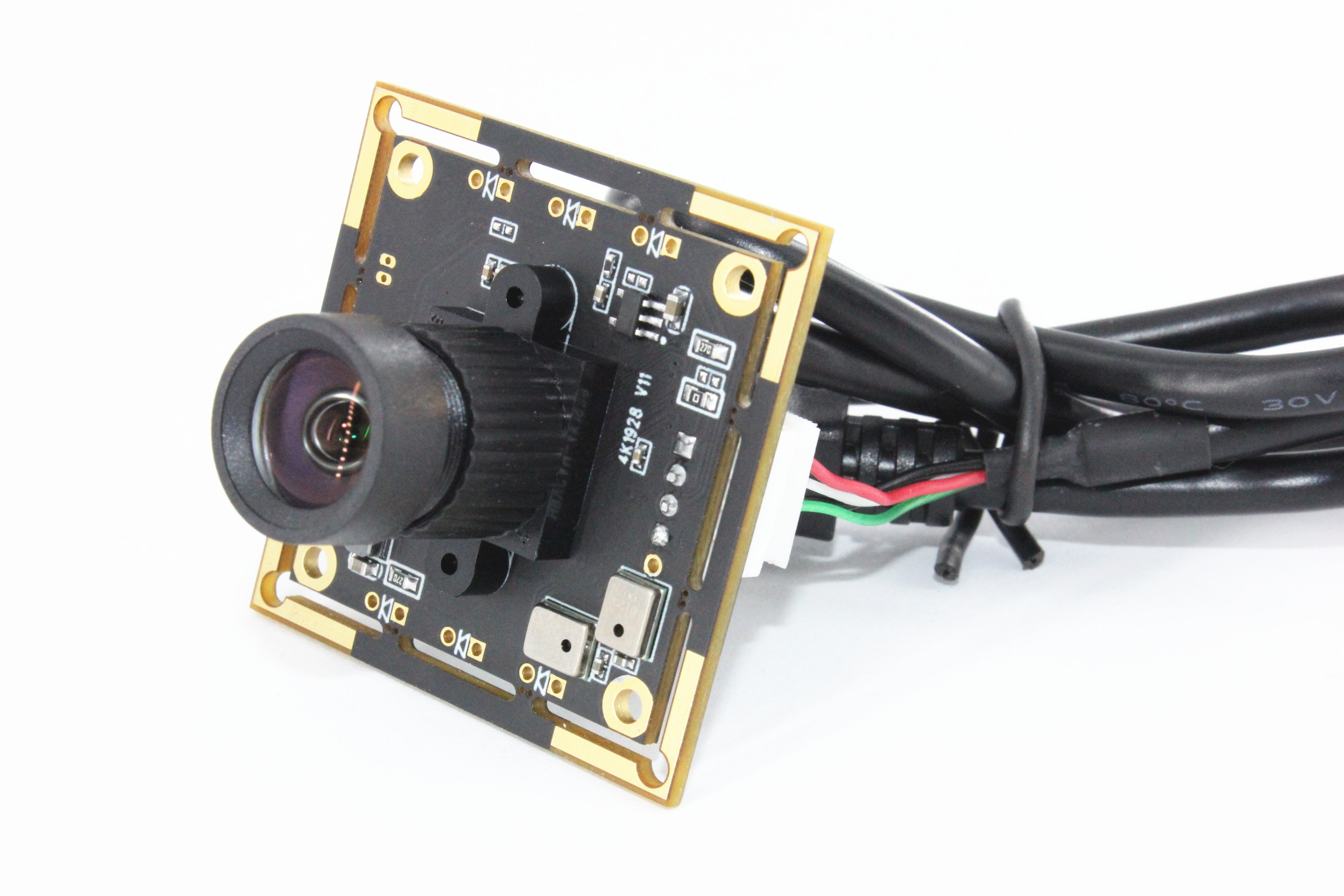

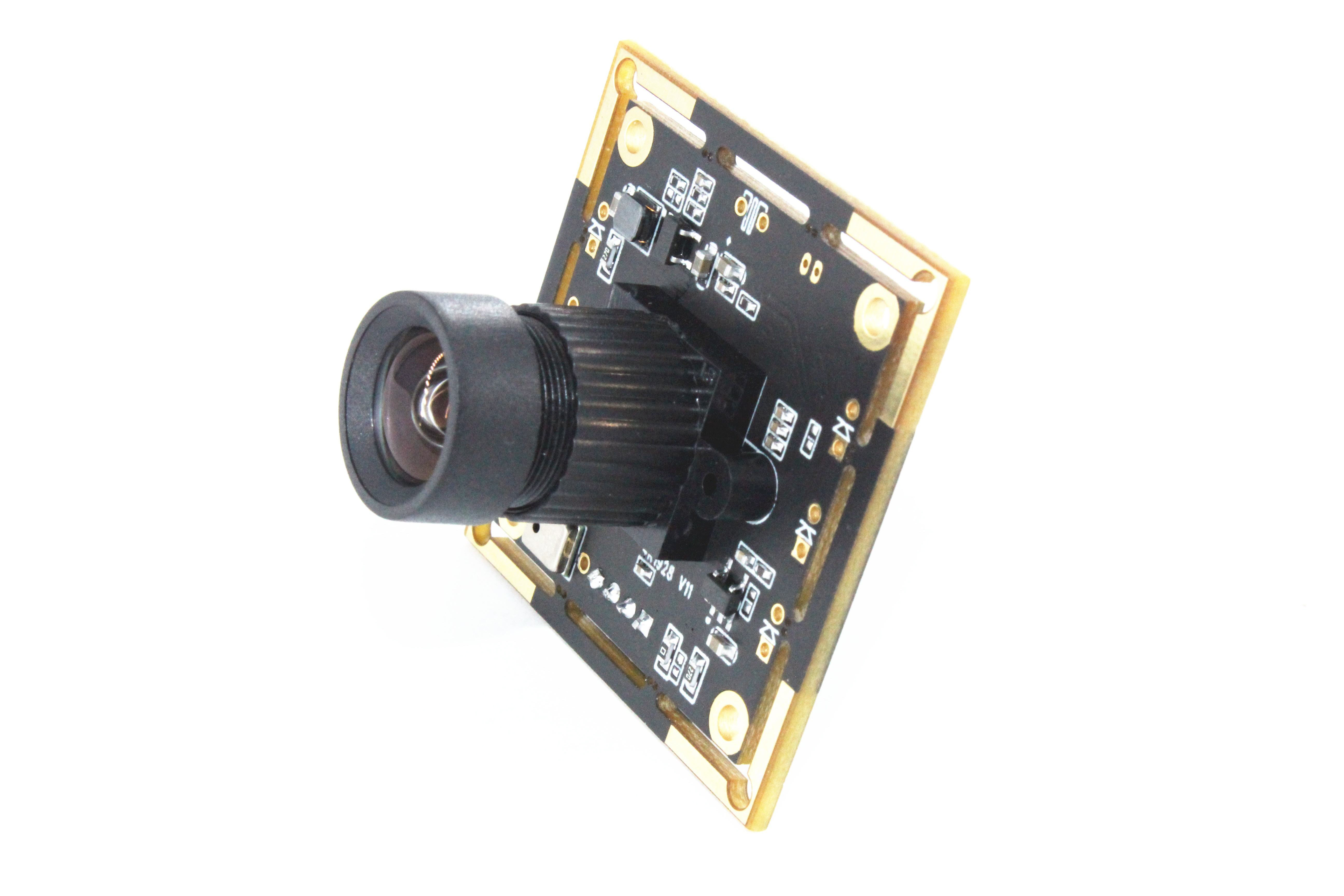

8MP UVC HD IMX317 CMOS Mini 3840*2160 30fps USB2.0 4K Camera module for Face Recognition
$68.40
Availability:
In stock
Out of stock
Variations
Product Attributes
Product Description
Product Description
Module No. | BM4K1928 V11 |
Module Size | 38mm × 38mm × 24.4mm±0.5MM |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | Fixed |
| Object distance | 30CM-infinity |
| Resolution | 800LW/PH (Center) |
| PCB printing ink | black |
| interface | USB 2.0 |
| Power suuply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption | 940mW |
| Operating system request | Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc |
| Sensor | IMX317 (1/2.5" ) |
| Seneor Package | CSP,Bare Die |
| Maximum resolution | 3840*2160 |
| Sensitivity | 760mv /（lux-sec） |
| Pixel Size | 1.62µm x 1.62µm |
| S/N Ratio | 44 db |
| Max Dynamic Range | 82 db |
| Shutter type | Electronic rolling shutter |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2/MJPEG |
| Microphone | Support |
| Lens Construction | 4G |
| F/No | 2.2 |
| EFL | 2.1mm |
| FOV | 85° |
| TV Distortion | <1% |
| Maximum Image Transfer Rate | MJPEG 1600x1200 30FPS / YUY2 1600x1200 5FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 5FPS MJPEG 2048x1536 30FPS / YUY2 2048x1536 3FPS MJPEG 2688x1512 30FPS / YUY2 2688x1512 2FPS MJPEG 2592x1944 30FPS / YUY2 2592x1944 2FPS MJPEG 3840x2160 30FPS / YUY23840x2160 1FPS |

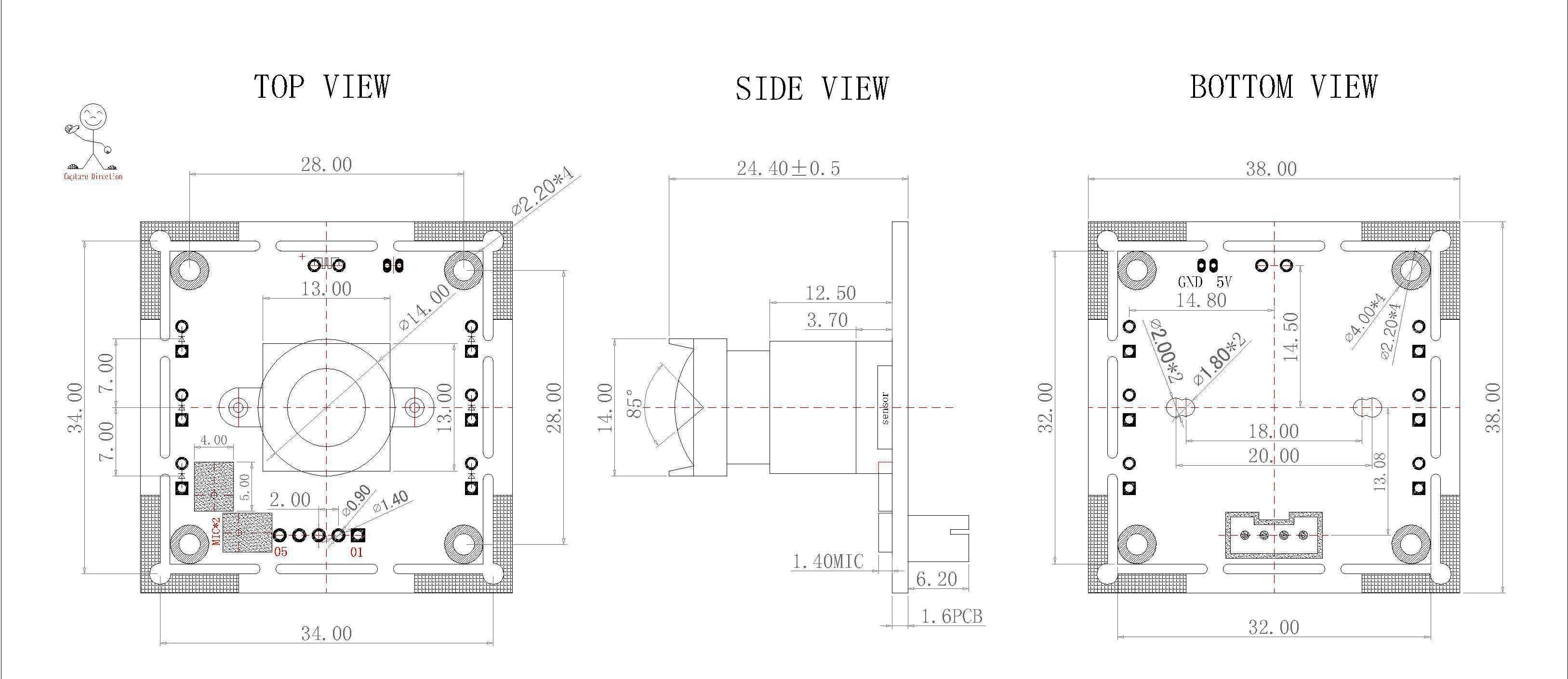

product drawing
