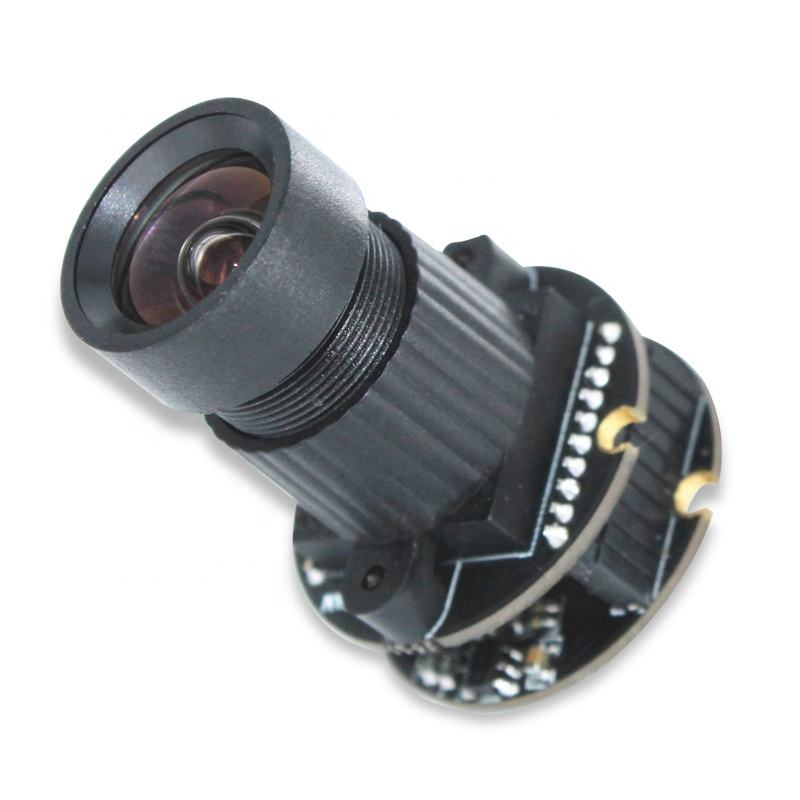

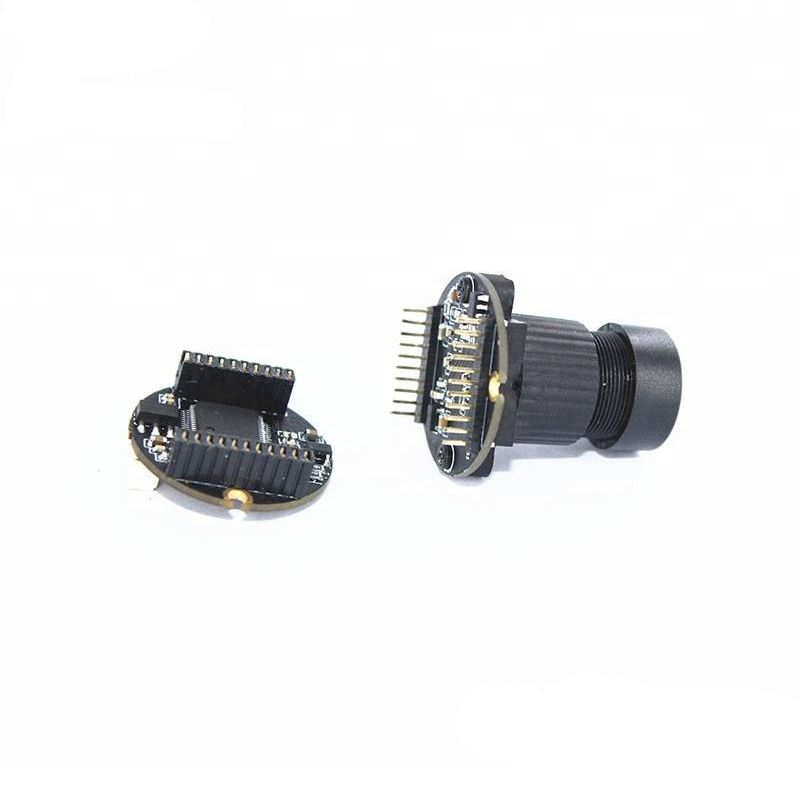

5M Pixel Round Small Mini Webcam Fixed focus HD MI5100 Sensor Module CMOS Camera Module
$45.60
Availability:
In stock
Out of stock
Variations
Product Attributes
Product Description
Product Specification
| Module No. | BM1802R V11 |
| Module Size | Φ22 × 30.4mm±0.5MM |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | Fixed |
| Object distance | 30CM-infinity |
| Resolution | 800LW/PH (Center) |
| PCB printing ink | Black |
| interface | USB 2.0 |
| Power suuply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption | 1000 mW |
| Operating system request | Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc |
| Sensor | MI5100 (1/2.5" ) |
| Seneor Package | PLCC,Bare Die |
| Maximum resolution | 2592*1944 |
| Sensitivity | 0.51V /（lux-sec） |
| Pixel Size | 2.2µm x 2.2µm |
| Maximum Image Transfer Rate | MJPEG 1280x1024 15FPS / YUY2 1280x1024 9FPS MJPEG 1600x1200 15FPS / YUY2 1600x1200 5FPS MJPEG 1920x1080 15FPS / YUY2 1920x1080 4FPS MJPEG 2048x1536 15FPS / YUY2 2048x1536 4FPS MJPEG 2592x1944 15FPS / YUY2 2592x1944 3FPS |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2/MJPEG |
| Microphone | Support |
| EFL | 4.2 mm |
| DFOV | 77° |
| Certifications | FCC/CE/ROSH |

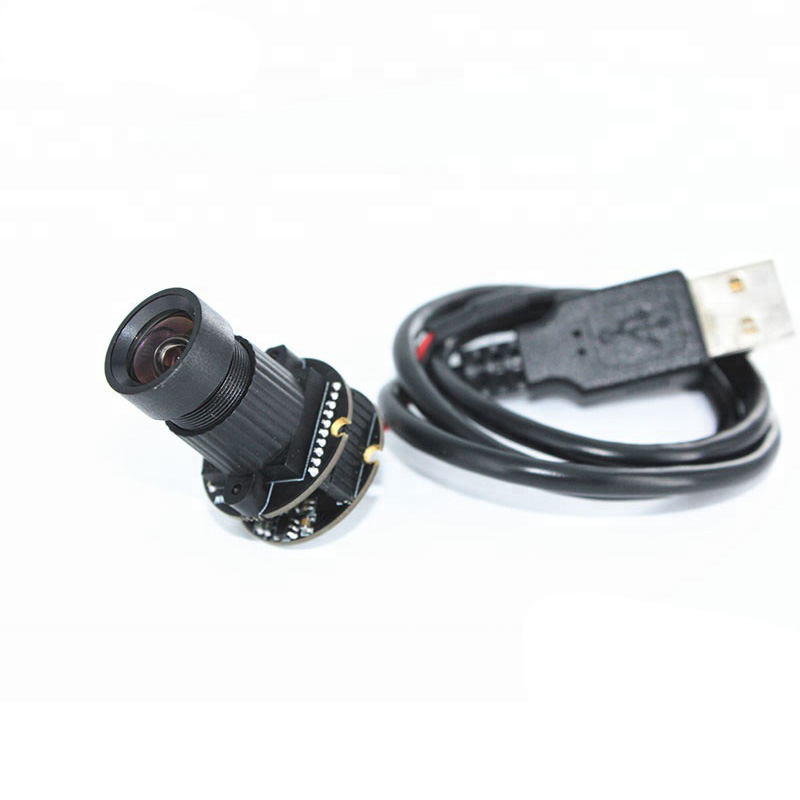

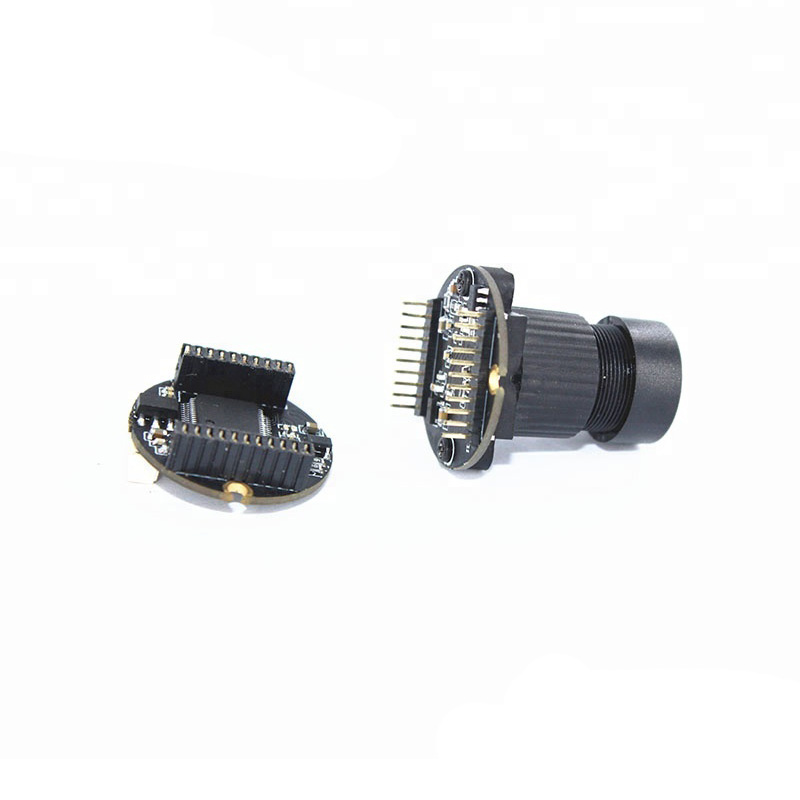

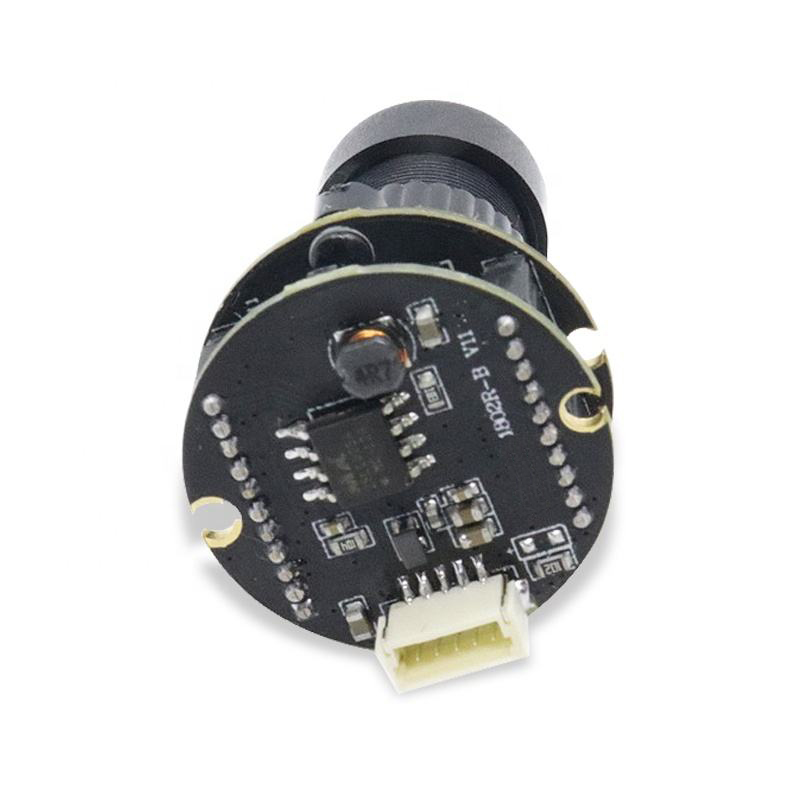

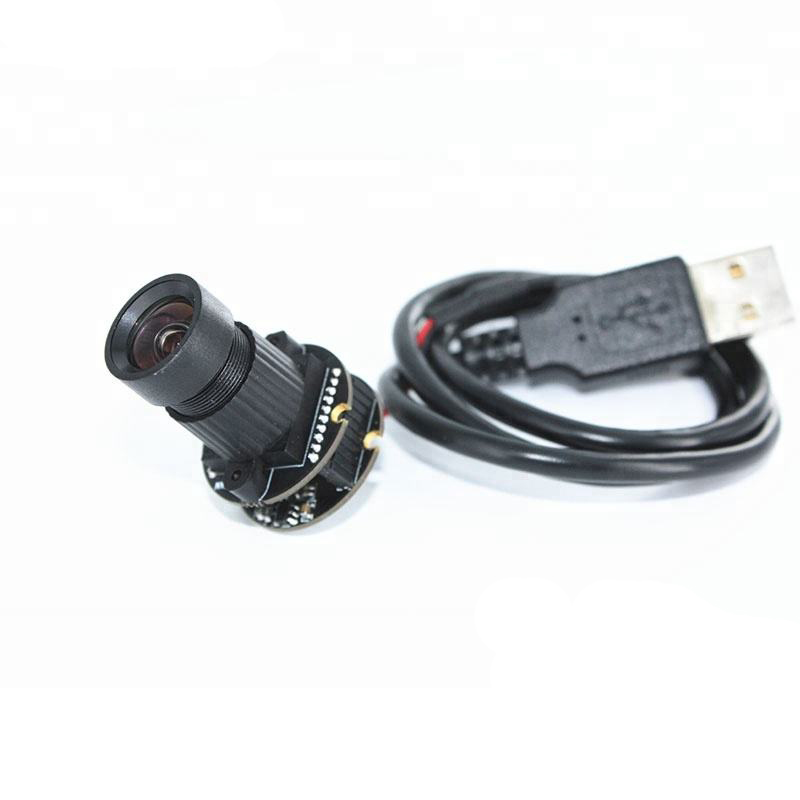

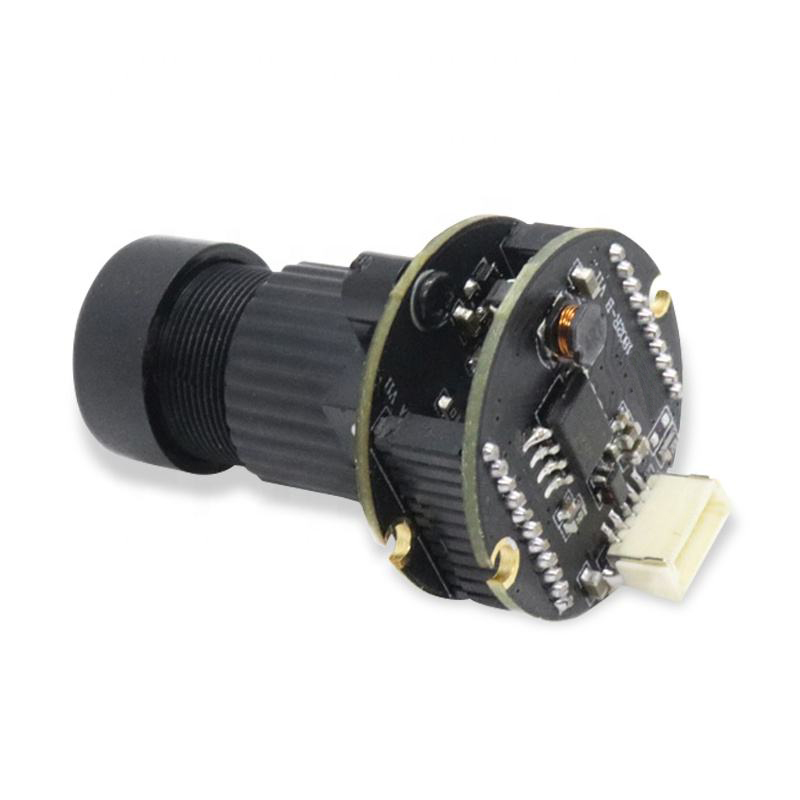

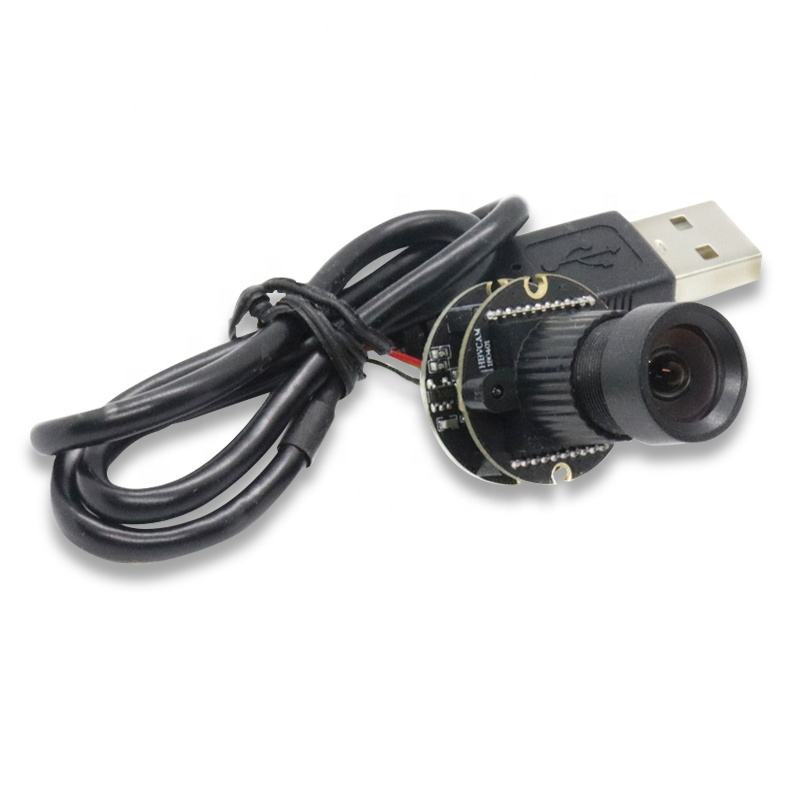

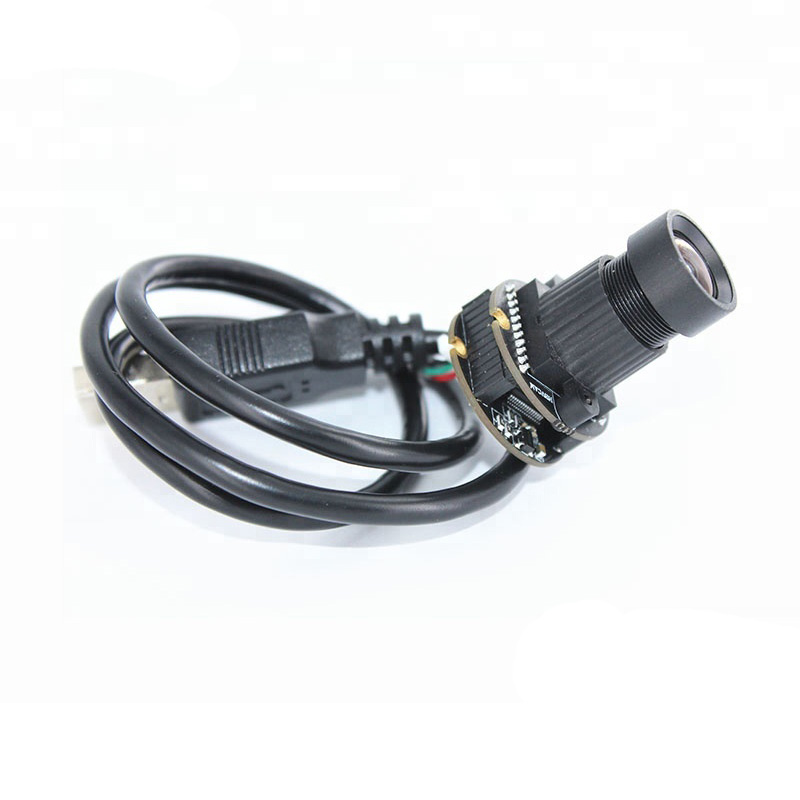

Detail Images
Product drawing
