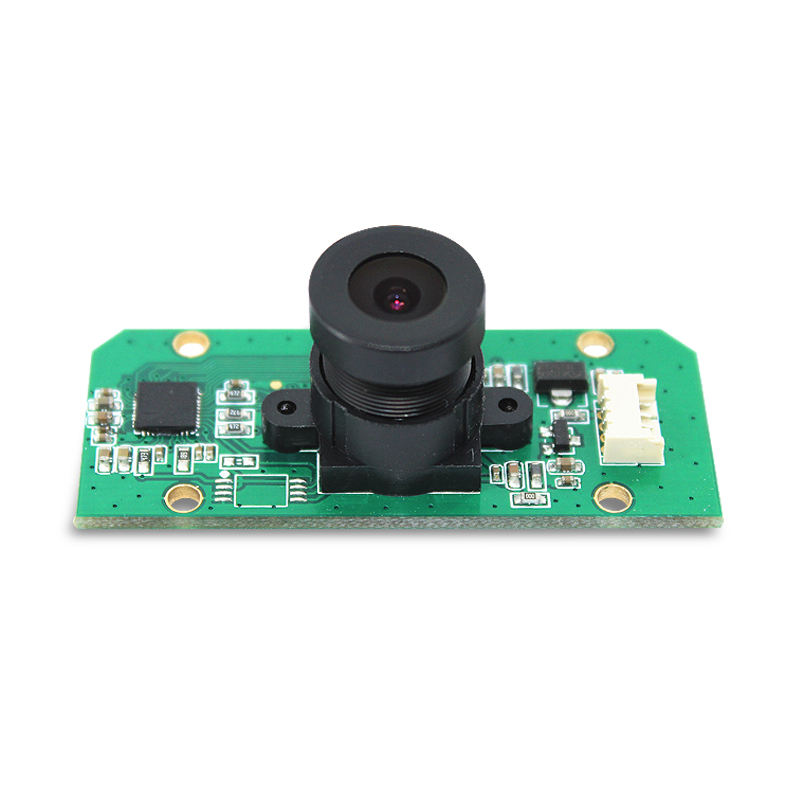

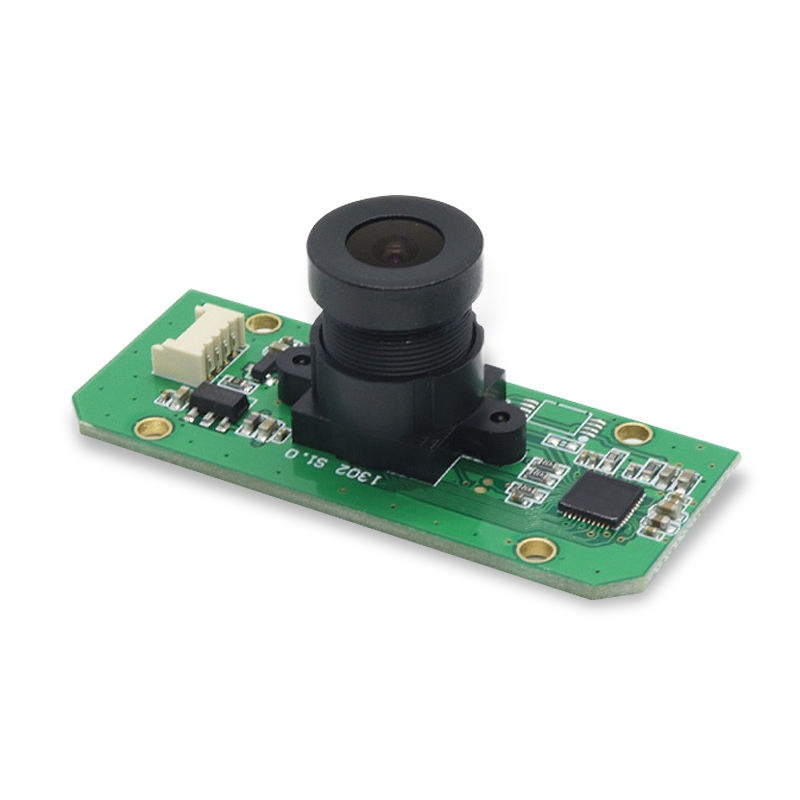

0.3 MP 640*480 Micro USB Camera Module OV7725 Sensor 60fps Fixed Focus Camera Module for QR code
$14.40
Availability:
In stock
Out of stock
Variations
Product Description
Product Specifications
| Module No. | 1302 S1.0 |
| Module Size | 52.2mm × 21.2mm × 18.75mm±0.5MM |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | Fixed |
| Object distance | 30CM-infinity |
| Resolution | 600LW/PH (Center) |
| PCB printing ink | Green |
| interface | USB 2.0 |
| Power suuply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption | 600 mW |
| Operating system request | Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc |
| Sensor | OV7725 (1/4" ) |
| Seneor Package | CSP,Bare Die |
| Maximum resolution | 640*480 |
| Sensitivity | 3.0V /（lux-sec） |
| Pixel Size | 6.0µm x 6.0µm |
Maximum Image Transfer Rate | MJPEG 160x120 60FPS / YUY2 160x120 60FPS MJPEG 320x240 60FPS / YUY2 320x240 60FPS MJPEG 352x288 60FPS / YUY2 352x288 60FPS MJPEG 640x480 60FPS / YUY2 640x480 30FPS MJPEG 800x600 60FPS / YUY2 800x600 15FPS |

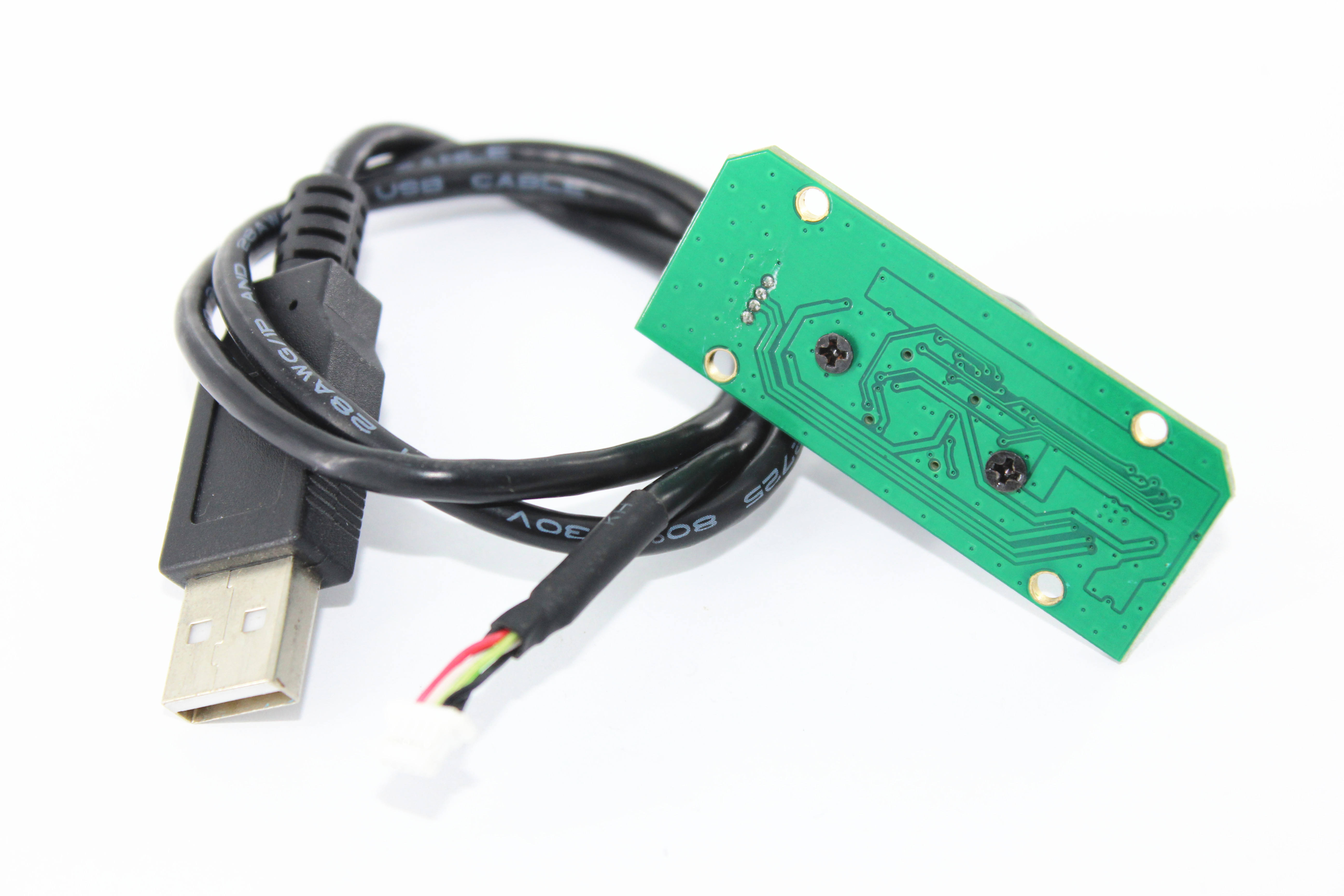

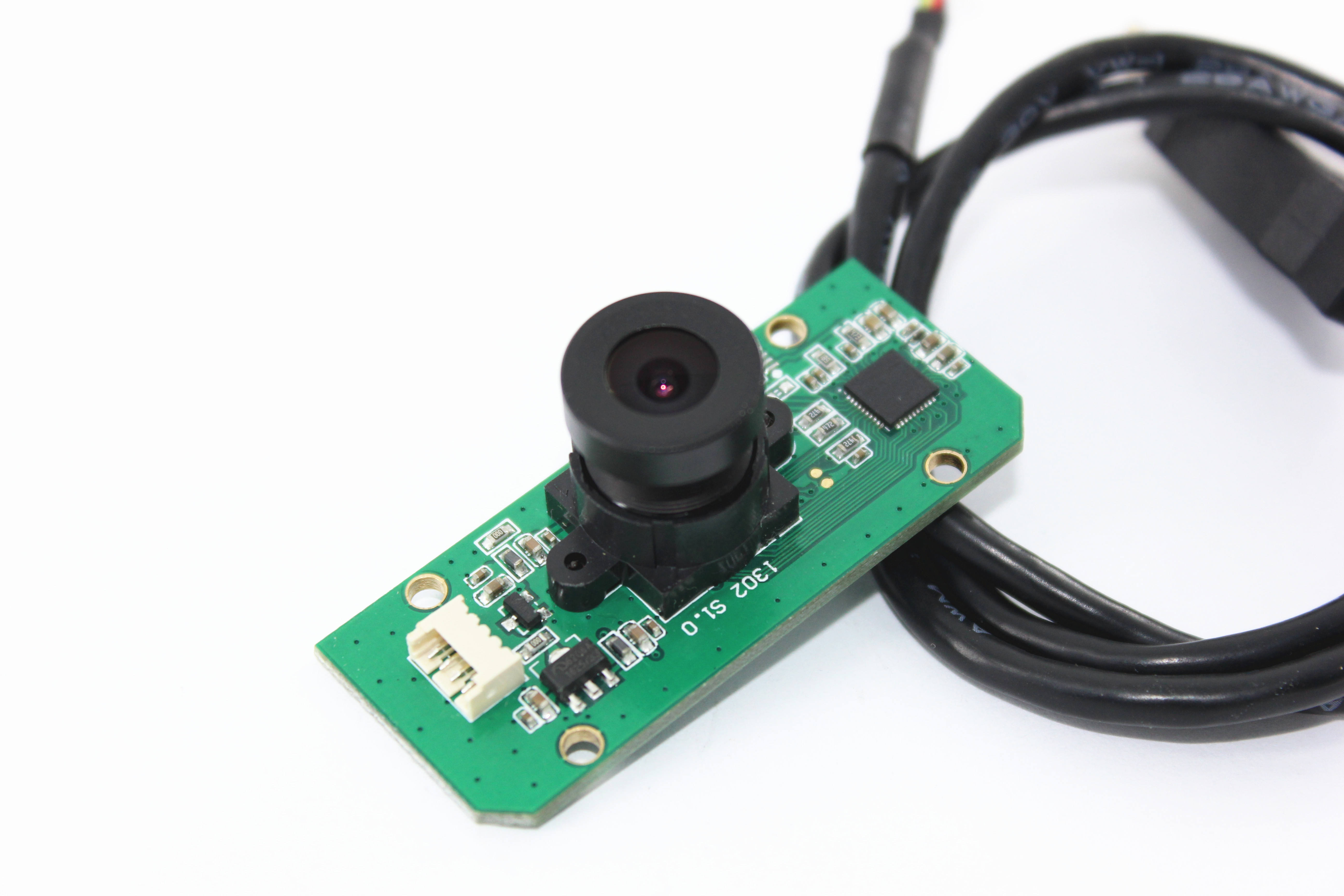

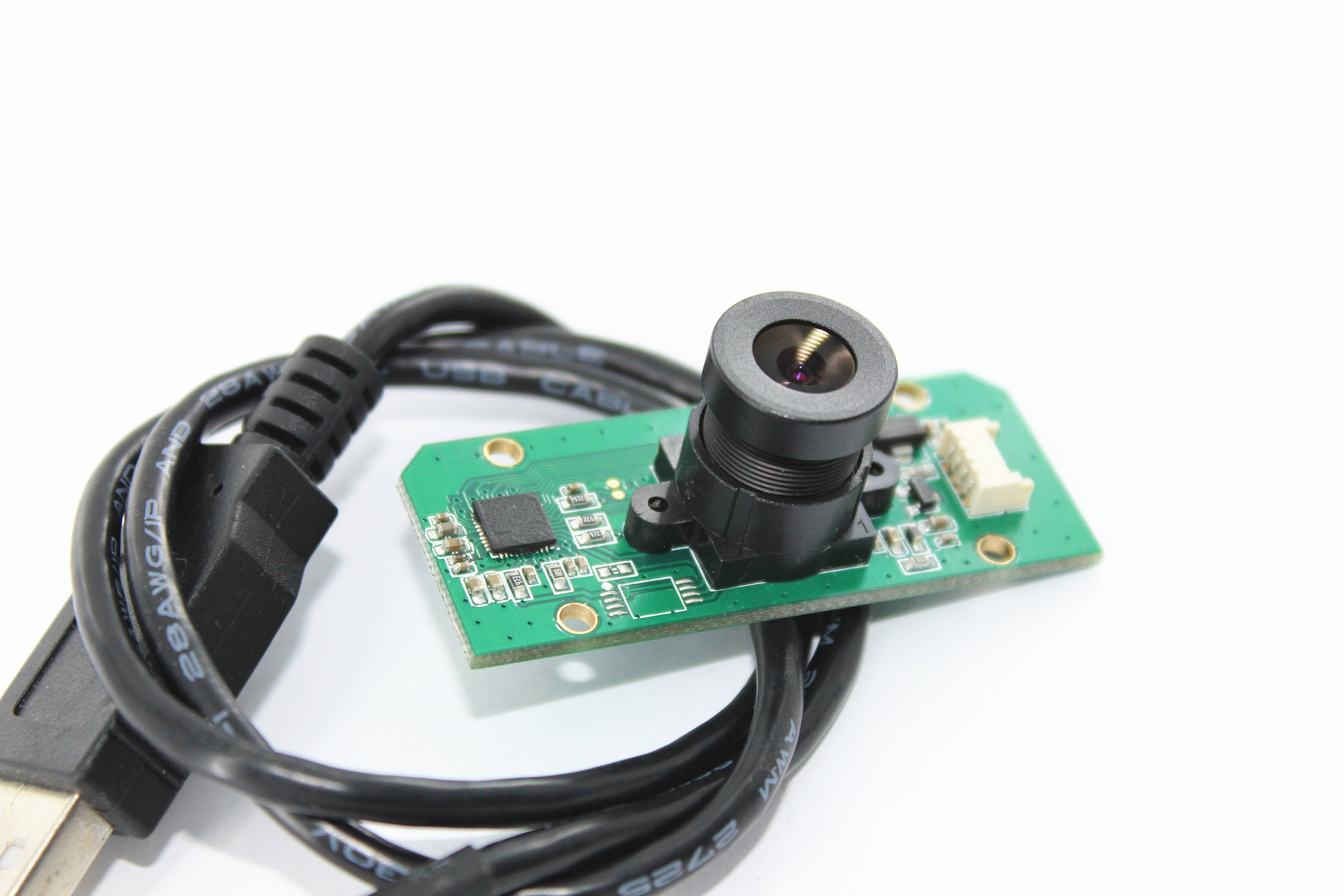

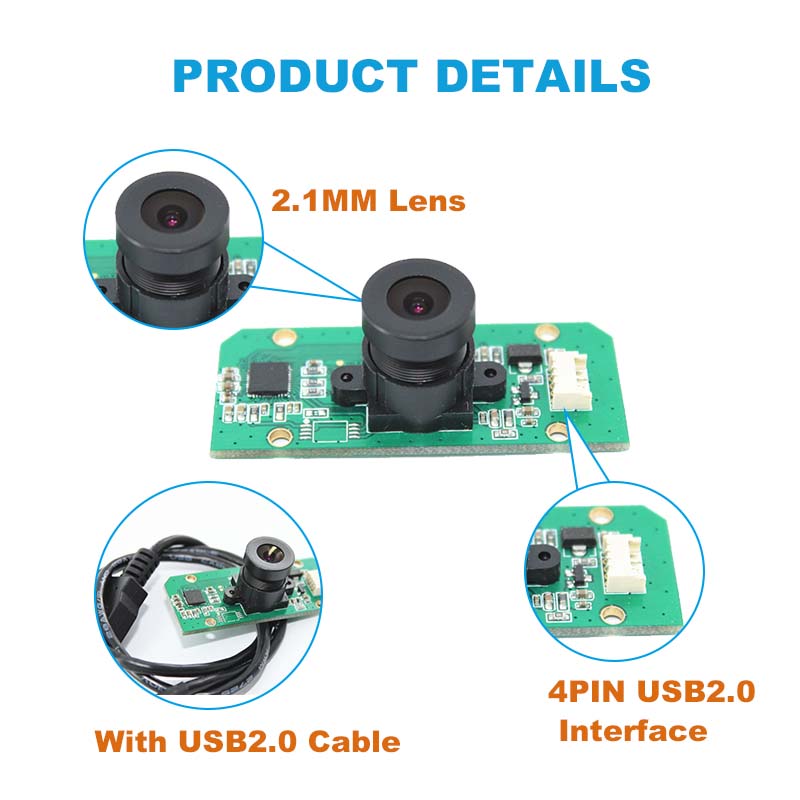

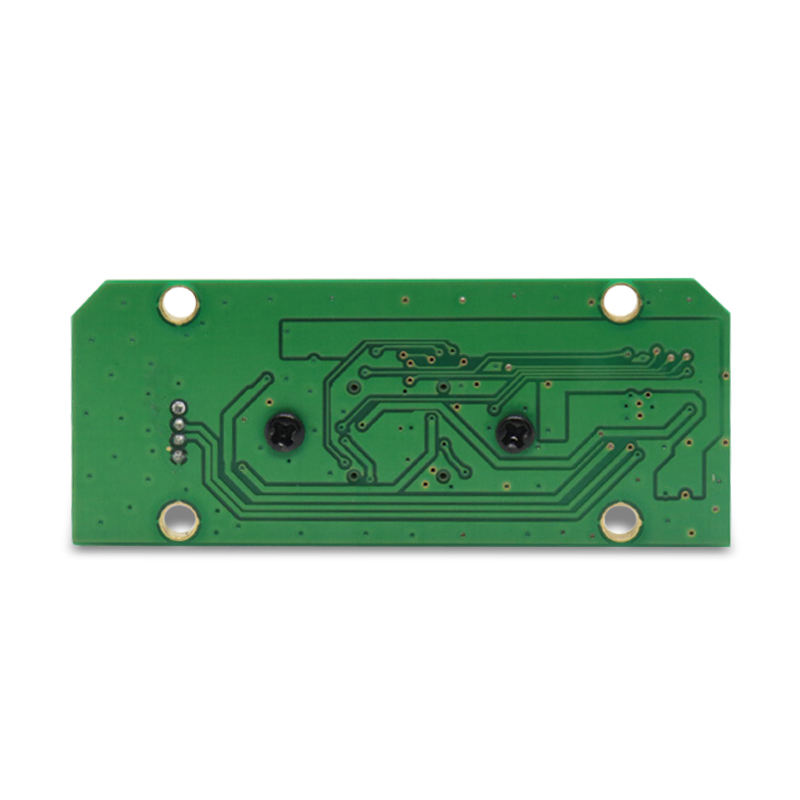

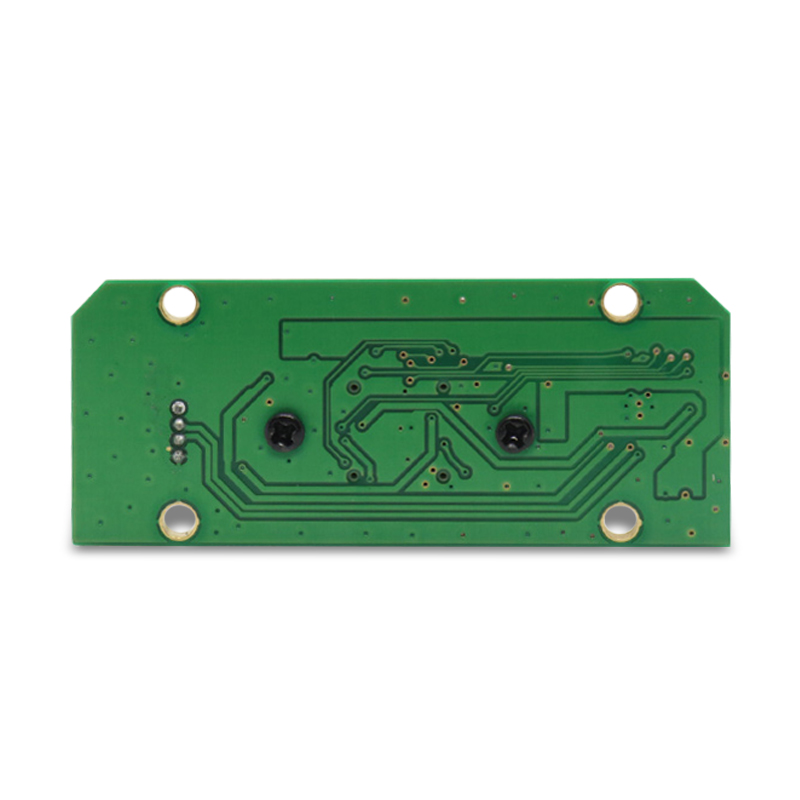

Detail Images

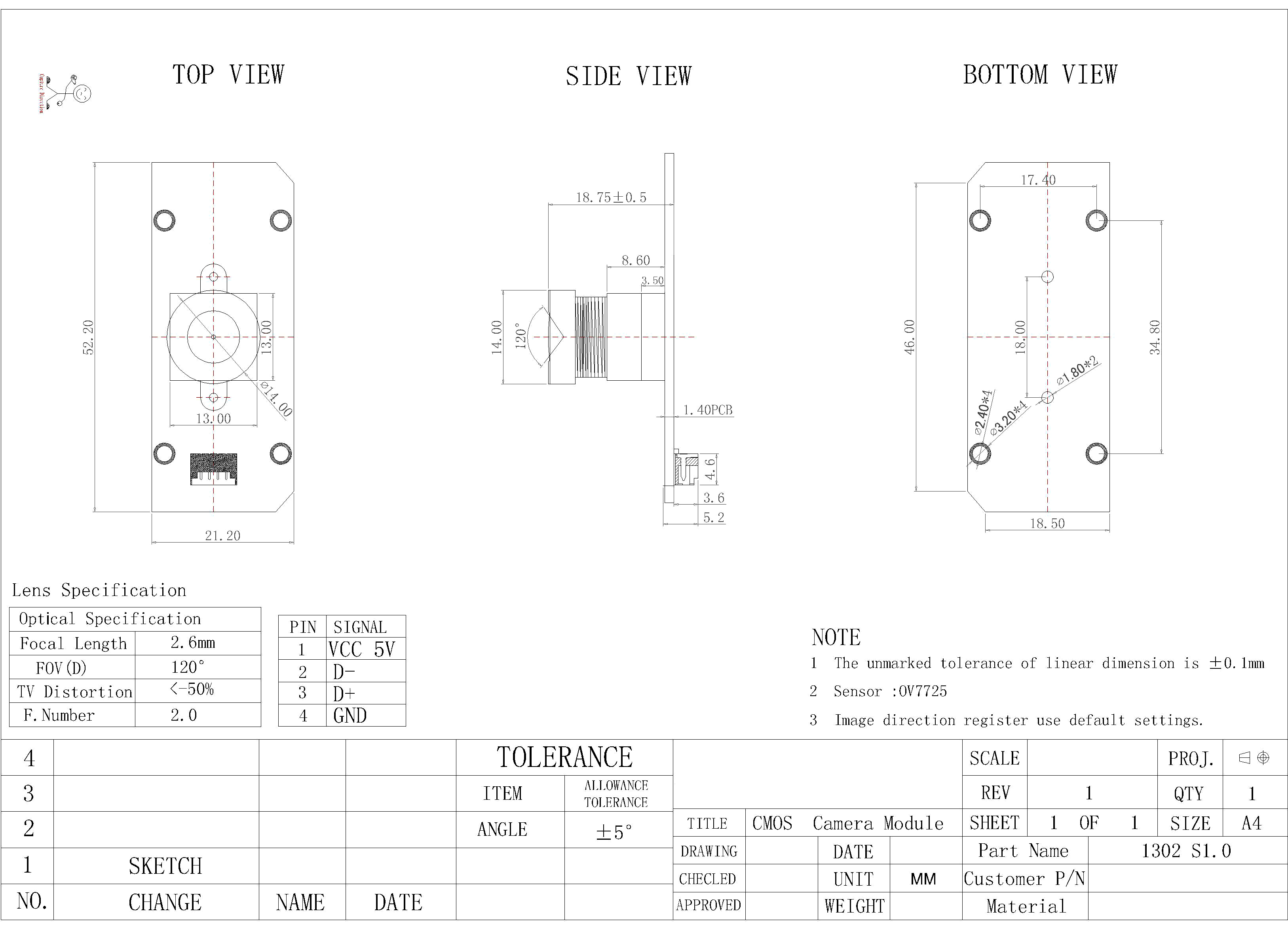

Product drawing
