4k 8mp security camera IMX317 sensor Maximum Resolution3840*2160 30fps camera module
$68.40
Availability:
In stock
Out of stock
Variations
Product Attributes
Product Description

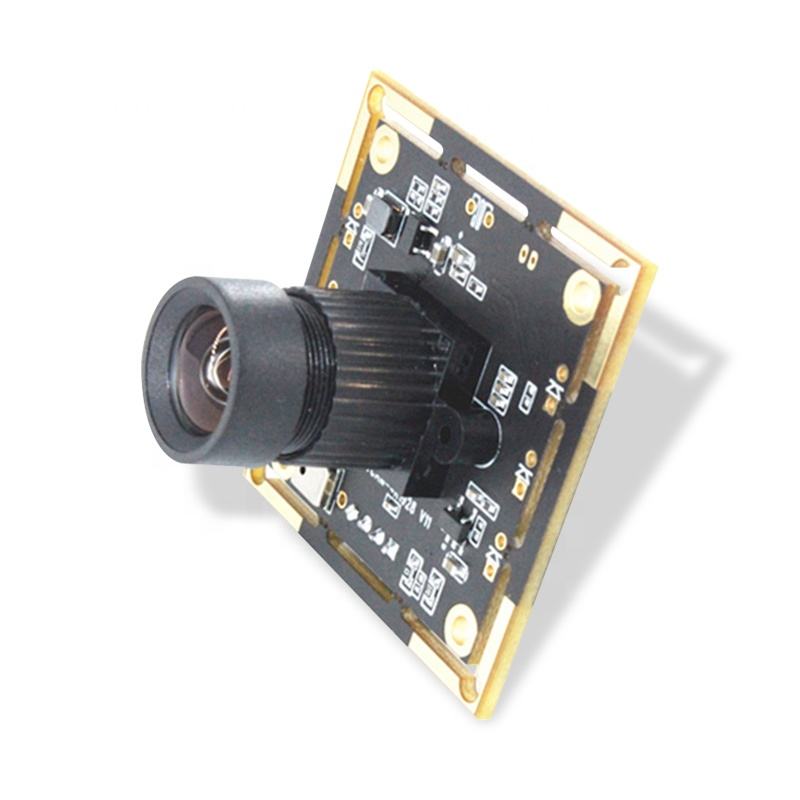

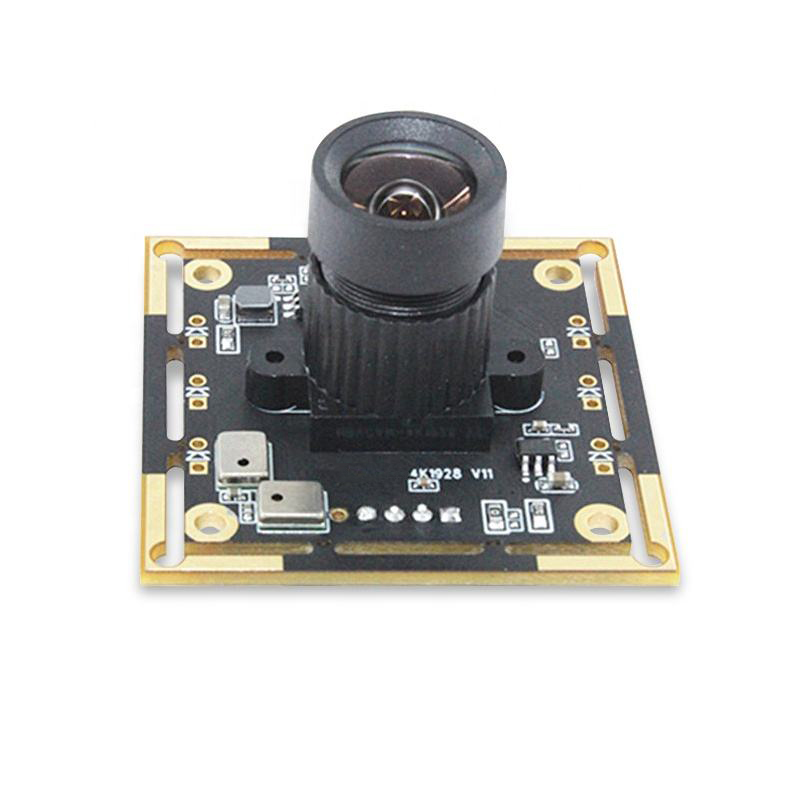

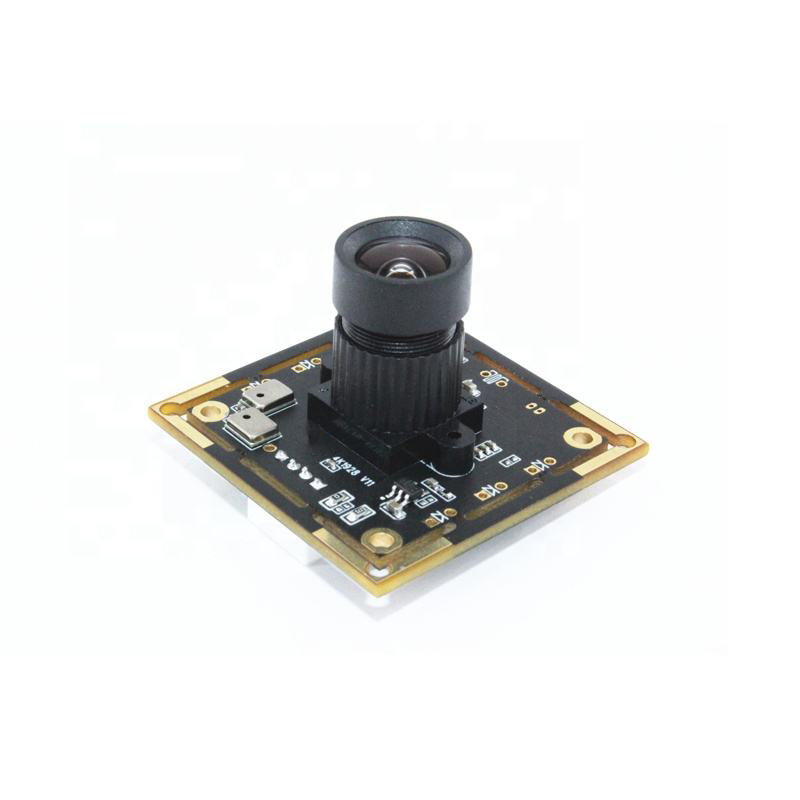

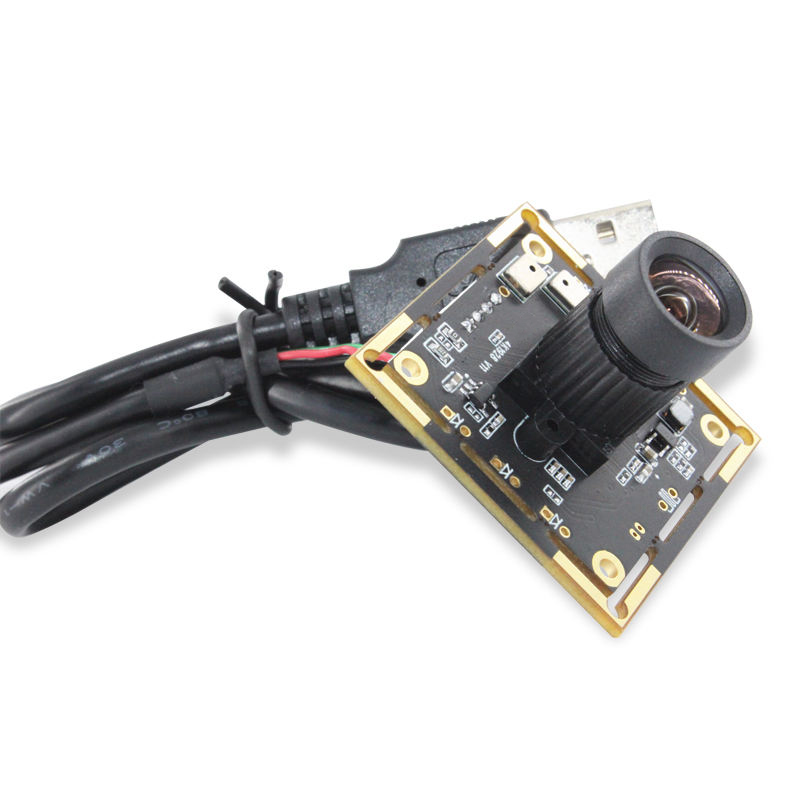

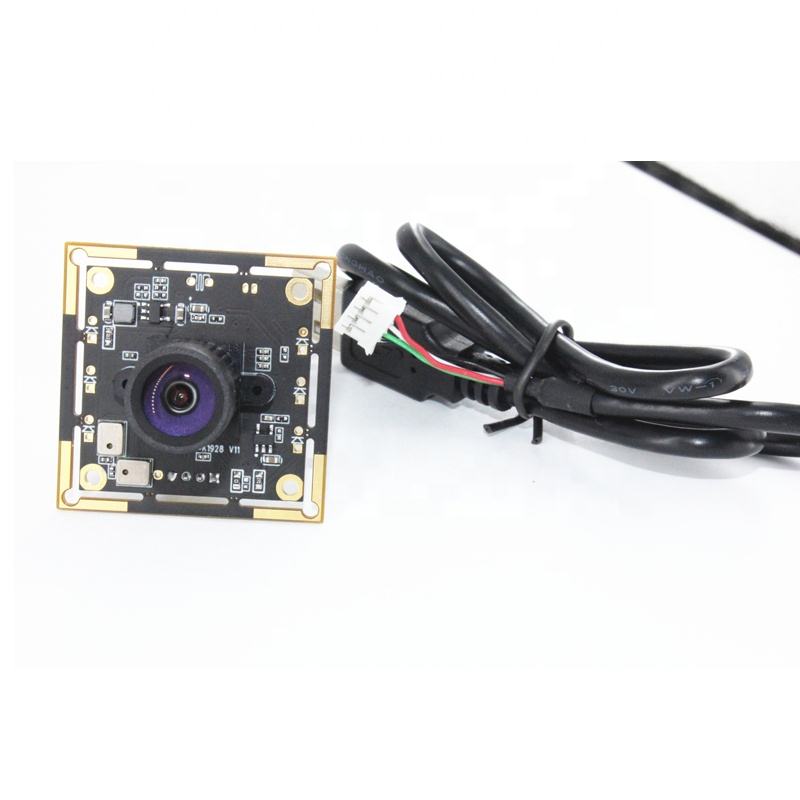

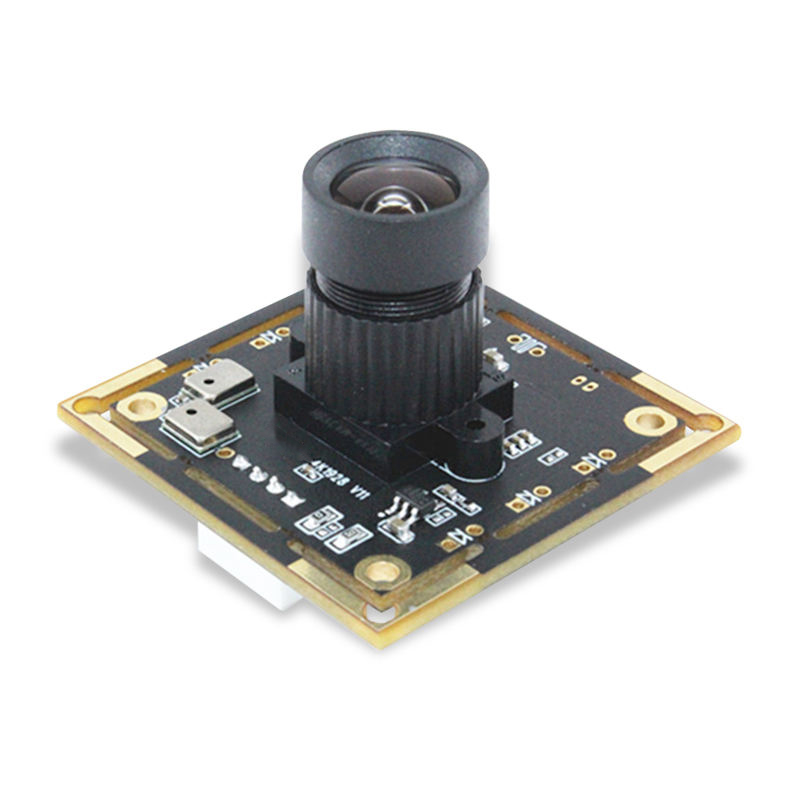

4K 8mp IMX317 sensor Maximum Resolution3840*2160 30fps camera module
| Model No. | BM4K1928 V11 |
| Model Size | 38mm × 38mm × 24.5mm±0.5MM |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | Fixed |
| Object distance | 30CM-infinity |
| Resolution | 800LW/PH (Center) |
| PCB printing ink | Black |
| interface | USB 2.0 |
| Power supply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption | 940 mW |
| Operating system request | Win XP/win 7,8 / vista /android 4.0/ mac /Linuxwith uvc |
| Sensor | IMX317 (1/2.5" ) |
| Seneor Package | CSP,Bare Die |
| Maximum resolution | 3840*2160 |
| Sensitivity | 760mv /(lux-sec) |
| Pixel Size | 1.62μm x 1.62μm |
| Maximum Image Transfer Rate | MJPEG 1600x1200 30FPS / YUY2 1600x1200 5FPS |
| S/N Ratio | 44db |
| Max Dynamic Range | 82db |
| Shutter type | Electronic rolling shutter |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2/MJPEG |
| Microphone | Support |
| Lens Construction | 2G2P |
| F/No | 2.4 |
| EFL | 4.2 mm |
| FOV | 85 |
| TV Distortion | <5% |
| Relative Illumination (Sensor) | 70% |
| IR Filter | 650±10nm |
| Module Package | Anti-electrostatic tray |
| Certifications | FCC/CE/ROSH |
| USB cable | 50CM 1M 2M 3M |
| 1.The parameters of FOV are just for your reference, Different Lens has different FOV 2.The frame rate is related to Light,operating system and so on, the frame rate exist a little error. If you mind it, please don’t make an order for it. Thank you for your understanding | |
♦Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
♦Does the camera support OTG?
Most of our usb cameras support OTG function.
Most of our usb cameras support OTG function.
♦Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer,
ZoneMinder,V4L2 video for Linux, Camerafi, VLC Player
♦Can you supply the USB cable together with camera?
Yes, we supply 40cm/1M usb cable for sample testing. if you need longer usb cable, we can customize it for you. welcome to contact us in advance.
