2Mp 1080P Cmos cctv 1080P Uvc Usb HD camera module
$24.00
Availability:
In stock
Out of stock
Variations
Product Attributes
Product Description
Product Description


| Product Name | 2 MP industrial computer, advertising machine, equipment embedded built-in camera module |
| Module No. | BMF2209HD V11 |

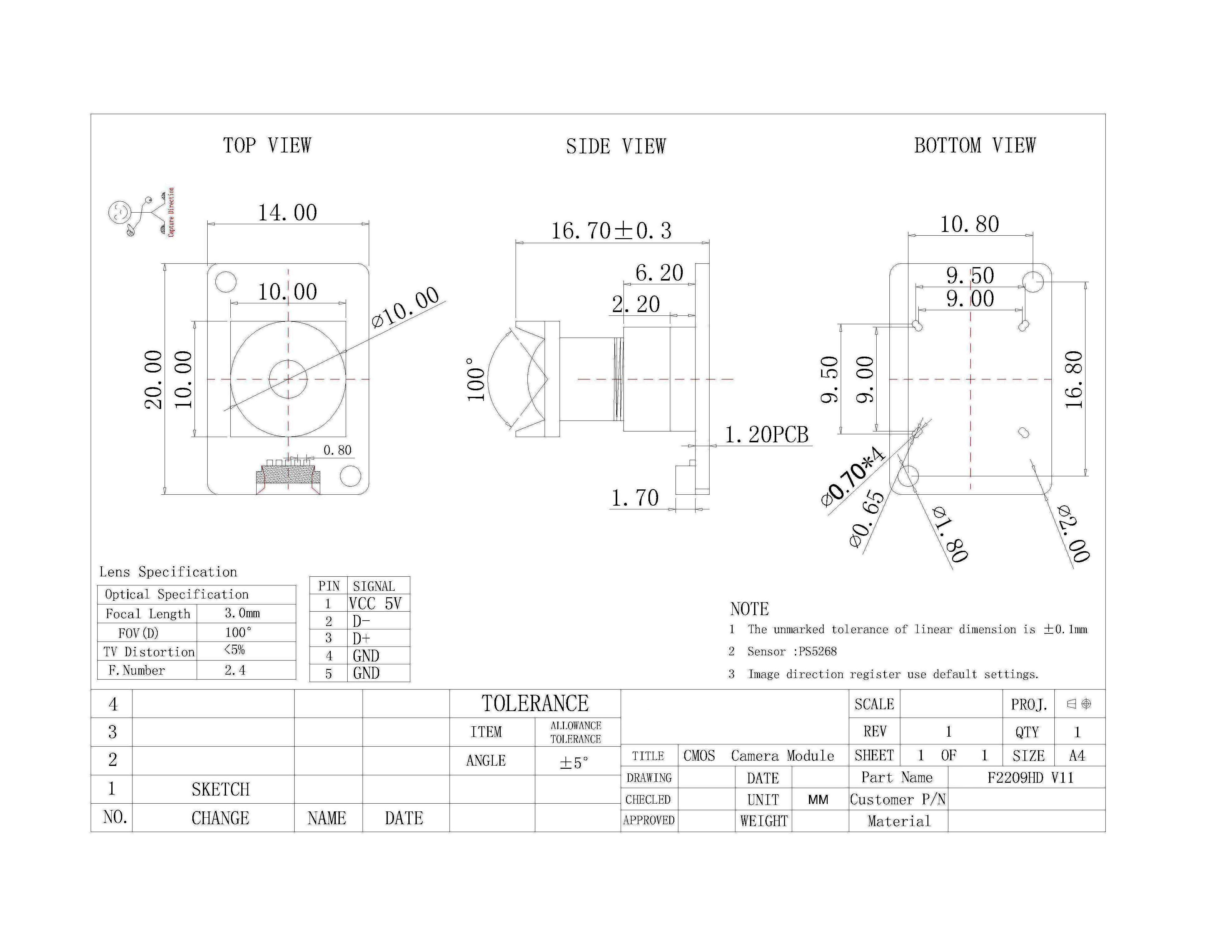

| Module Size | 20mm × 14mm × 16.7mm±0.5MM |
| Features |
|
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | Fixed |
| Object distance | 30CM-infinity |
| Resolution | 600LW/PH (Center) |
| PCB printing ink | Black |
| interface | USB 2.0 |
| Power suuply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption | 400mW |
| Operating system request | Win XP/win 7,8 / vista /android 4.0/ mac /Linux with uvc |
| Sensor | PS5268 (1/2.7" ) |
| Seneor Package | CSP,Bare Die |
| Maximum resolution | 1920*1080 |
| Sensitivity | 5800mV /(lux-sec) |
| Pixel Size | 3µm x 3µm |
| Maximum Image Transfer Rate | MJPEG 320x240 30FPS / YUY2 320x240 30FPS |
| S/N Ratio | 41 db |
| Max Dynamic Range | 85 db |
| Shutter type | Electronic rolling shutter |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2/MJPEG |
| Microphone | Support |
| Lens Construction | 5G |
| F/No | 2.4 |
| EFL | 3.0mm |

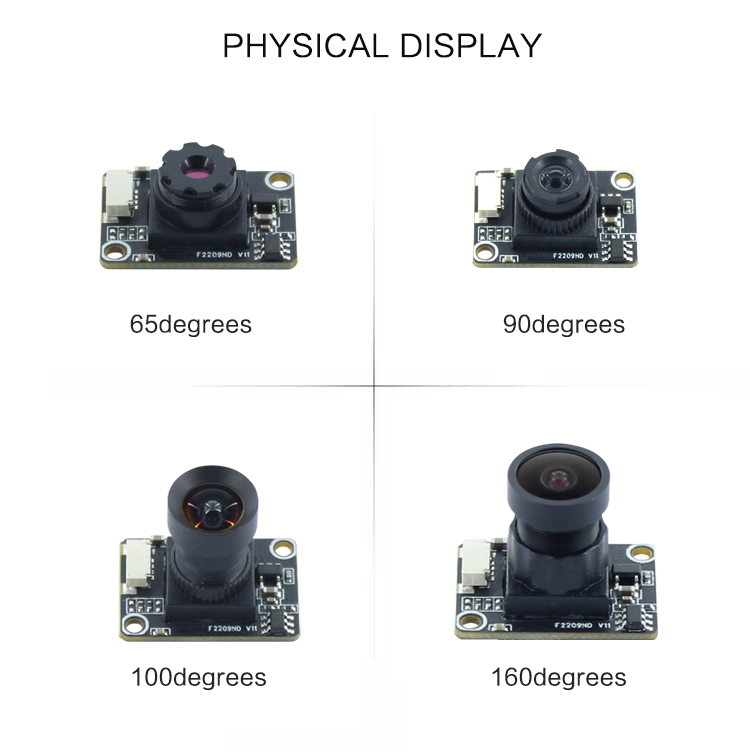

| FOV | 100° |
| TV Distortion | <5% |
| Relative Illumination (Sensor) | 70% |
| IR Filter | 650±10nm |
| Module Package | Anti-electrostatic tray |
| Certifications | FCC/CE/ROSH |
Detailed Images
