2Mp Cmos Laptop Camera Webcam Wide Angle Camera Module OV2720 Uvc Usb 1080P Full Hd Usb2.0 Camera
$9.60
Availability:
In stock
Out of stock
Variations
Product Attributes
Product Description
Product Description
| Product Name | 2 MP 1080P HD laptop, advertising machine, all-in-one face recognition equipment embedded built-in camera module |
| Module No. | BMF2143HD V33 |
| Module Size | 60mm × 9mm × 5.0mm±0.2MM |
| Features | 1. Standard advertising machine all-in-one machine structure and hole position
|
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | Aout |
| Object distance | 30CM-infinity |
| Resolution | 600LW/PH (Center) |
| PCB printing ink | Black |
| interface | USB 2.0 |
| Power suuply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption | 590mW |
| Operating system request | Win XP/win 7,8 / vista /android 4.0/ mac /Linux with uvc |
| Sensor | OV2720 (1/5.8" ) |
| Seneor Package | CSP,Bare Die |
| Maximum resolution | 1920*1080 |
| Sensitivity | 650mV /(lux-sec) |
| Pixel Size | 1.4µm x 1.4µm |
| Maximum Image Transfer Rate | MJPEG 640x480 30FPS / YUY2 640x480 30FPS
|
| S/N Ratio | 35 db |
| Max Dynamic Range | 68 db |
| Shutter type | Electronic rolling shutter |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2/MJPEG |
| Microphone | NC |
| Lens Construction | 5P |
| F/No | 2.2 |
| EFL | 1.8mm |
| FOV | 86° |
| TV Distortion | <1% |
| Relative Illumination (Sensor) | 70% |
| IR Filter | 650±10nm |
| Module Package | Anti-electrostatic tray |
| Certifications | FCC/CE/ROSH |

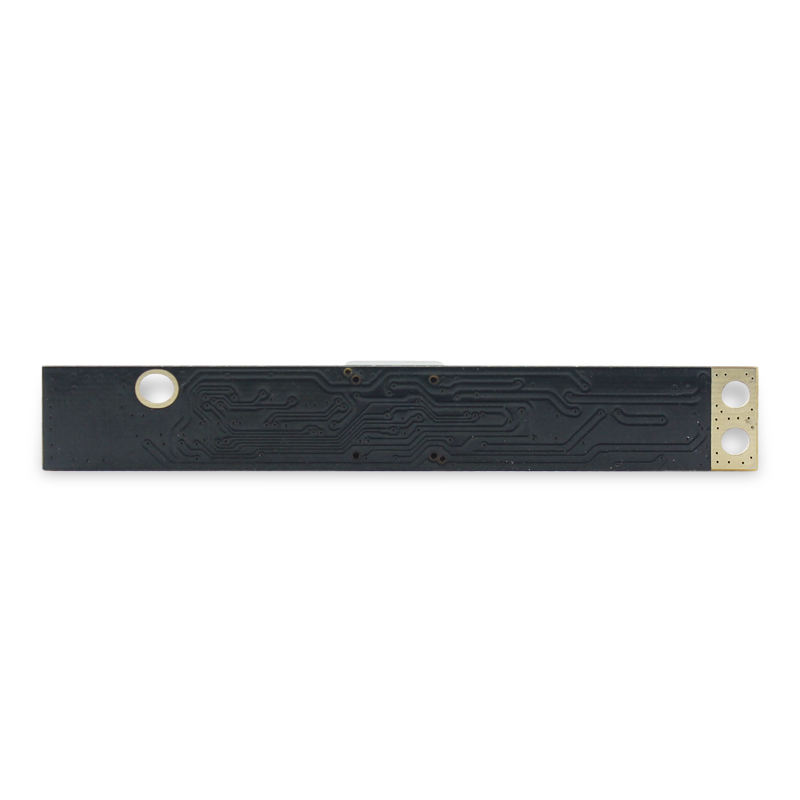

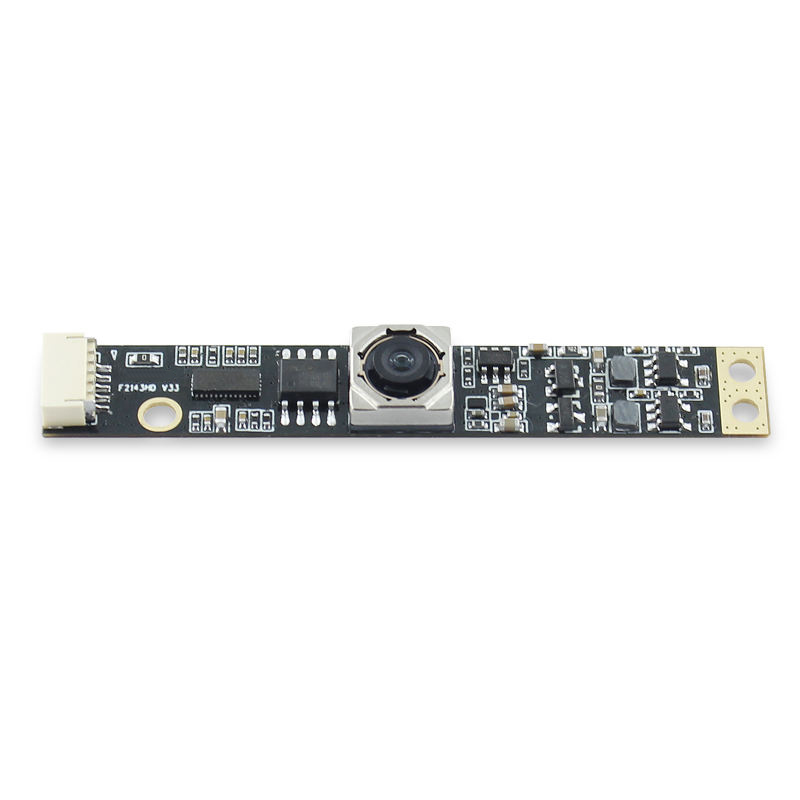

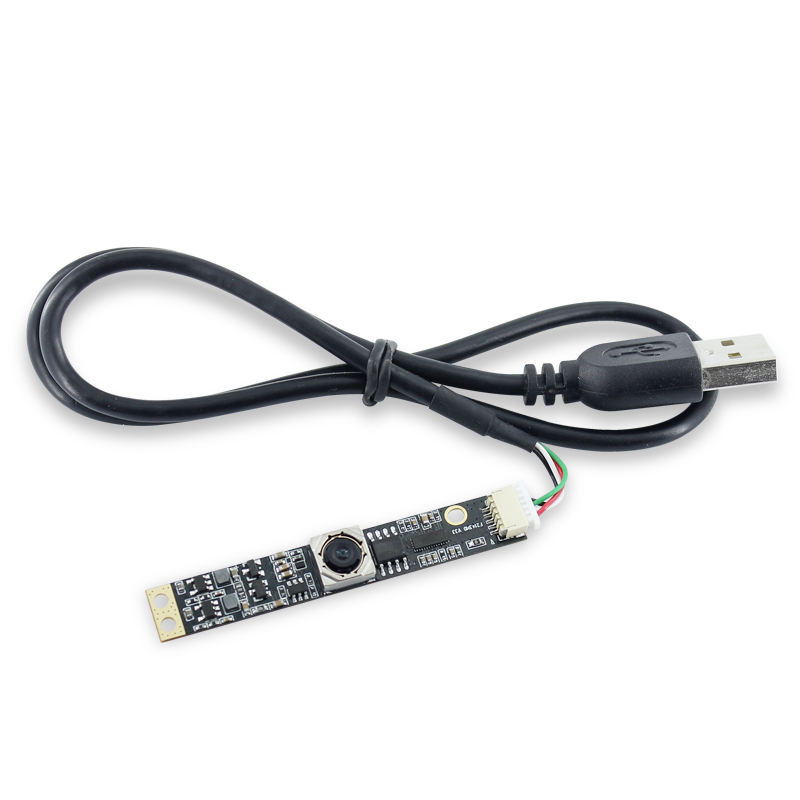

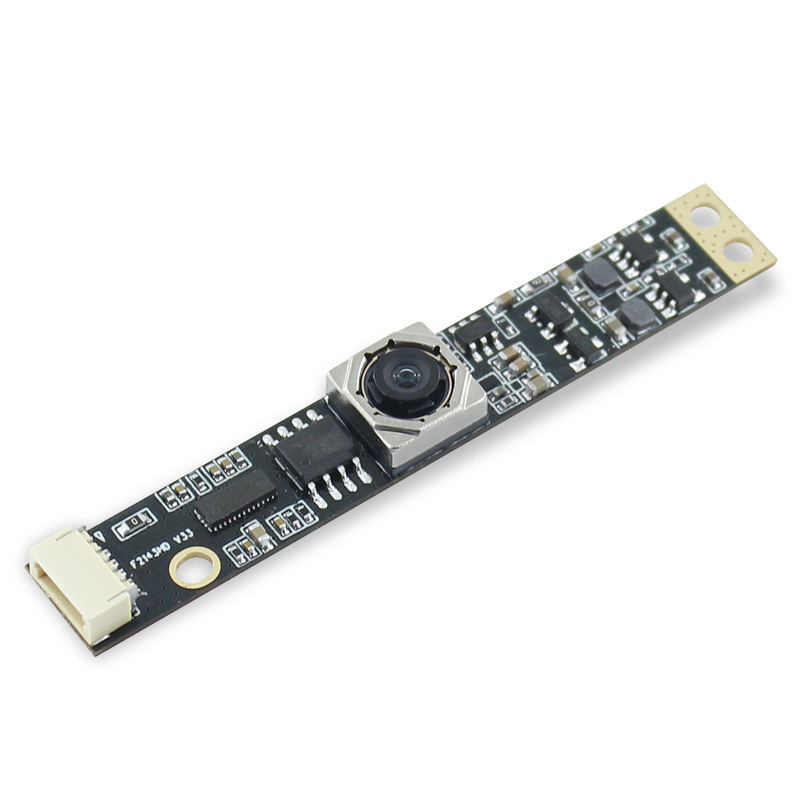

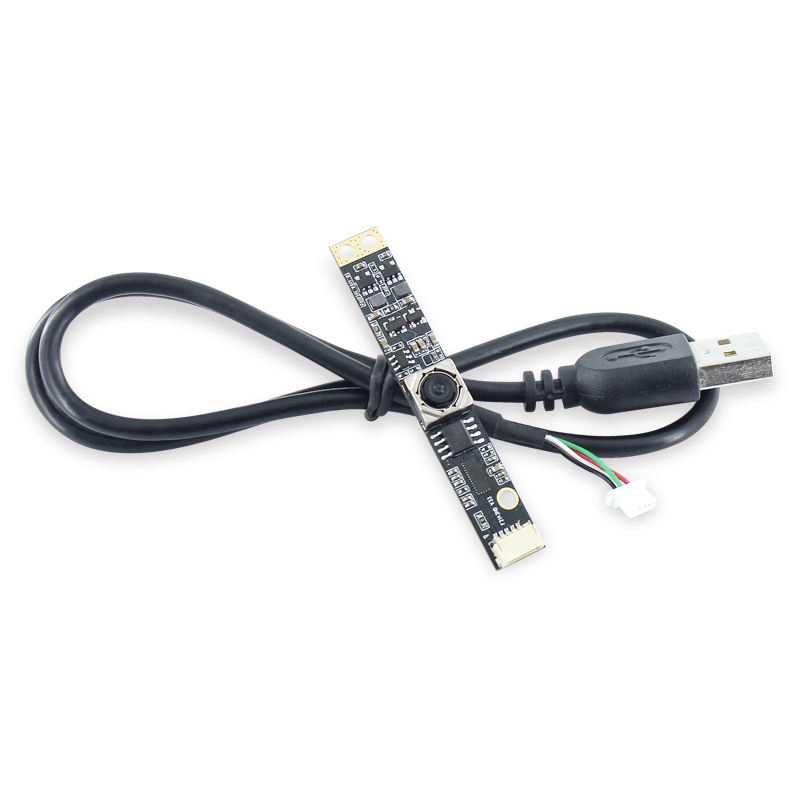

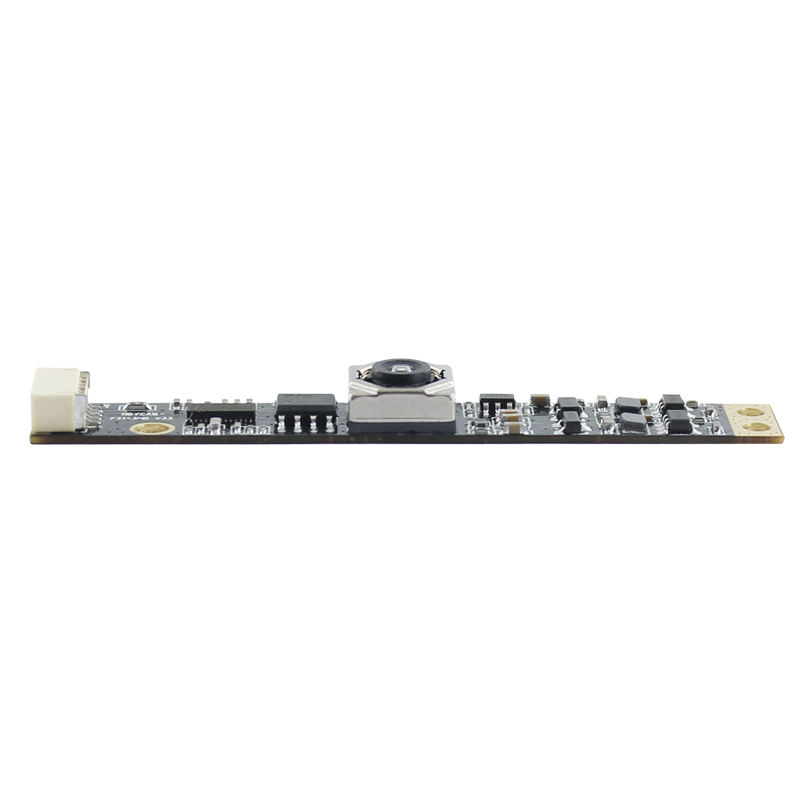

Detailed Images
