5Mp 2K Cmos Sensor PS5520(1/2.5") Infrared White Lamp Backlight Shooting 85Db Hdr Camera Module For Advertising Machine
$40.80
Availability:
In stock
Out of stock
Variations
Product Attributes
Product Description
Product Description
| Product Name | 5 mp 2K industrial control industrial camera, advertising machine, equipment embedded built-in camera module | ||
| Module No. | BM5M20279HDR V22 | ||

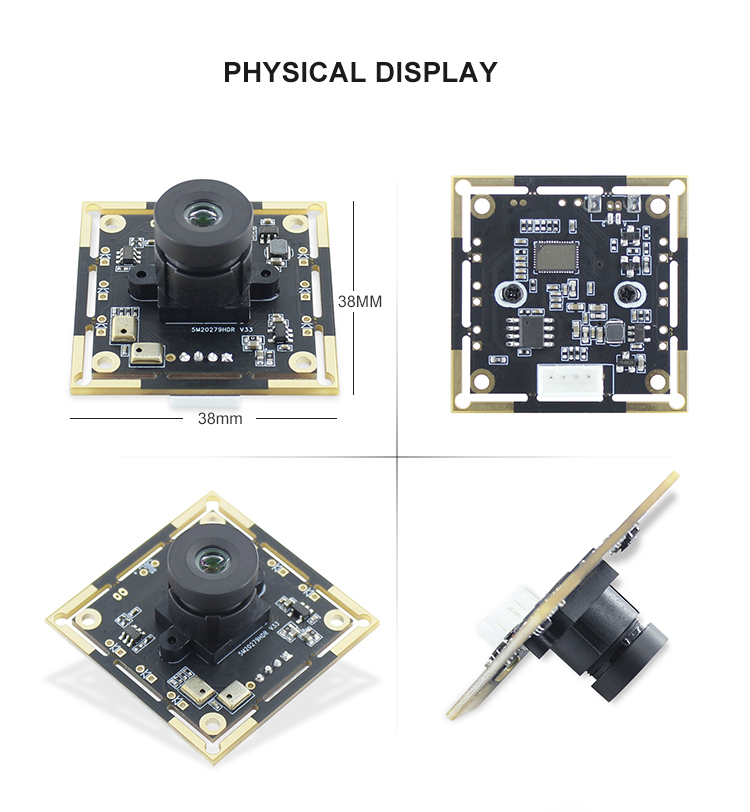

| Module Size | 38mm × 38mm × 17.6mm±0.5MM | ||
| Features | 1. Standard industrial camera 38, 32mm panel structure
| ||
| Temperature (Operation) | -30°C to 70°C | ||
| Temperature (Stable Image) | 0°C to 50°C | ||
| Assembly technique | SMT (ROSH) | ||
| Focus | Fixed | ||
| Object distance | 30CM-infinity | ||
| Resolution | 600LW/PH (Center) | ||
| PCB printing ink | Black | ||

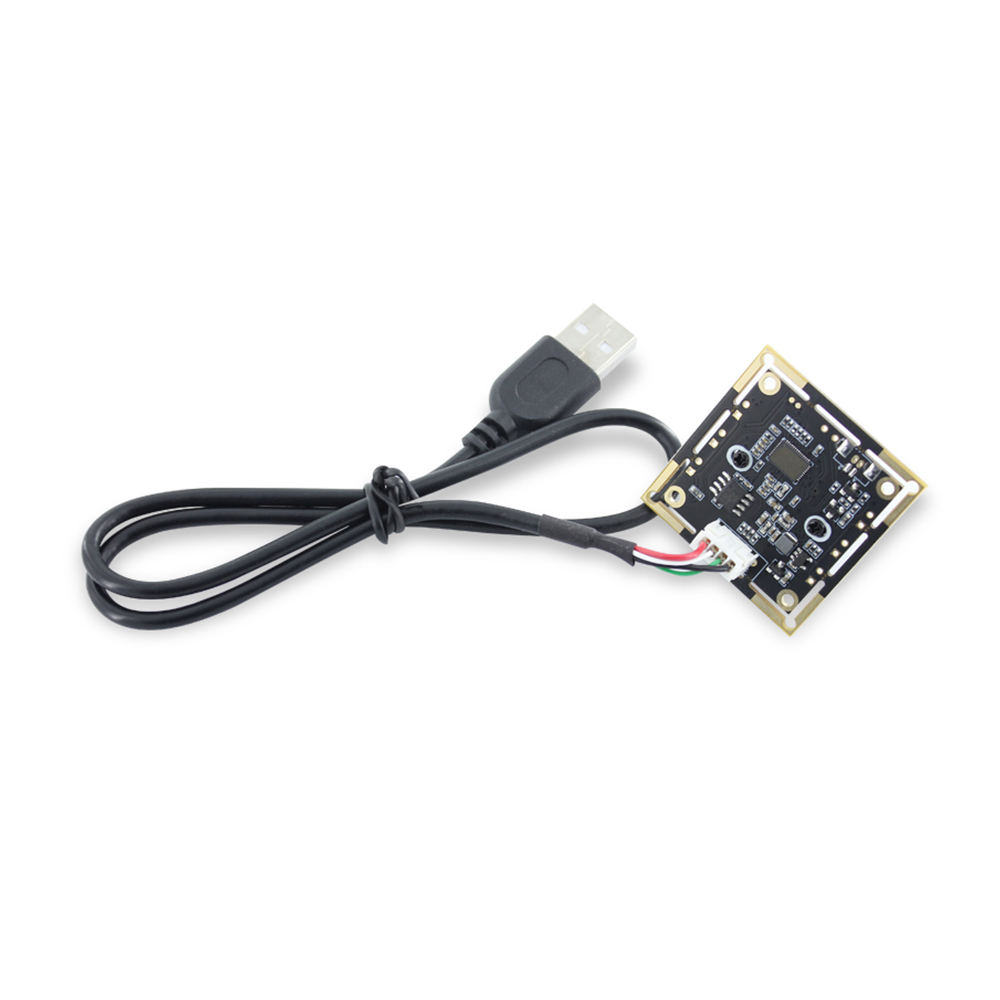

| interface | USB 2.0 | ||
| Power suuply | USB bus power | ||
| supply voltage | DC 5V±5% | ||
| Maximum Power consumption | 500mW | ||
| Operating system request | Win XP/win 7,8 ,10/ vista /android 4.0/ mac /Linux with uvc | ||
| Sensor | PS5520(1/2.5" ) | ||
| Seneor Package | CSP,Bare Die | ||
| Maximum resolution | 2592*1944 | ||
| Sensitivity | 2400mV /(lux-sec) | ||
| Pixel Size | 2.2µm x 2.2µm | ||
| Maximum Image Transfer Rate | MJPEG 640x480 30FPS / YUY2 640x480 30FPS
MJPEG 1920x1080 30FPS /YUY2 1920x1080 5FPS
| ||
| S/N Ratio | 38 db | ||
| Max Dynamic Range | 85 db | ||
| Shutter type | Electronic rolling shutter | ||
| AGC/AEC/Whiter balance | Auto | ||
| Output Formats | YUY2/MJPEG | ||
| Microphone | Support | ||
| Lens Construction | 4G | ||
| F/No | 2.0 | ||
| EFL | 2.1mm | ||
| FOV | 70° | ||
| TV Distortion | <5% | ||
| Relative Illumination (Sensor) | 70% | ||
| IR Filter | 650±10nm | ||
| Module Package | Anti-electrostatic tray | ||
| Certifications | FCC/CE/ROSH |

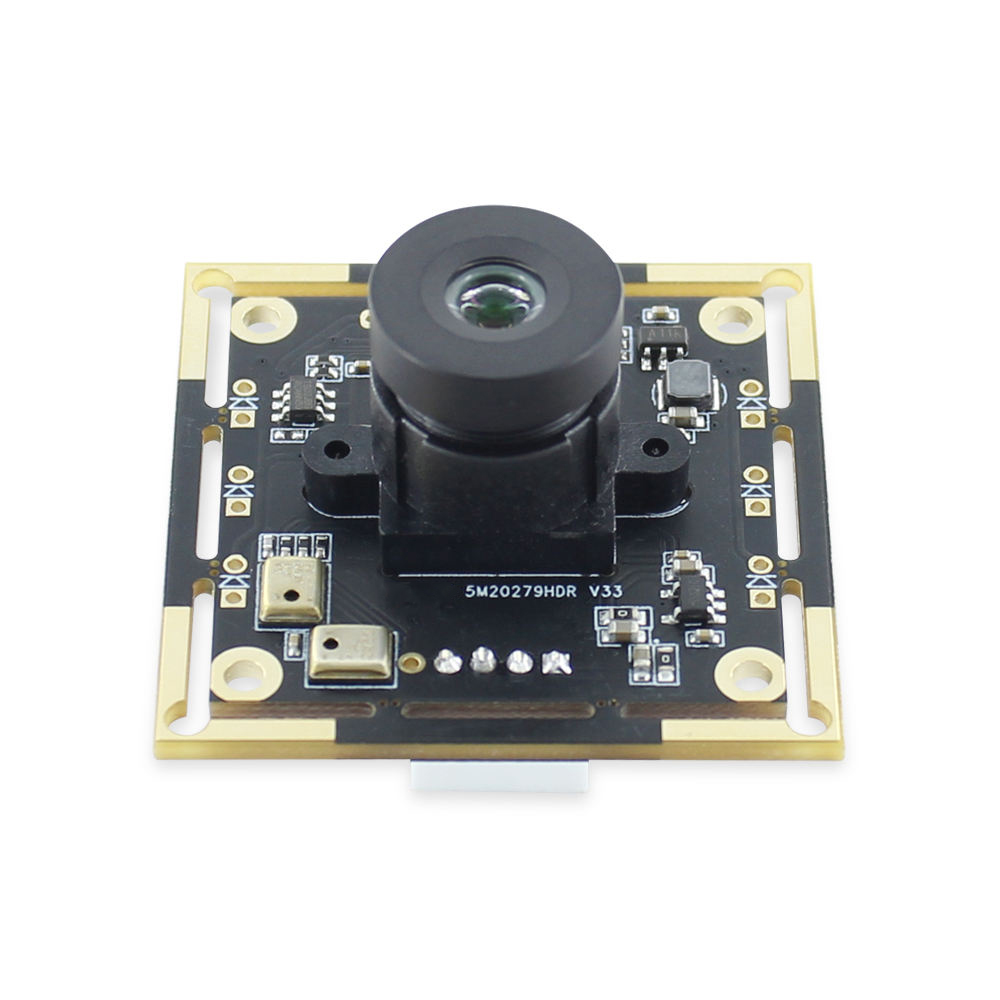

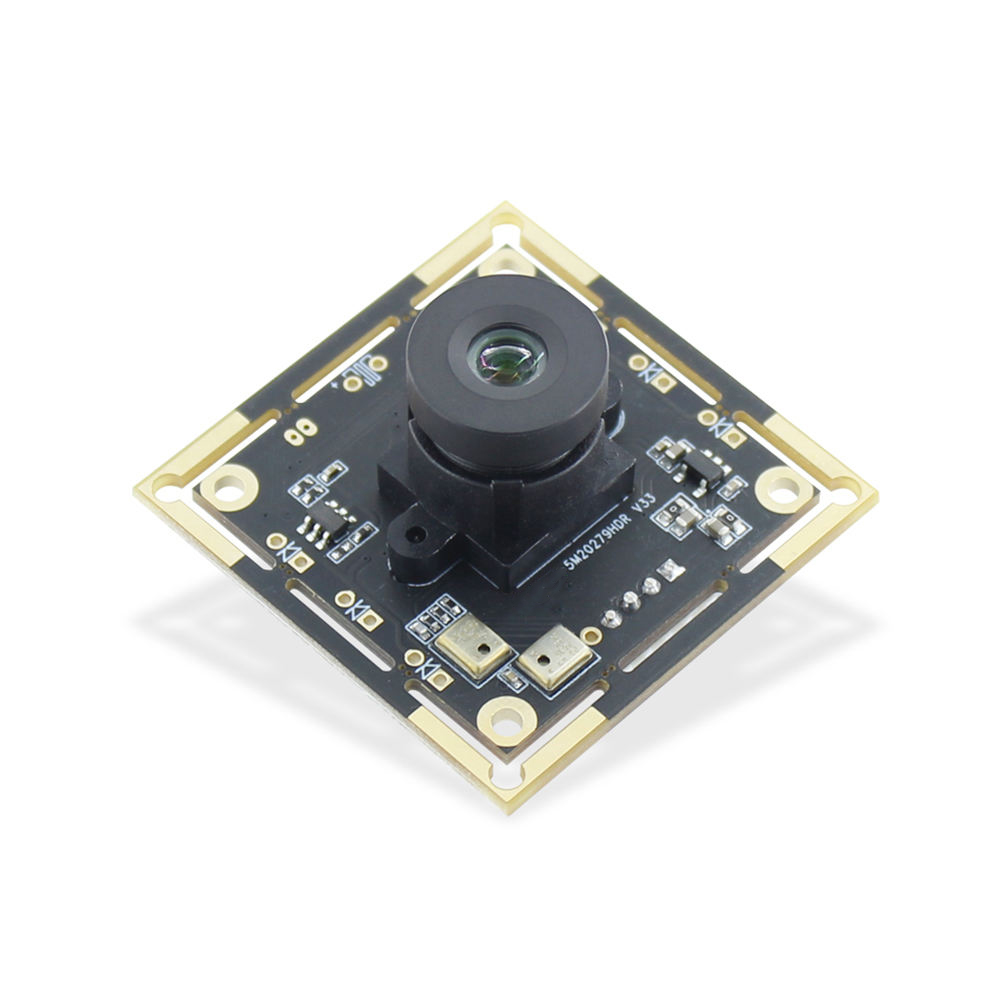

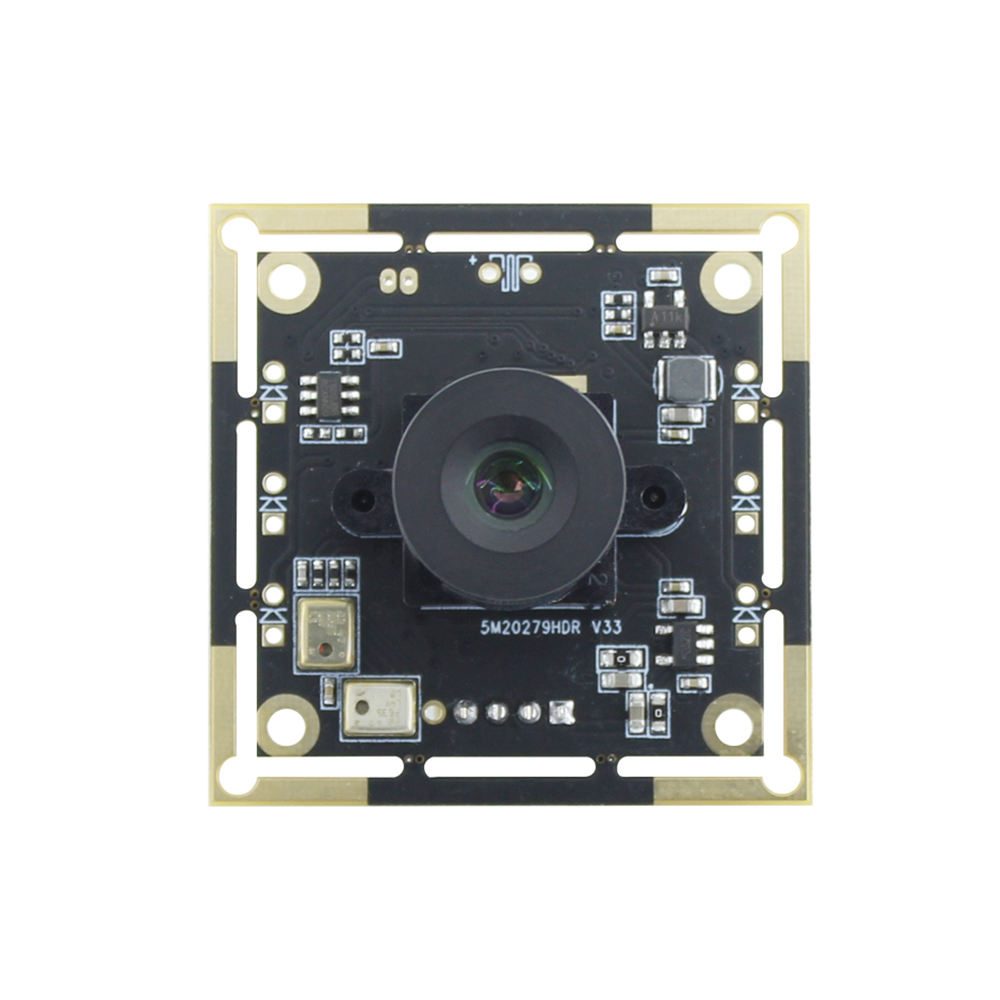

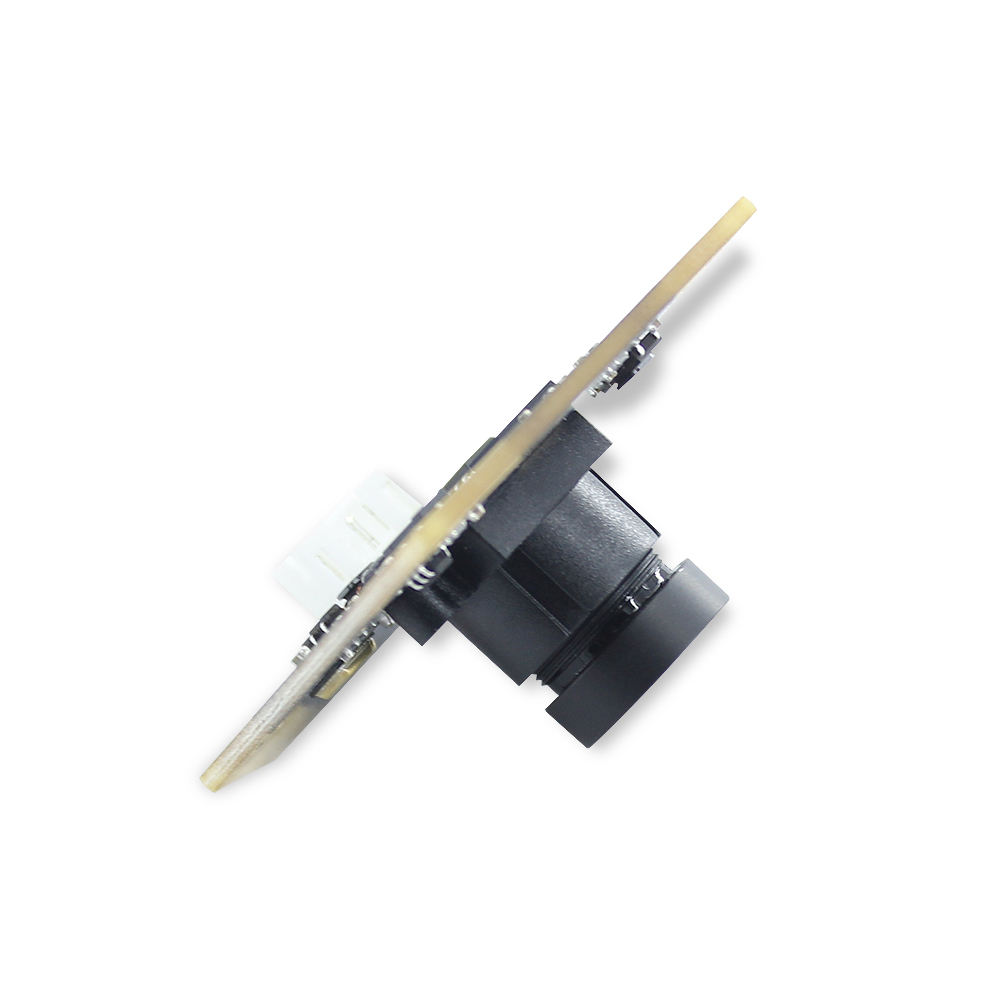

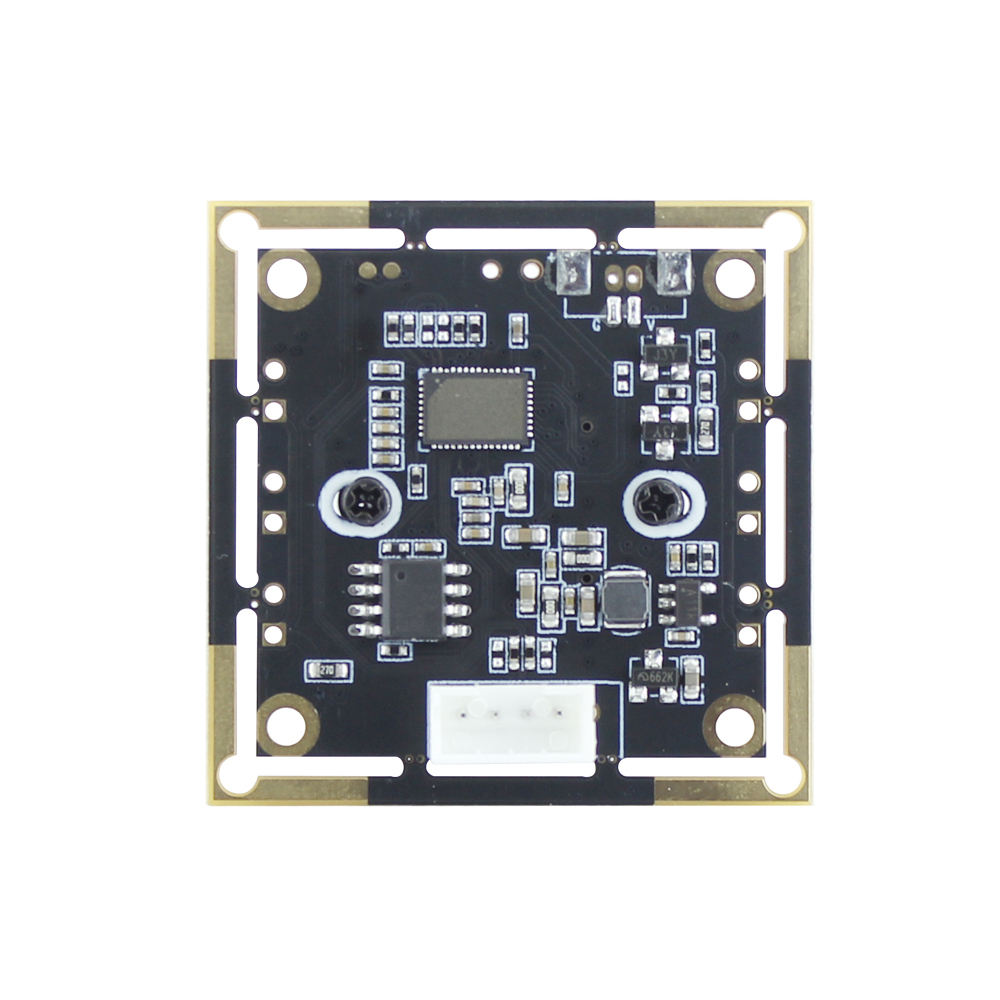

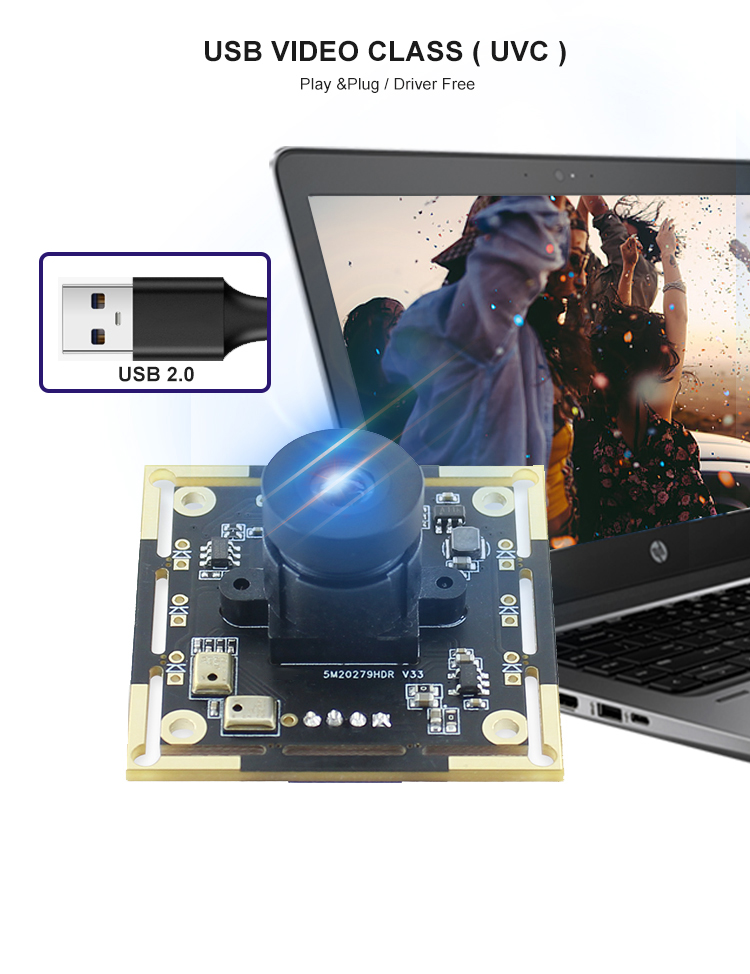

Detailed Images
