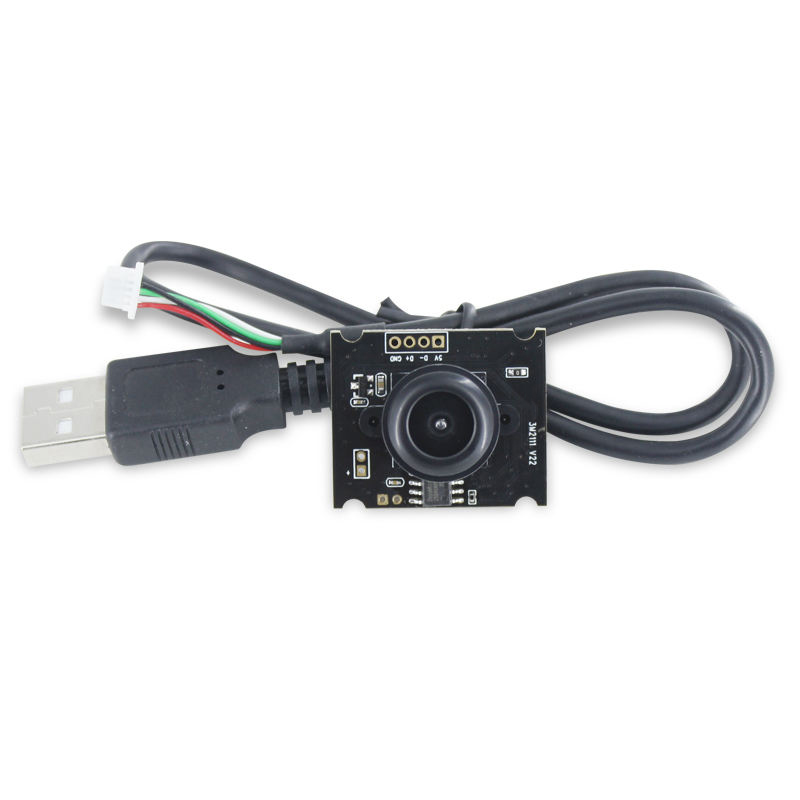

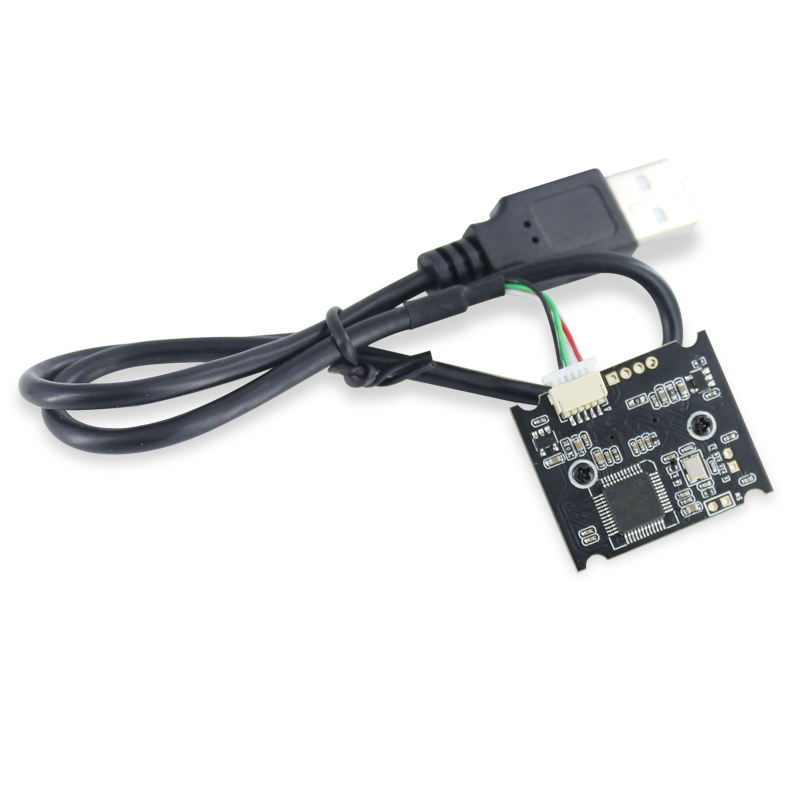

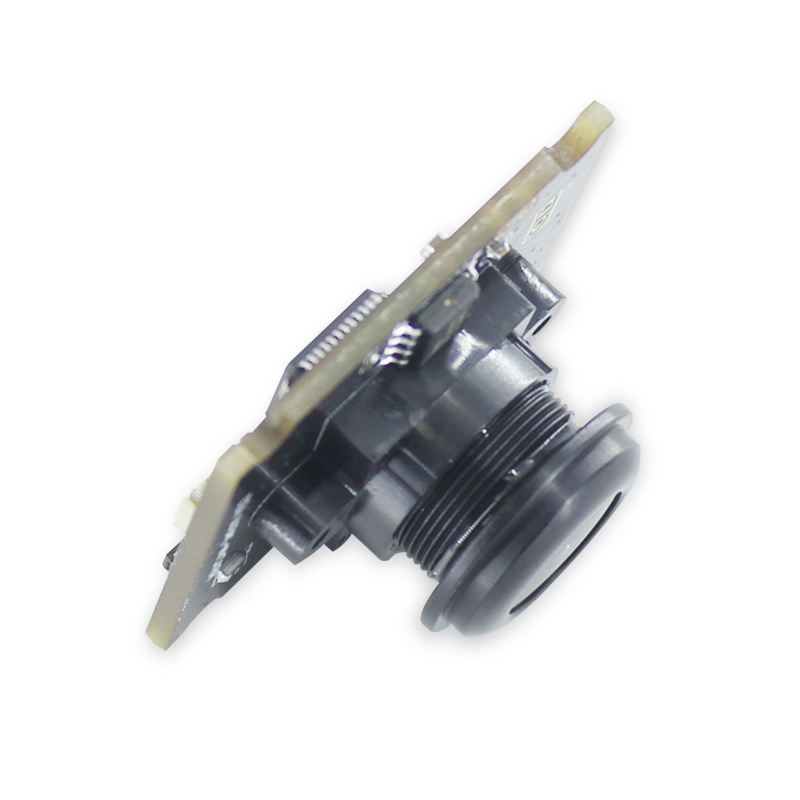

Profession Usb Cmos Camera Module OV3660 Sensor Board Camera Fast Fps Micro Usb Camera 4E+Ir Lens
$10.20
Availability:
In stock
Out of stock
Variations
Product Description
Product Description
| Product Name | 3 MP PC, industrial camera equipment embedded built-in camera module | ||
| Module No. | BM3M2111 V22 | ||

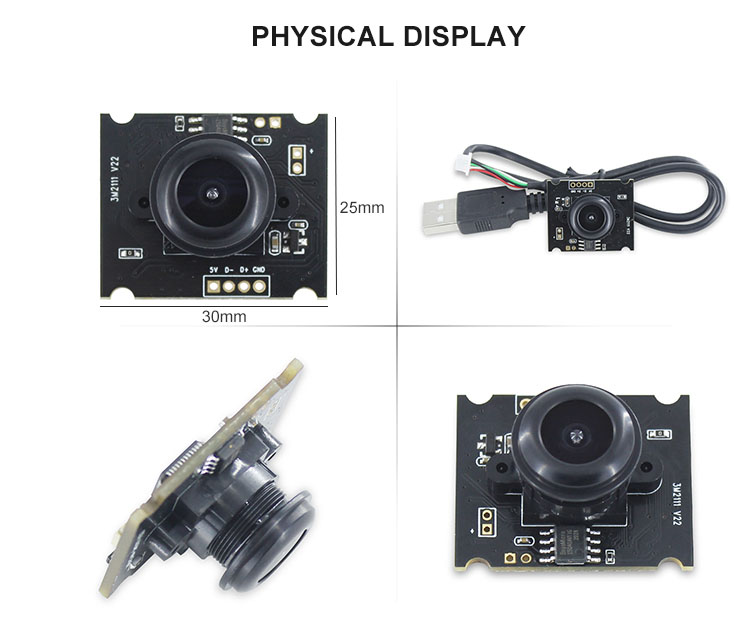

| Module Size | 30mm × 25mm × 14.8mm±0.5MM | ||
| Features | 1. The conventional standard 30X25mm structure has great versatility
| ||
| Temperature (Operation) | -20°C to 70°C | ||
| Temperature (Stable Image) | 0°C to 50°C | ||
| Assembly technique | SMT (ROSH) | ||
| Focus | Fixed | ||
| Object distance | 30CM-infinity | ||
| Resolution | 600LW/PH (Center) | ||
| PCB printing ink | Black | ||

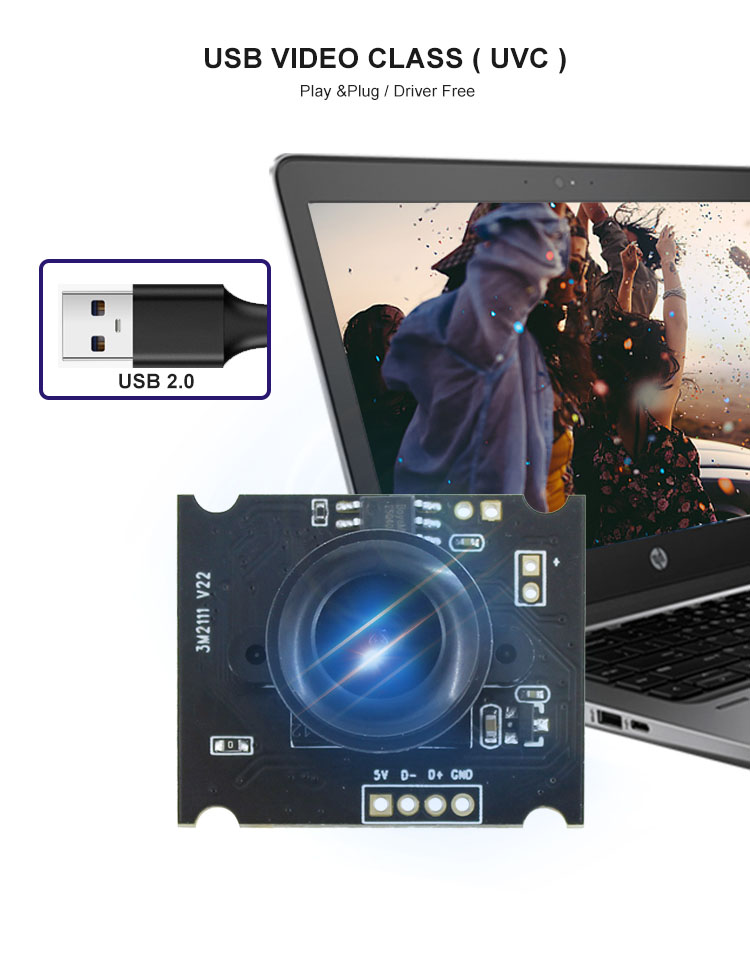

| interface | USB 2.0 | ||
| Power suuply | USB bus power | ||
| supply voltage | DC 5V±5% | ||
| Maximum Power consumption | 640mW | ||
| Operating system request | Win XP/win 7,8 / vista /android 4.0/ mac /Linux with uvc | ||
| Sensor | OV3660 (1/5" ) | ||
| Seneor Package | CSP,Bare Die | ||
| Maximum resolution | 2048*1536 | ||
| Sensitivity | 670mV /(lux-sec) | ||
| Pixel Size | 1.4µm x 1.4µm | ||
| Maximum Image Transfer Rate | MJPEG 320x240 30FPS / YUY2 320x240 30FPS
| ||
| S/N Ratio | 34 db | ||
| Max Dynamic Range | 70 db | ||
| Shutter type | Electronic rolling shutter | ||
| AGC/AEC/Whiter balance | Auto | ||
| Output Formats | YUY2/MJPEG | ||
| Microphone | Support | ||
| Lens Construction | 4E+IR | ||
| F/No | 2.4 | ||
| EFL | 1.85 mm | ||
| FOV | 110° | ||
| TV Distortion | <7.6% | ||
| Relative Illumination (Sensor) | 70% | ||
| IR Filter | 650±10nm | ||
| Module Package | Anti-electrostatic tray | ||
| Certifications | FCC/CE/ROSH |

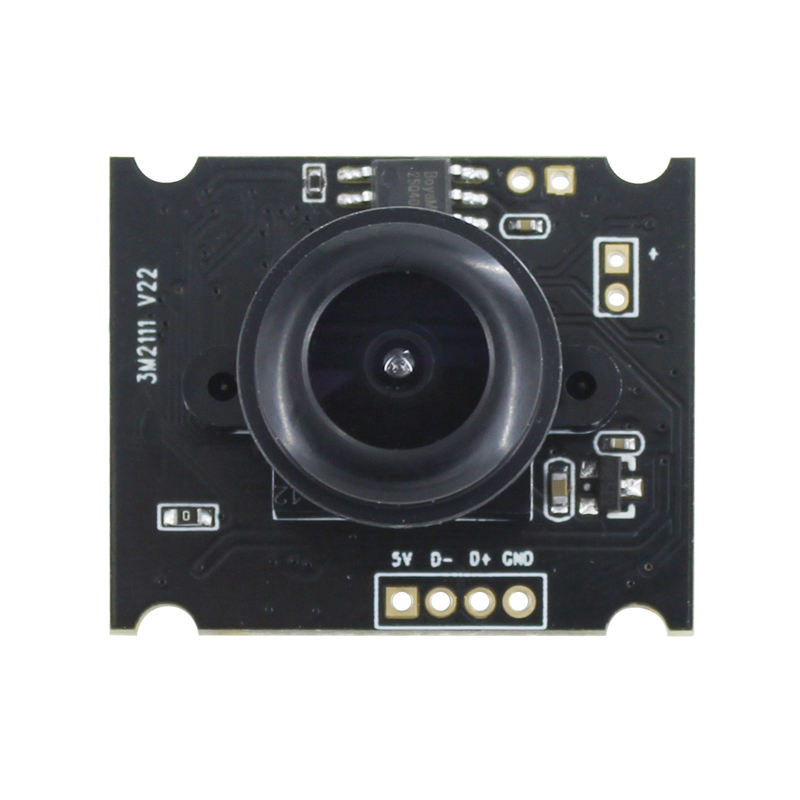

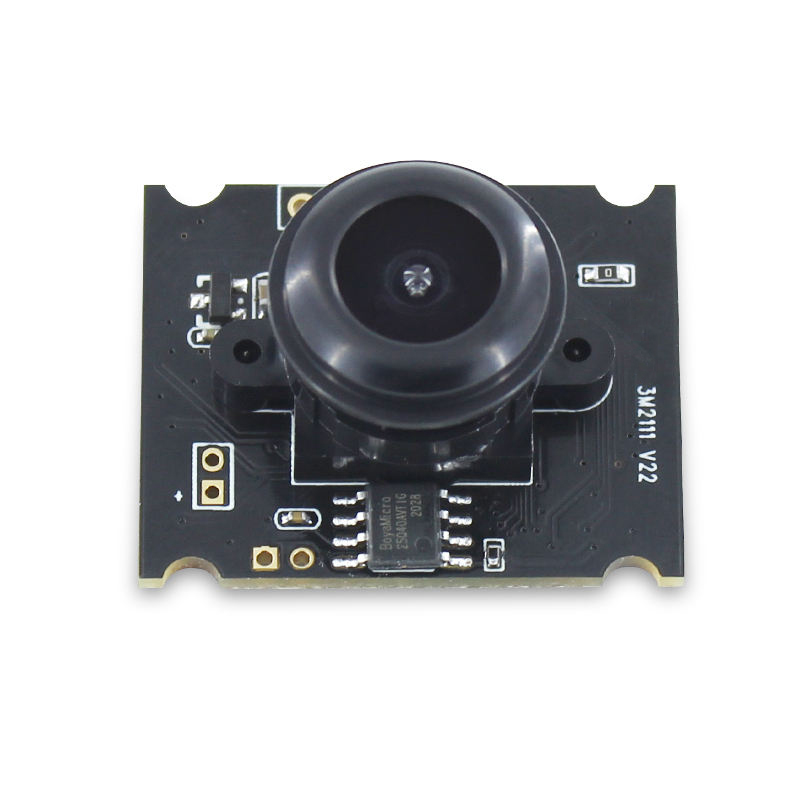

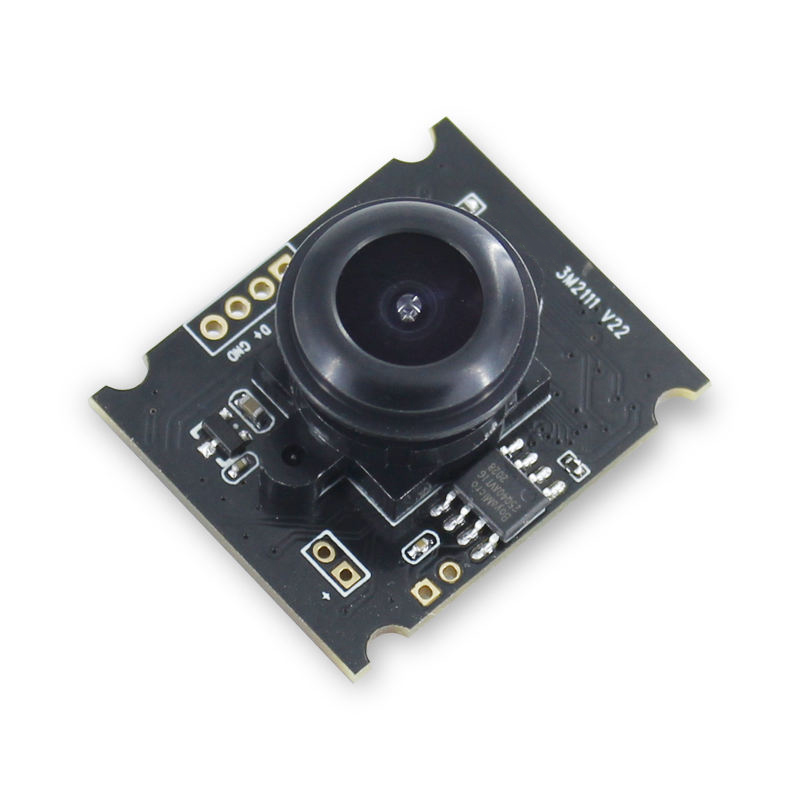

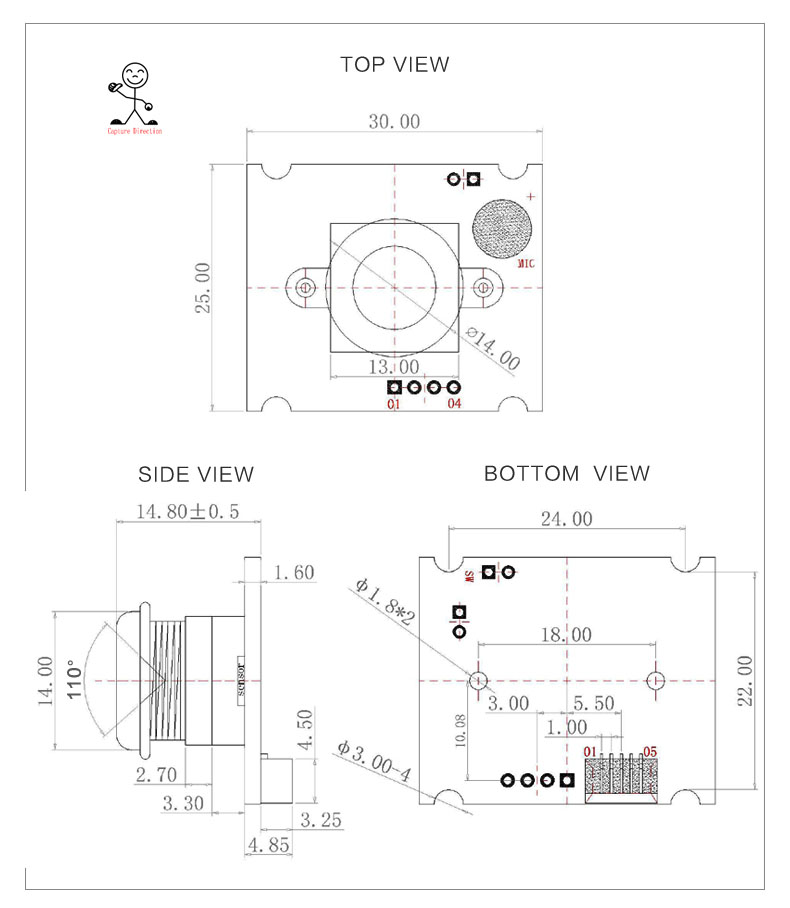

Detailed Images
