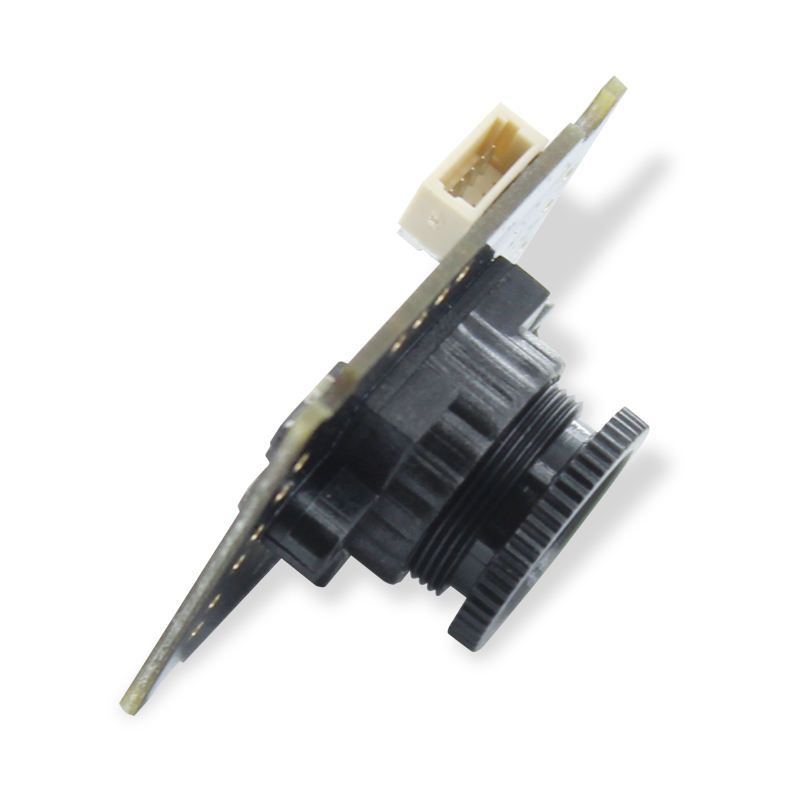

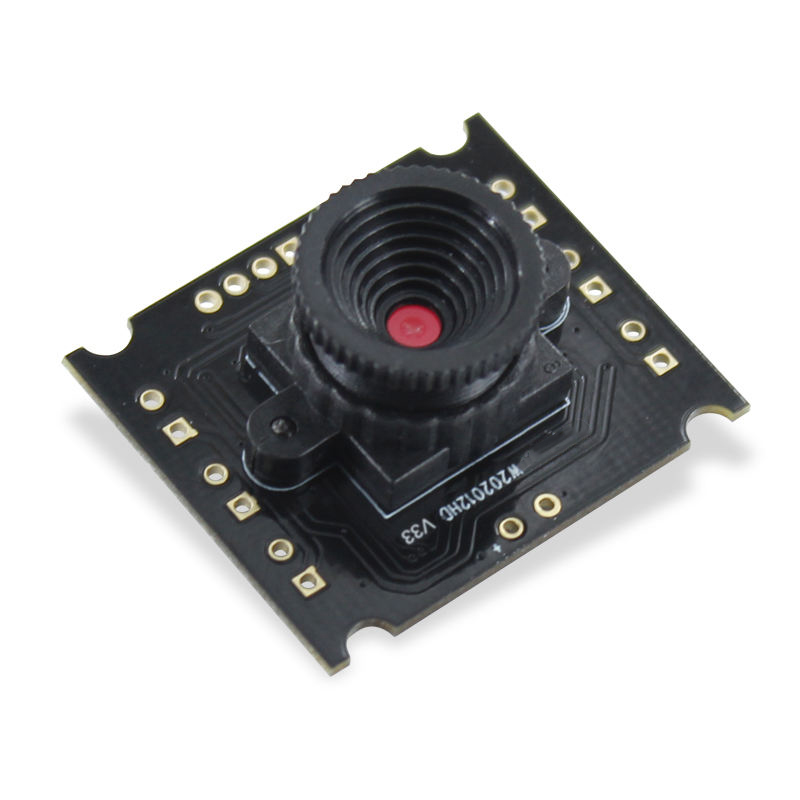

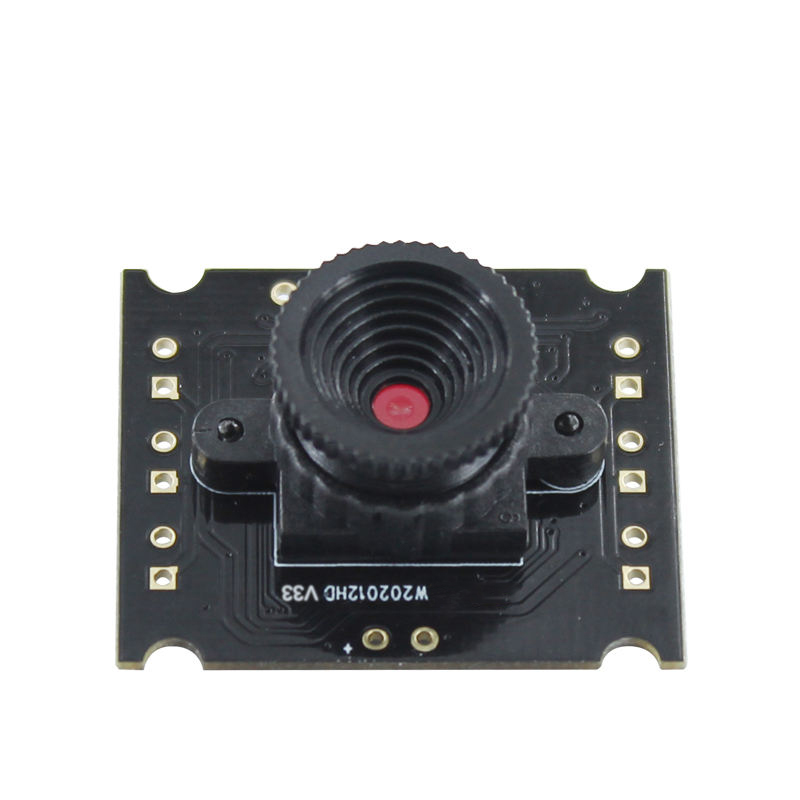

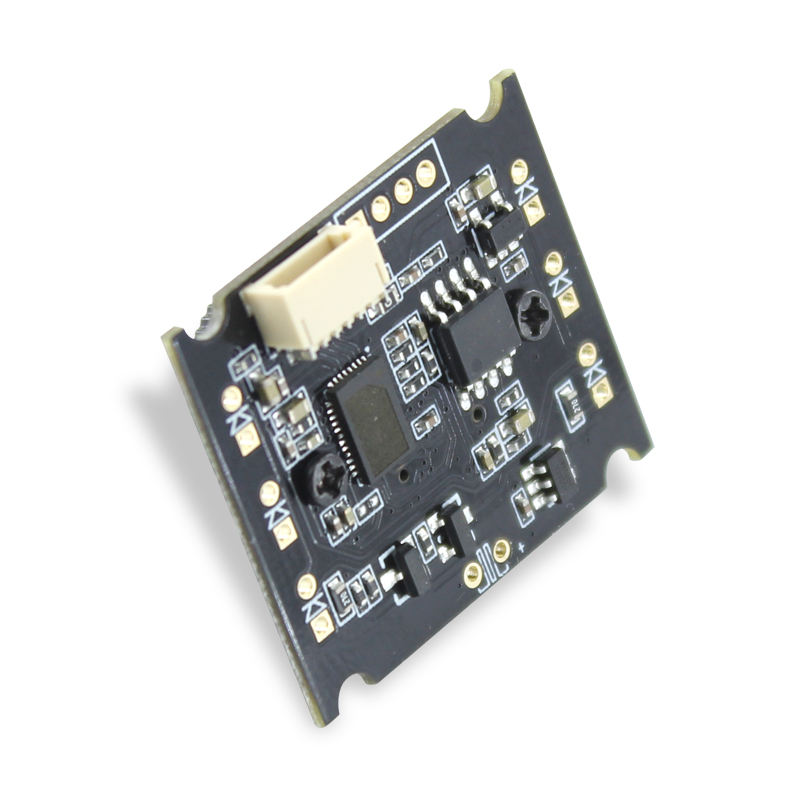

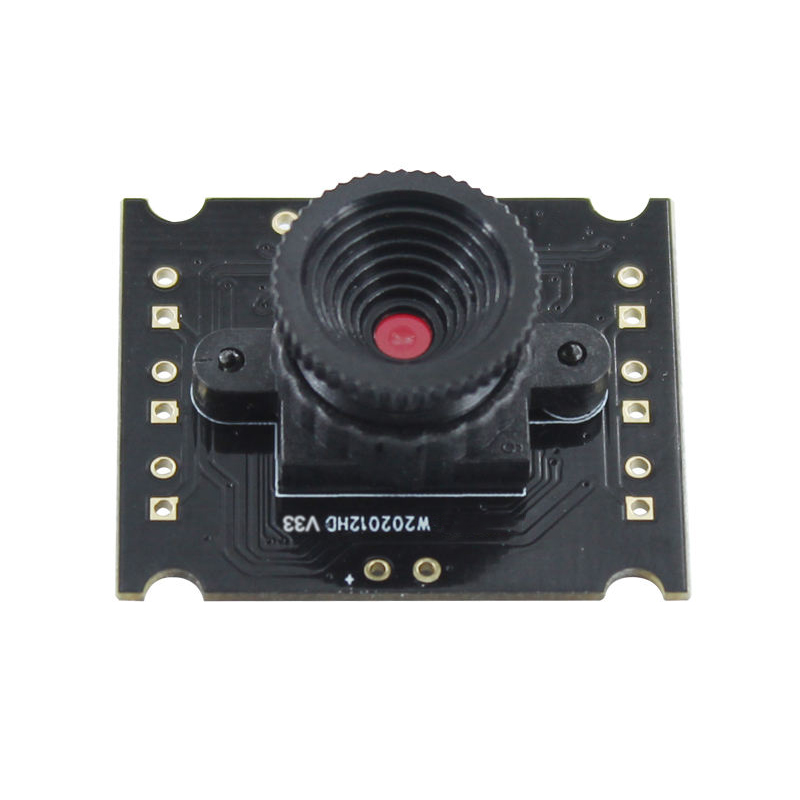

1 Mp Pc Device Embedded Built-In Camera Module Fixed Focus Usb Mini Packing Cmos Pc Camera
$6.00
Availability:
In stock
Out of stock
Variations
Product Description
Product name | 1 MP PC, device embedded built-in camera module | ||

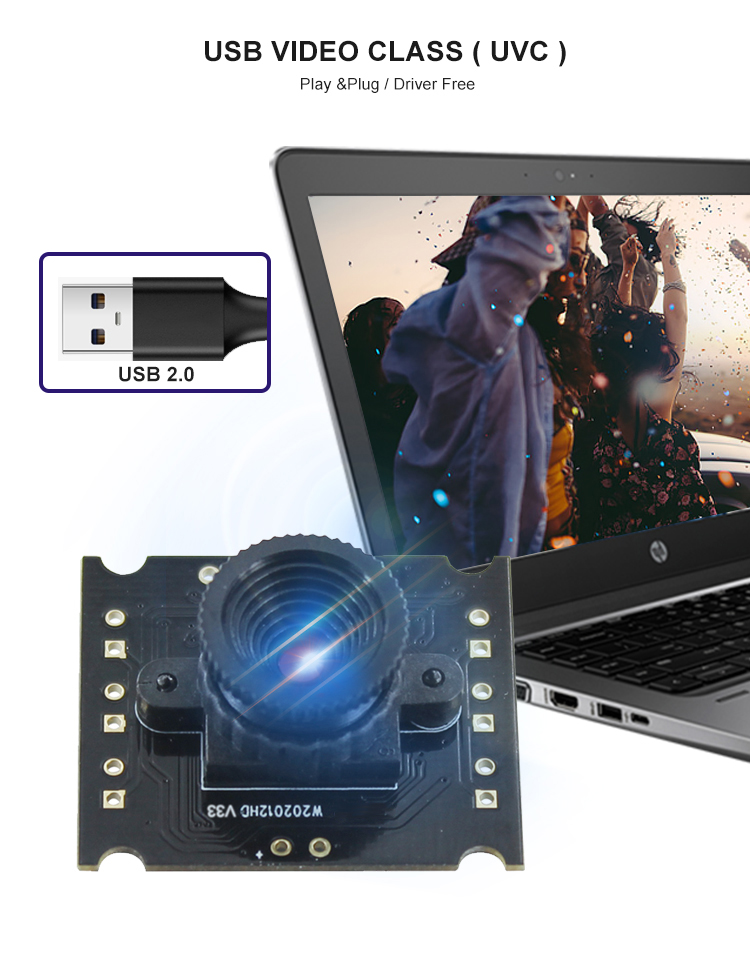

| Module No. | BMW202012HD V33 | ||

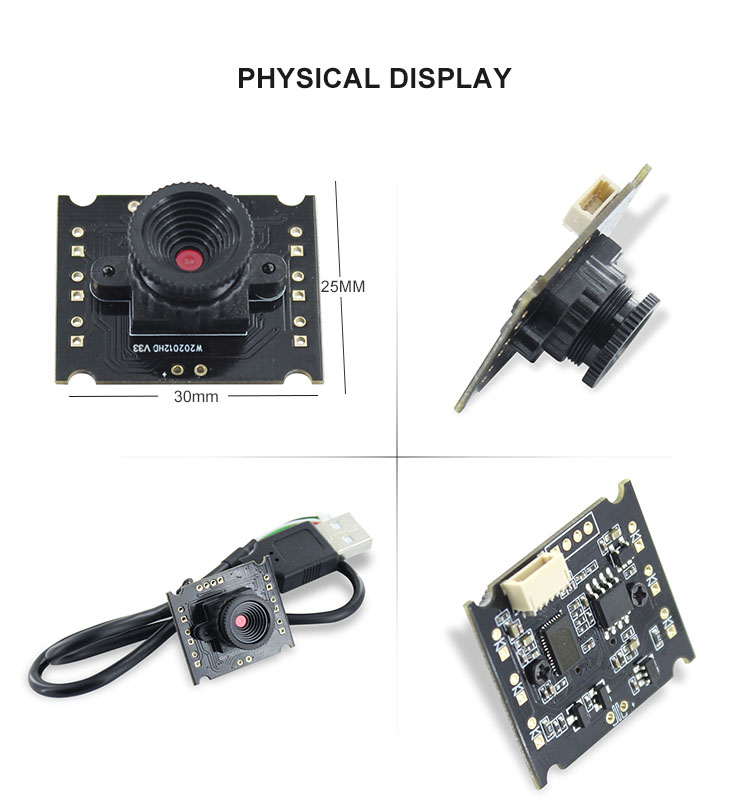

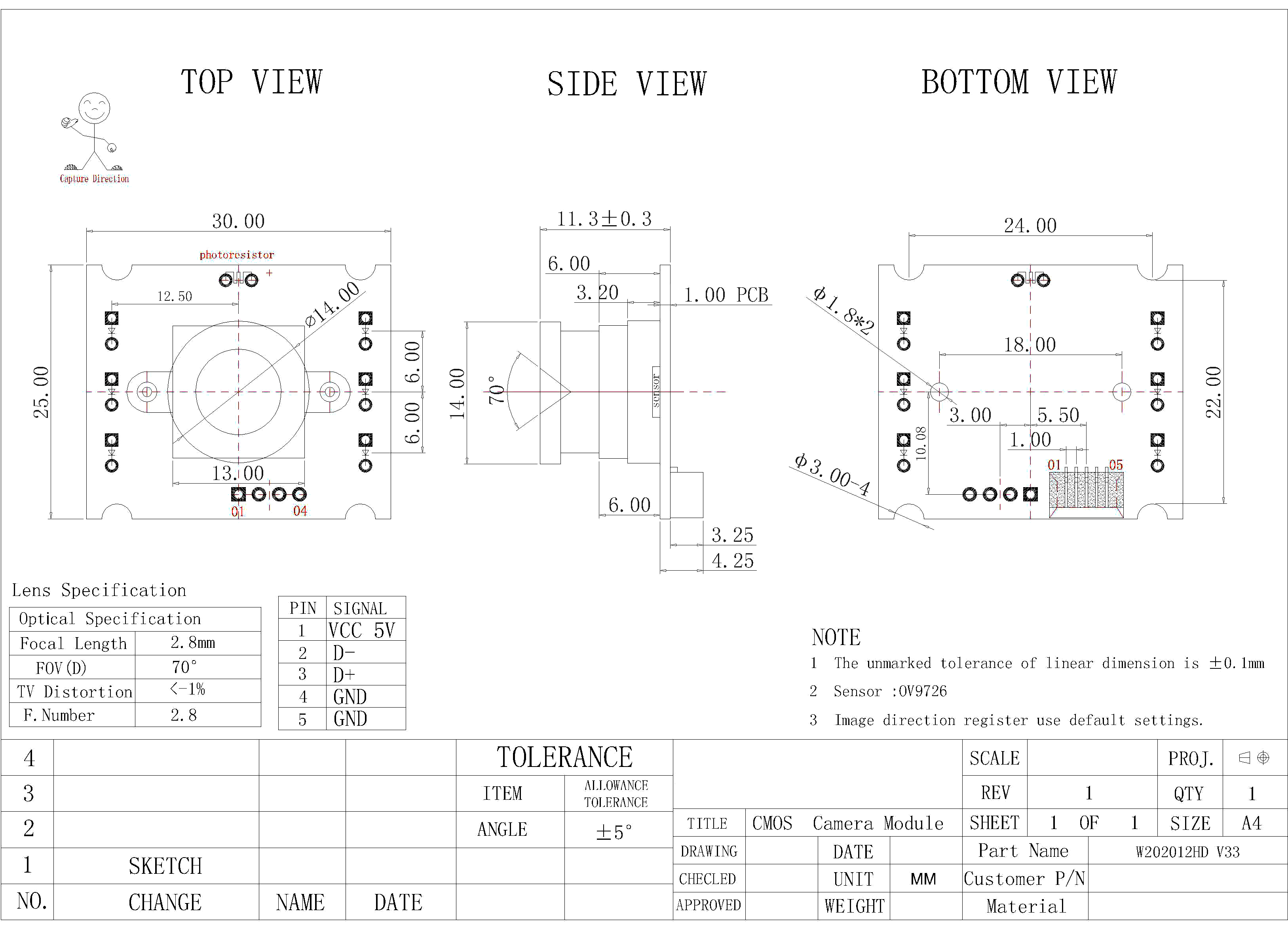

| Module Size | 30mm × 25mm × 11.3mm±0.3MM | ||
| Temperature (Operation) | -30°C to 70°C | ||
| Temperature (Stable Image) | 0°C to 50°C | ||
| Assembly technique | SMT (ROSH) | ||
| Focus | Fixed | ||
| Object distance | 30CM-infinity | ||
| Resolution | 600LW/PH (Center) | ||
| PCB printing ink | Black | ||

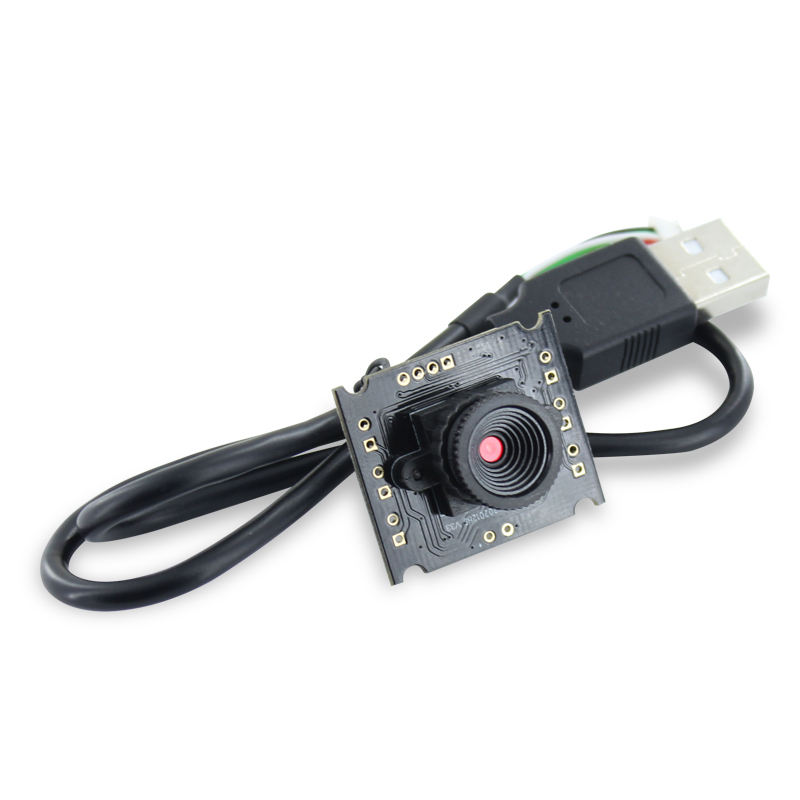

| interface | USB 2.0 | ||
| Power suuply | USB bus power | ||
| supply voltage | DC 5V±5% | ||
| Maximum Power consumption | 650 mW | ||
| Operating system request | Win XP/win 7,8 / vista /android 4.0/ mac /Linux with uvc | ||
| Sensor | OV9726 (1/6.5" ) | ||
| Seneor Package | CSP,Bare Die | ||
| Maximum resolution | 1280*800 | ||
| Sensitivity | 1300mV /(lux-sec) | ||
| Pixel Size | 1.75µm x 1.75µm | ||
| Maximum Image Transfer Rate | MJPEG 320x240 30FPS / YUY2 320x240 30FPS MJPEG 640x360 30FPS / YUY2 640x360 30FPS MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 800x600 30FPS / YUY2 800x600 15FPS MJPEG 1280x720 30FPS / YUY2 1280x720 10FPS MJPEG 1280x800 30FPS / YUY2 1280x800 10FPS | ||
| S/N Ratio | 36 db | ||
| Max Dynamic Range | 70 db | ||
| Shutter type | Electronic rolling shutter | ||
| AGC/AEC/Whiter balance | Auto | ||
| Output Formats | YUY2/MJPEG | ||
| Microphone | NO | ||
| Lens Construction | 3P | ||
| F/No | 2.8 | ||
| EFL | 2.8mm | ||
| FOV | 70° | ||
| TV Distortion | <-1.0% | ||
| Relative Illumination (Sensor) | 70% | ||
| IR Filter | 650±10nm | ||
| Module Package | Anti-electrostatic tray | ||
| Certifications | FCC/CE/ROSH |
