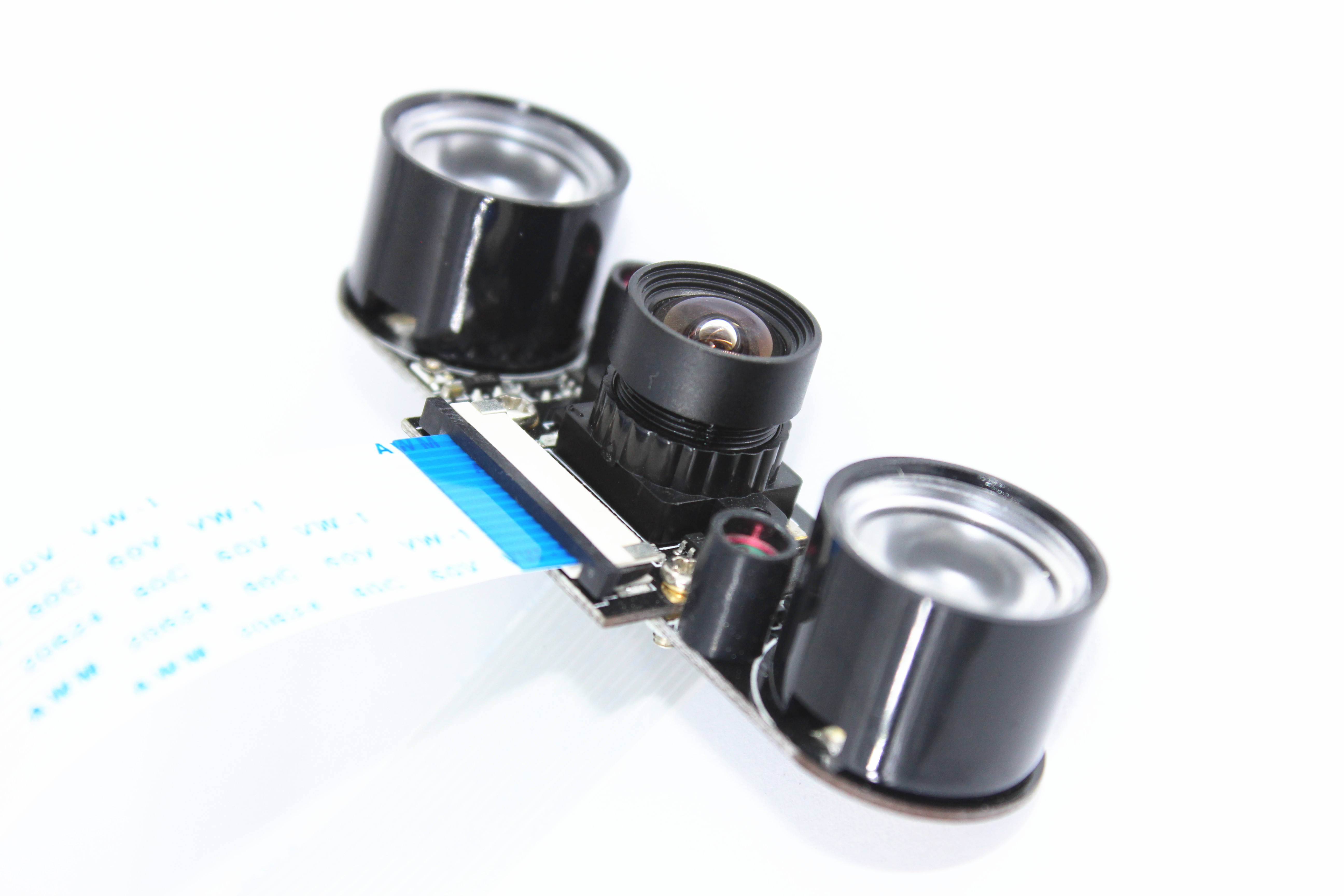

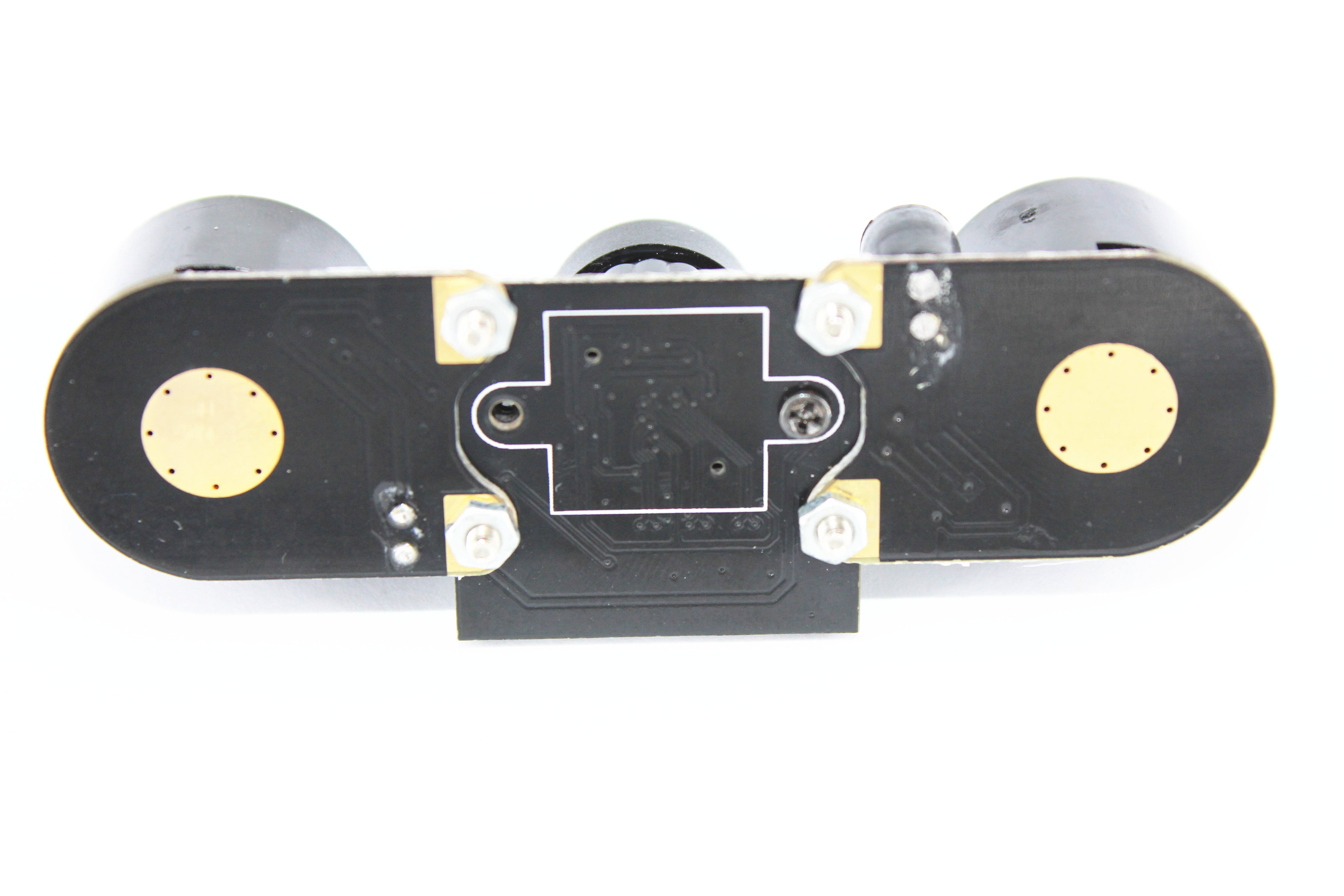

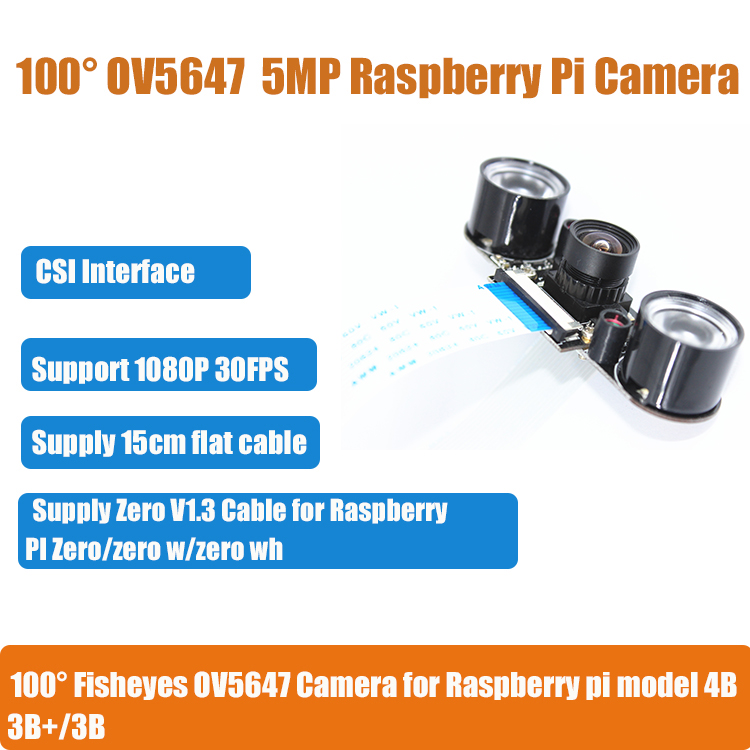

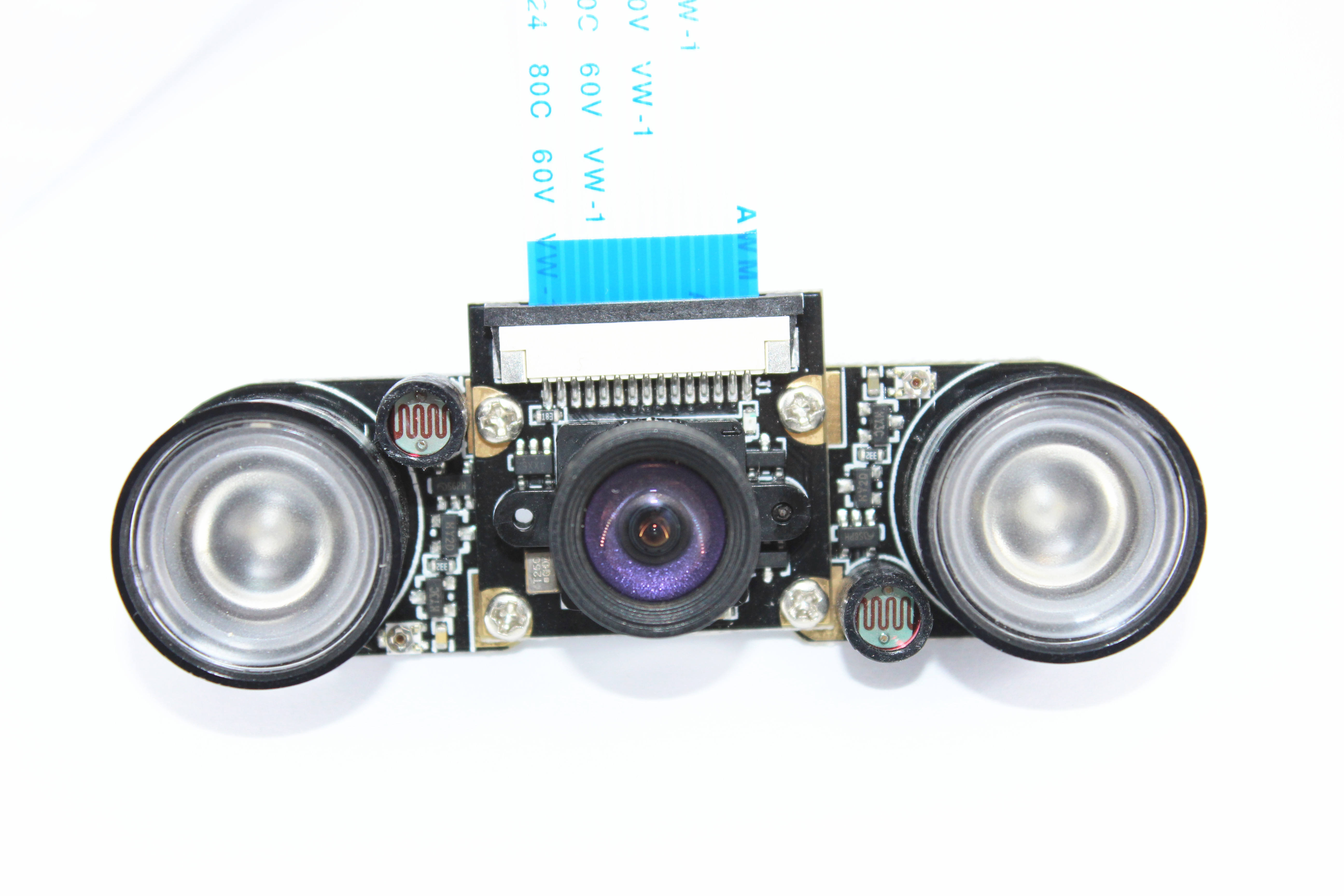

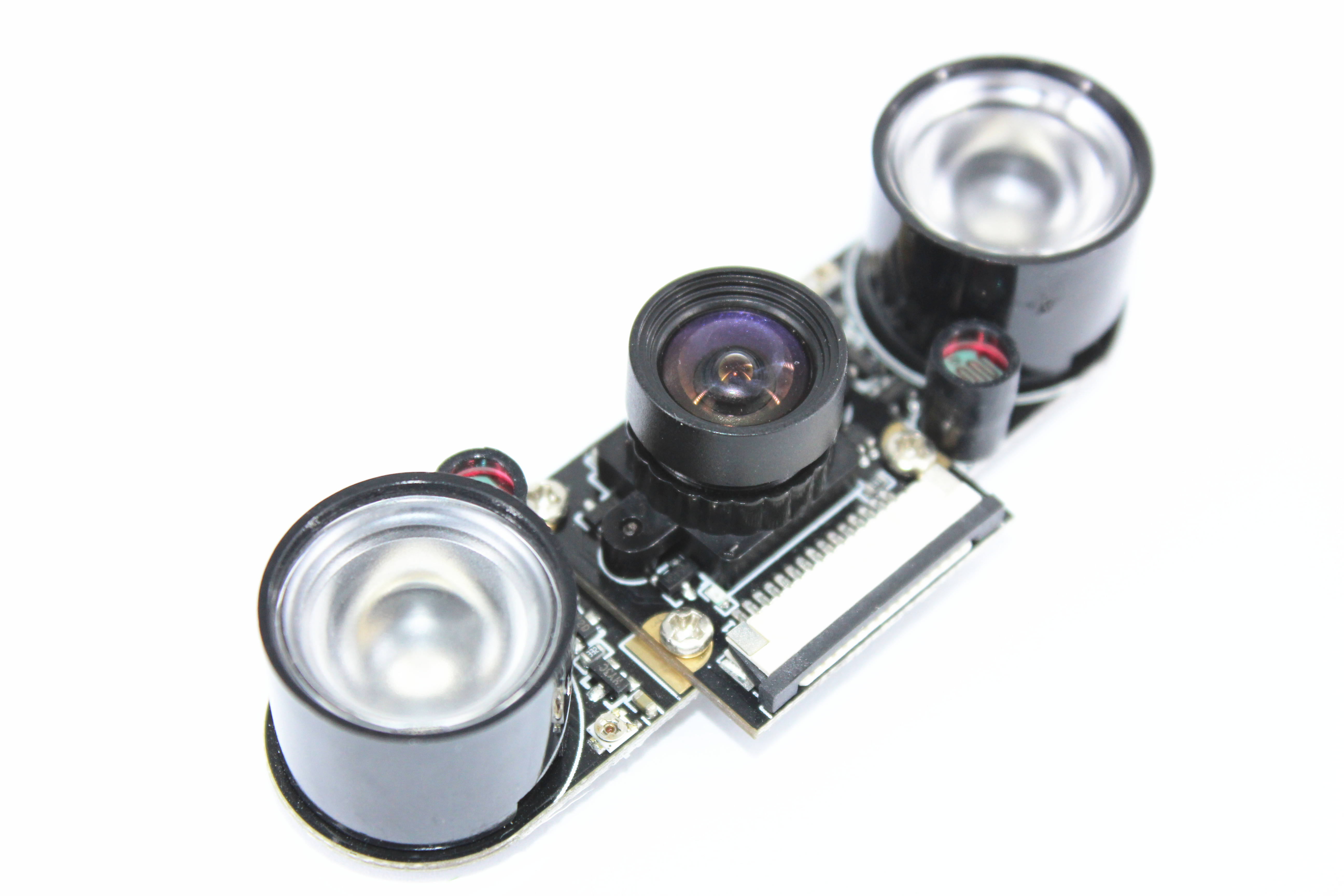

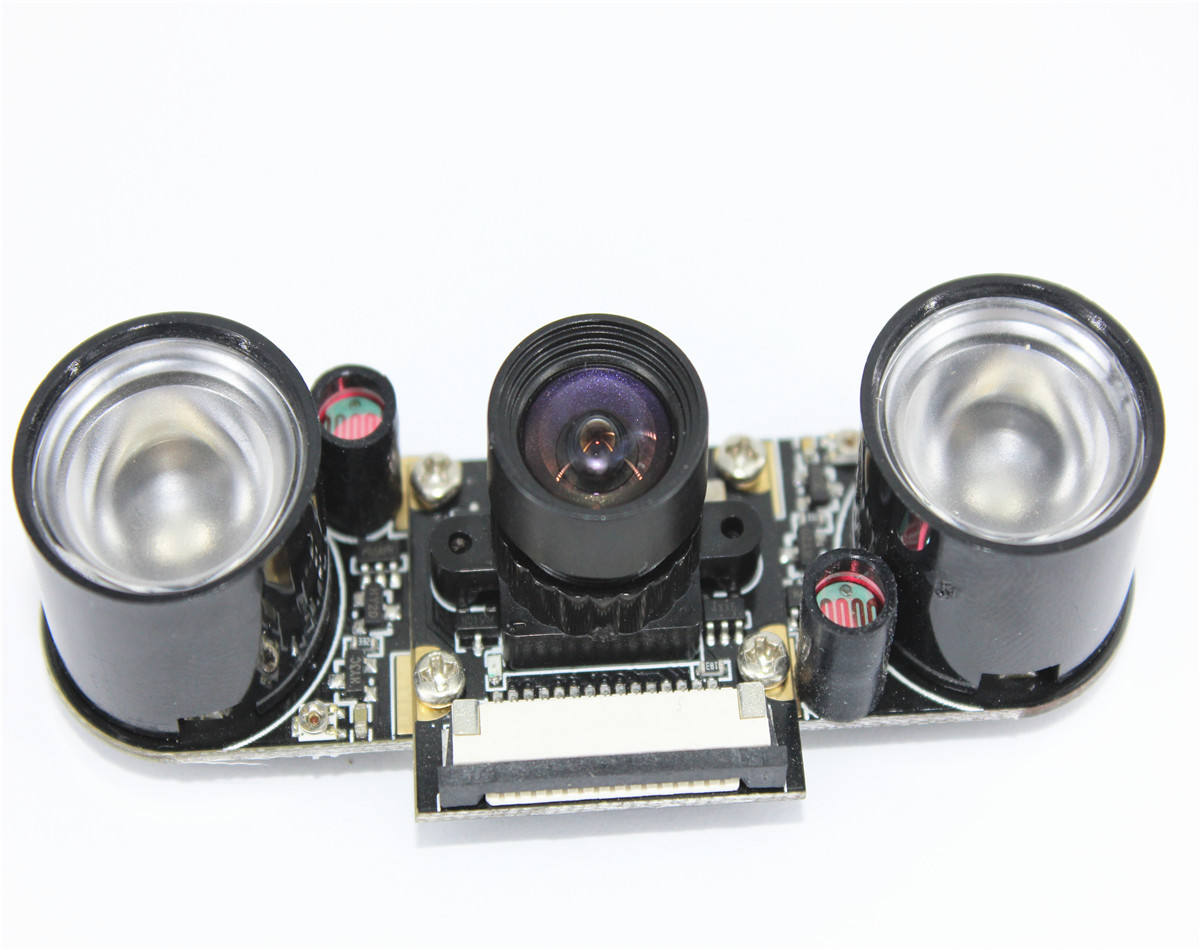

5MP PCB Board 3b 4b FOV 100 Degree Fixed focus OV5647 Night Vision Noir Raspberry Pi 4 Camera
$9.48
Availability:
In stock
Out of stock
Variations
Product Description
Product Specification
| Module No. | HR1509B-ND100 V11 |
| Module Size | 25mm × 24mm ×16±0.5mm |
| Temperature (Stable Image) | 0°C to 50°C |
| Temperature | (Operation) -20°C to 70°C |
| Focus Fixed | Fixed (Lens is adjustable) |
| Sensor Type | OV5647 (1/4" ) |
| Pixel Size | 1.4µm x1.4µm |
| Lens | 3.6MM/ 130°/160°/175°/222° lens is optional |
| Sensor type | OV5647 |
| Max Resolution | 2592*1944 |
| FOV | 100 degree |
| EFL | 2.1 mm |
| Interface | CSI |
| TV Distortion | <2% |
| Cable | 15 cm fexible cable |
Detail Images
Product drawing
