0.3MP usb 60fps camera module from professional manufacturer
$19.20
Availability:
In stock
Out of stock
Variations
Product Description
Product Descripiton
dual lens camera module

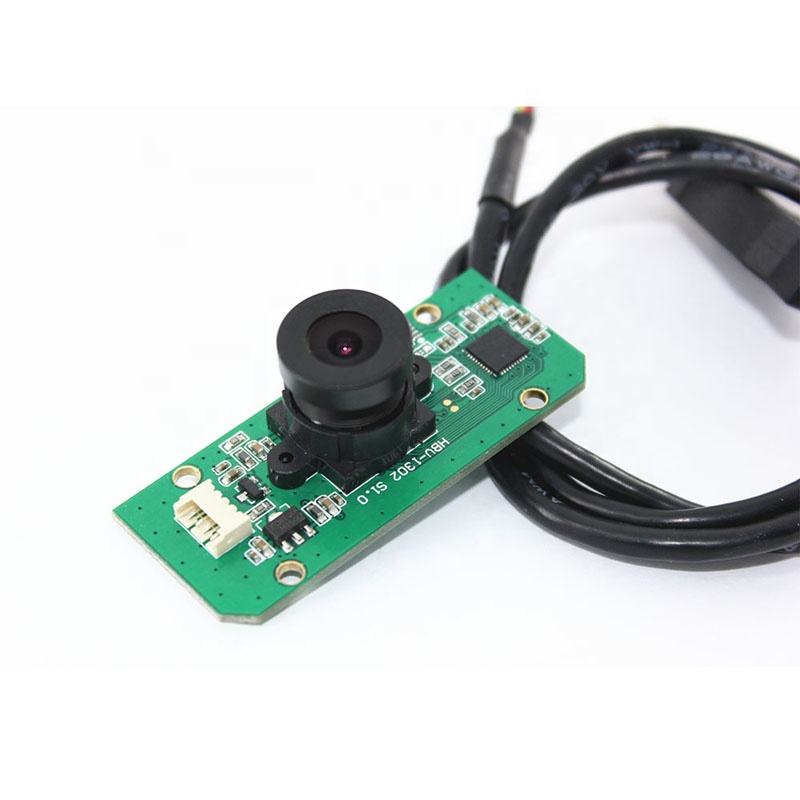

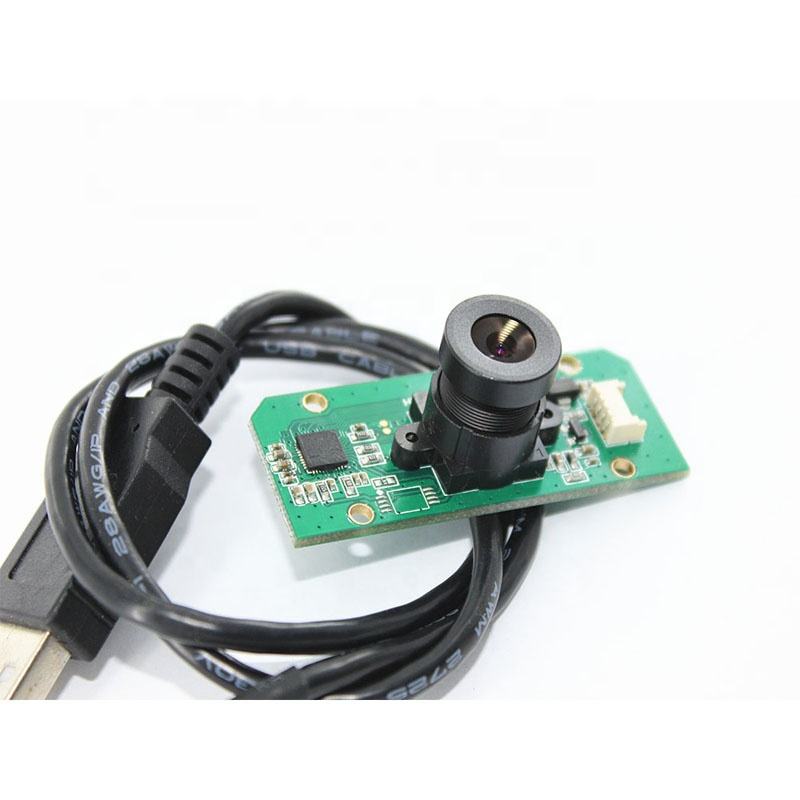

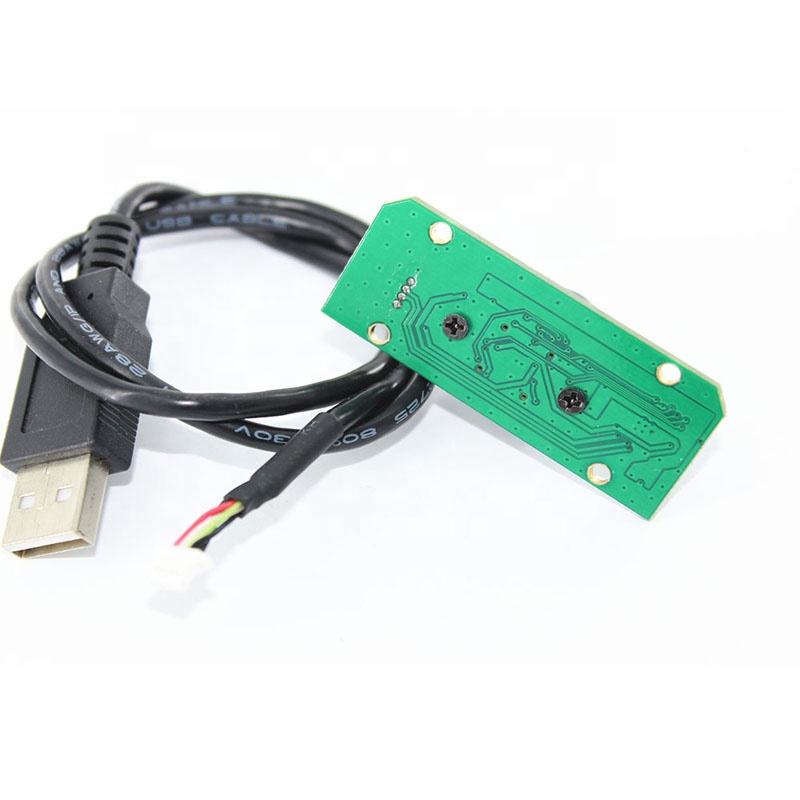

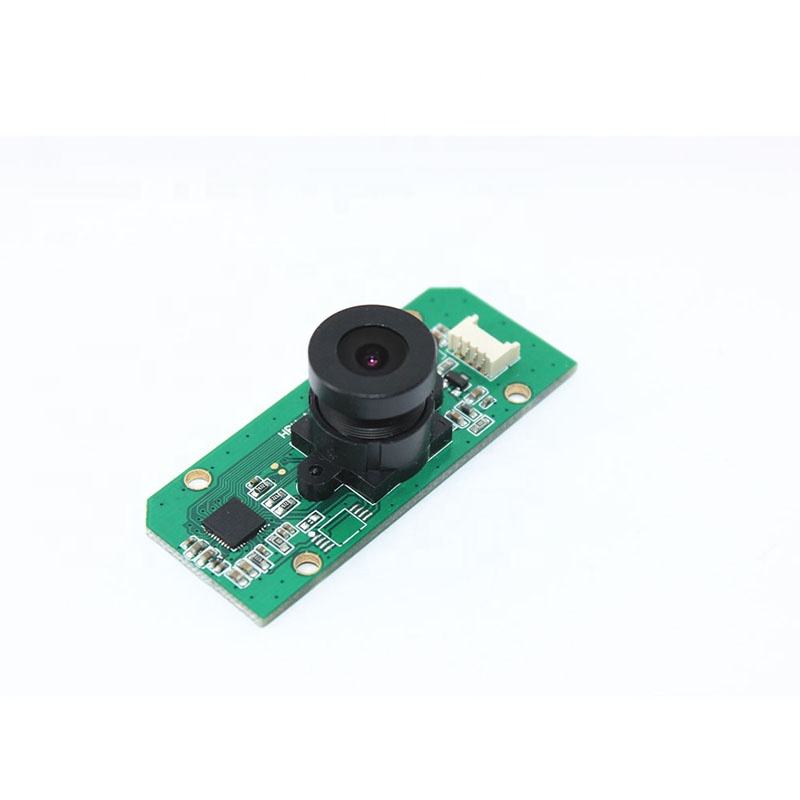

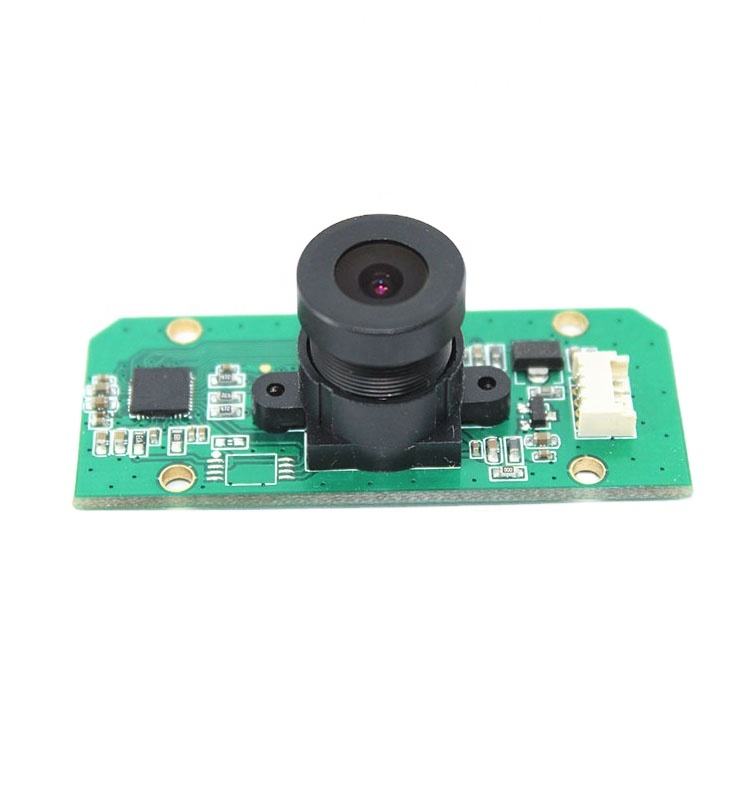

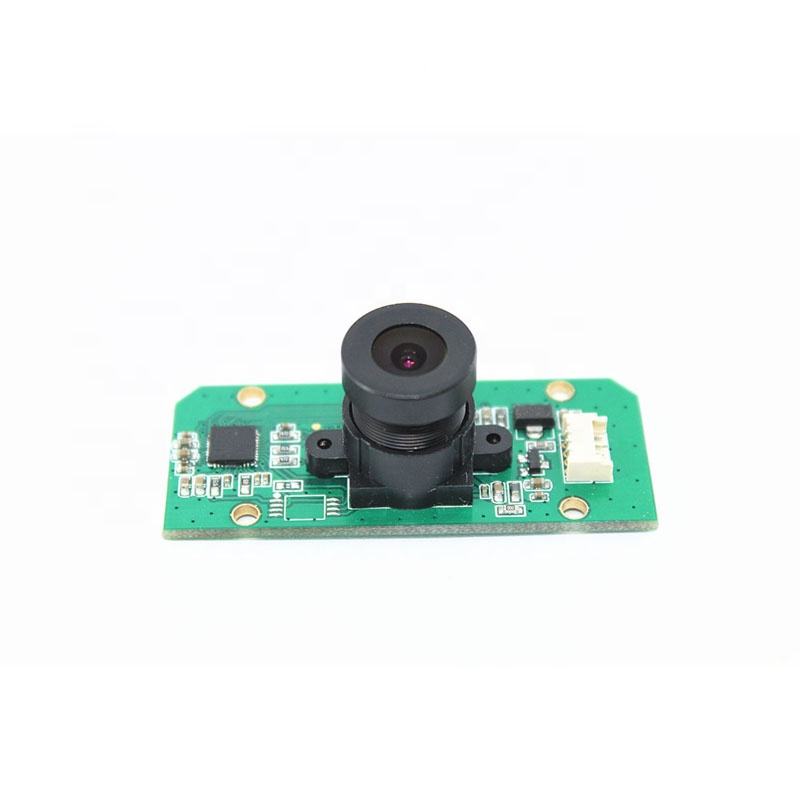

0.3MP OEM usb 60fps camera module from professional manufacturer
| Model No. | BM1302 S1.0 | ||
| Model Size | 52MM*21MM*19MM | ||
| Sensor | OV7725 | ||
| Resolution | 640*480 | ||
| Optical Format | 1/4 inch | ||
| Sensitivity | 3.8V/Lux-sec | ||
| S/N Ratio | 50dB | ||
| Dynamic Range | 60dB | ||
| Pixel Size | 6.0um*6.0um | ||
| Image Area | 3984um*2952um | ||
| Object distance | 30-infinity | ||
| Interface | 5PIN USB2.0 | ||
| DFOV | 120degree | ||
| HFOV | 100 degree | ||
| VFOV | 67degree | ||
| Operating system | Free driver for Windows 2000\ Windows XP\Windows 7 / Linux and Android system with Standard UVC Protocol | ||
| Video Format | MJPG | ||
| Format output and FPS | 648*480(default) 60fps 160*120 60fps 320*240 60fps 352*288 60fps 800*600 30fps | ||
| Video Format | YUY2 | ||
| Format output and FPS | 648*480(default)30fps 160*120 60fps 320*240 60fps 352*288 60fps 800*600 15fps | ||
| Exposure | √ | ||
| Automatic white balance | √ | ||
| Focus | Fixed Focus (the lens is adjustable) | ||
| USB cable | 70cm for default (Also supply 1M 2M 3M) | ||
| 1The parameters of FOV are just for your reference, Different Lens has different FOV 2.The frame rate is related to Light,operating system and so on, the frame rate exist a little error. If you mind it, please don’t make an order for it. Thank you for your understanding | |||
