Fixed Focus 4K 8MP HD 3840*2160 IMX317 CMOS 30 FPS USB2.0 FOV 85 Degree Camera Module for Face Recognition
$58.80
Availability:
In stock
Out of stock
Variations
Product Attributes
Product Description
Product Specification
| Module No. | BM4K1928 V11 |
| Module Size | 38mm × 38mm × 24.5mm±0.5MM |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | Fixed |
| Object distance | 30CM-infinity |
| Resolution | 800LW/PH (Center) |
| PCB printing ink | black |
| interface | USB 2.0 |
| Power suuply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption | 940mW |
| Operating system request | Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc |
| Sensor | IMX317 (1/2.5" ) |
| Seneor Package | CSP,Bare Die |
| Maximum resolution | 3840*2160 |
| Sensitivity | 760mv /（lux-sec） |
| Pixel Size | 1.62µm x 1.62µm |
Maximum Image Transfer Rate | MJPEG 1600x1200 30FPS / YUY2 1600x1200 5FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 5FPS MJPEG 2048x1536 30FPS / YUY2 2048x1536 3FPS MJPEG 2688x1512 30FPS / YUY2 2688x1512 2FPS MJPEG 2592x1944 30FPS / YUY2 2592x1944 2FPS MJPEG 3840x2160 30FPS / YUY2 3840x2160 1FPS |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2/MJPEG |
| Microphone | Support |
| EFL | 4.2mm |
| FOV | 85° |
| Certifications | FCC/CE/ROSH |

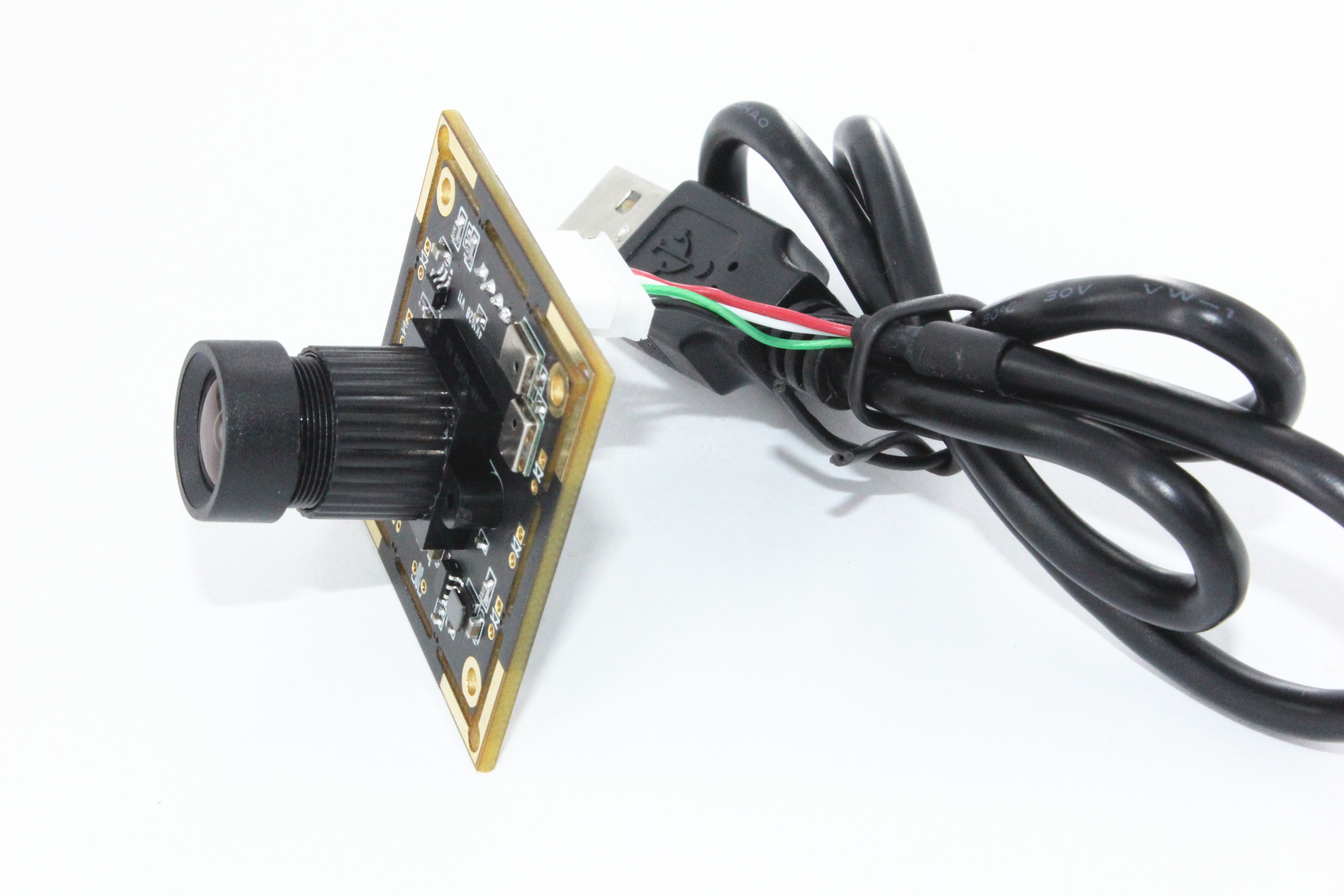

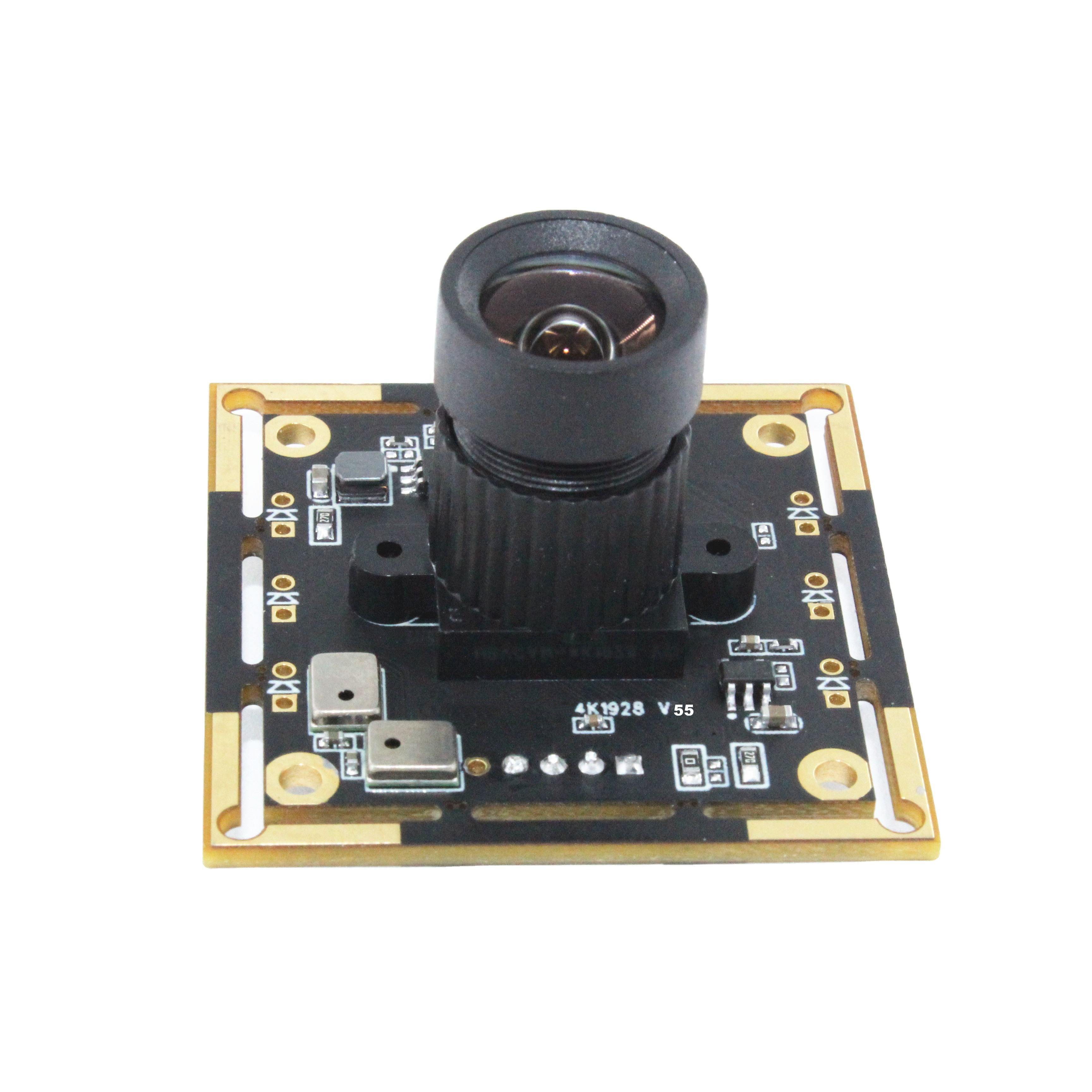

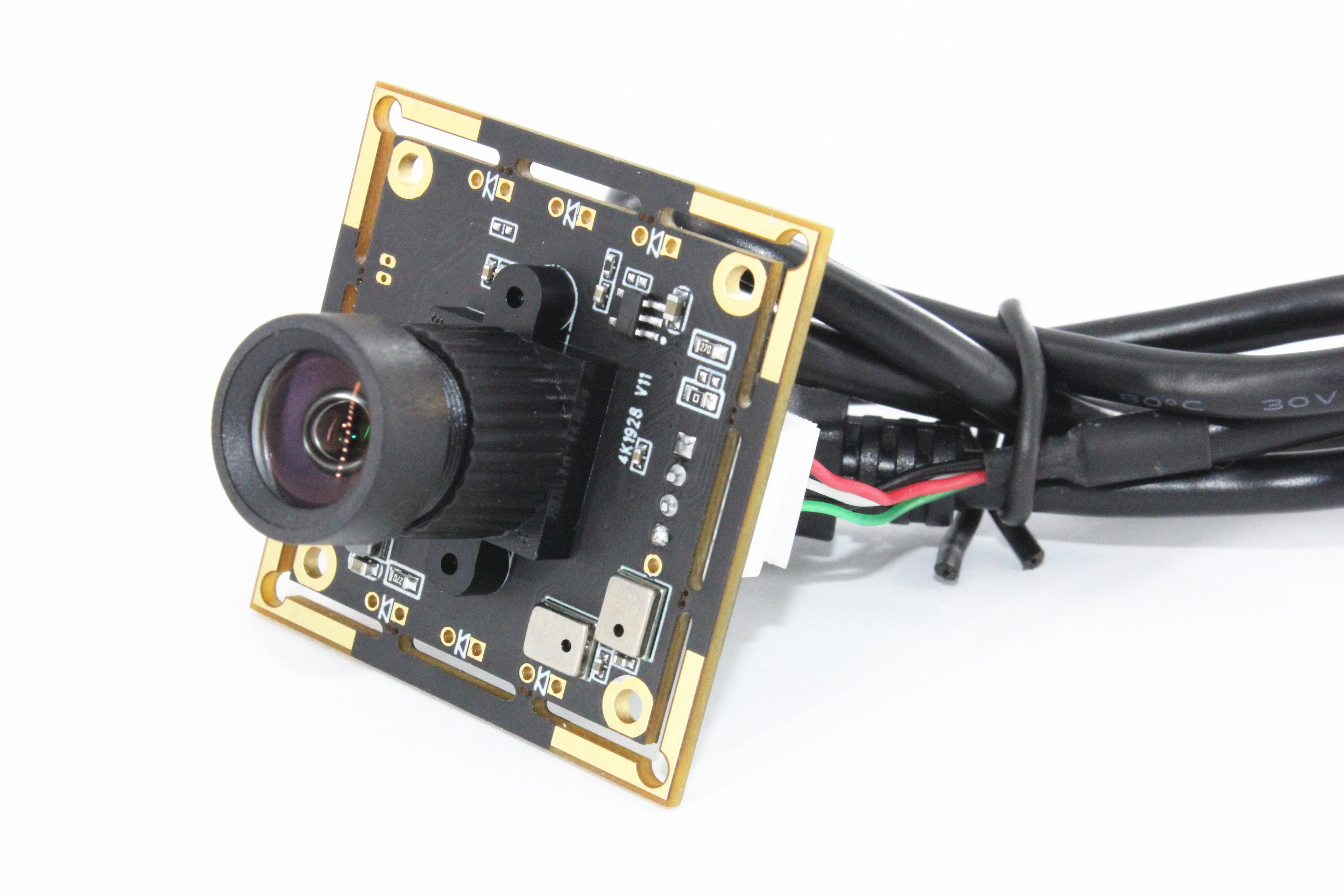

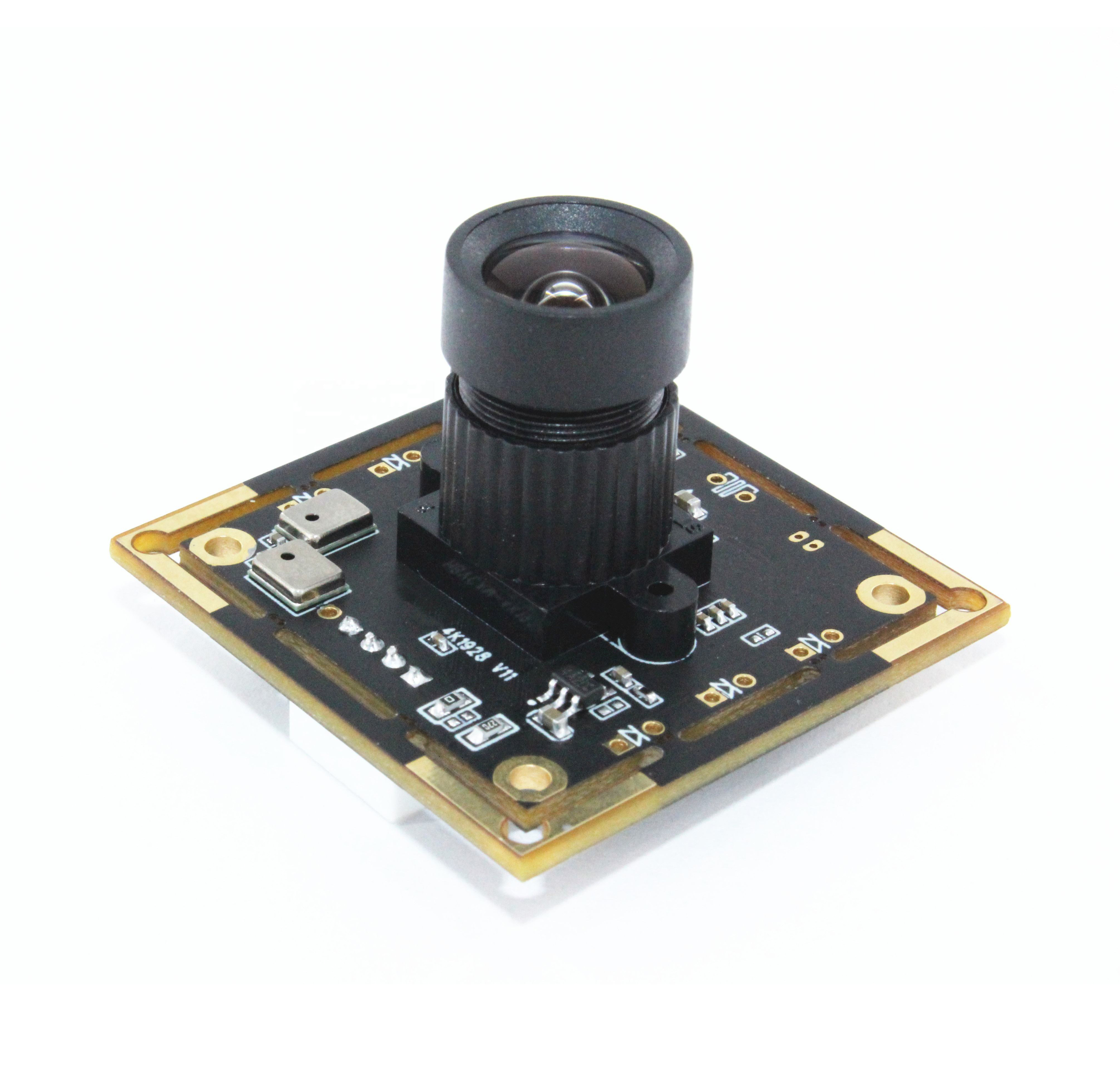

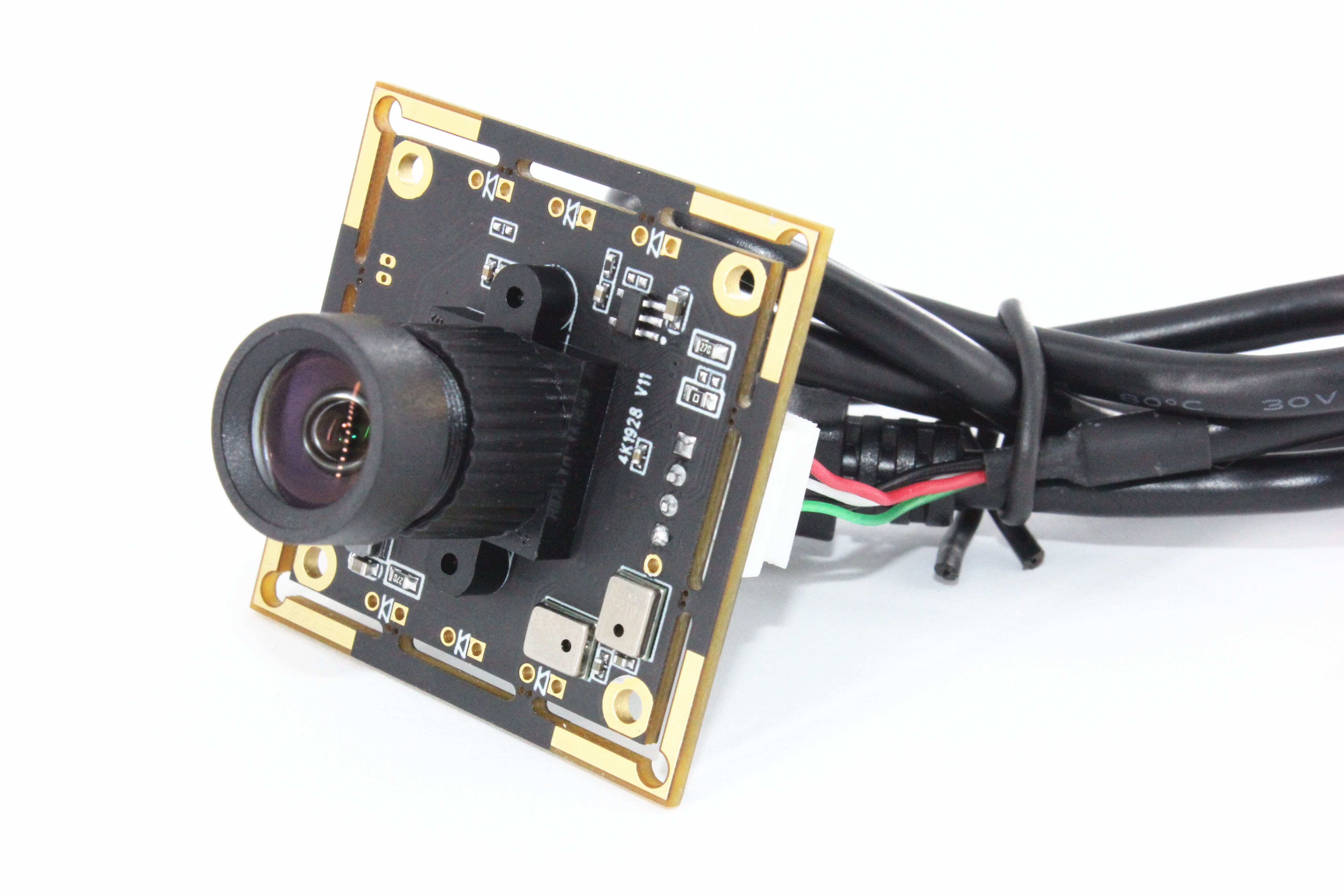

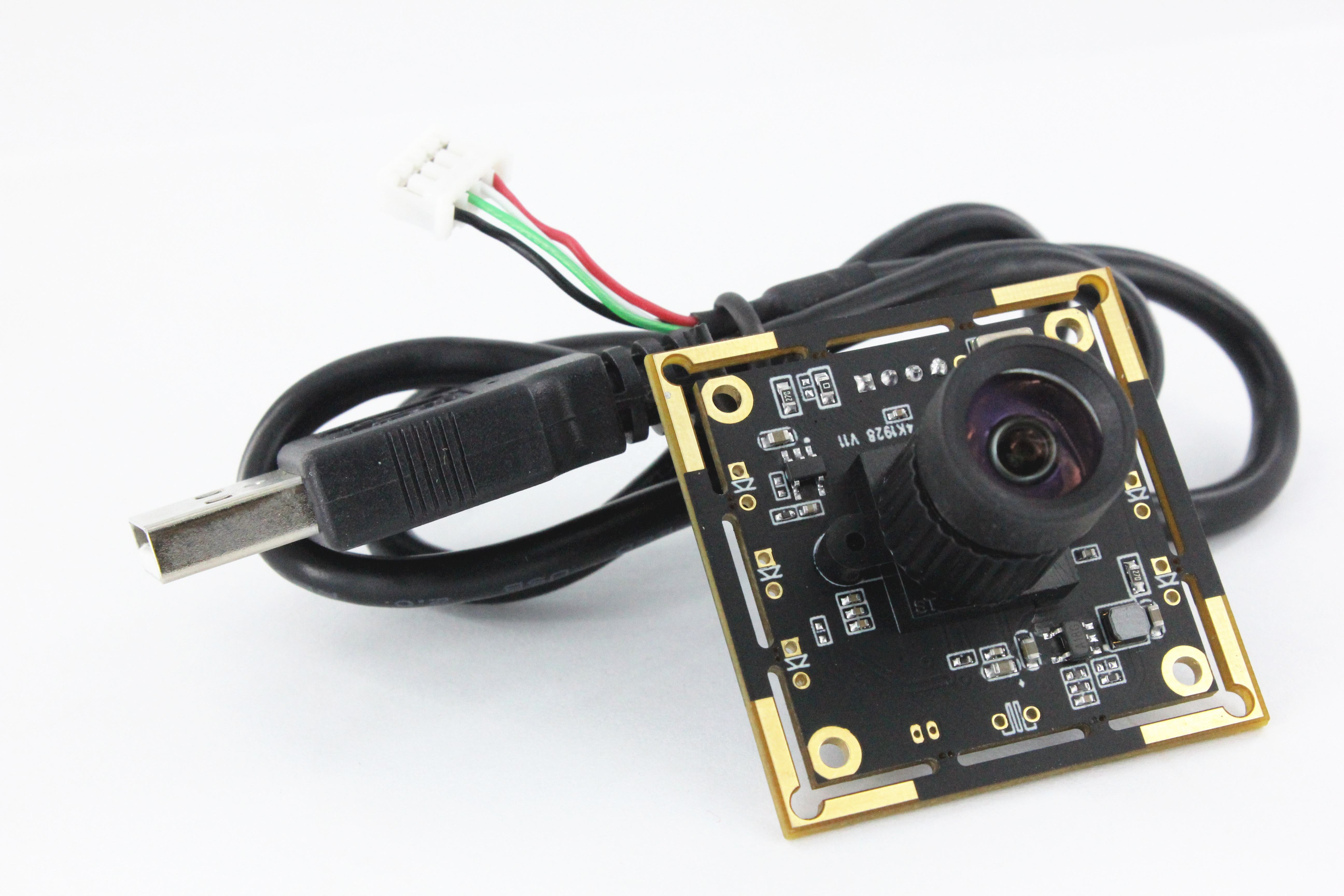

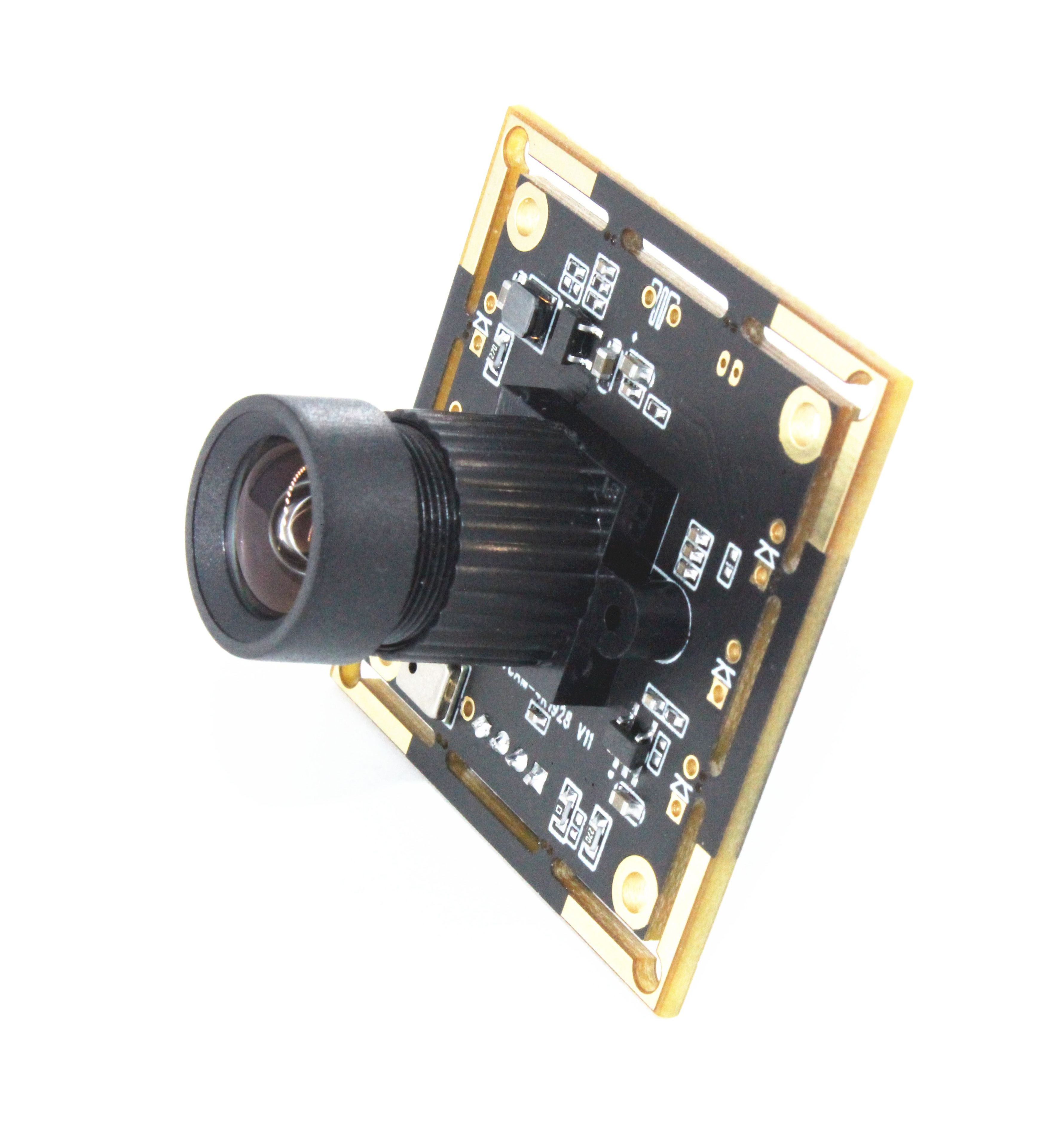

Detail Images
Product drawing
