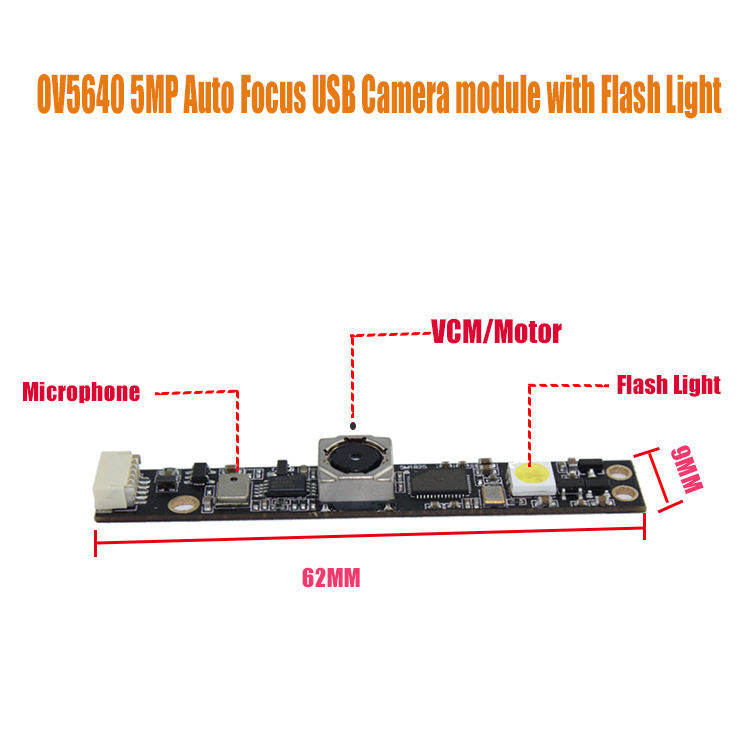

5MP Auto Focus Camera Module for Notebook computer and Advertising machine with Flash Light

$21.60

Availability:

In stock

Out of stock

SKU

217105

Product Description

Product Description

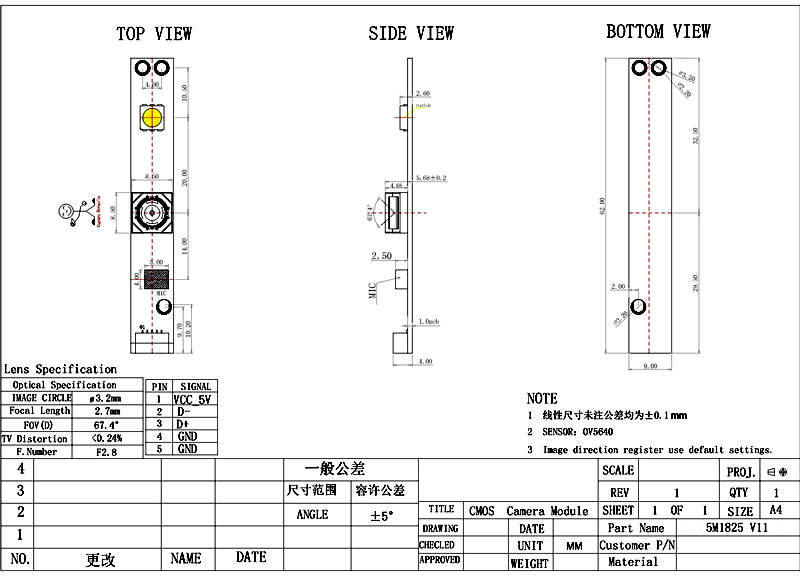

Module No.	BM5M1825 V11
Module Size	62mm × 9mm × 5.68mm±0.2MM
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Auto
Object distance	30CM-infinity
Resolution	800LW/PH (Center)
PCB printing ink	black
interface	USB 2.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	1200 mW
Operating system request	Win XP/win 7,8 / vista /android 4.0/ mac /Linux with uvc
Sensor	OV5640 (1/4" )
Seneor Package	CSP,Bare Die
Maximum resolution	2592*1944
Sensitivity	600mv /(lux-sec)
Pixel Size	1.4µm x 1.4µm
Maximum Image Transfer Rate	MJPEG 1280x720 30FPS / YUY2 1280x720 12FPS MJPEG 1280x960 15FPS / YUY2 1280x960 5FPS MJPEG 1600x1200 15FPS / YUY2 1600x1200 5FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 5FPS MJPEG 2048x1536 15FPS / YUY2 2048x1536 5FPS MJPEG 2592x1944 15FPS / YUY2 2592x1944 2FPS MJPEG 640x360 60FPS / YUY2 640x480 30FPS MJPEG 800x600 60FPS / YUY2 800x600 20FPS MJPEG 1280x720 60FPS / YUY2 1280x720 10FPS
S/N Ratio	36 db
Max Dynamic Range	68 db
Shutter type	Electronic rolling shutter
AGC/AEC/Whiter balance	Auto
Output Formats	YUY2/MJPEG
Microphone	Support
Lens Construction	4P
F/No	2.8
EFL	2.7 mm
FOV	67.4°
TV Distortion	<1%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROSH

Features

1. We can supply OEM/ODM service and customize the cameras according to your requirements

2. We are the manufacturer of camera module, we can quote the best price for you with best quality

3.our camera is free driver camera module, it can work with Windows system and some Android and Linux system with standard UVC protocol

4. we can supply sample cable to you for testing.

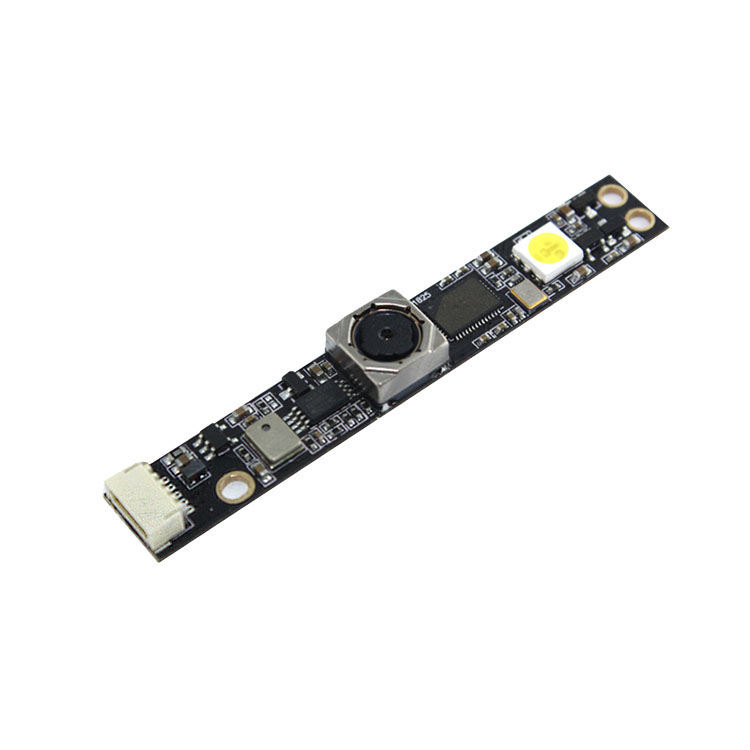

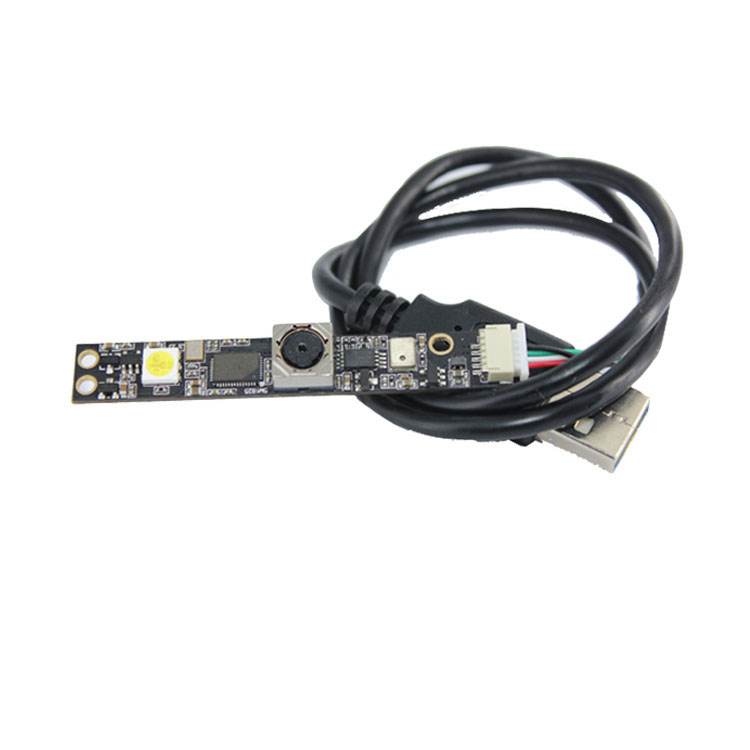

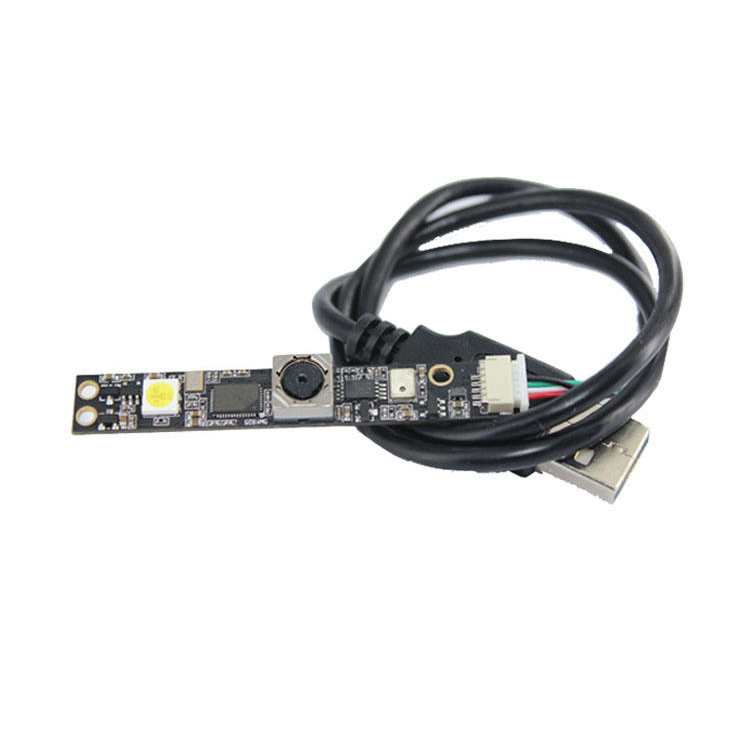

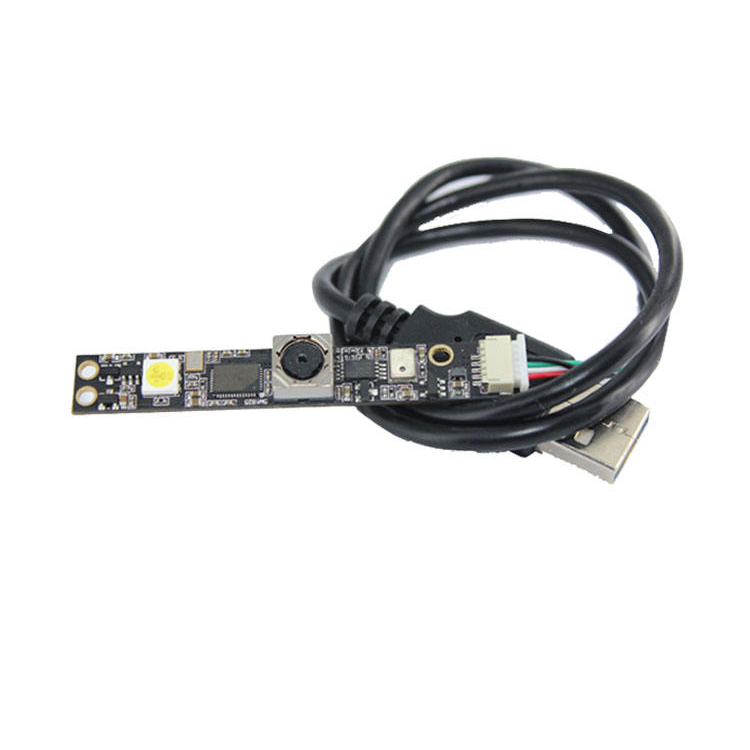

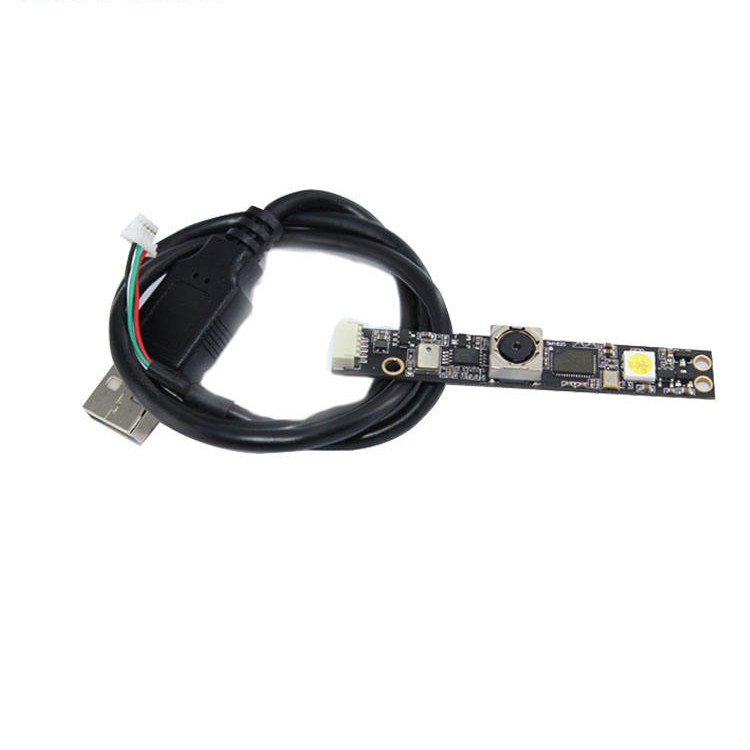

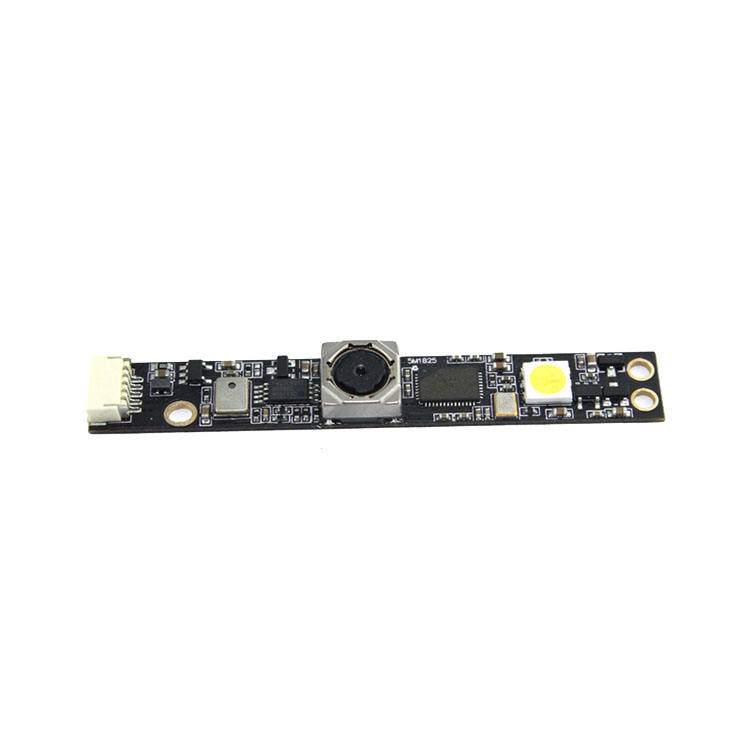

Detailed Images
