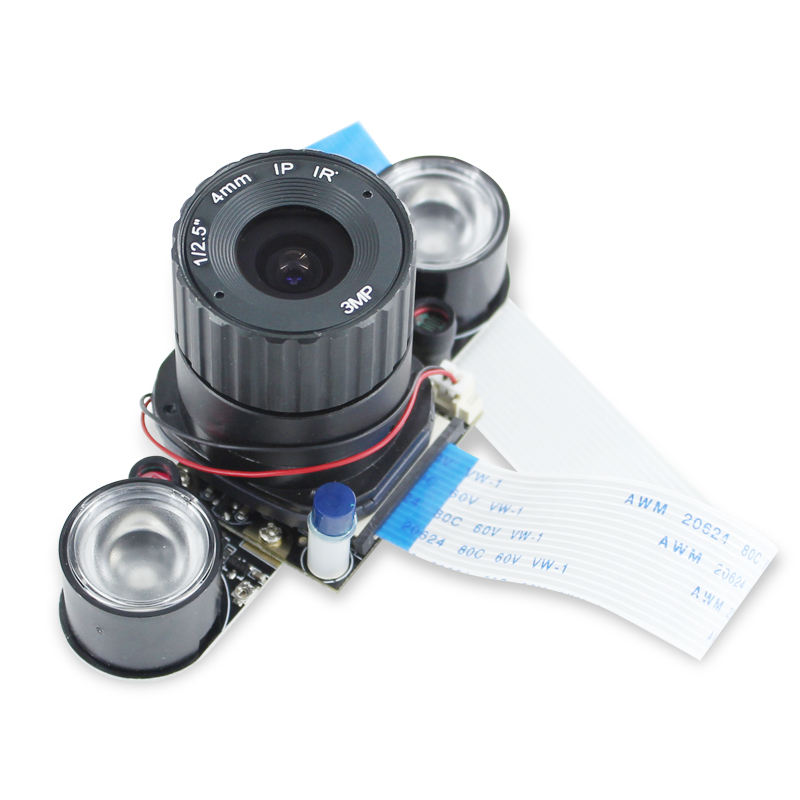

5MP Raspberry pi B 4/3/2 generation automatic white night IR_CUT camera lens OV5647 Cannon barrel lens
$11.04
Availability:
In stock
Out of stock
Variations
Product Attributes
Product Description
Product Description
| Module No. | HR-AUTO-IRCUT-BL V11 |
| Module Size | 30.58mm×32mm×24.5±0.5mm |
| Temperature(Operation) | -20°Cto70°C |
| Temperature(Stable Image) | 0°Cto50°C |
| Assembly technique | SMT(ROSH) |
| Focus | Fixed |
| Object distance | 30CM-∞ |
| Resolution | 800LW/PH(Center) |
| PCB printing ink | Black |
| interface | 15p-1.0mipi |
| Working power supply | 3.3v（pin15） |
| Operating system | Raspberry Pi |
| Package | Anti-electrostatic tray |
| Certifications | FCC and CE |
| Sensor Type | OV5647(1/4") |
| Active Array Size | 2592*1944 |
| Sensitivity | 600mV/ Lux-sec |
| Pixel Size | 1.4µmx1.4µm |
| Maximum Image Transfer Rate | 15fpsforQSXGA; |
| Output formats | 8/10bitRGBRAWoutput |
| S/N Ratio | 34db |
| Dynamic Range | 67db@8xgain |
| Package | CSP,Bare Die |
| Lens Construction | 6G |
| F/No | 2.0 |
| EFL | 1.7mm |
| BFL(Optical) | 4.8mm |
| FOV | 175° |
| TV Distortion | <16% |
| Relative Illumination(Sensor) | 70% |
| IR Filter | Auto IR-CUT |
Detail Images

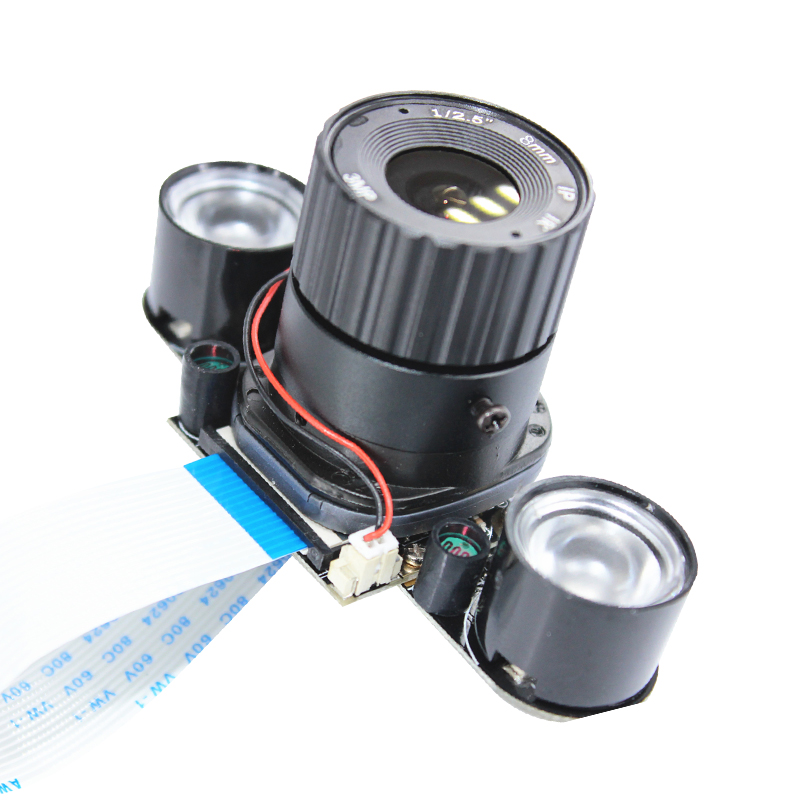

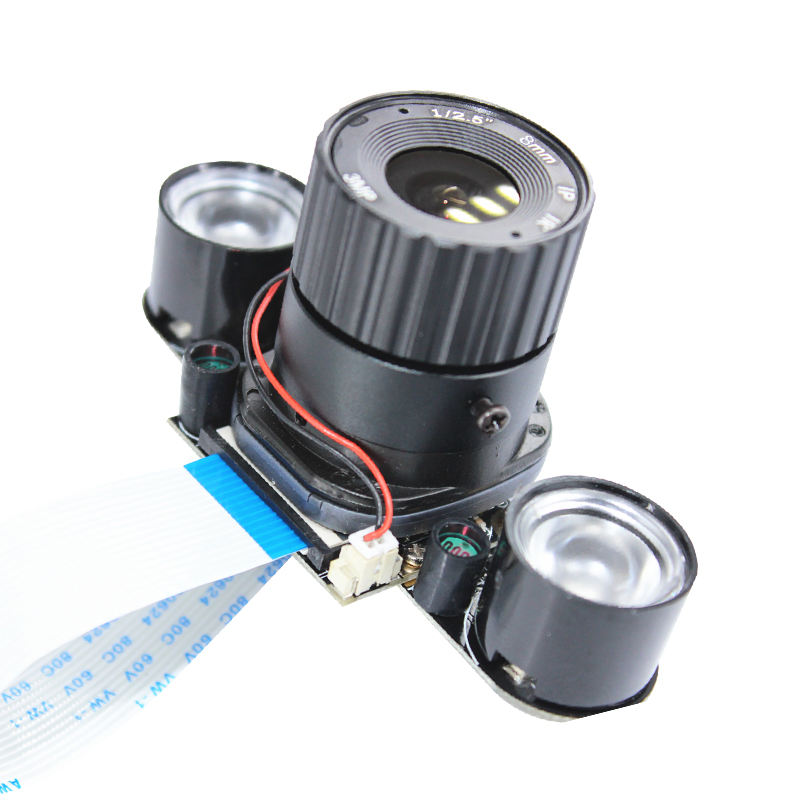

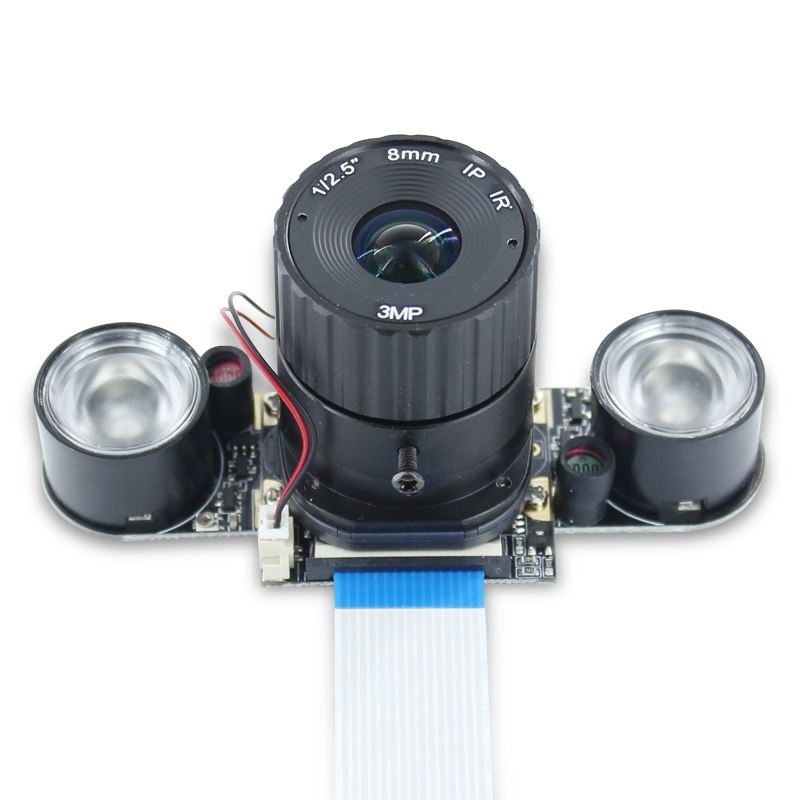

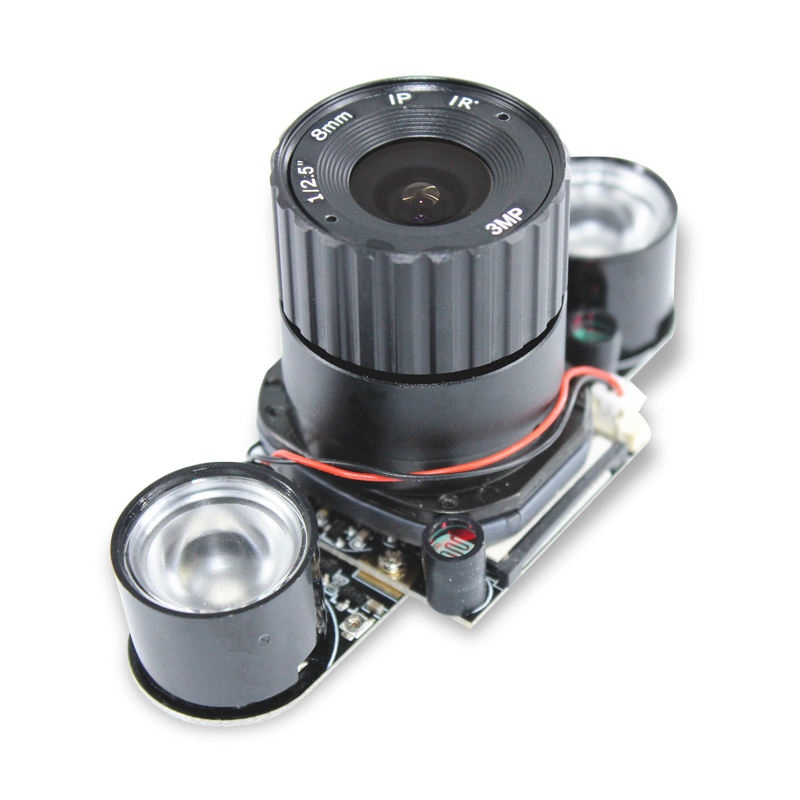

8MM barrel lens Raspberry Pi IR-Cut Camera
1. Night/day mode switches automatically
2. Equipped with infrared filling light
3. The shooting focus distance is adjustable
4. 65 degree 8MM barrel lens
2. Equipped with infrared filling light
3. The shooting focus distance is adjustable
4. 65 degree 8MM barrel lens
1. Night/day mode switches automatically
2. Equipped with infrared filling light
3. The shooting focus distance is adjustable
4. 65 degree 4mm barrel lens
2. Equipped with infrared filling light
3. The shooting focus distance is adjustable
4. 65 degree 4mm barrel lens
Product Application Diagram
