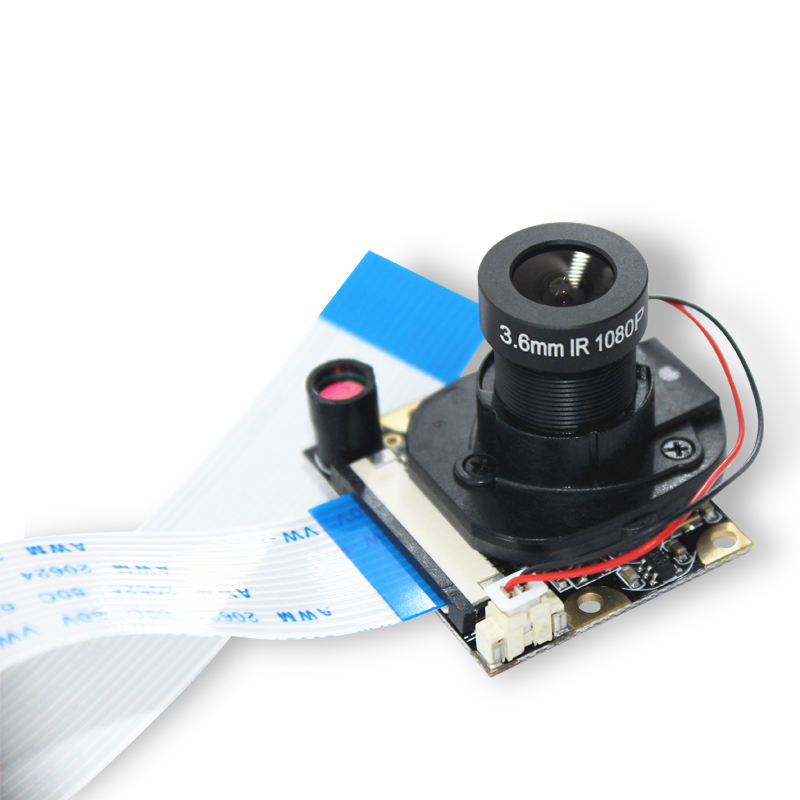

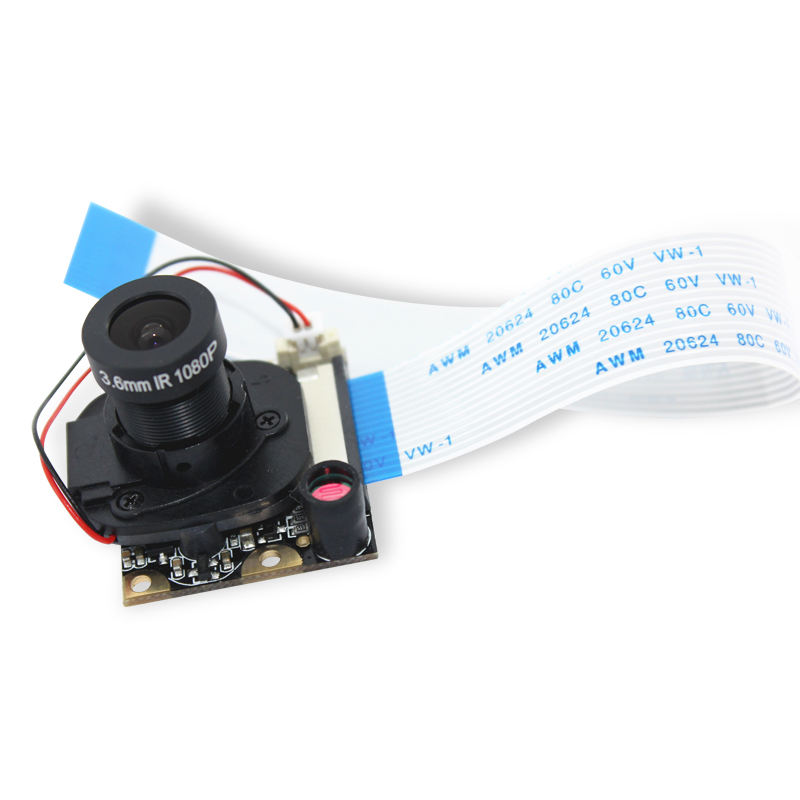

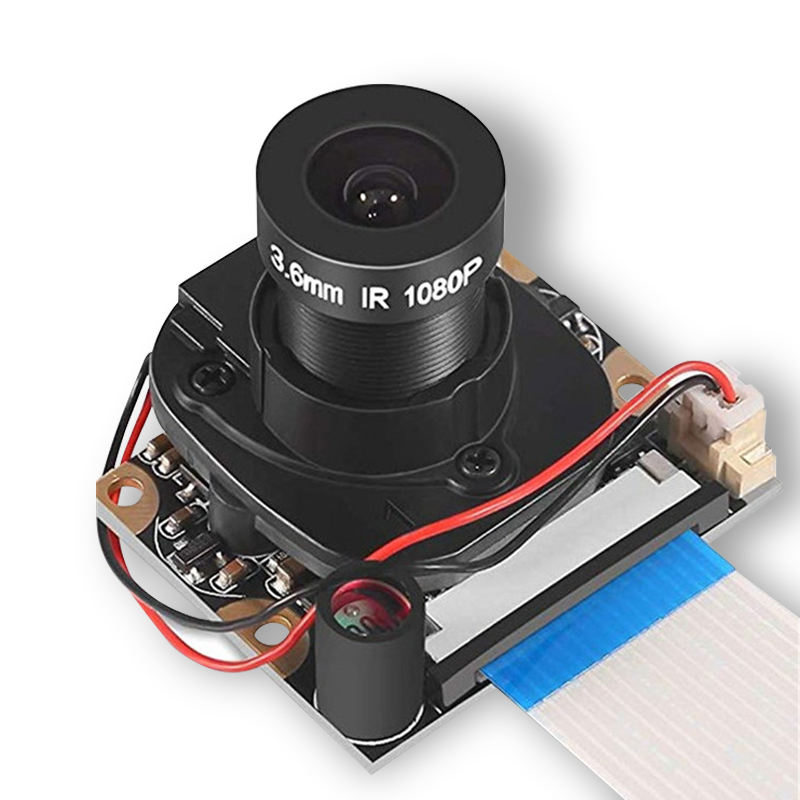

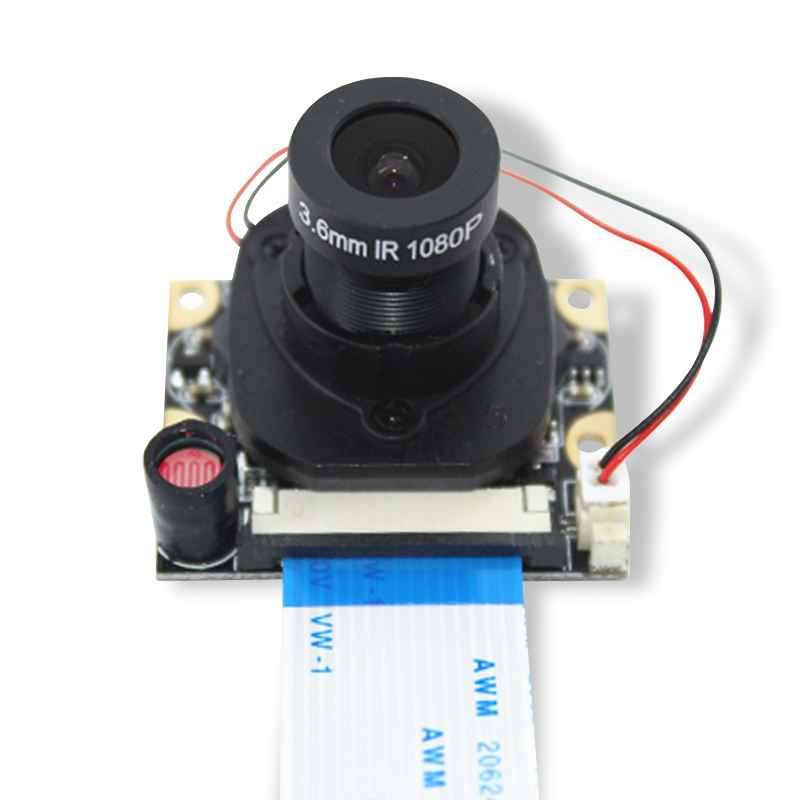

raspberry pi 4 3/2/B+ HD Infrared camera OV5647 5MP Automatical Switch Day And Night Mode
$8.76
Availability:
In stock
Out of stock
Variations
Product Description
Product Description
Module No. HR-AUTO-IRCUT-36 S1.0
Module Size 30.58mm×32mm ×24±0.5mm
Temperature (Operation) -20°C to 70°C
Temperature (Stable Image) 0°C to 50°C
Assembly technique SMT (ROSH)
Focus Fixed
Object distance 30CM-∞
Module Size 30.58mm×32mm ×24±0.5mm
Temperature (Operation) -20°C to 70°C
Temperature (Stable Image) 0°C to 50°C
Assembly technique SMT (ROSH)
Focus Fixed
Object distance 30CM-∞
Resolution 800LW/PH (Center)
PCB printing ink Black
interface 15p-1.0 mipi
Working power supply 3.3v（pin15）
Operating system Raspberry Pi
Package Anti-electrostatic tray
Certifications FCC and CE
Sensor Type OV5647 (1/4" )
Active Array Size 2592*1944
Sensitivity 600mV/Lux-sec
Pixel Size 1.4µm x1.4µm
Maximum Image Transfer Rate 15 fps for QSXGA;
Lens Construction 4G
F/No 2.0
EFL 3.6mm
BFL(Optical) 6.8mm
FOV 67°
TV Distortion <6%
Relative Illumination (Sensor) 70%
IR Filter Auto IR-CUT
PCB printing ink Black
interface 15p-1.0 mipi
Working power supply 3.3v（pin15）
Operating system Raspberry Pi
Package Anti-electrostatic tray
Certifications FCC and CE
Sensor Type OV5647 (1/4" )
Active Array Size 2592*1944
Sensitivity 600mV/Lux-sec
Pixel Size 1.4µm x1.4µm
Maximum Image Transfer Rate 15 fps for QSXGA;
Lens Construction 4G
F/No 2.0
EFL 3.6mm
BFL(Optical) 6.8mm
FOV 67°
TV Distortion <6%
Relative Illumination (Sensor) 70%
IR Filter Auto IR-CUT

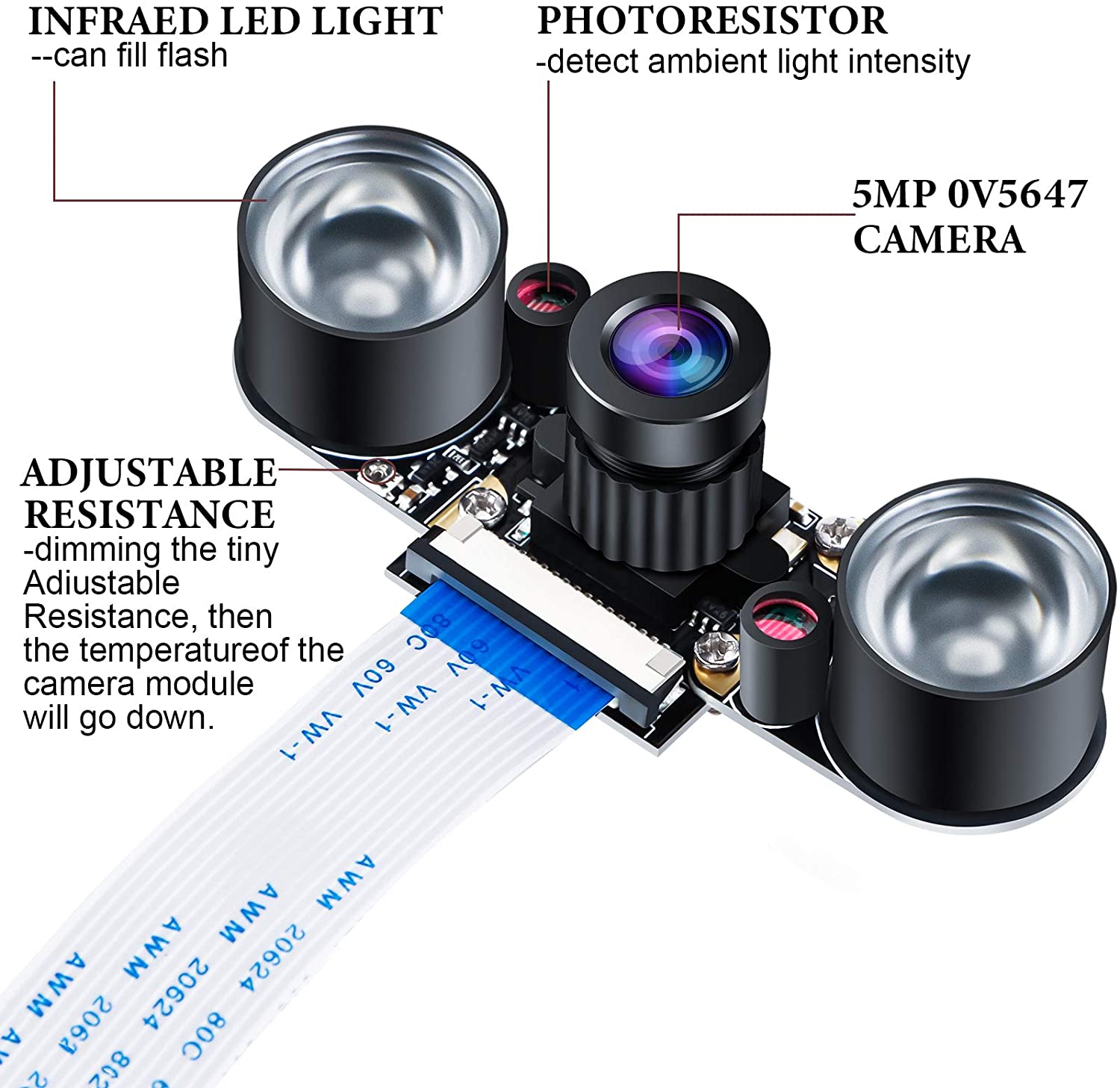

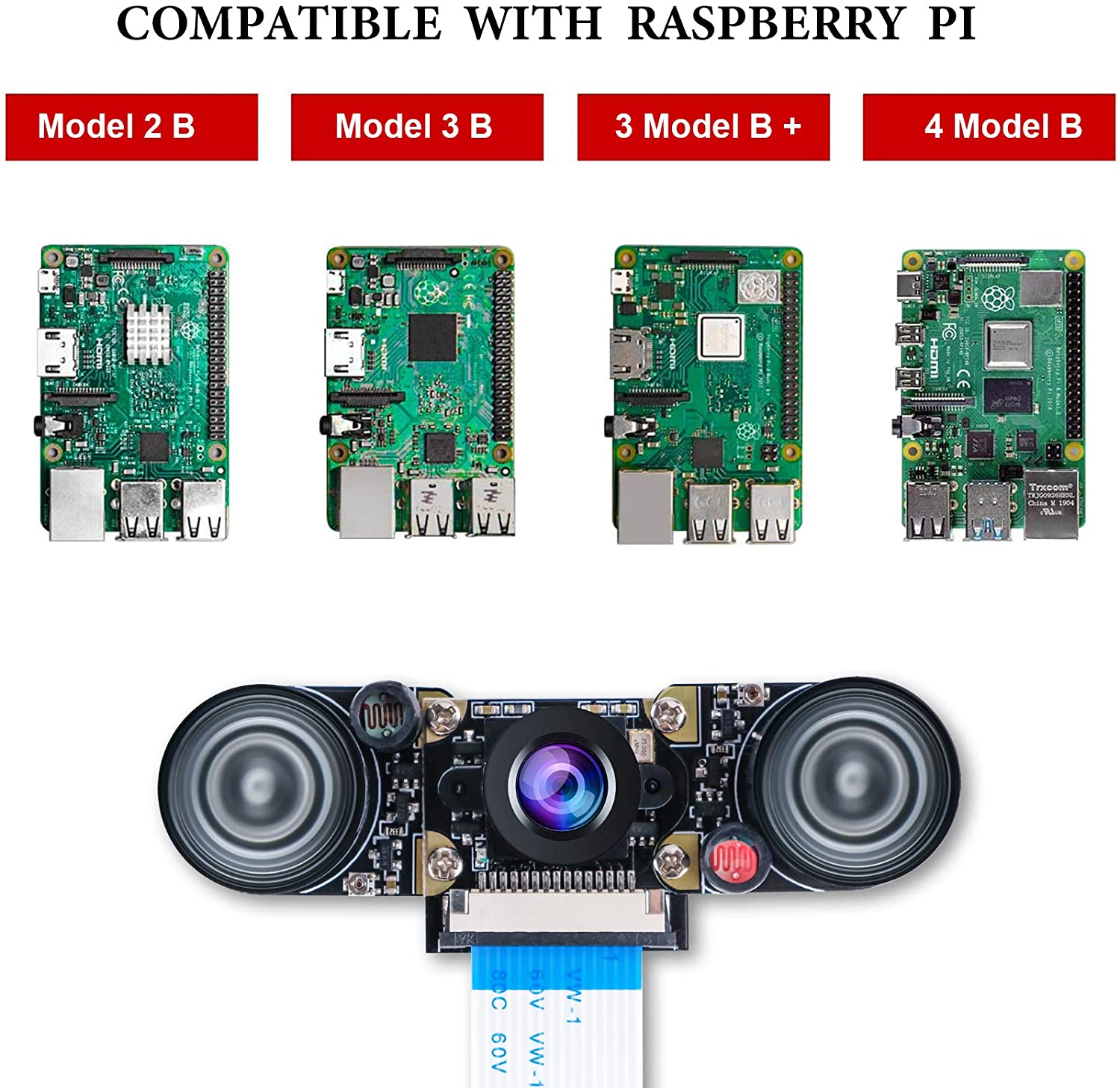

Detail Images
Product Application Diagram
