5MP OV5647 Manual IR-CUT Infrared Night Vision FOV 67 Degree Noir Raspberry Pi 4 Camera for Pi 3/2/B+
$16.80
Availability:
In stock
Out of stock
Variations
Product Description
Product Specification
| Module No. | HR-IRCUT-36 S1.0 |
| Module Size | 30.58mm×32mm ×24±0.5mm |
| Temperature (Stable Image) | 0°C to 50°C |
| Temperature | (Operation) -20°C to 70°C |
| Focus Fixed | Fixed (Lens is adjustable) |
| Sensor Type | OV5647 (1/4" ) |
| Pixel Size | 1.4µm x1.4µm |
| Lens | 3.6MM/ 130°/160°/175°/222° lens is optional |
| Sensor type | OV5647 |
| Max Resolution | 2592*1944 |
| FOV | 67 degree |
| EFL | 3.6mm |
| Interface | CSI |
| Night vision | Manual setting |
Detail Images

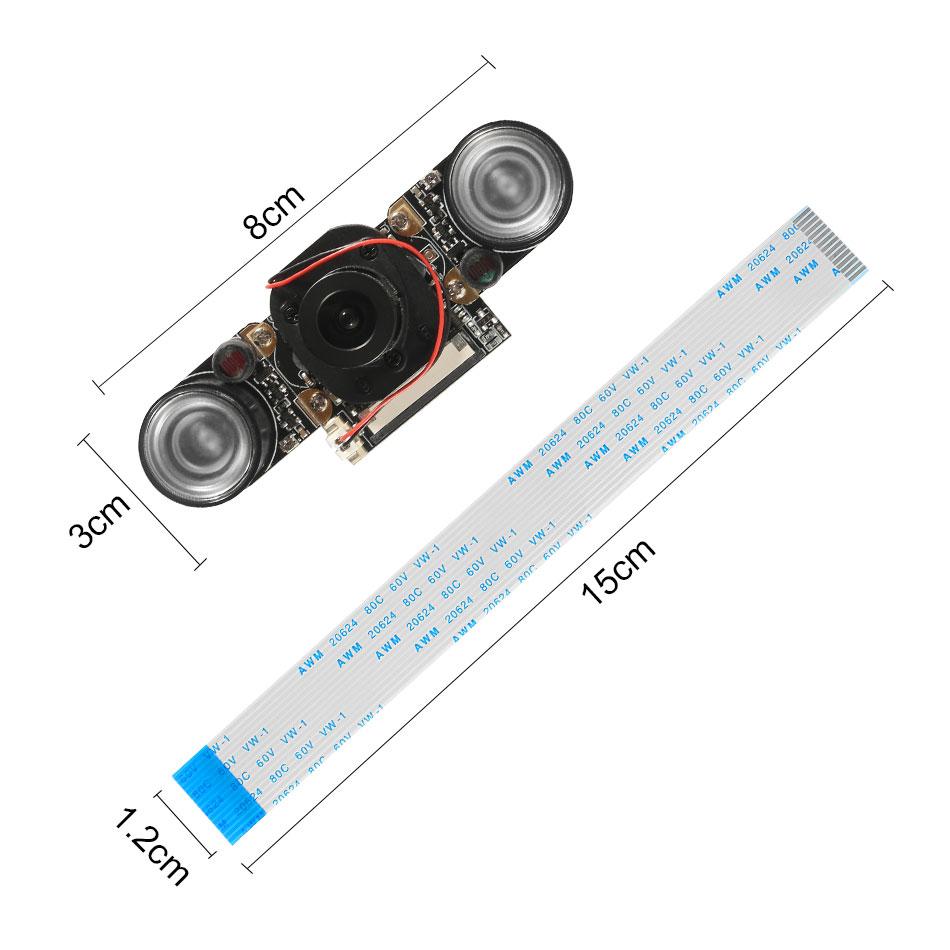

Product drawing
