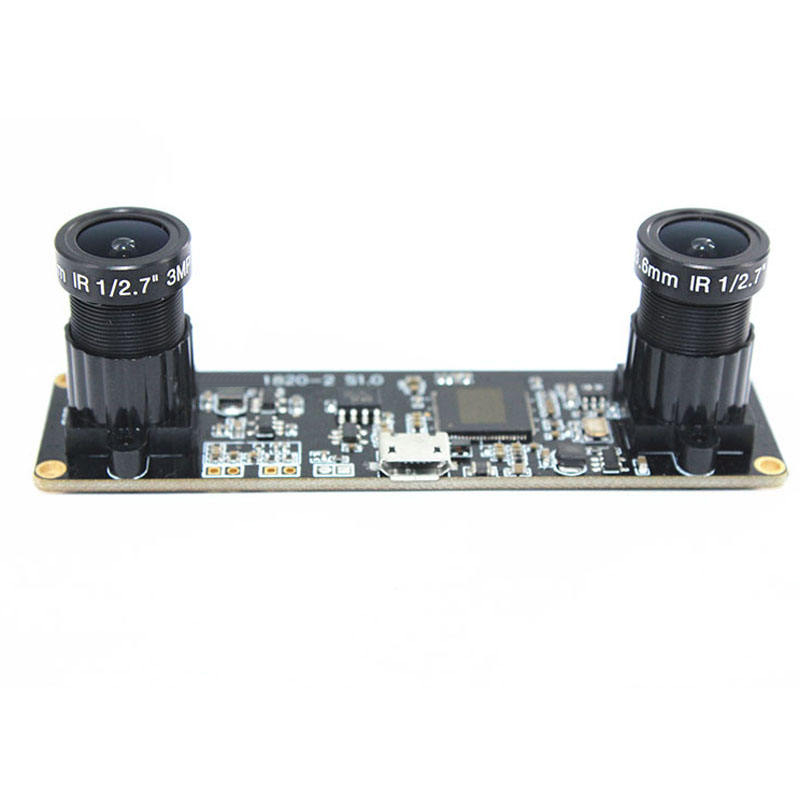

4M Pixel HD Dual Lens 3D Synchronous OV4689 Sensor Full HD CMOS Camera Module
$45.60
Availability:
In stock
Out of stock
Variations
Product Attributes
Product Description
Product Specifications
| Module No. | 1820-2 S1.0 |
| Module Size | 80mm × 22mm × 24.6mm±0.5MM |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | Fixed |
| Object distance | 30CM-infinity |
| Resolution | 600LW/PH (Center) |
| PCB printing ink | Black |
| interface | USB 2.0 |
| Power suuply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption | 1100 mW |
| Operating system request | Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc |
| Sensor | OV4689 (1/3" ) |
| Seneor Package | CSP,Bare Die |
| Maximum resolution | 2688*1520 |
| Sensitivity | 1900mV /（lux-sec） |
| Pixel Size | 2µm x 2µm |
Maximum Image Transfer Rate | MJPEG 1920x960 30FPS / YUY2 1520x1520 5FPS MJPEG 1520x1520 30FPS / YUY2 2688x1520 1FPS MJPEG 2144x1072 30FPS / MJPEG 2432x1216 30FPS / MJPEG 2688x1520 30FPS / MJPEG 3040x1520 30FPS / |
| Output Formats | YUY2/MJPEG |
| Relative Illumination (Sensor) | 70% |
| Certifications | FCC/CE/ROSH |

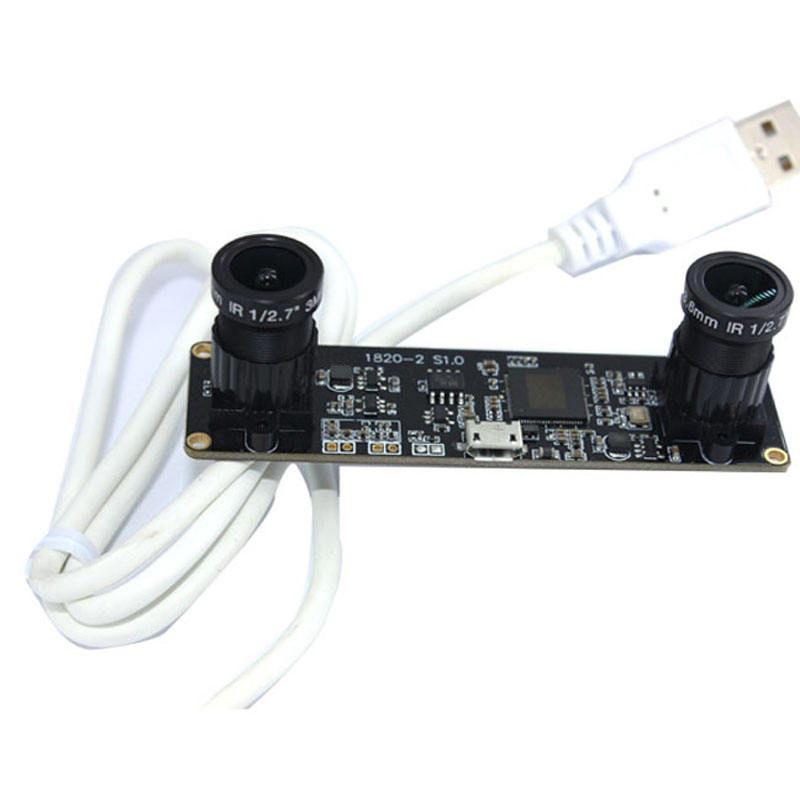

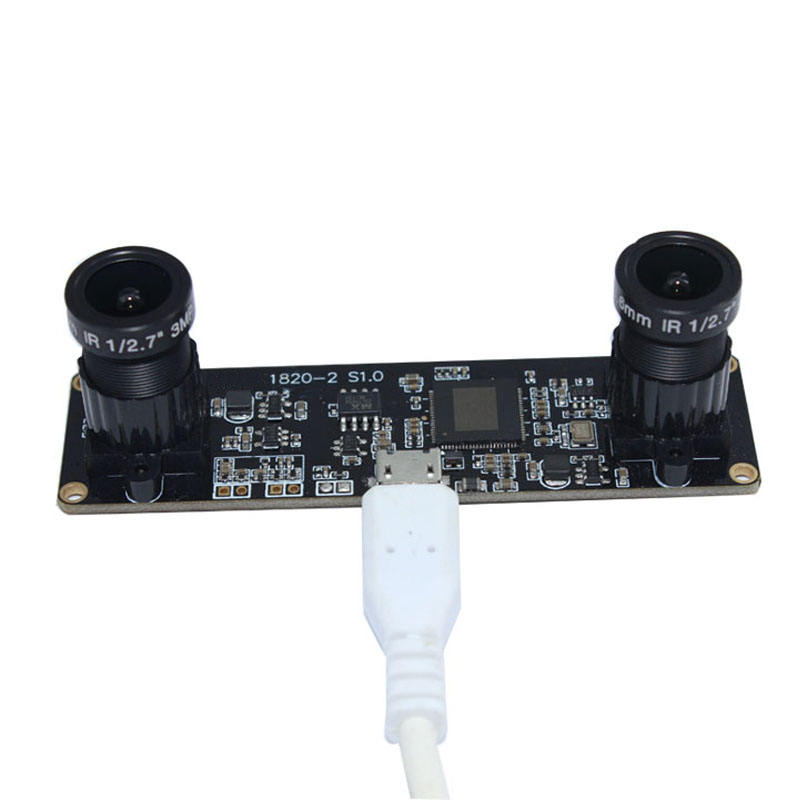

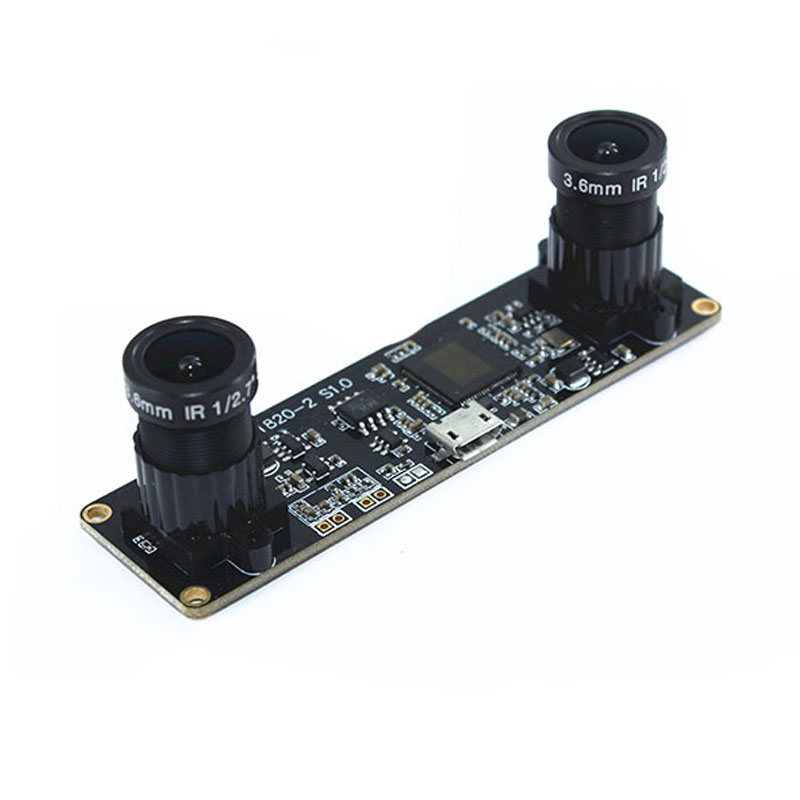

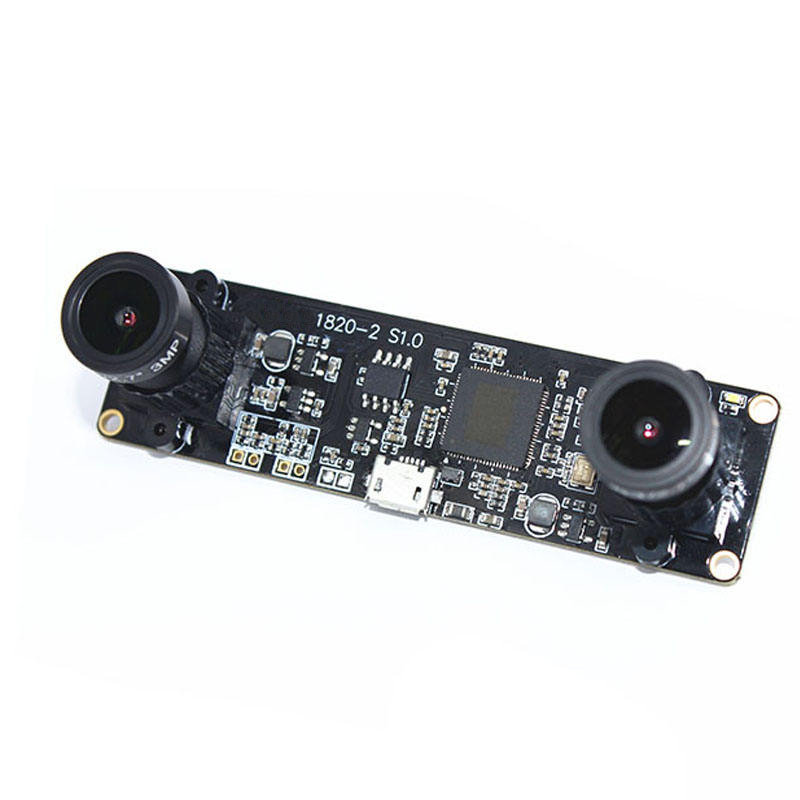

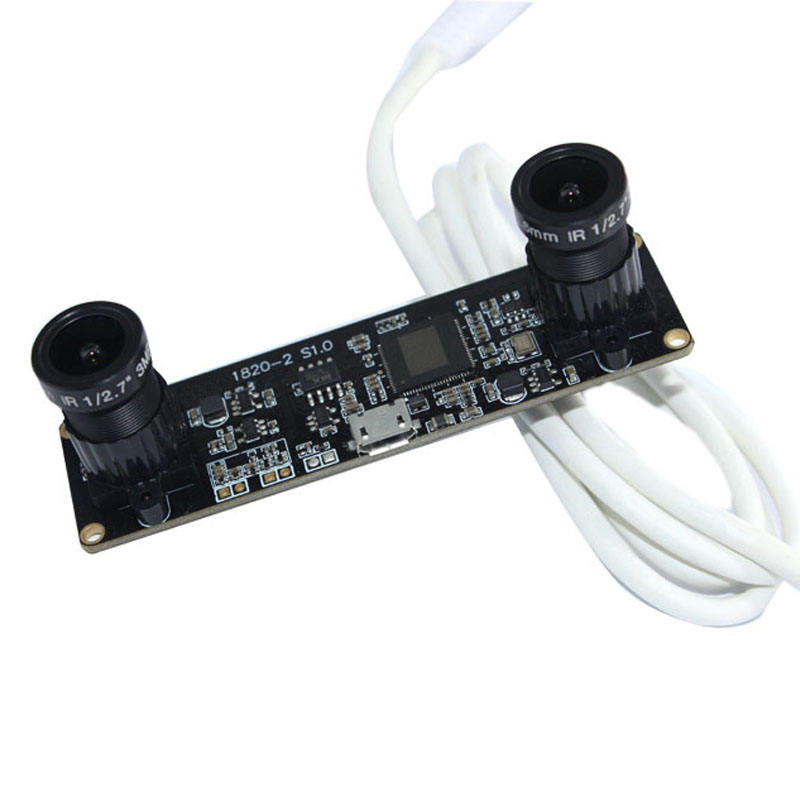

Detail Images

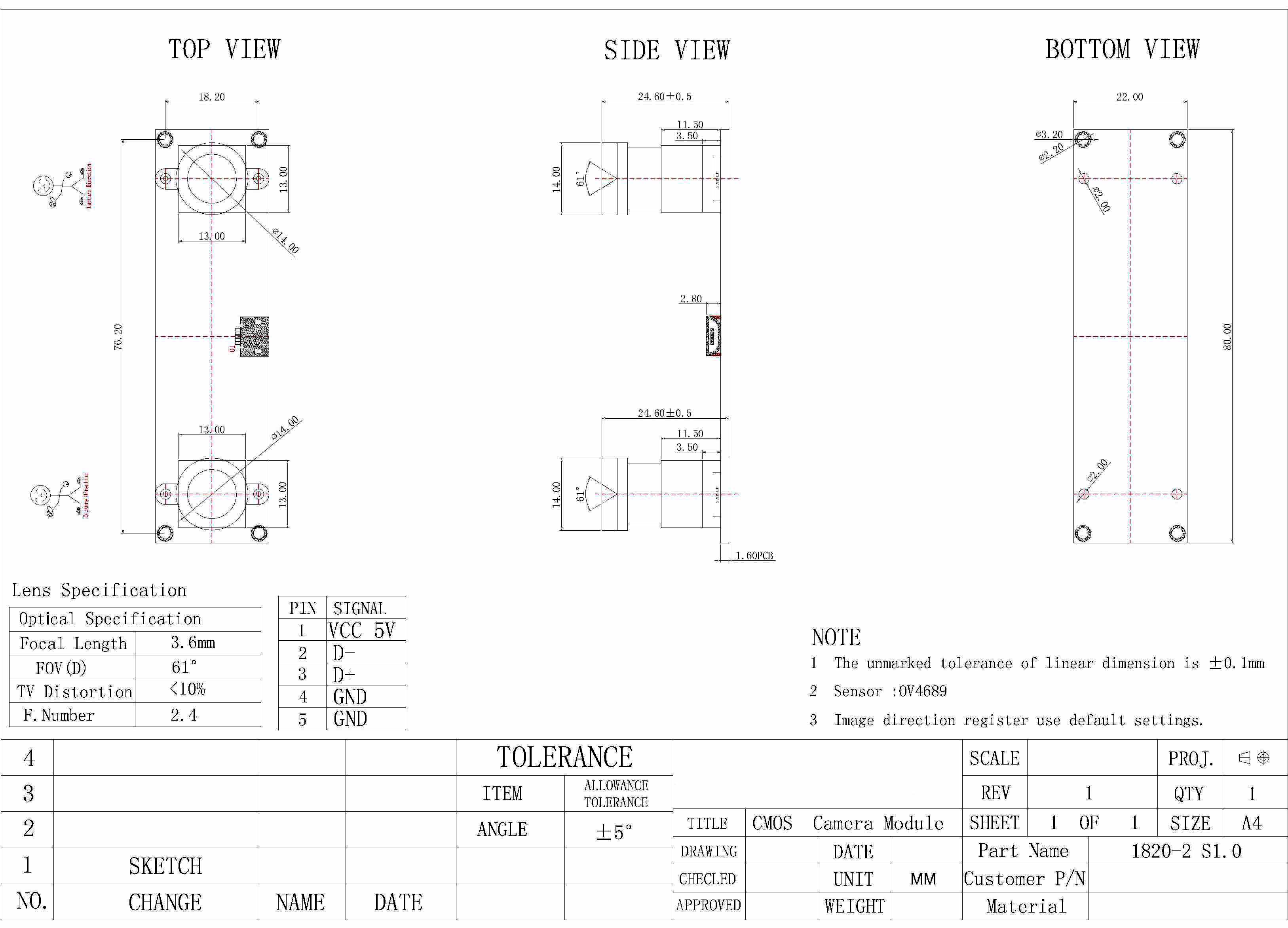

Product drawing
