2mp 30fps usb laptop OV2659 Sensor Mini usb Camerafixed focus high resolution 1600*1200 camera module
$7.20
Availability:
In stock
Out of stock
Variations
Product Attributes
Product Description
Product Specification
| Module No. | BM1313-S2.0 |
| Module Size | 60mm × 8mm × 4.5mm±0.2MM |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | Fixed |
| Object distance | 30CM-infinity |
| Resolution | 600LW/PH (Center) |
| PCB printing ink | black |
| interface | USB 2.0 |
| Power suuply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption | 400mW |
| Operating system request | Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc |
| Sensor | OV2659 (1/5" ) |
| Seneor Package | CSP,Bare Die |
| Maximum resolution | 1600*1200 |
| Sensitivity | 960mv /（lux-sec） |
| Pixel Size | 1.75µm x 1.75µm |
Maximum Image Transfer Rate | YUY2 640x480 30FPS YUY2 800x600 15FPS YUY2 1280x720 5FPS YUY2 1280x960 5FPS YUY2 1280x1024 5FPS YUY2 1600x1200 5FPS |
| FOV | 60° |
| Certifications | FCC/CE/ROSH |

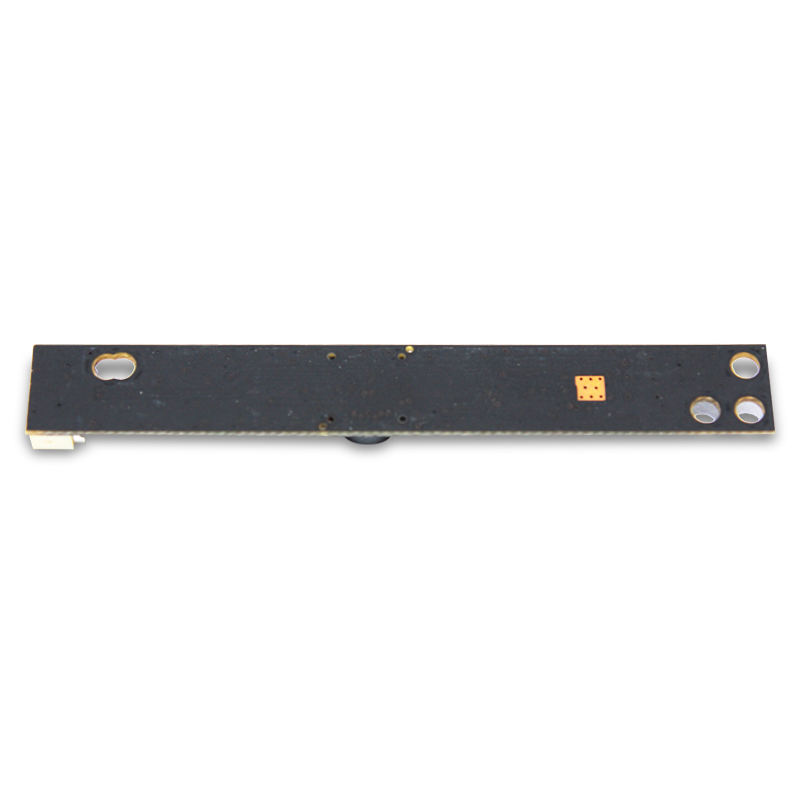

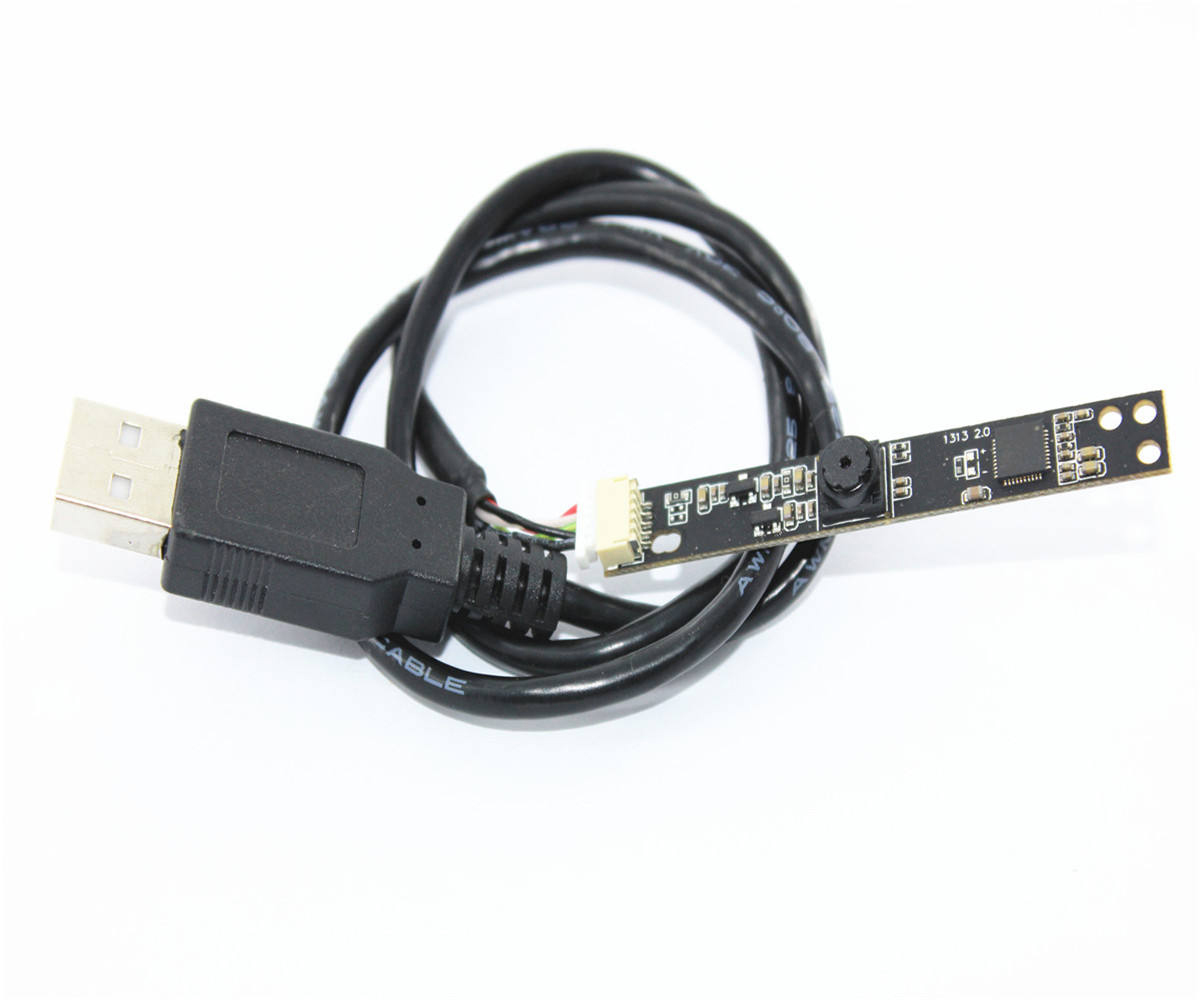

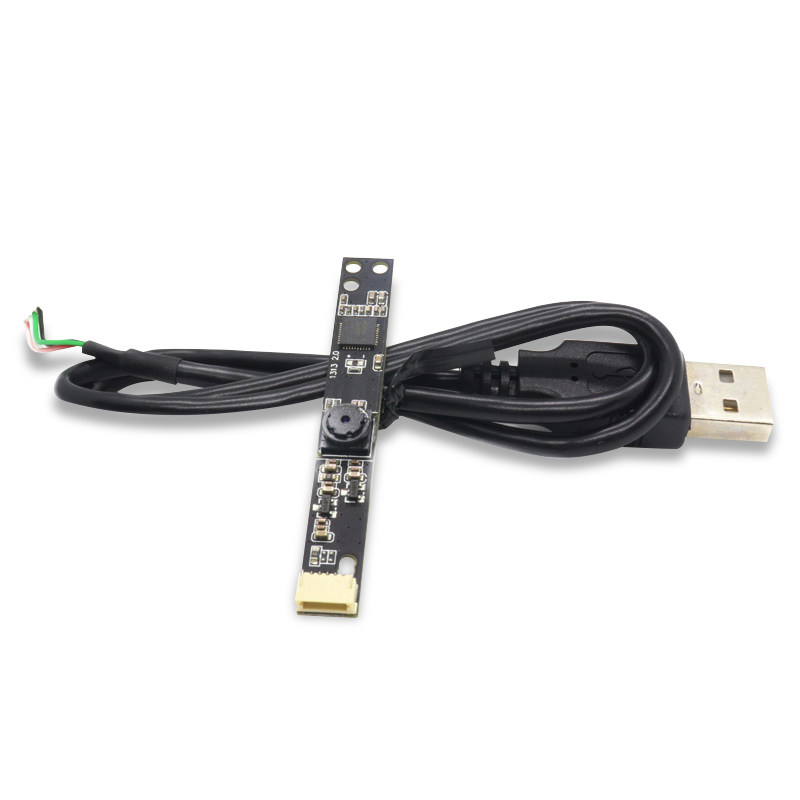

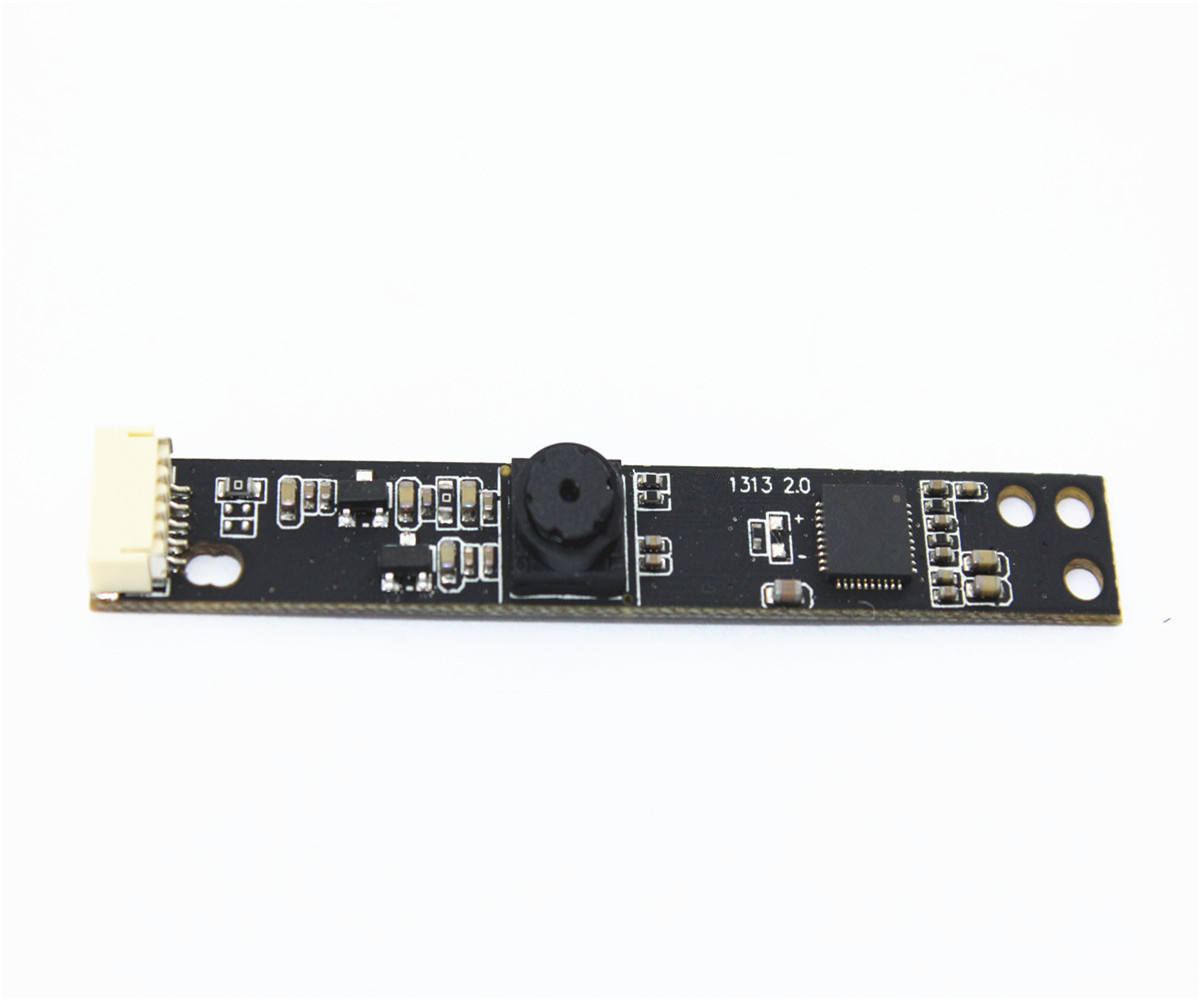

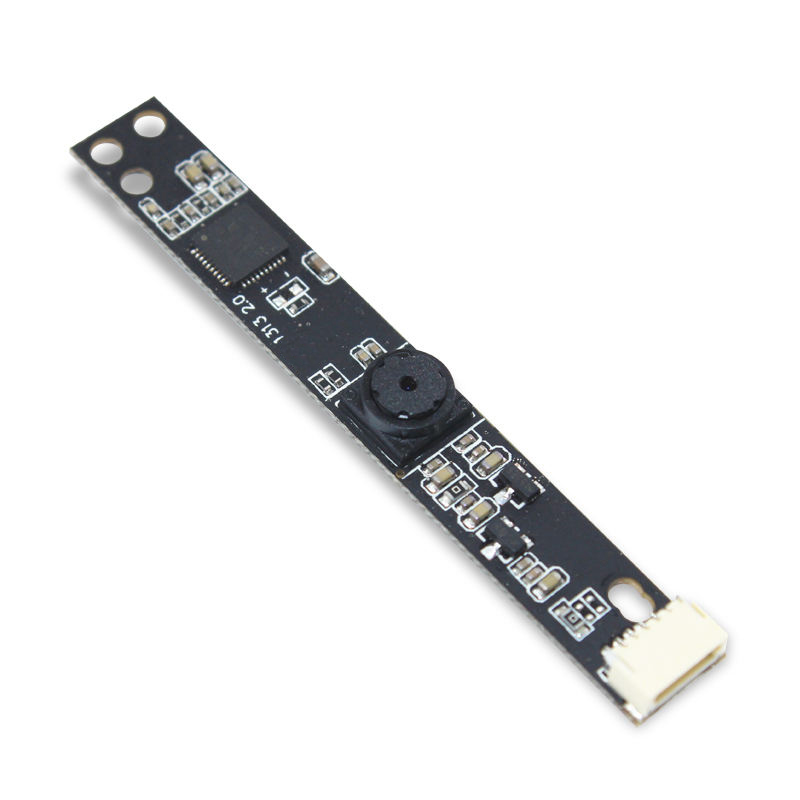

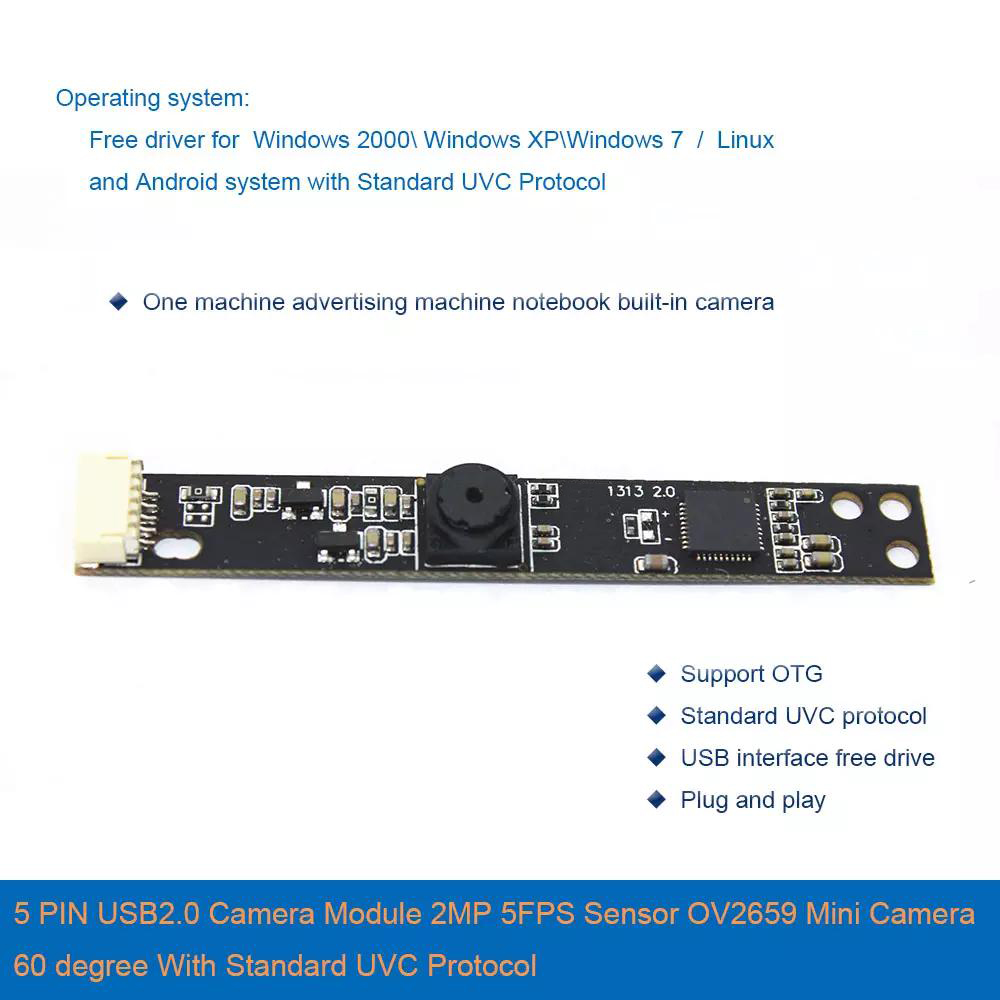

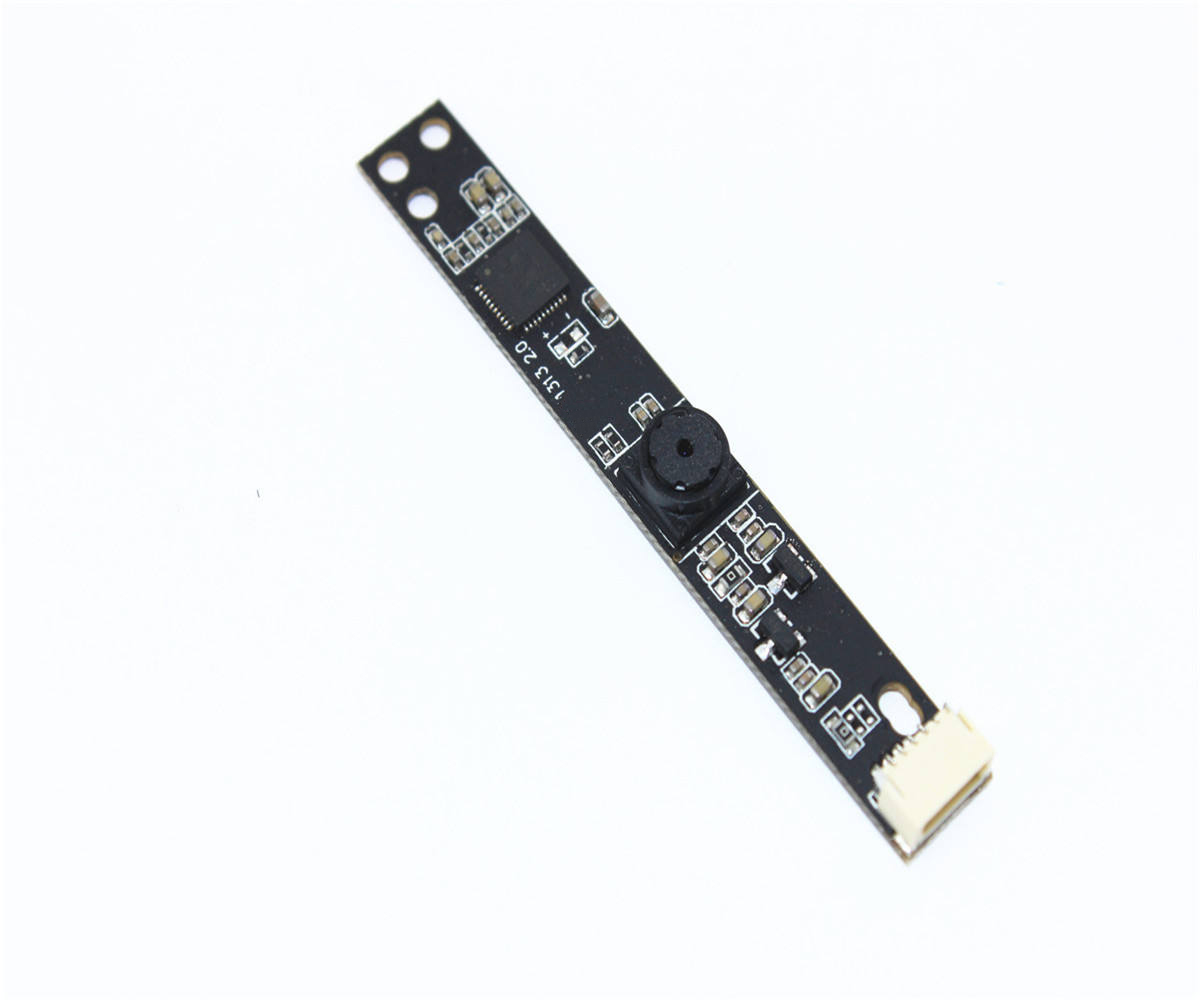

Detail Images
Product drawing
