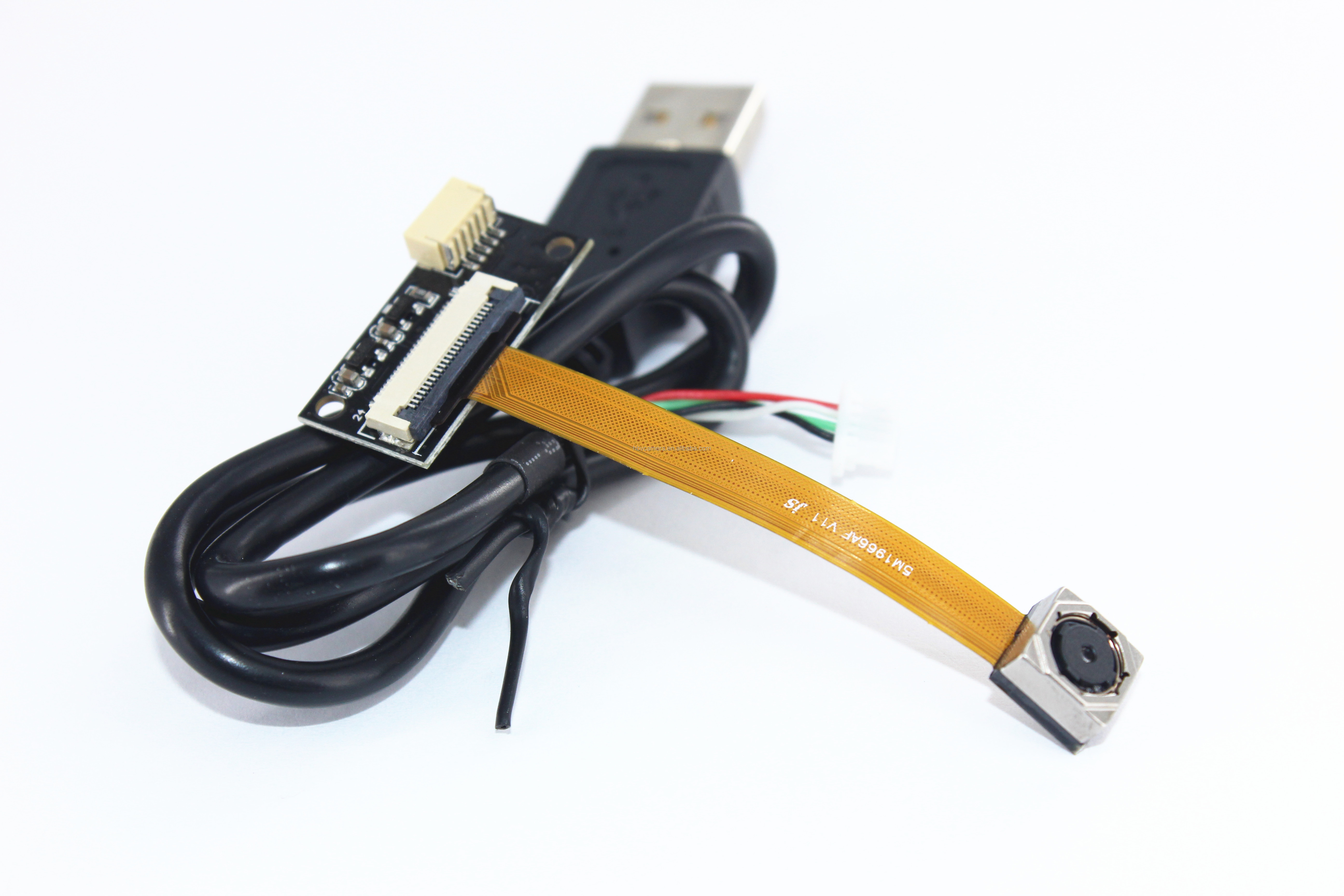

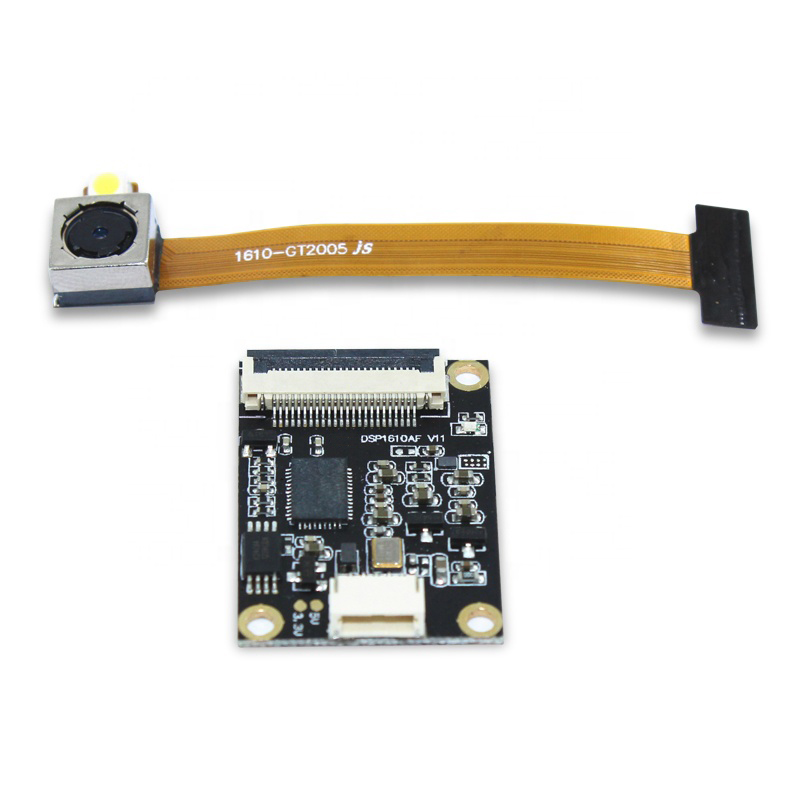

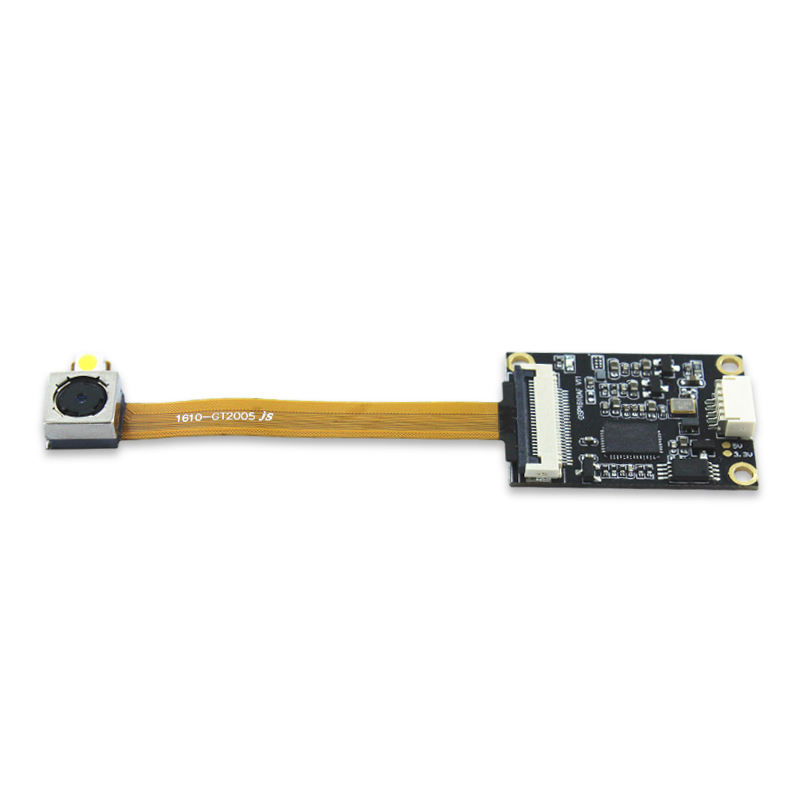

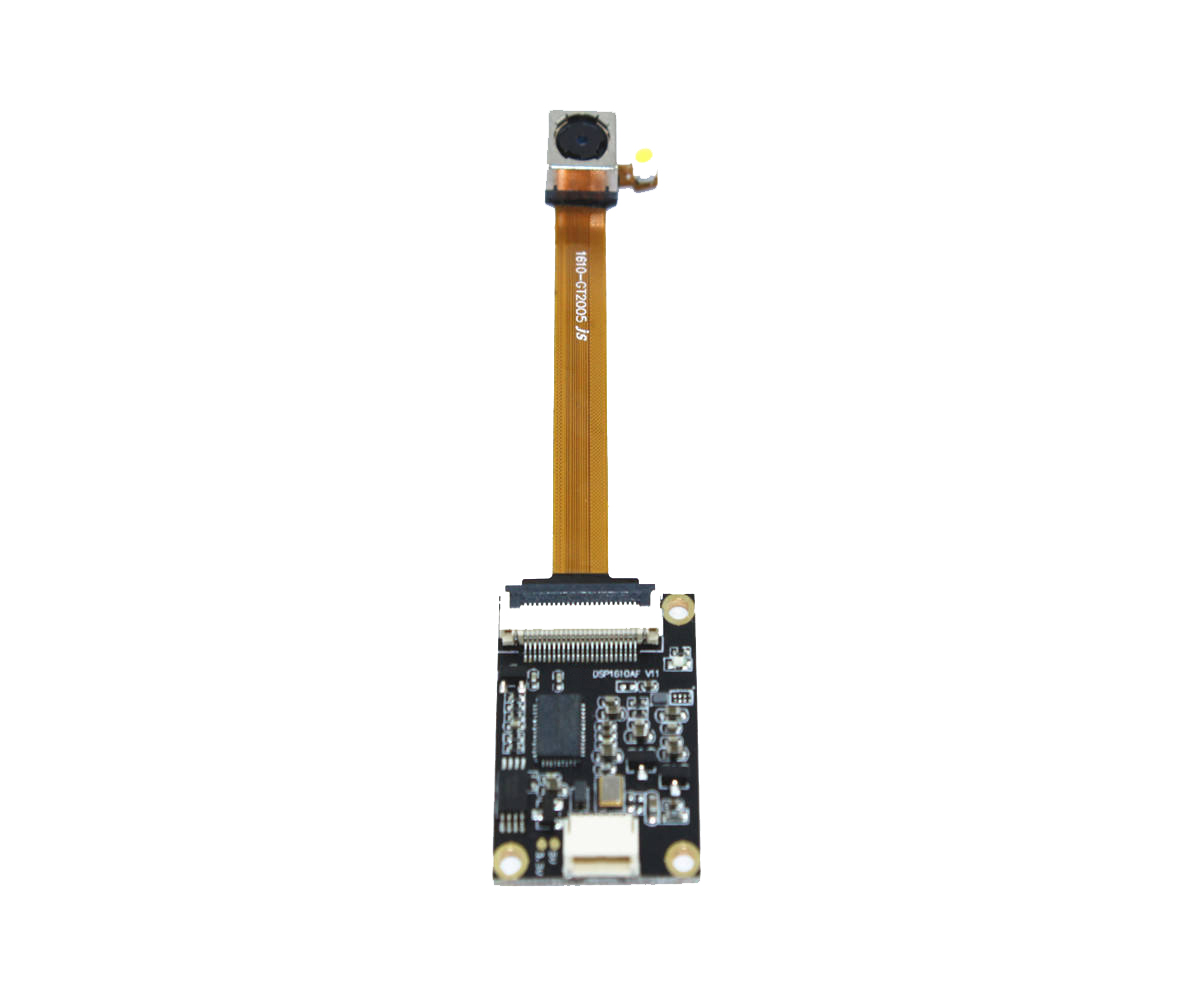

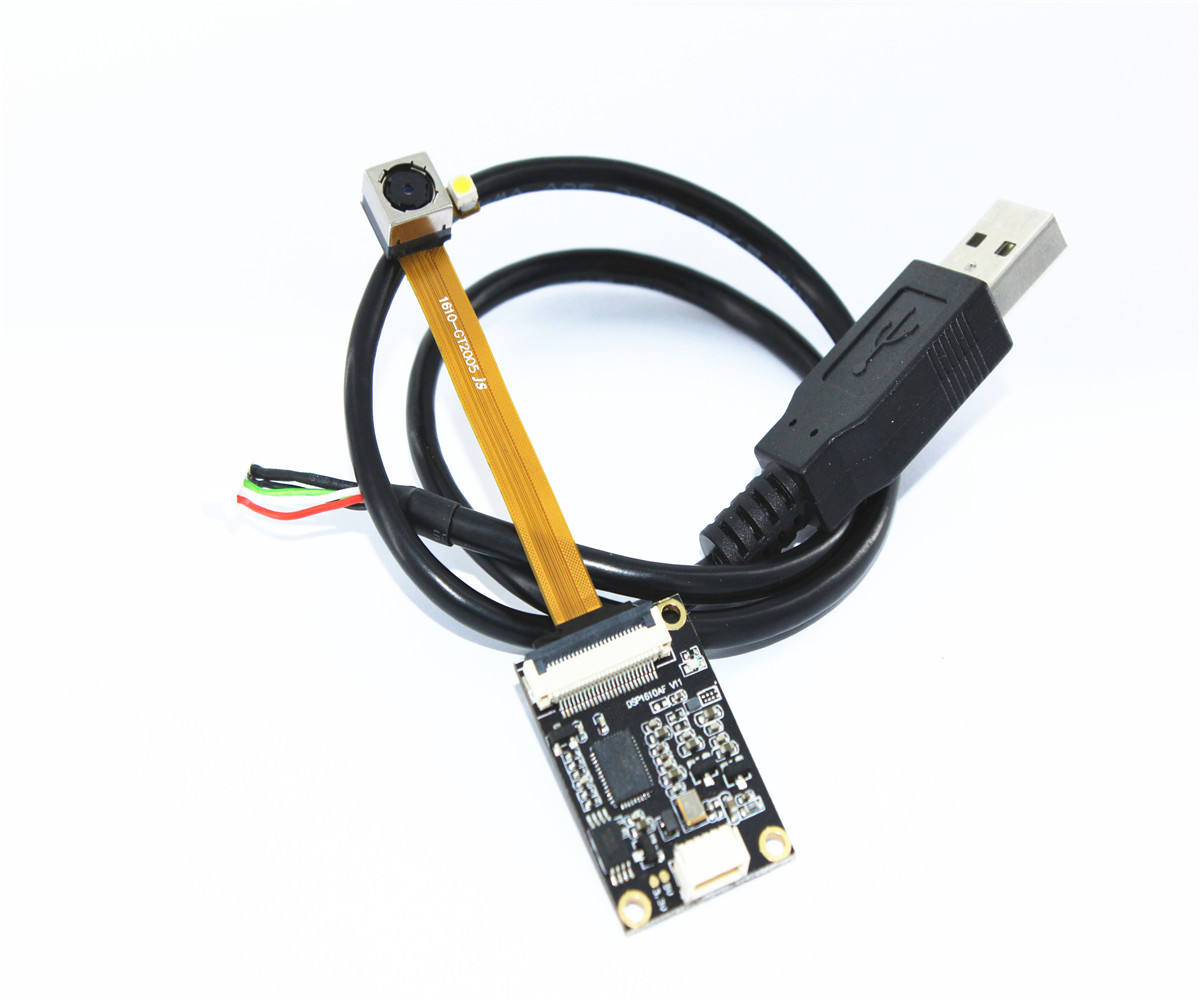

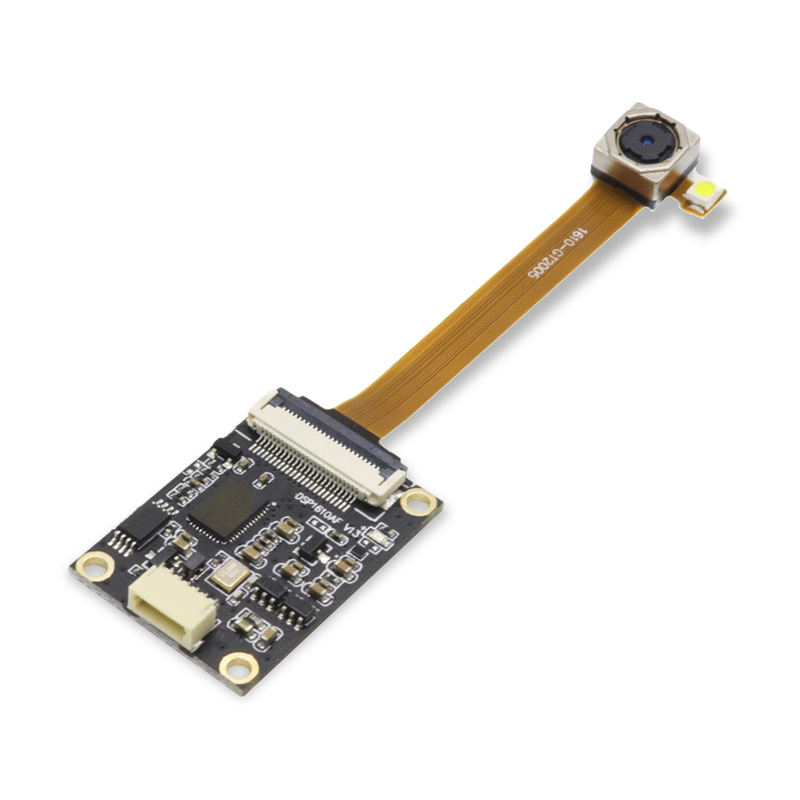

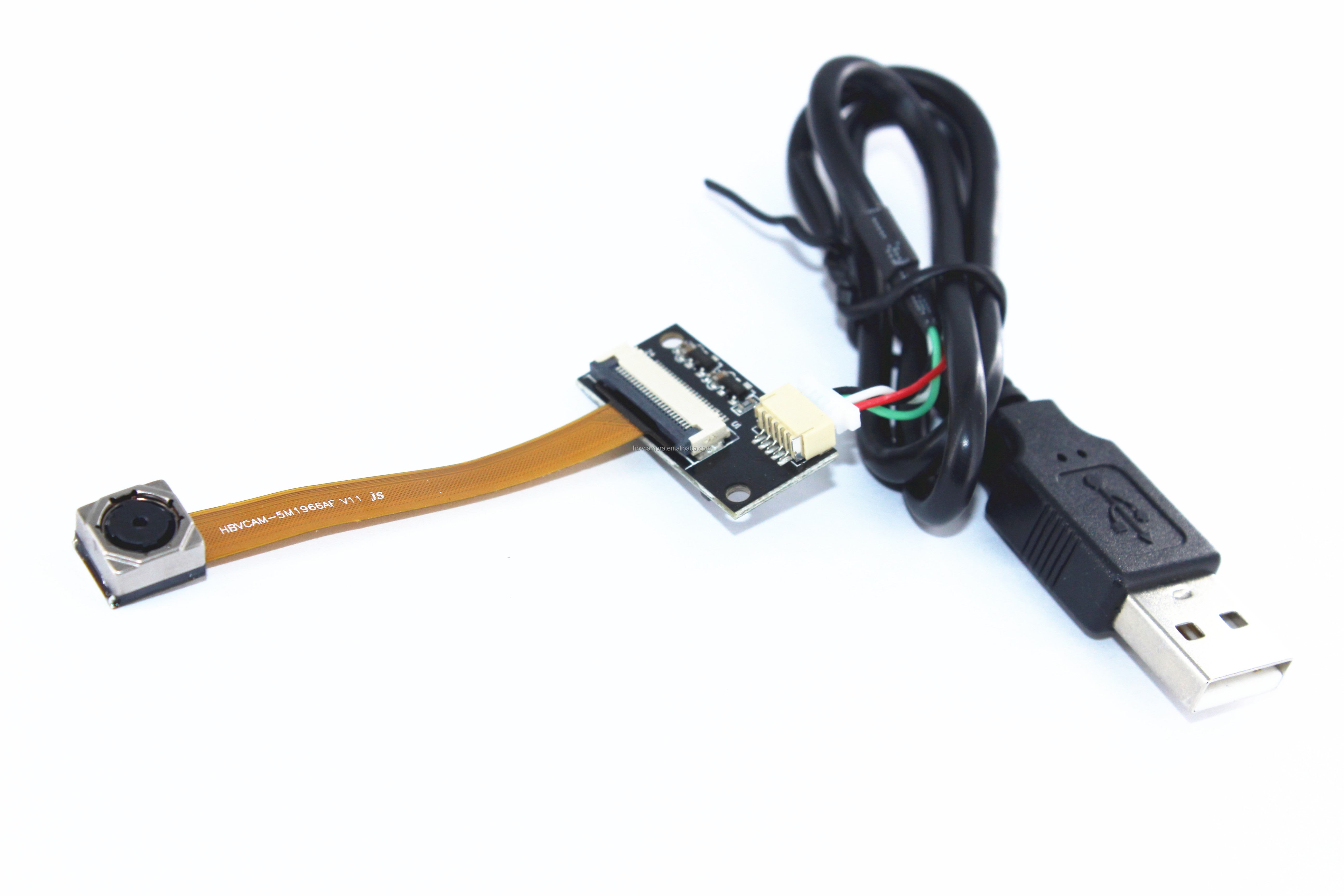

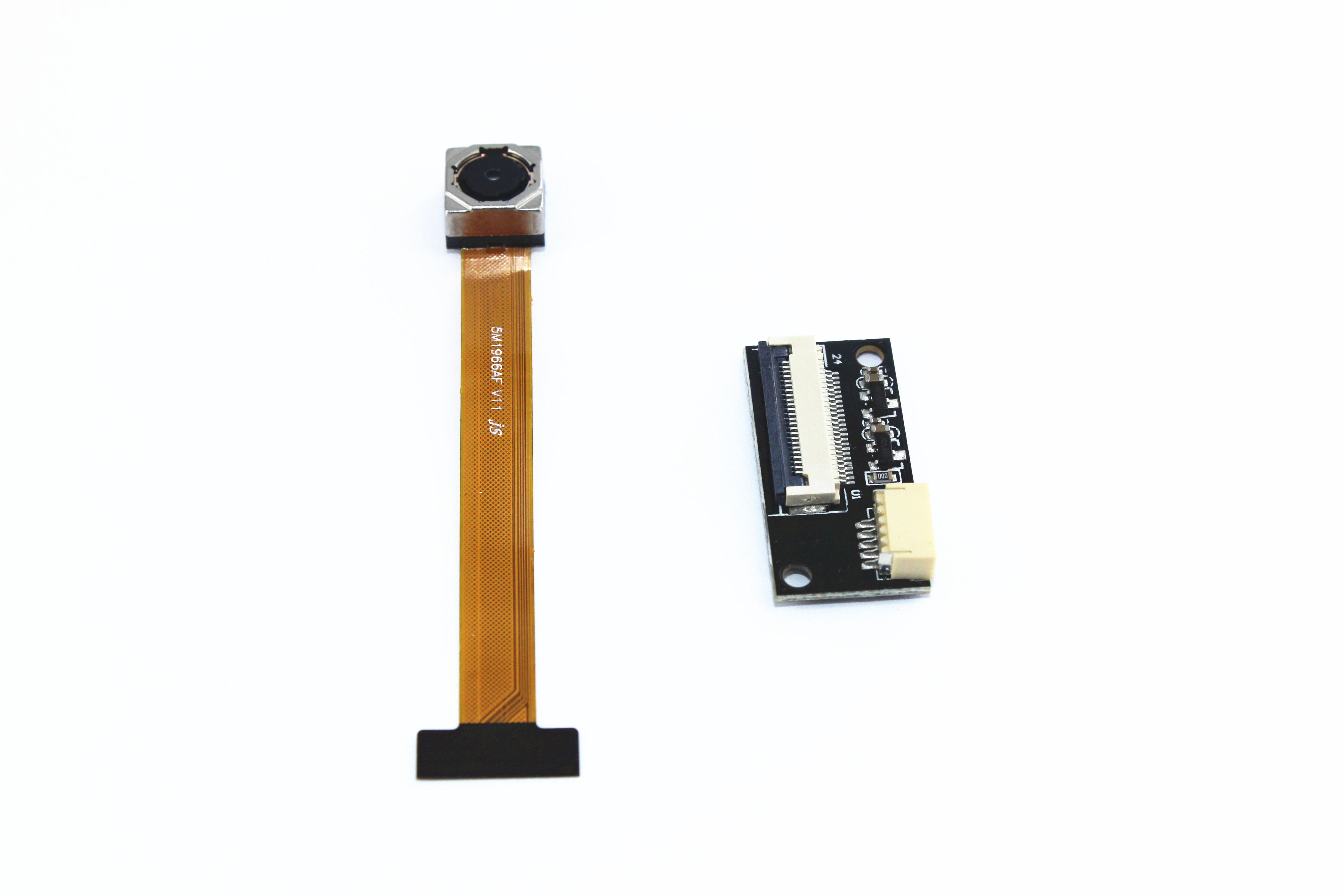

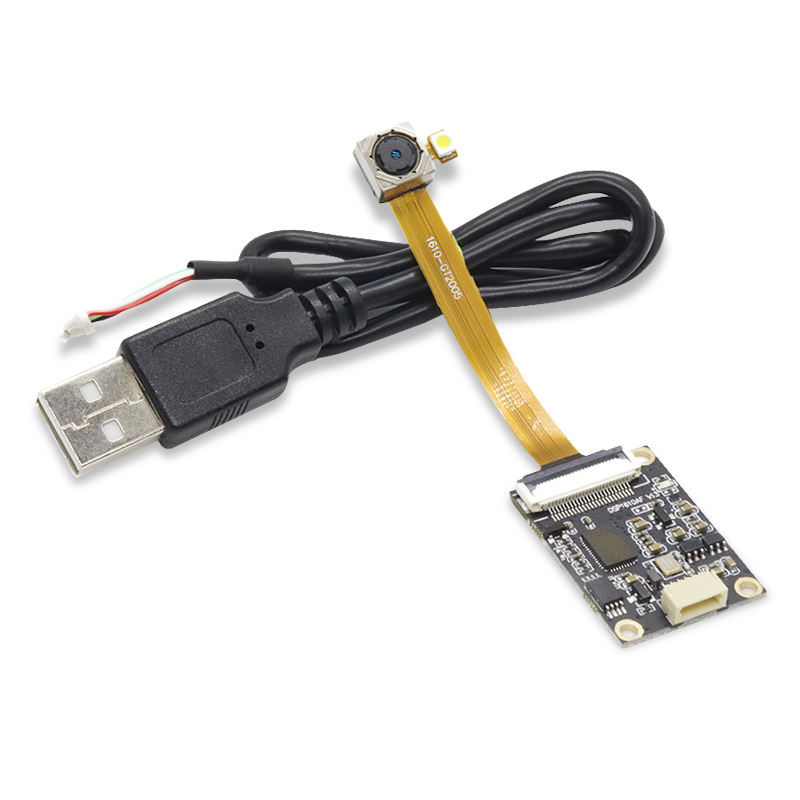

2MP UVC 1600*1200 auto focus CMOS GT2005 micro mini usb2.0 camera module with flash light LED

$15.60

Availability:

In stock

Out of stock

SKU

217129

Product Description

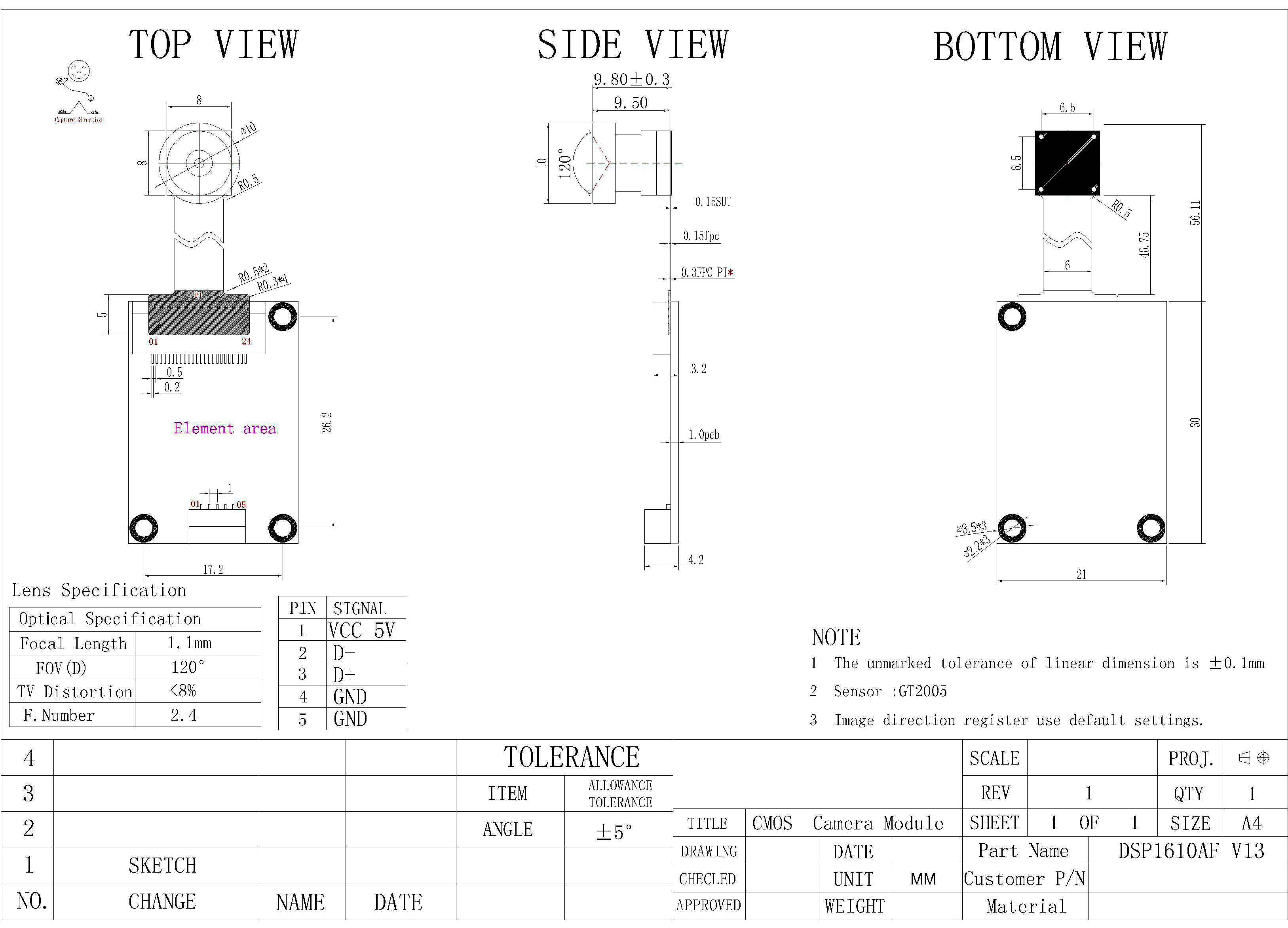

Module No.	DSP1610AF V13-AF
Module Size	86.11mm × 21mm × 5.03mm±0.2MM
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Auto
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	black
interface	USB 2.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	730 mW
Operating system request	Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc
Sensor	GT2005 (1/5" )
Seneor Package	CSP,Bare Die
Maximum resolution	1600*1200
Sensitivity	3300 /（lux-sec）
Pixel Size	1.75µm x 1.75µm
Maximum Image Transfer Rate	MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 800x600 30FPS / YUY2 800x600 15FPS MJPEG 1024x768 15FPS / YUY2 1024x768 6FPS MJPEG 1280x960 15FPS / YUY2 1280x960 6FPS MJPEG 1600x1200 15FPS / YUY2 1600x1200 6FPS
S/N Ratio	42db
Max Dynamic Range	72db
Shutter type	Electronic rolling shutter
AGC/AEC/Whiter balance	Auto
Output Formats	YUY2/MJPEG
Microphone	NO
Lens Construction	4P+IR
F/No	2.2
EFL	3.0 mm
FOV	64°
TV Distortion	<5%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROSH
Fixed Pattern Noise	< 0.03% of VPEAK-TO-PEAK
Package	LQFN-40pin
The parameters of FOV are just for your reference, Different Lens has different FOV 2.The frame rate is related to Light,operating system and so on, the frame rate exist a little error. If you mind it, please don’t make an order for it. Thank you for your understanding.
