2MP 1080P HD small CMOS JX-F22 (1/2.7" ) Camera module with 136 degree wide angle
$26.40
Availability:
In stock
Out of stock
Variations
Product Attributes
Product Description
Product Description
| Module No. | BMF20216HD V22 |
| Module Size | 38mm × 38mm × 23.5mm±0.5MM |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | Fixed |
| Object distance | 30CM-infinity |
| Resolution | 600LW/PH (Center) |
| PCB printing ink | Black |
| interface | USB 2.0 |
| Power suuply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption | 800mW |
| Operating system request | Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc |
| Sensor | JX-F22 (1/2.7" ) |
| Seneor Package | CSP,Bare Die |
| Maximum resolution | 1920*1080 |
| Pixel Size | 3µm x 3µm |
| Maximum Image Transfer Rate | MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 1024x768 30FPS / YUY2 800x600 30FPS MJPEG 1280x720 30FPS / YUY2 1024x768 30FPS MJPEG 1280x960 30FPS / MJPEG 1600x960 30FPS / MJPEG 1920x1080 30FPS / MJPEG 640x360 60FPS / YUY2 640x480 30FPS MJPEG 800x600 60FPS / YUY2 800x600 20FPS MJPEG 1280x720 60FPS / YUY2 1280x720 10FPS |
| S/N Ratio | 38 db |
| Max Dynamic Range | 73 db |
| Shutter type | Electronic rolling shutter |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2/MJPEG |
| Microphone | Support |
| Lens Construction | 2G2P |
| F/No | 2.0 |
| EFL | 2.9mm |
| FOV | 136° |
| TV Distortion | <-18% |
| Relative Illumination (Sensor) | 70% |
| Certifications | FCC/CE/ROSH |
2MP1080P 136 Degree Camera module
1080p camera module can do for
1.face recognition
2.Industrial equipment
3.Advisement lay
4.Monitoring equipment

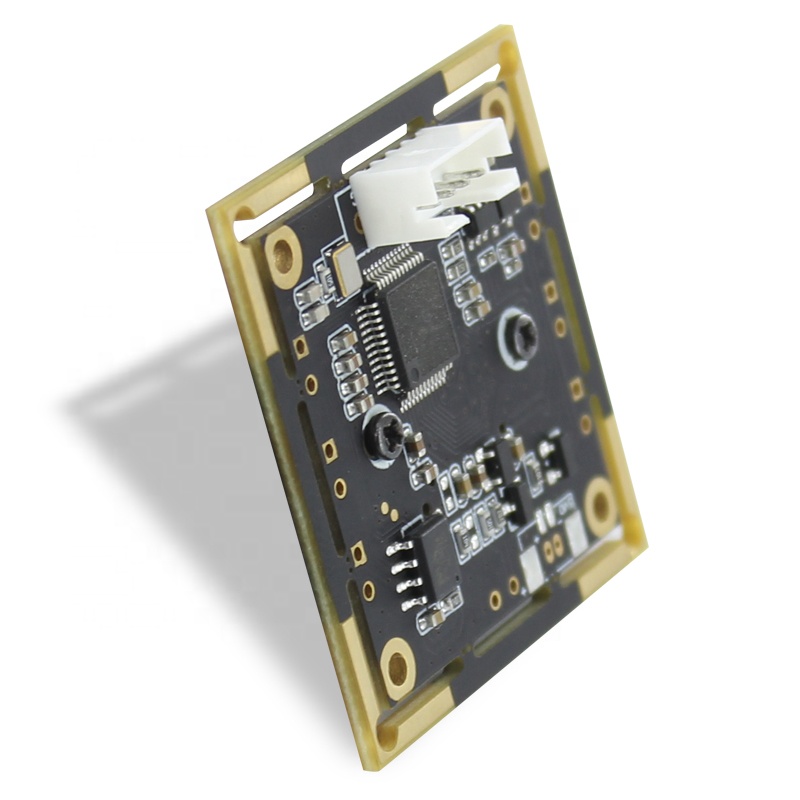

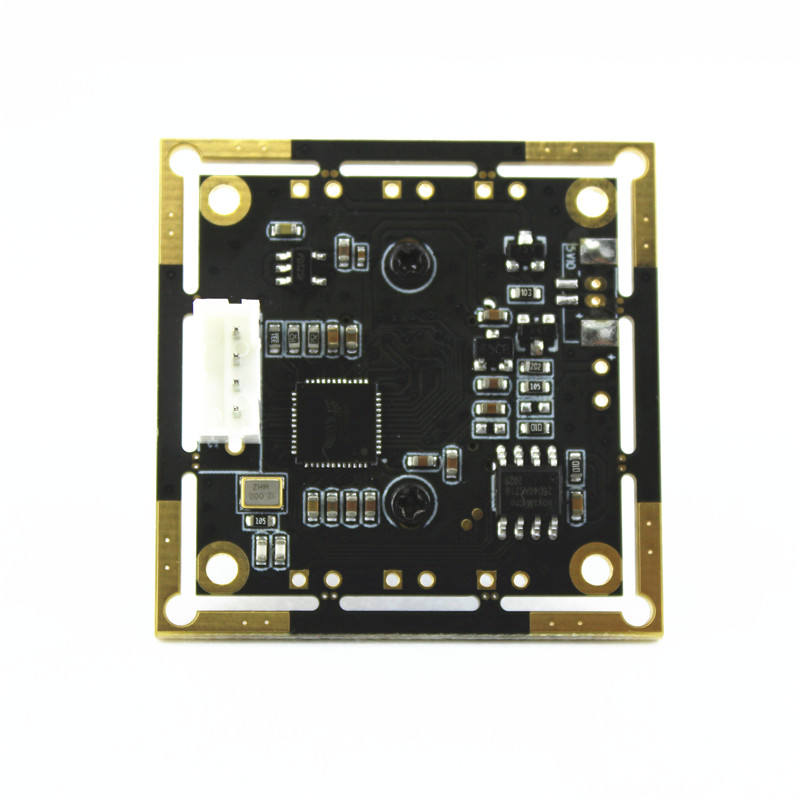

Details Images

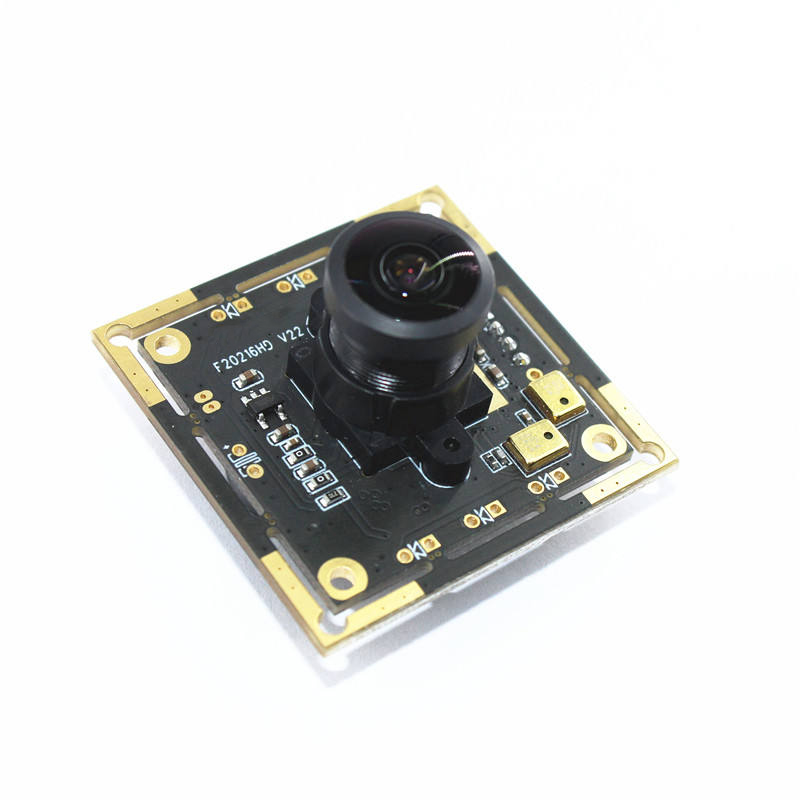

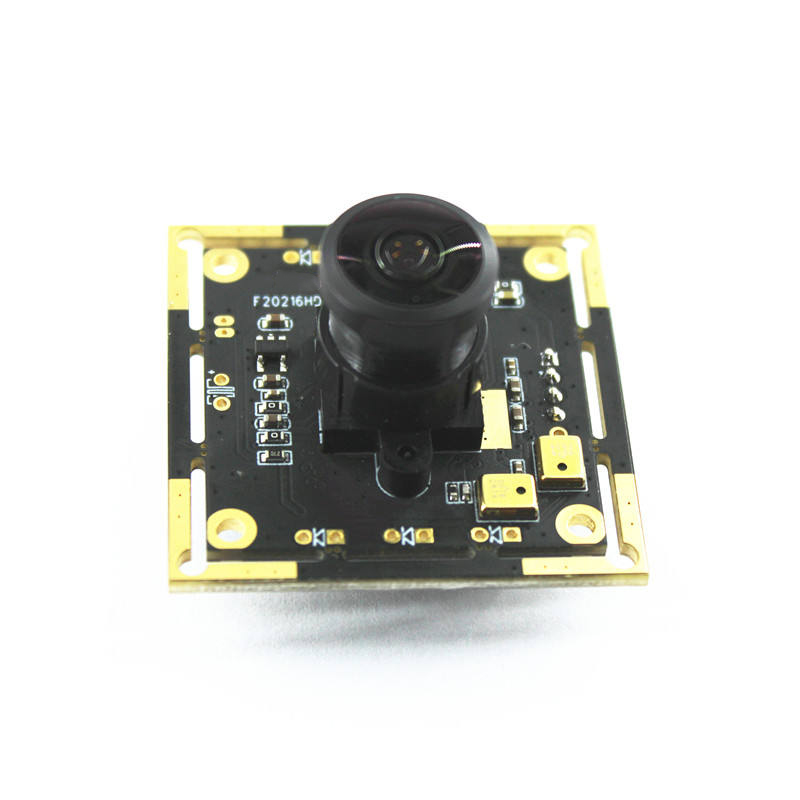

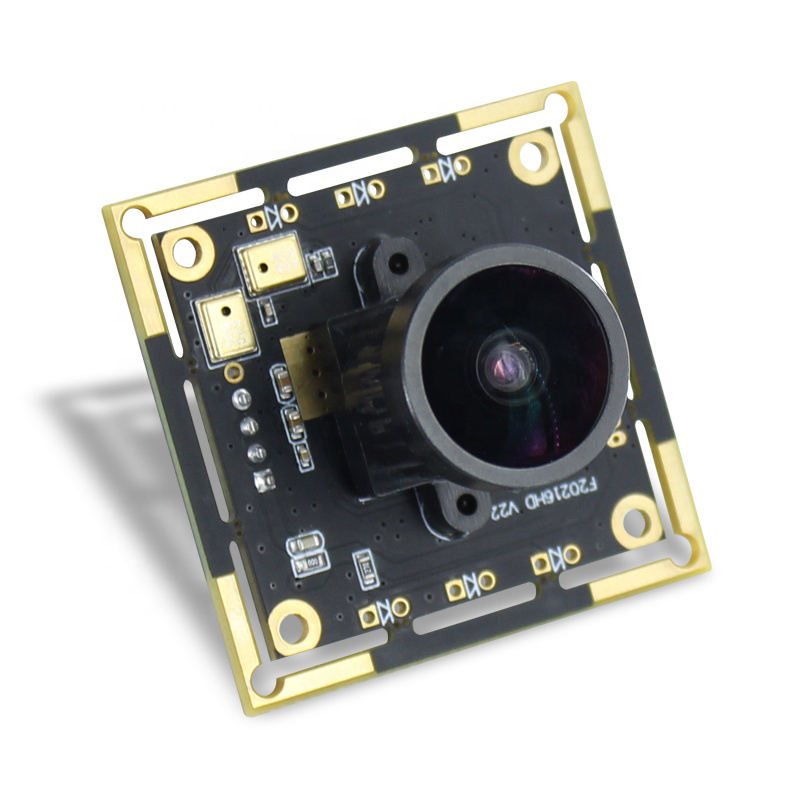

With M12 mount lens, there are many options for M12 lens,lens is adjustable and alternative

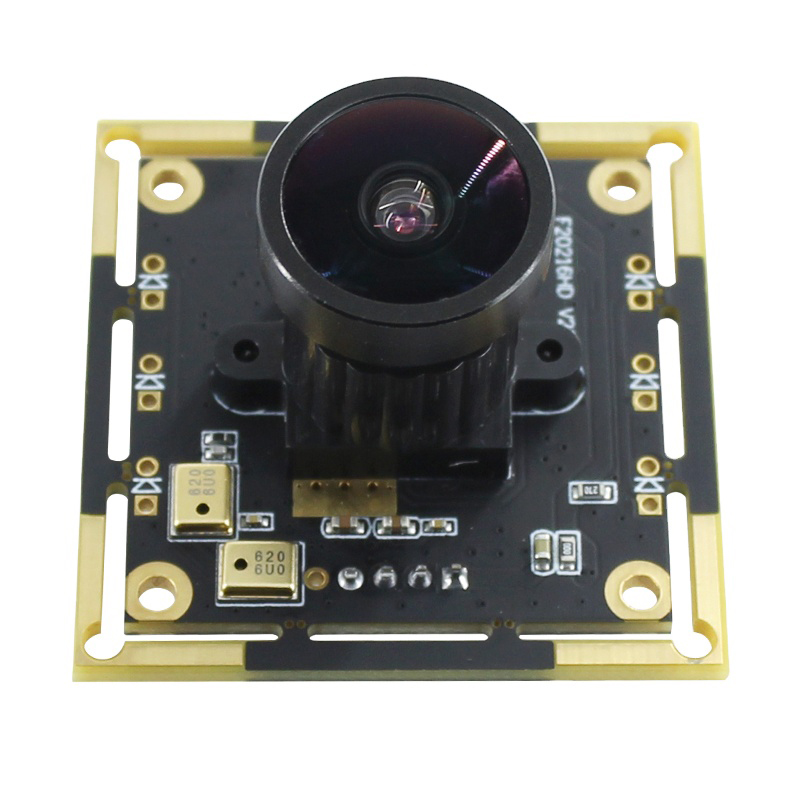

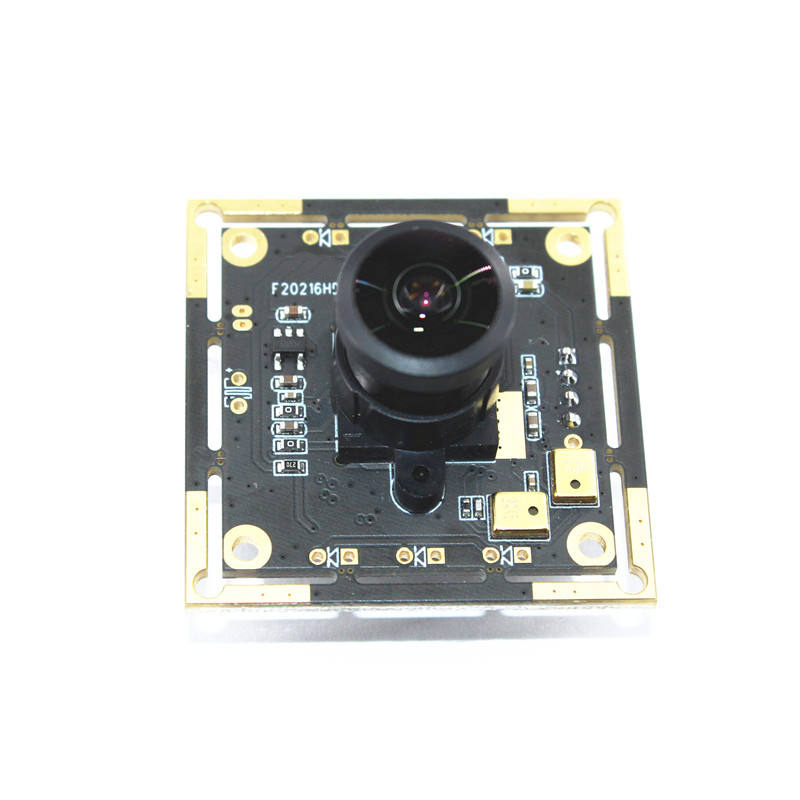

This 2MP Camera Module with Microphone

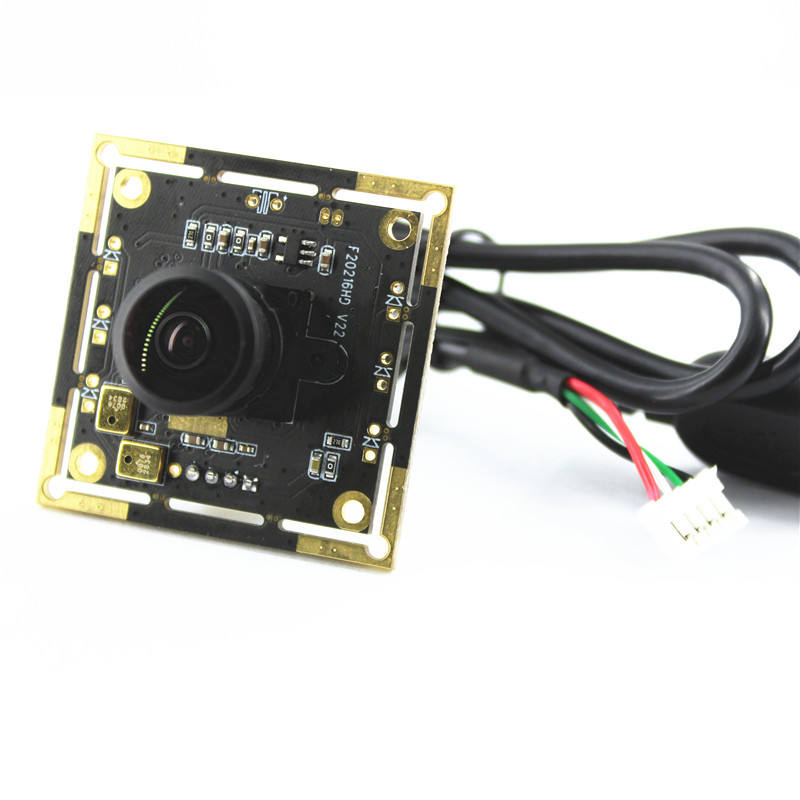

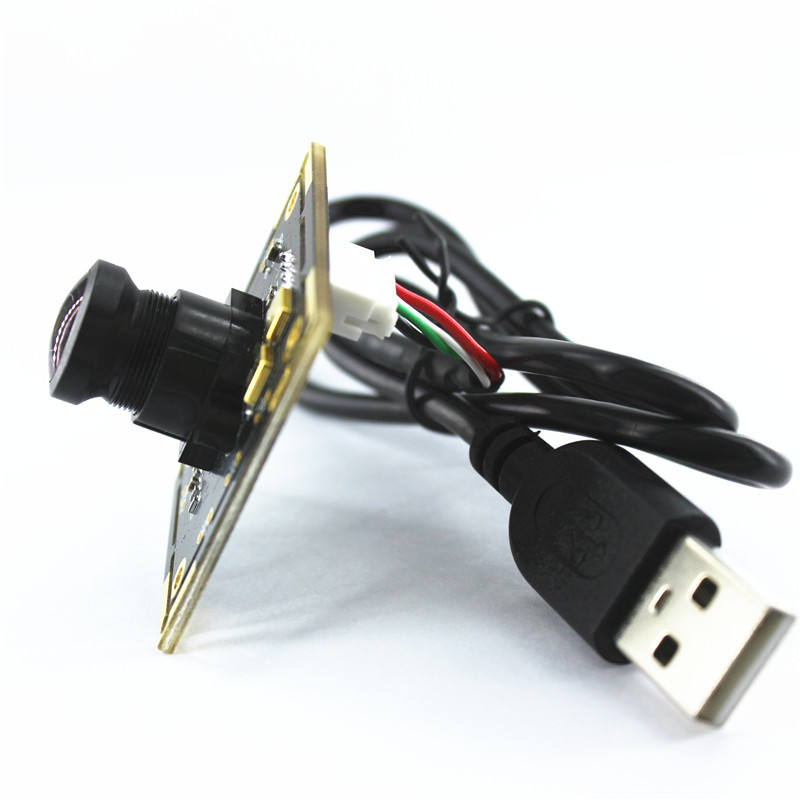

the size is 38mm*38mm, the size is compatible for many euqipments and the sample cable is free
Product Usage
Product usage introduction

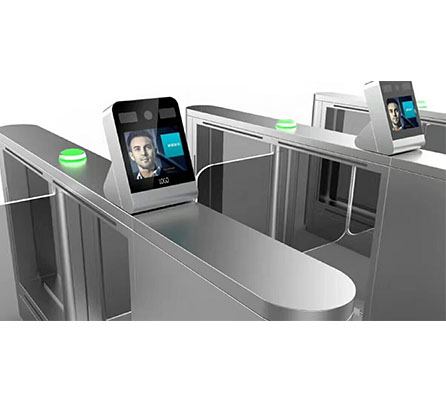

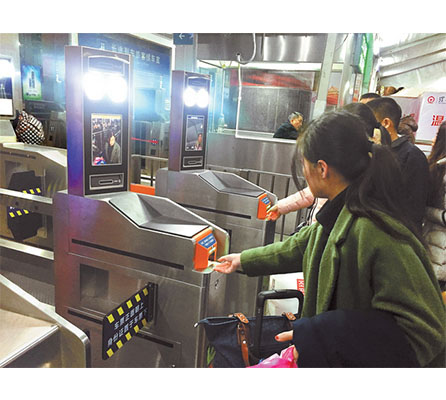

this2mp Camra module can be used in face recognition access control system
Description of product use effect
2MP High Definition usb camera module, it is free driver for window/Linux/Andorid system with good quality
