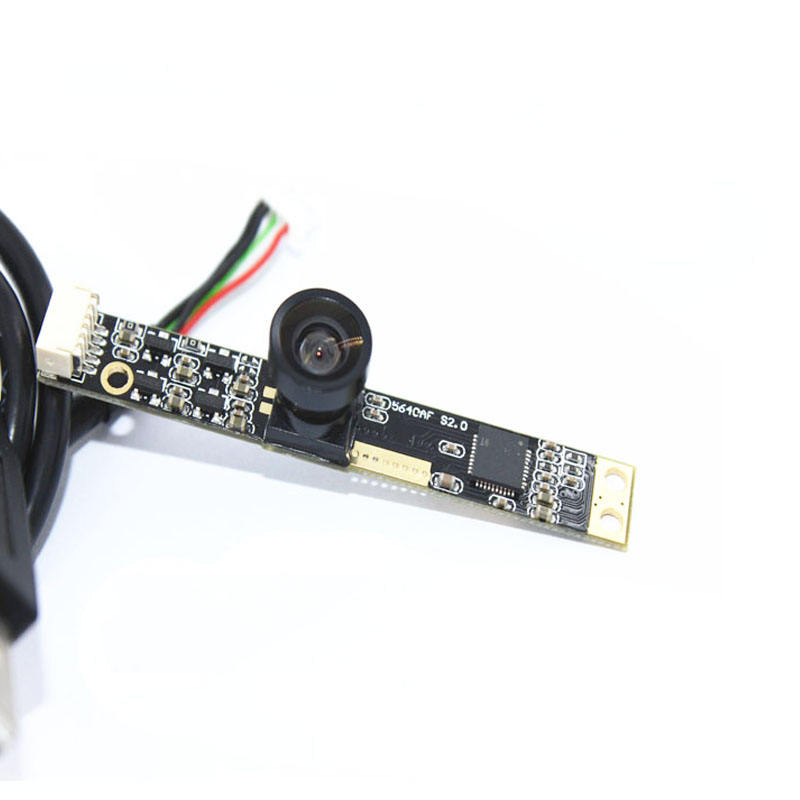

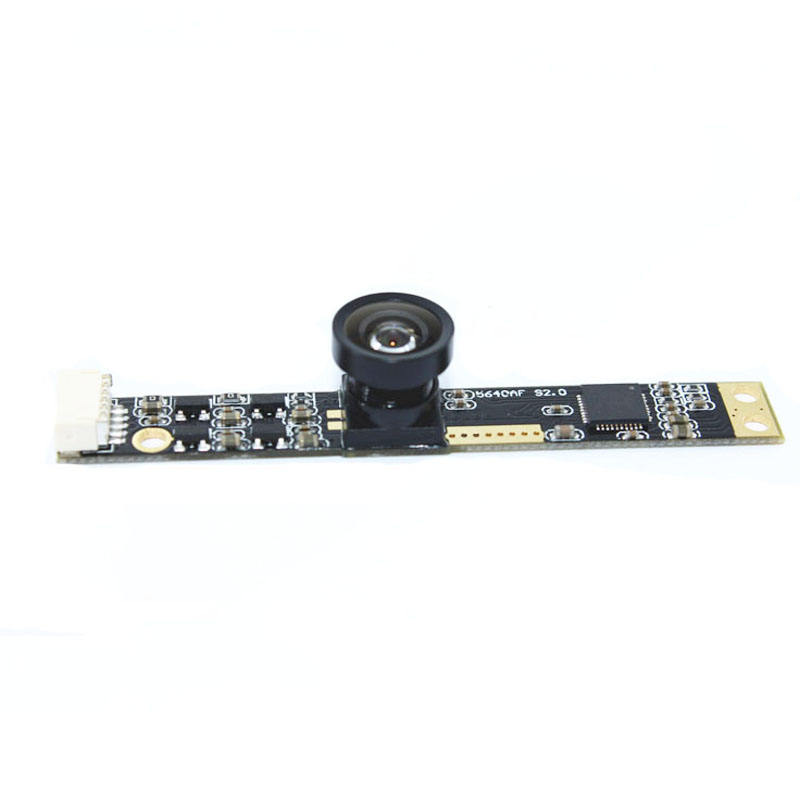

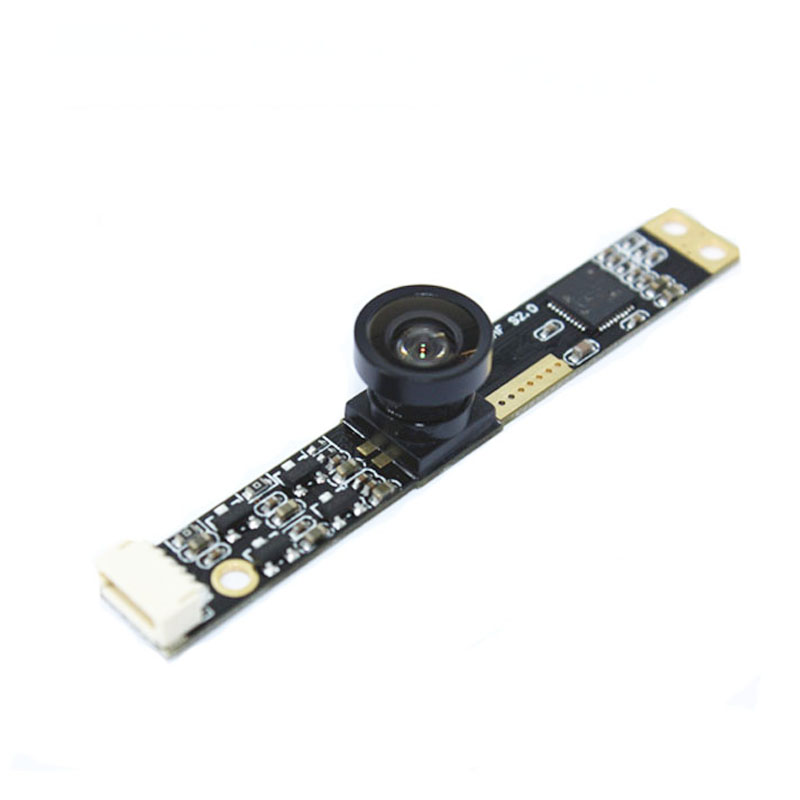

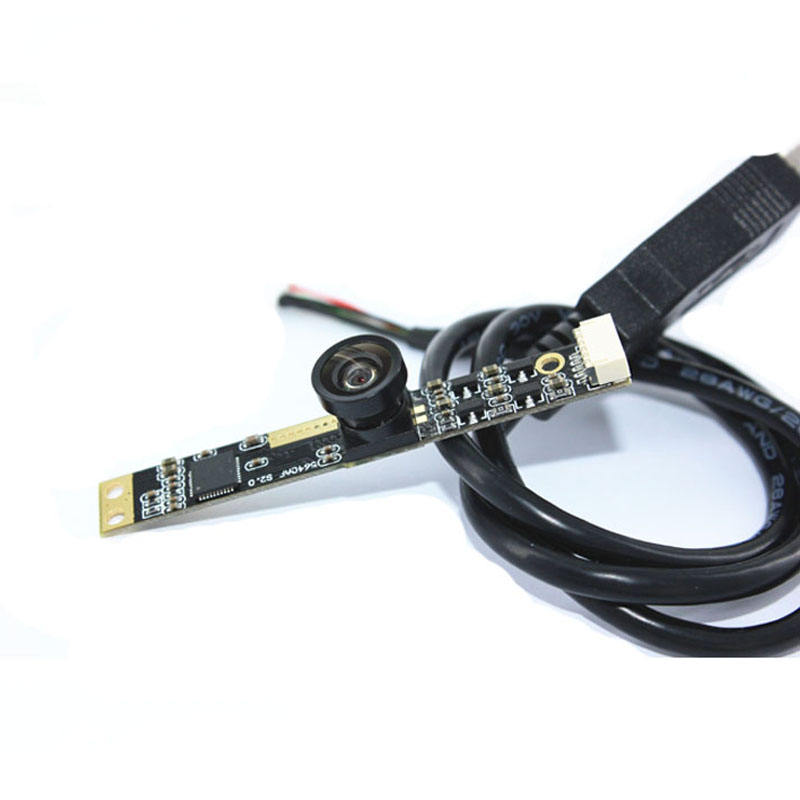

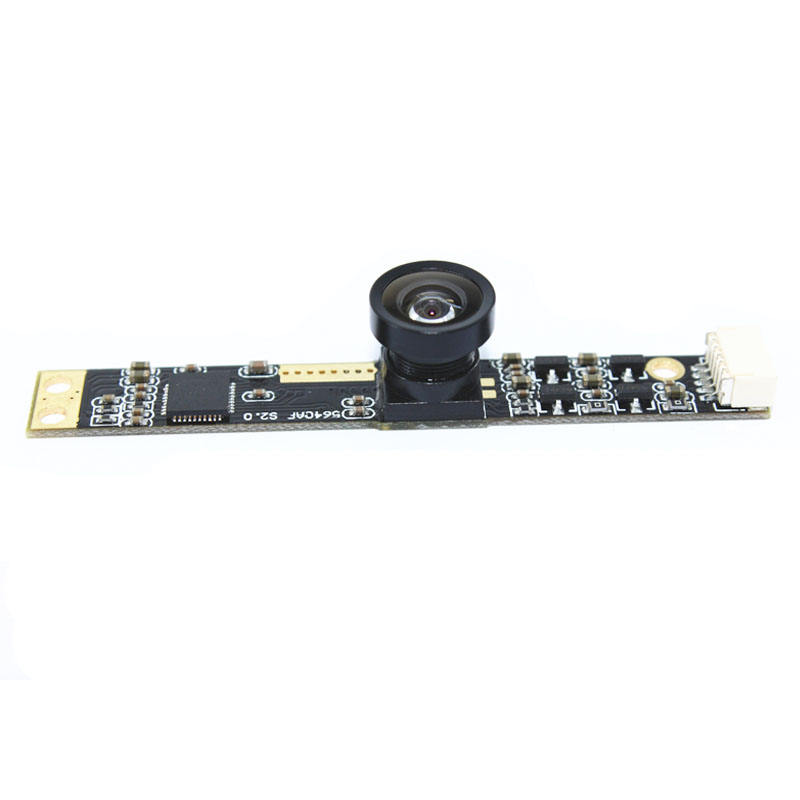

Fixed focus high resolution 2592*1944 5MP OV5640 CMOS Interface USB2.0 wide angle 160 degree camera module
$22.80
Availability:
In stock
Out of stock
Variations
Product Description
Product Specification

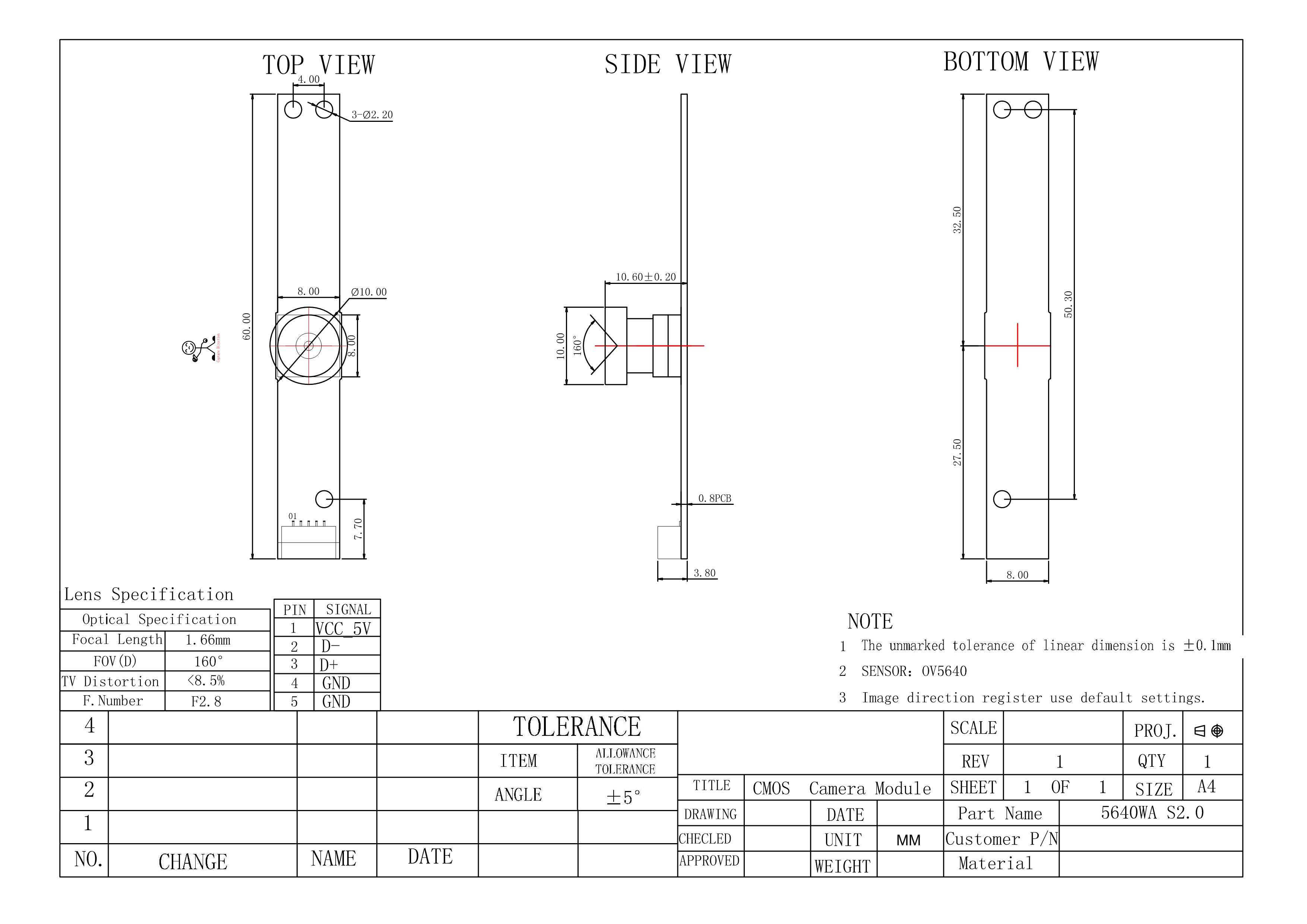

| Module No. | 5640WA S2.0 |
| Module Size | 60mm × 8mm × 10.6mm |
| Temperature (Operation) | -20°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | Fixed |
| Object distance | 30CM-200CM |
| Resolution | 600LW/PH (Center) |
| PCB printing ink | black |
| interface | USB 2.0 |
| Power | USB bus power |
| Power consumption | 150mW （VGA）; 200 mW （QSXGA）; |
| Operating system request | Windows 2000\ Windows XP\Windows 7 |
| Package | Anti-electrostatic tray |
| Certifications | FCC and CE |
| Sensor Type | OV5640 (1/4" ) |
| Active Array Size | 2592*1944 |
| Sensitivity | TBD |
| Pixel Size | 1.4µm x1.4µm |
| Maximum Image Transfer Rate | 15 fps for QSXGA; |
| S/N Ratio | TBD |
| Dynamic Range | TBD |
| Package | CSP,Bare Die |
| Lens Type | |
| Lens Construction | 3G2P+IR |
| F/No | 2.8 |
| EFL | 1.66 mm |
| BFL(Optical) | 2.11mm |

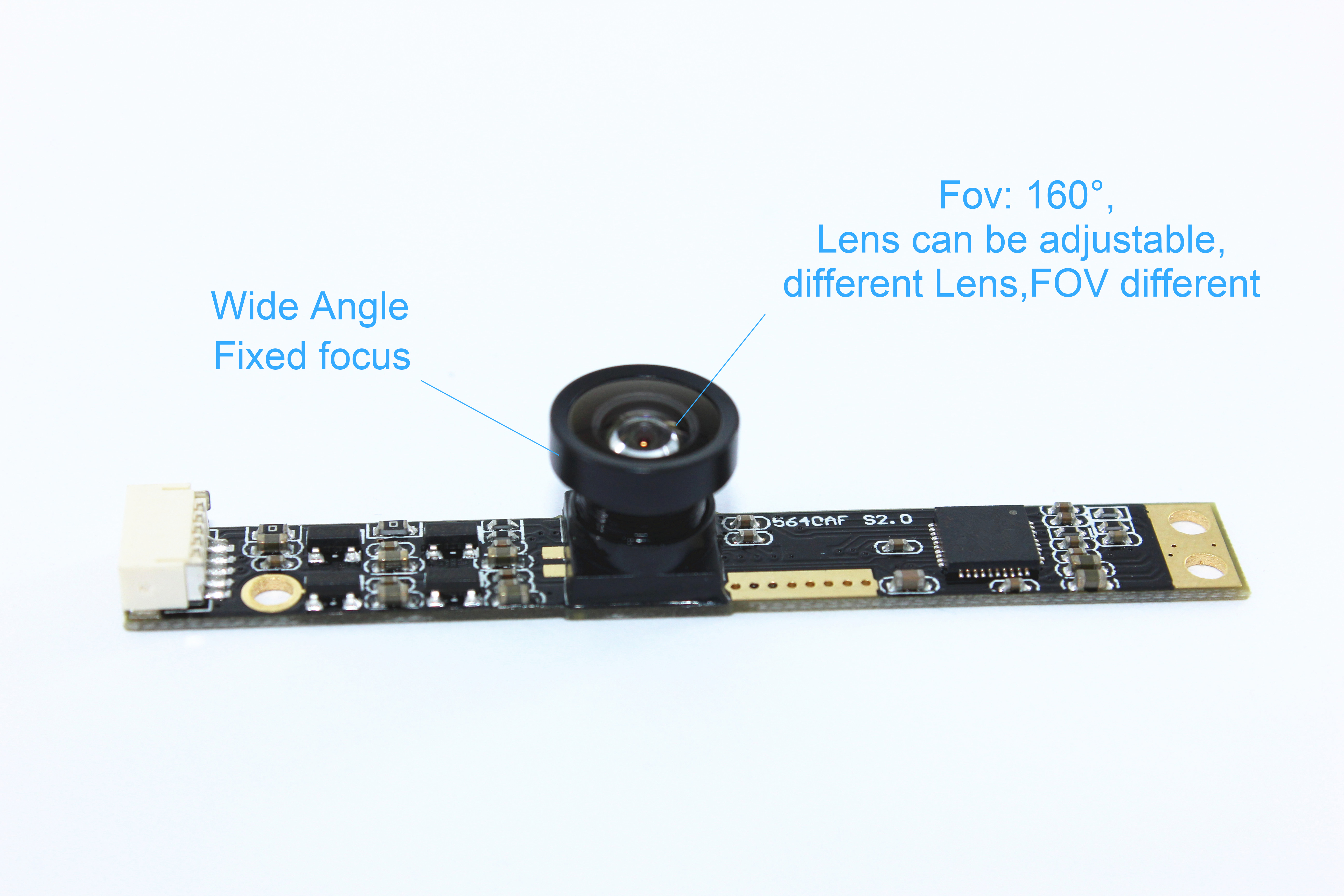

| FOV | 160° |
| TV Distortion | <8.5% |
| Relative Illumination (Sensor) | 70% |
| IR Filter | 650±10nm |
| DSP Type | 5640 |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | USB suspend out |
| Fixed Pattern Noise | < 0.03% of VPEAK-TO-PEAK |
| Package | LQFN-40pin |
Detail Images
