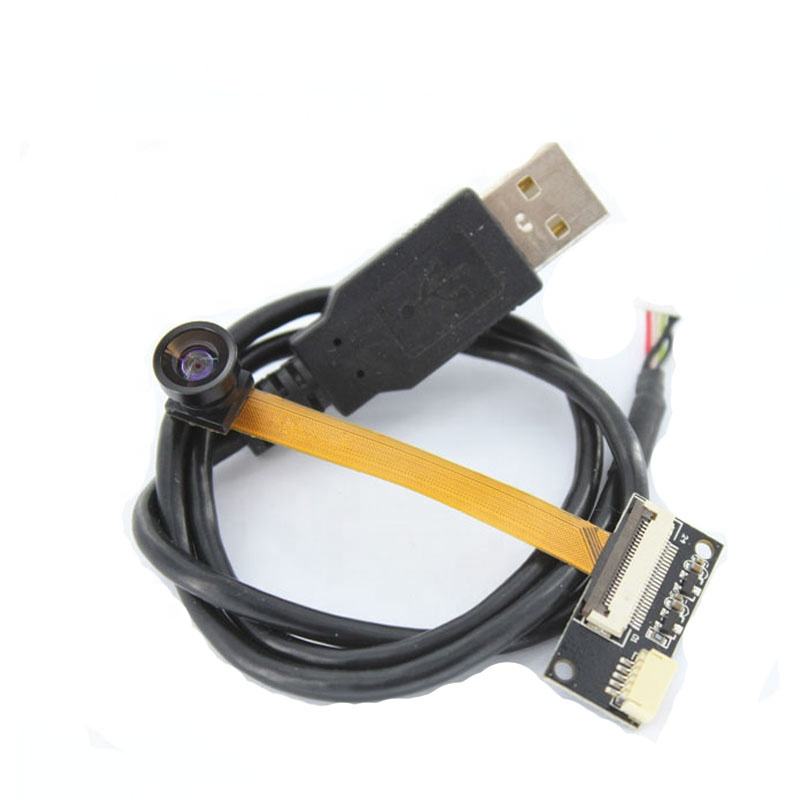

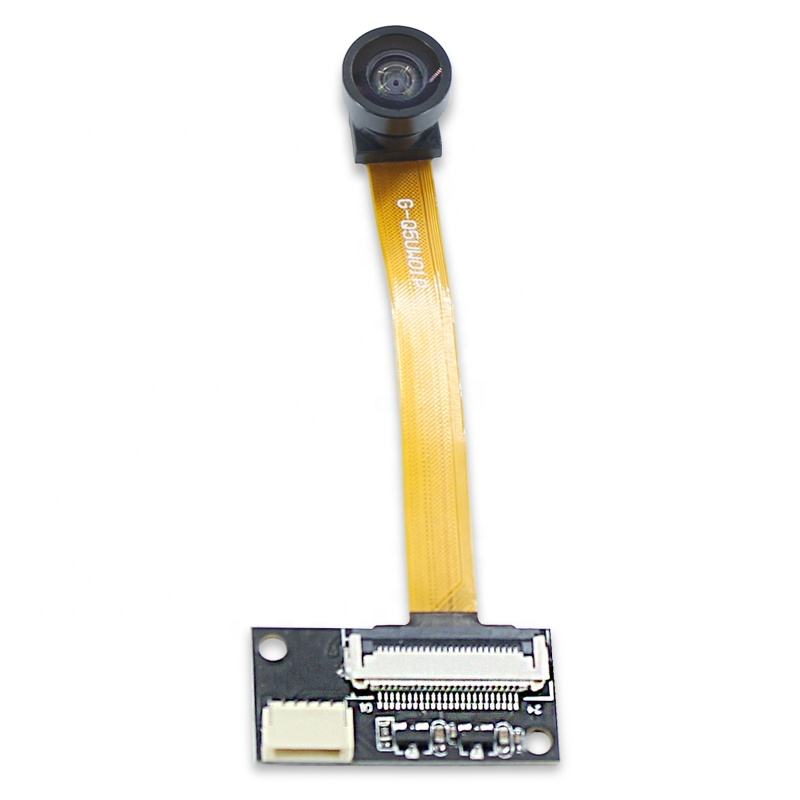

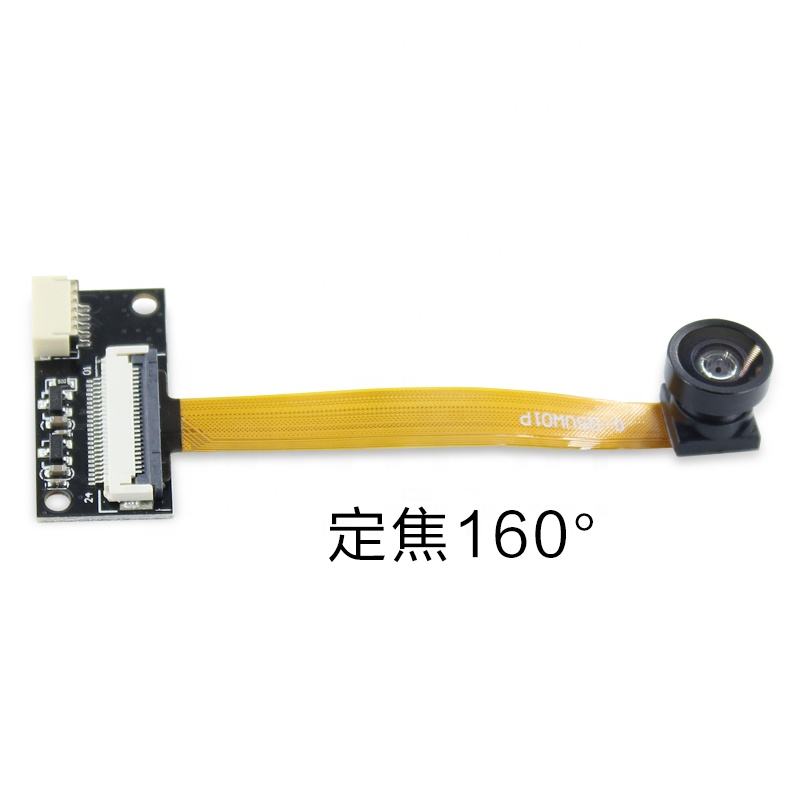

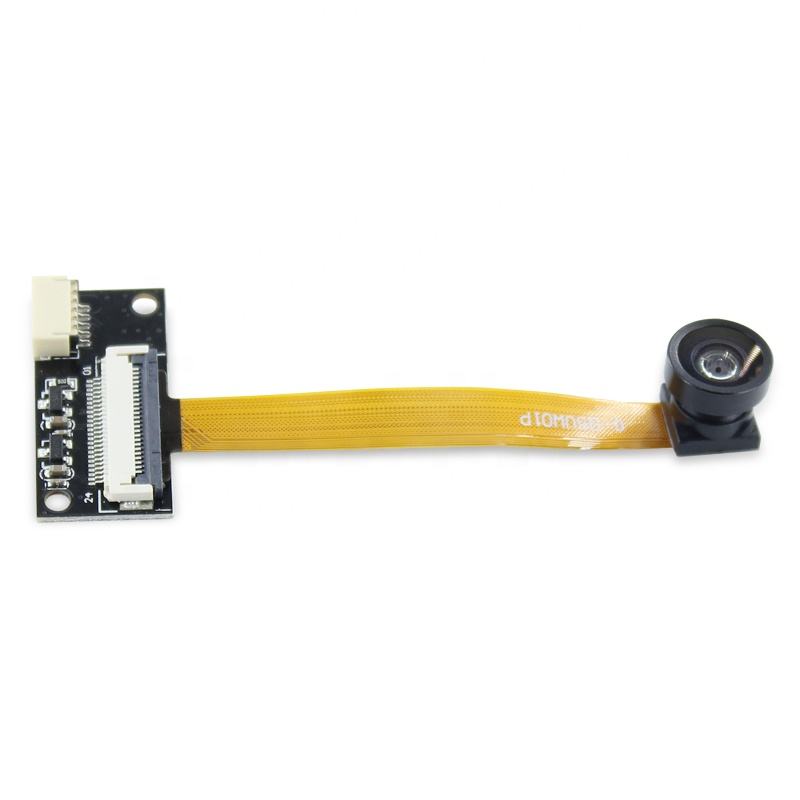

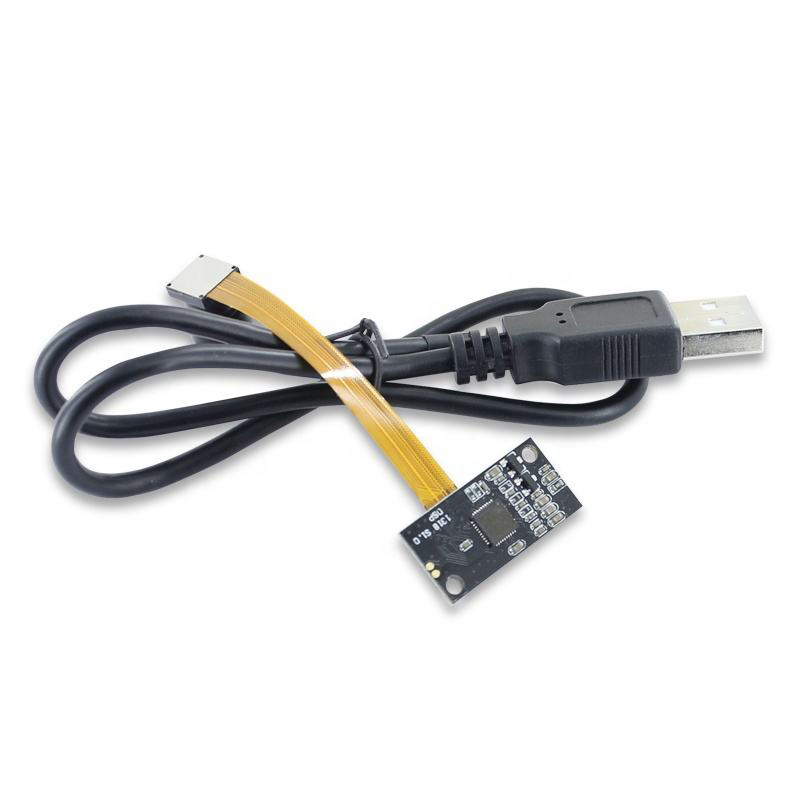

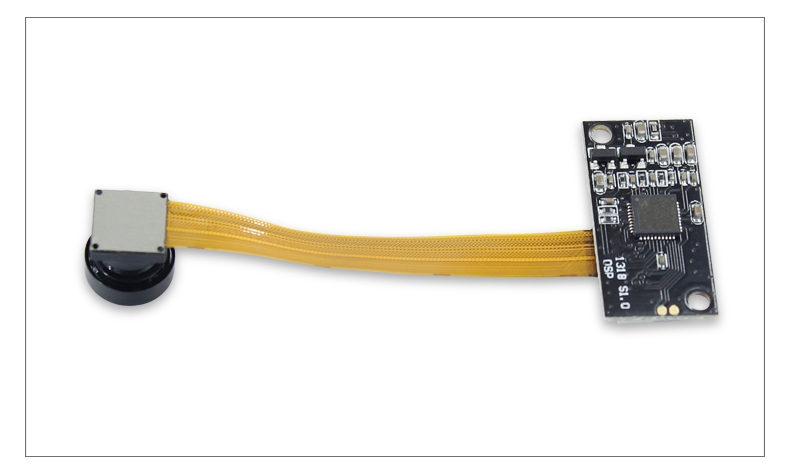

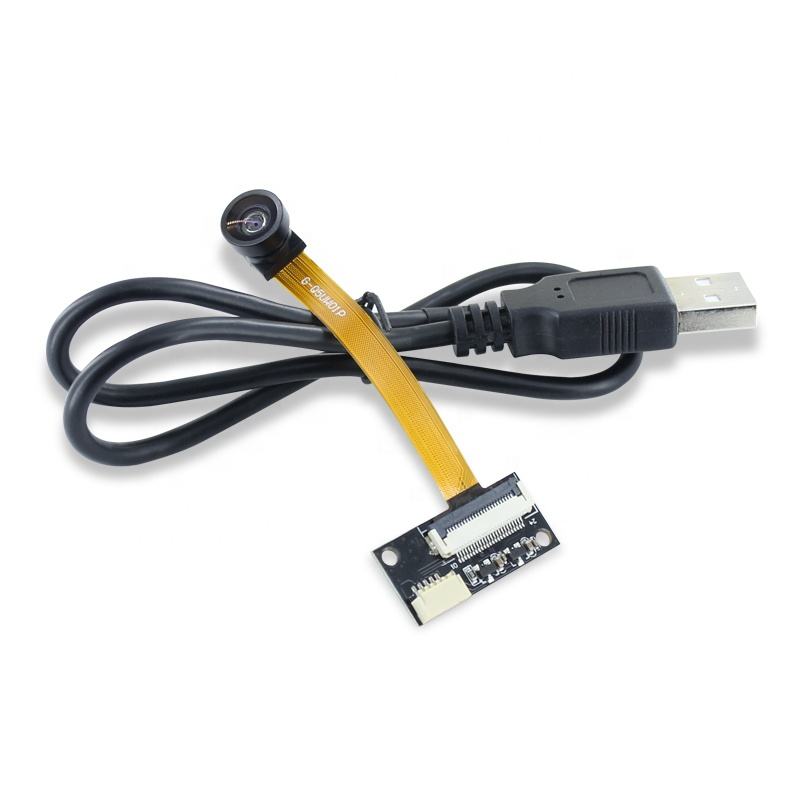

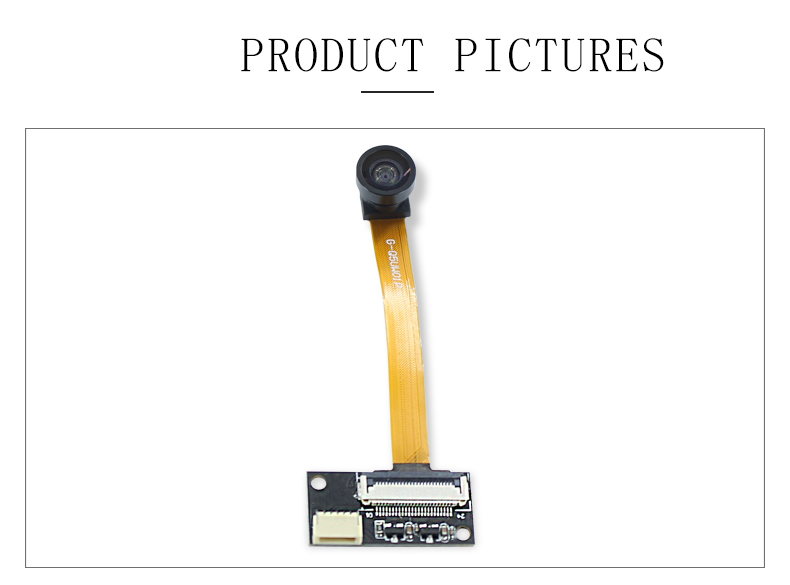

Wide Angle 160degree fisheye lens OV5640 FPC cmos USB Camera module
$25.20
Availability:
In stock
Out of stock
Variations
Product Description
5mp usb camera module
Wide Angle 160degree fisheye lens OV5640 FPC cmos USB Camera module
| Model No. | BM1466WA S1.0 |

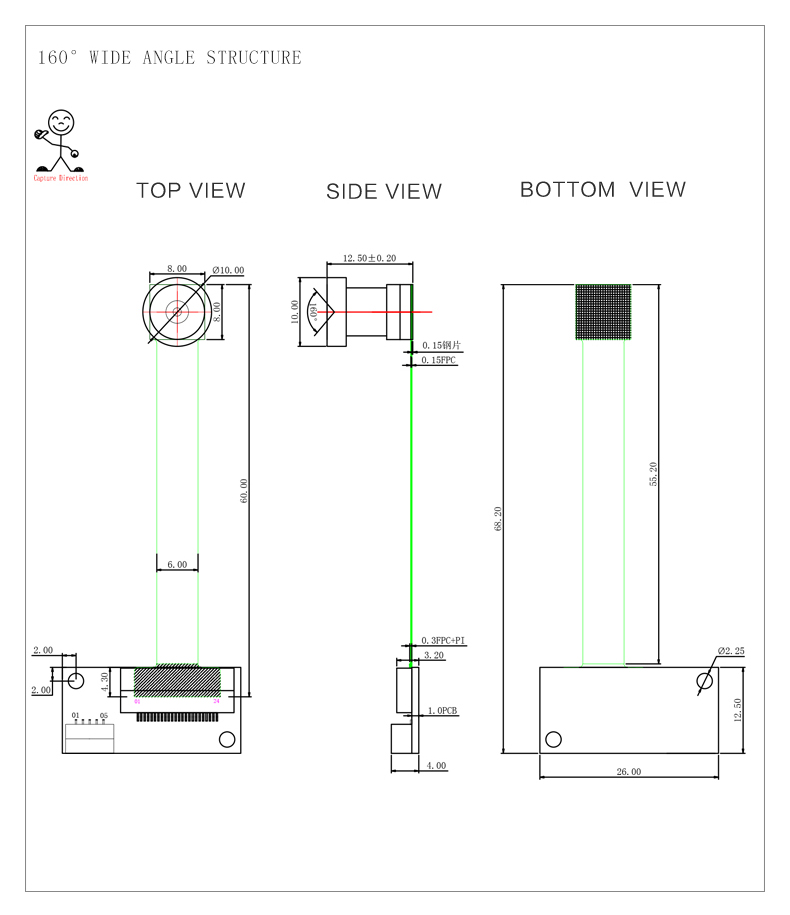

| Model Size | 68.2mm × 26mm × 10mm±0.3MM |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | Fixed |
| Object distance | 30CM-infinity |
| Resolution | 800LW/PH (Center) |
| Interface | USB 2.0 |
| Power | USB bus power |
| Maximum Power consumption | 940 mW |
| Package | Anti-electrostatic tray |
| Operating system request | Win XP/win 7,8 / vista /android 4.0/ mac /Linux with uvc |
| Certifications | FCC and CE |
| Active Array Size | 2592*1944 |
| Sensor | OV5640 (1/4" ) |
| Sensitivity | 600mv /(lux-sec) |
| Pixel Size | 1.4µm x1.4µm |
| Maximum Image Transfer Rate | MJPEG 1024x768 30FPS / YUY2 160x120 30FPS MJPEG 1280x720 40FPS / YUY2 320x240 30FPS MJPEG 1600x1200 30FPS / YUY2 640x480 30FPS MJPEG 1920x1080 15FPS / YUY2 800x600 30FPS MJPEG 2048x1536 15FPS / YUY2 1024x768 15FPS MJPEG 2592x1944 15FPS / YUY2 2592x1944 3FPS |
| S/N Ratio | 36db |
| Dynamic Range | 68db |
| Package | CSP,Bare Die |
| Output Formats | YUY2/MJPEG |
| Microphone | NO |
| Lens Type | |
| Lens Construction | 2G2P |
| F/No | 2.0 |
| EFL | 1.66mm |
| FOV | 160° |
| TV Distortion | <8.5% |
| Relative Illumination (Sensor) | 70% |
| R Filter | 650 ± 10nm |
| DSP Type | HBV5640 |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | USB suspend out |
| Fixed Pattern Noise | < 0.03% of V PEAK-TO-PEAK |
| Package | LQFN-40pin |
