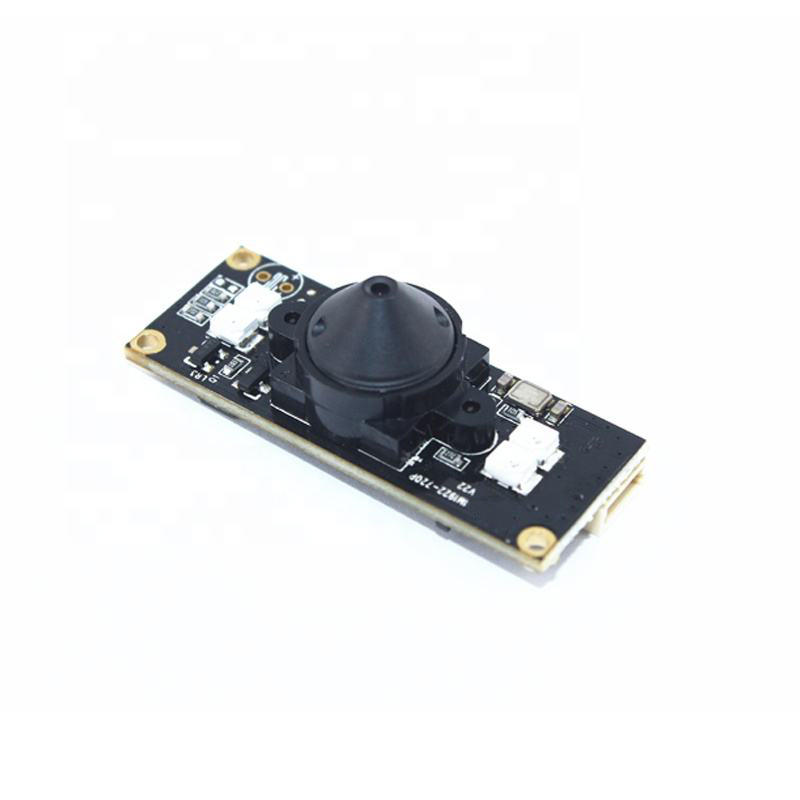

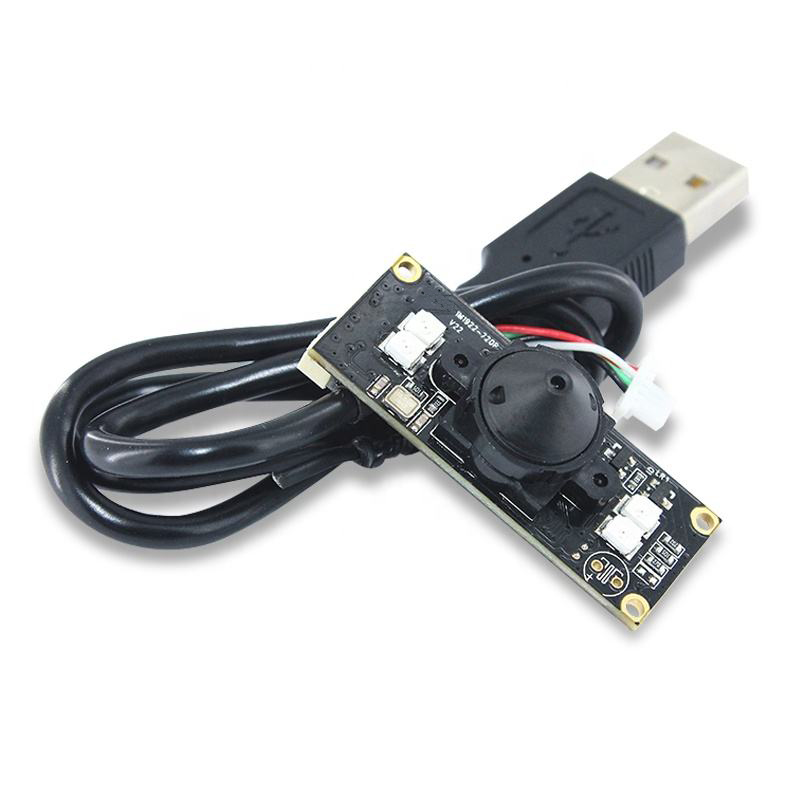

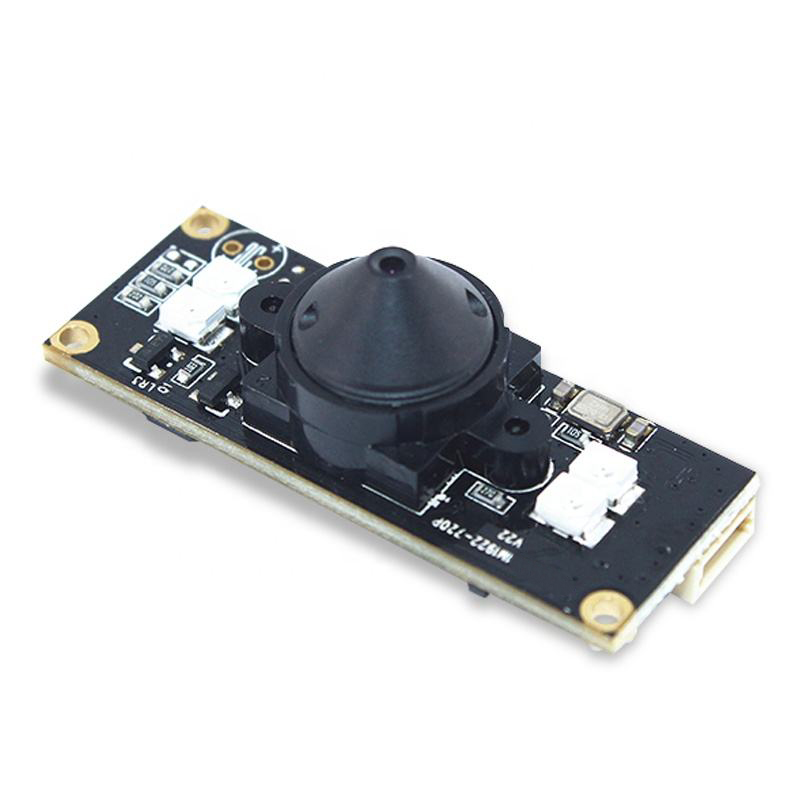

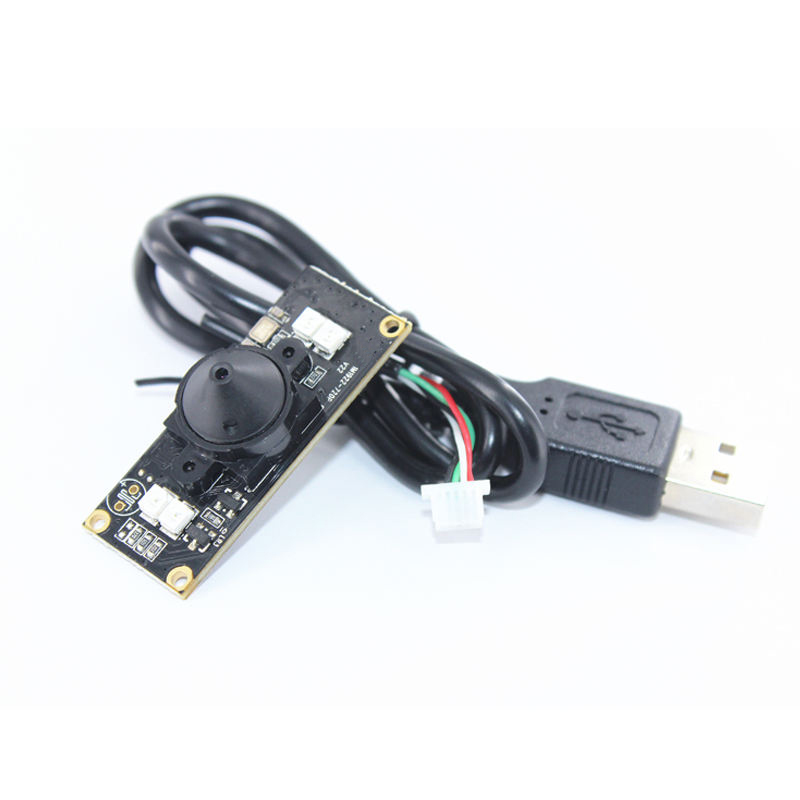

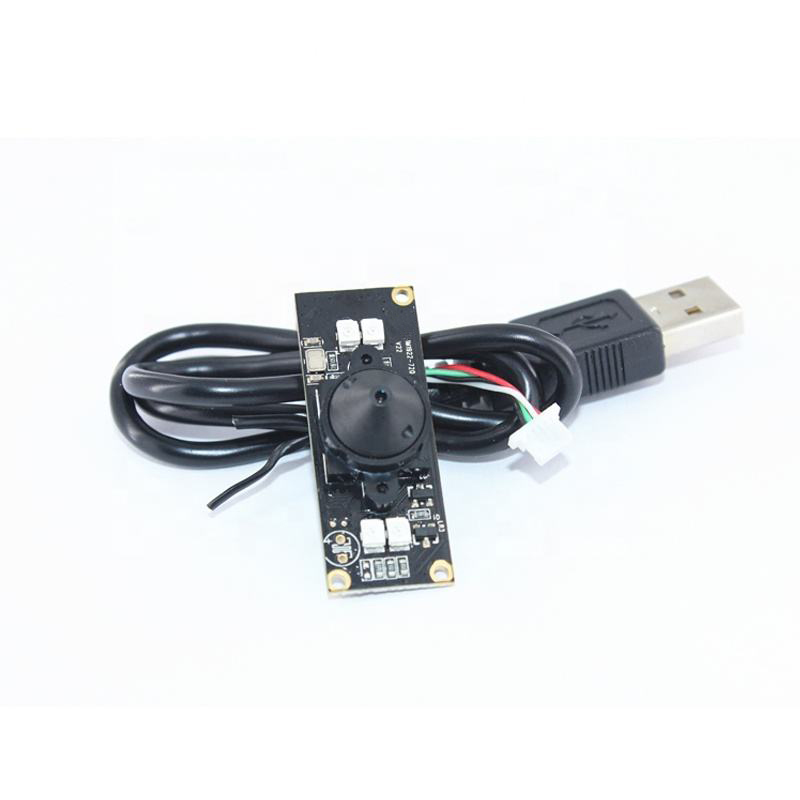

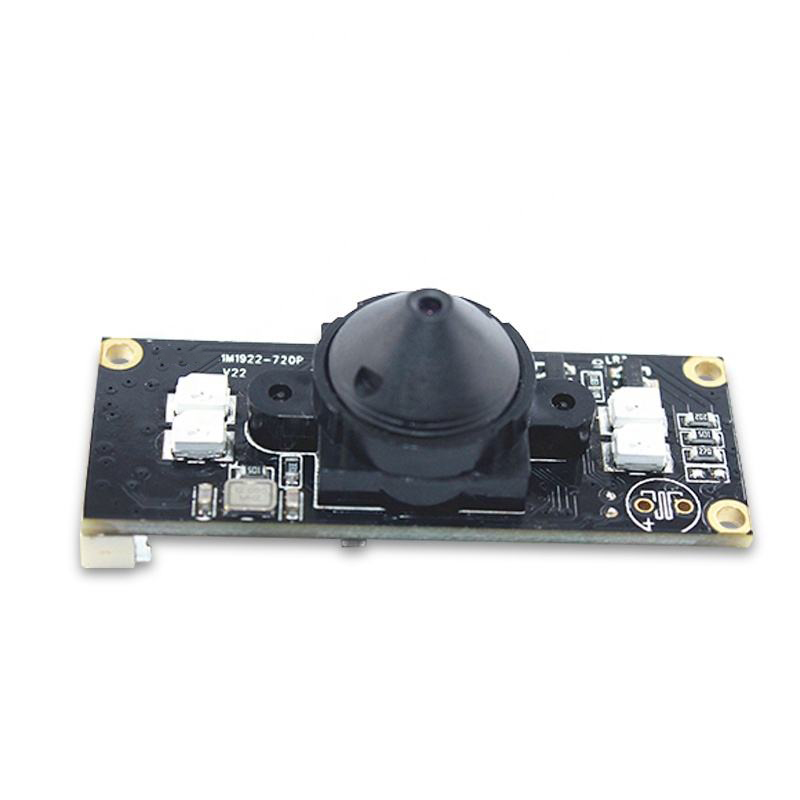

1MP 720p cmos OV9712 sensor mini hd usb camera lens module with LED light
$15.60
Availability:
In stock
Out of stock
Variations
Product Description
1MP 720p cmos OV9712 sensor mini hd usb camera lens module with LED light
| Model No. | BM1M1922-720P V22 |
| Model Size | 42mm × 16mm × 13.1mm±0.5MM |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | Fixed |
| Object distance | 30CM-infinity |
| Resolution | 600LW/PH (Center) |
| PCB printing ink | Black |
| interface | USB 2.0 |
| Power supply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption | 1000mW |
| Operating system request | Win XP/win 7,8 / vista /android 4.0/ mac /Linux with uvc |
| Sensor | OV9712 (1/4" ) |
| Seneor Package | CSP,Bare Die |
| Maximum resolution | 1280*800 |
| Sensitivity | 3300mV /(lux-sec) |
| Pixel Size | 3μm x 3μm |
| Maximum Image Transfer Rate | MJPEG 160x120 30FPS / YUY2 160x120 30FPS MJPEG 320x240 30FPS / YUY2 320x240 30FPS MJPEG 352x288 30FPS / YUY2 352x288 30FPS MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 1280x720 30FPS / YUY2 1280x720 10FPS MJPEG 1280x800 30FPS / YUY2 1280x800 10FPS |
| S/N Ratio | 39B |
| Max Dynamic Range | 69 |
| Shutter type | Electronic rolling shutter |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2/MJPEG |
| Microphone | NO |
| Lens Construction | 4P |
| F/No | 2.4 |
| EFL | 3.5mm |
| FOV | 56° |
| TV Distortion | <5% |
| Relative Illumination (Sensor) | 70% |
| IR Filter | 650±10nm |
| Module Package | Anti-electrostatic tray |
| Certifications | FCC/CE/ROSH |
| USB cable | 50CM 1M 2M 3M |
| 1.The parameters of FOV are just for your reference, Different Lens has different FOV 2.The frame rate is related to Light,operating system and so on, the frame rate exist a little error. If you mind it, please don’t make an order for it. Thank you for your understanding | |
