IMX219 8megapixel Nano Camera with 160 FOV 1080p Mini Cube Camera 160 Degree Smart Home Support CE ROHS FCC CMOS
$30.00
Availability:
In stock
Out of stock
Variations
Product Description

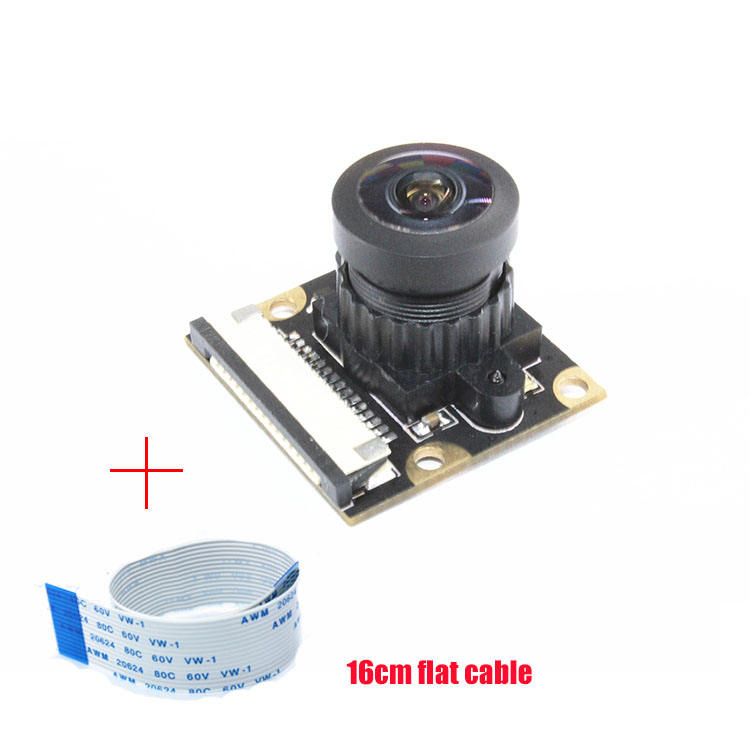

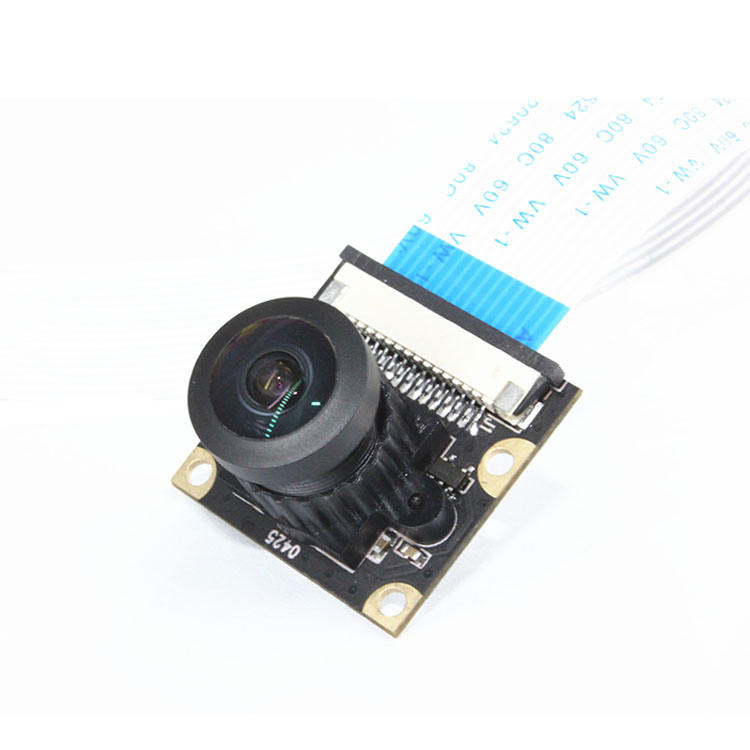

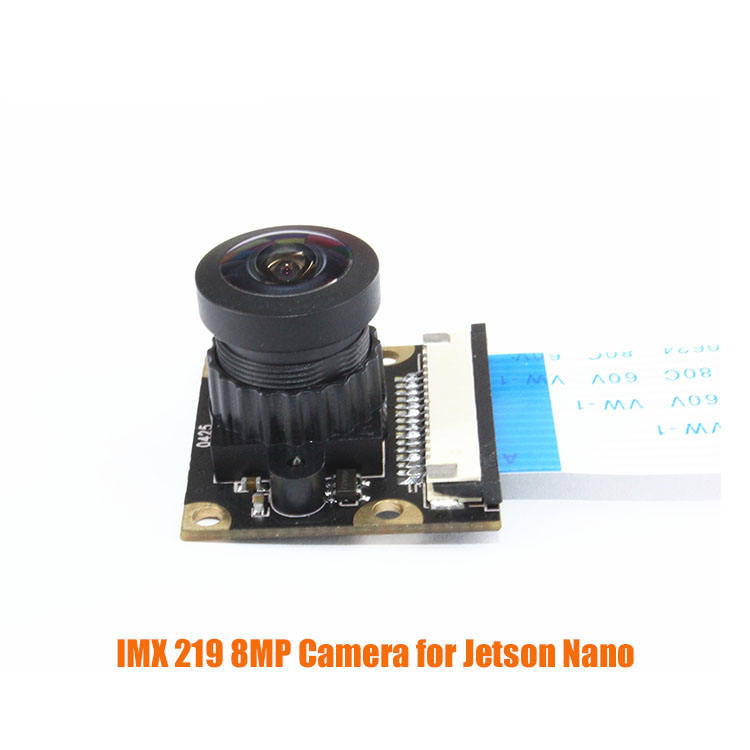

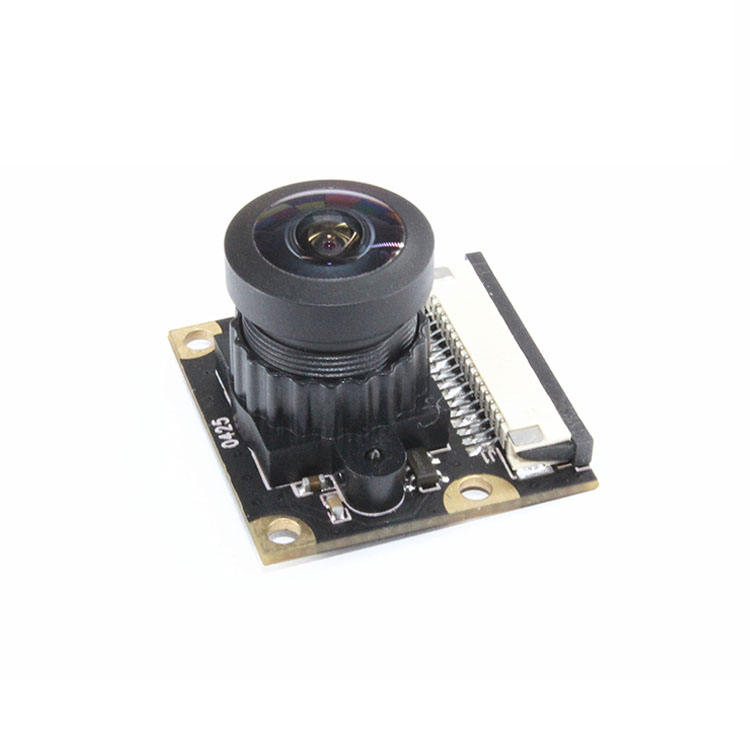

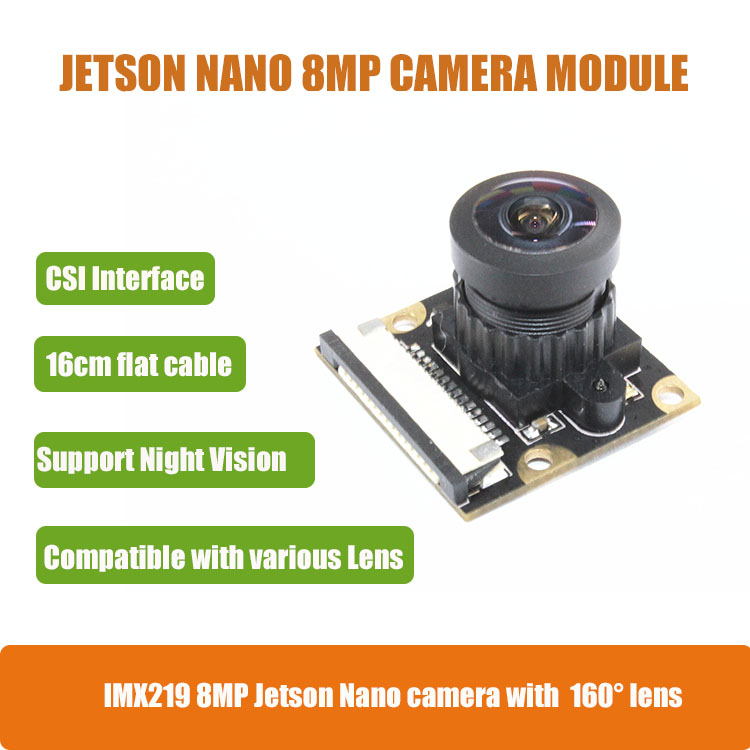

IMX219 8Megapixel nano camera with 160 FOV wide angle lens
Product Description
| Module No. | BMHPLCC-8M |
| Module Size | 25mm × 24mm ×17.7±0.5mm |
| Temperature (Operation) | -20°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | Fixed |
| Object distance | 30CM-∞ |
| Resolution | 800LW/PH (Center) |
| PCB printing ink | Black |
| interface | 15p-1.0 mipi |
| Working power supply | 3.3v(pin15) |
| Operating system | Raspberry Pi |
| Package | Anti-electrostatic tray |
| Certifications | FCC and CE |
| Sensor Type | IMX219 (1/4" ) |
| Active Array Size | 3296*2512 |
| Sensitivity | 600mV/Lux-sec |
| Pixel Size | 1.12µm x1.12µm |
| Maximum Image Transfer Rate | 30 fps for QSXGA; |
| Output formats | 8/10bit RGB RAW output |
| S/N Ratio | 39db |
| Dynamic Range | 69db |
| Package | PLCC,Bare Die |
| Lens Type | |
| Lens Construction | 6G+IR |
| F/No | 2.35 |
| EFL | 3.15 mm |
| BFL(Optical) | 3.15mm |
| FOV | 160° |
| TV Distortion | <14.3% |
| Relative Illumination (Sensor) | 70% |
| IR Filter | 650±10nm |
Detailed Images
