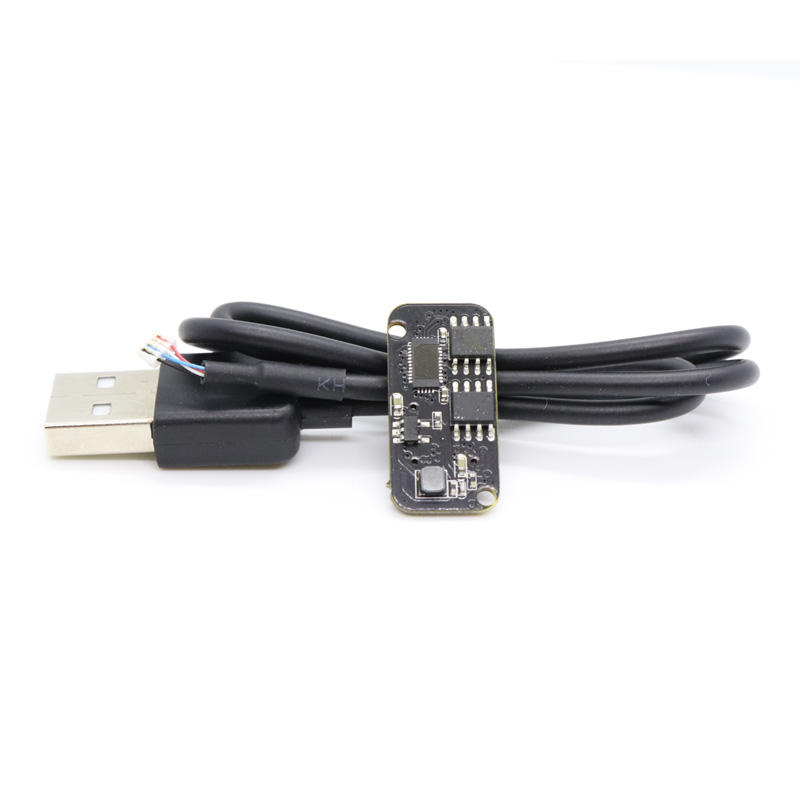

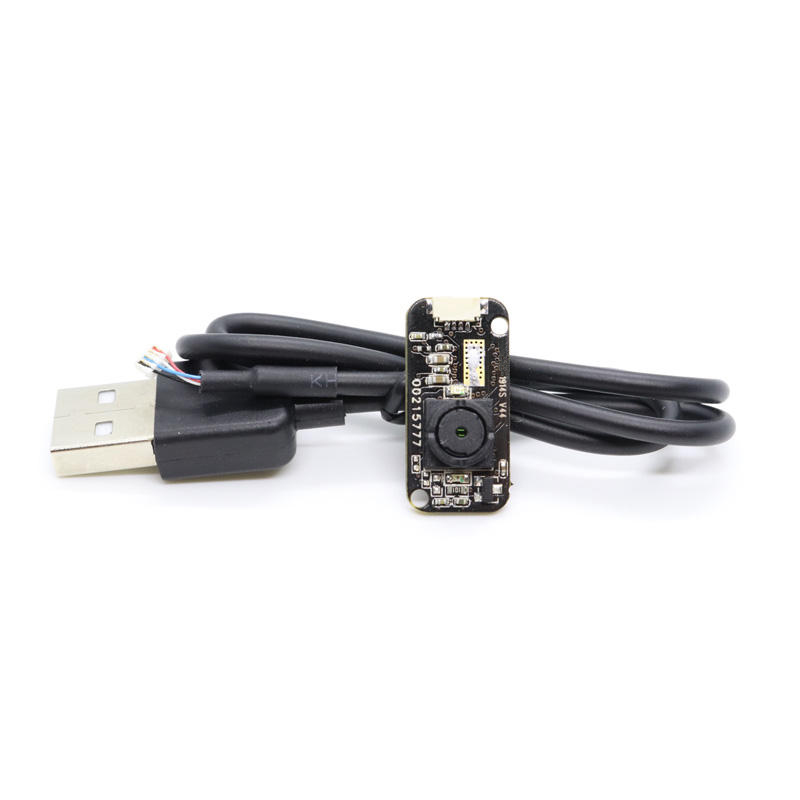

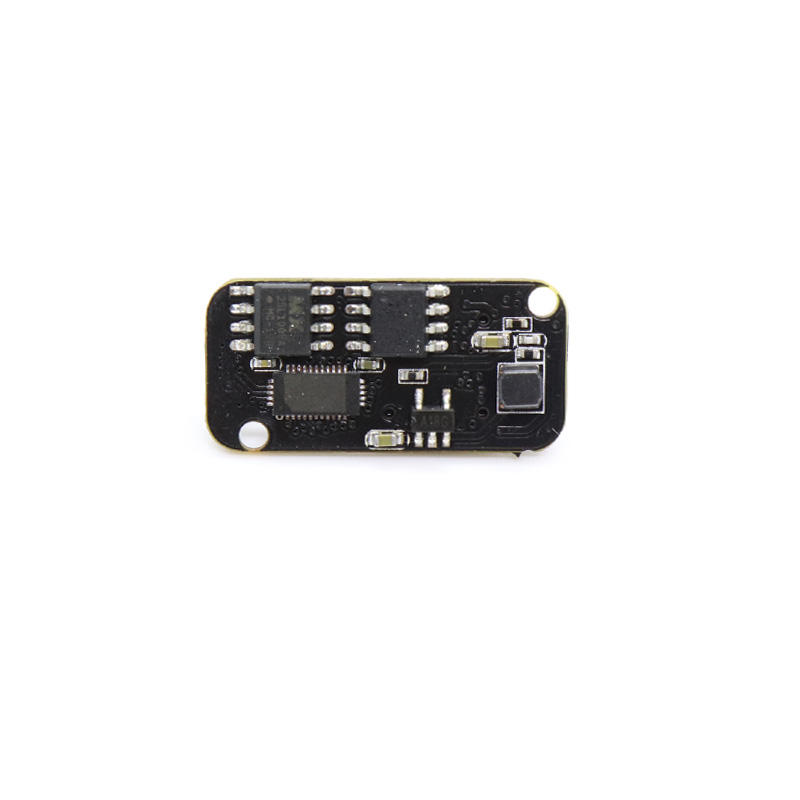

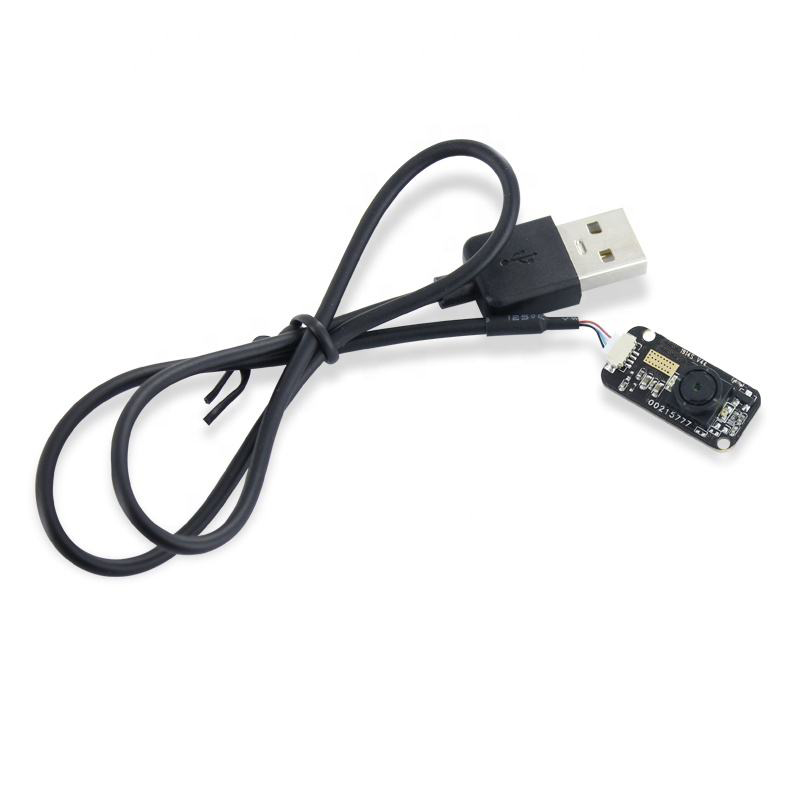

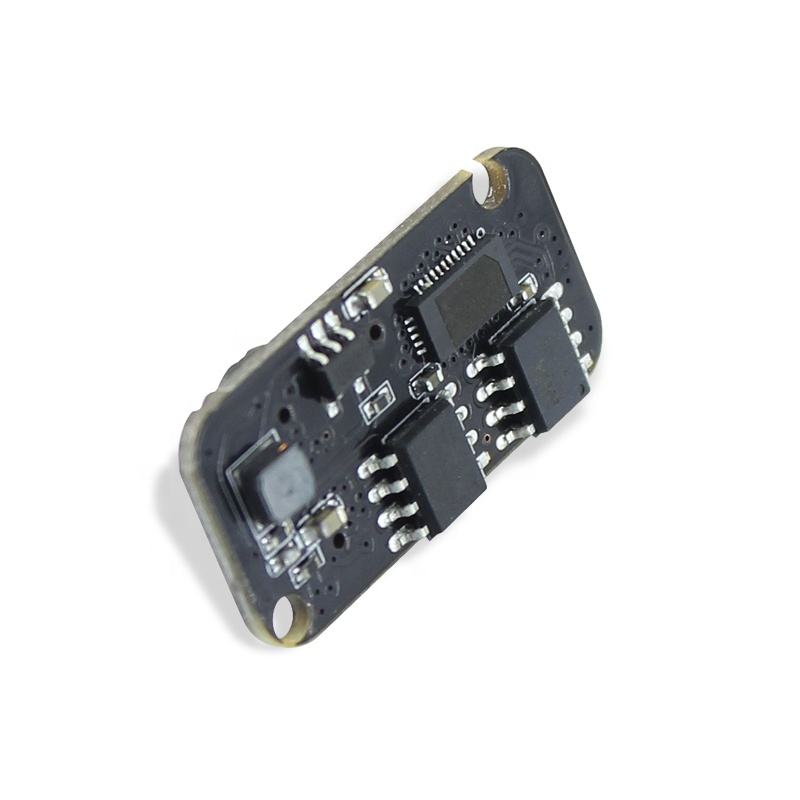

Small Size .0.3MP Pixel FOV 50 Degree HD mini CMOS Camera Module
$12.00
Availability:
In stock
Out of stock
Variations
Product Description
Small Size .0.3MP Pixel FOV 50 Degree HD mini CMOS Camera Module

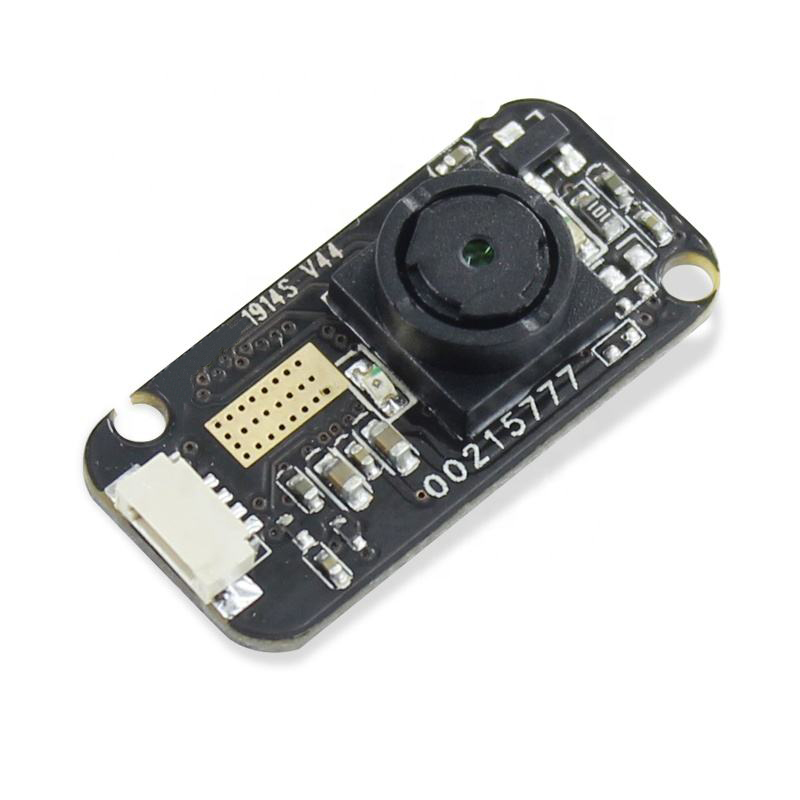

| Model No. | BM1914S V44 |
| Model Size | 25mm × 12mm × 6mm±0.2MM |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | Fixed |
| Object distance | 30CM-infinity |
| Resolution | 600LW/PH (Center) |
| PCB printing ink | Black |
| interface | USB 2.0 |
| Power supply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption | 600 mW |
| Operating system request | Win XP/win 7,8 / vista /android 4.0/ mac /Linux with uvc |
| Sensor | GC0308 (1/6.5" ) |
| Seneor Package | CSP,Bare Die |
| Maximum resolution | 640*480 |
| Sensitivity | 2.5V /(lux-sec) |
| Pixel Size | 3.4μm x 3.4μm |
| Maximum Image Transfer Rate | MJPEG 160x120 30FPS / YUY2 160x120 30FPS MJPEG 320x240 128FPS / YUY2 320x240 128FPS MJPEG 640x480 30FPS / YUY2 640x480 30FPS |
| S/N Ratio | 42dB |
| Max Dynamic Range | 58dB |
| Shutter type | Electronic rolling shutter |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2/MJPEG |
| Microphone | NO |
| Lens Construction | 4P |
| F/No | 2.8 |
| EFL | 3,4m |
| FOV | 27 |
| TV Distortion | <1% |
| Relative Illumination (Sensor) | 70% |
| IR Filter | NO IR |
| Module Package | Anti-electrostatic tray |
| Certifications | FCC/CE/ROSH |
| USB cable | 40CM 1M 2M 3M |
| 1.The parameters of FOV are just for your reference, Different Lens has different FOV 2.The frame rate is related to Light,operating system and so on, the frame rate exist a little error. If you mind it, please don’t make an order for it. Thank you for your understanding | |
