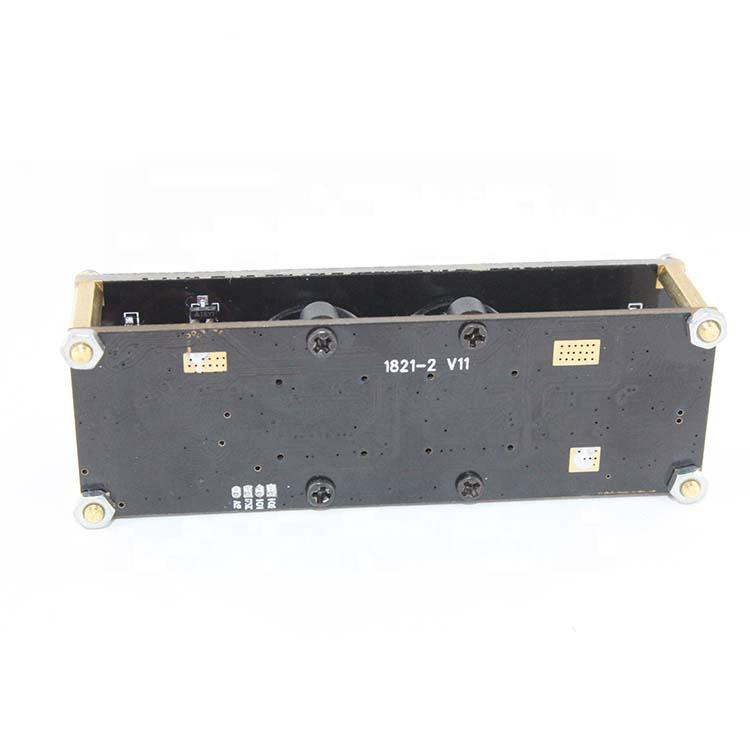

2MP 3d face recognition camera for ID scanner equipment
$66.00
Availability:
In stock
Out of stock
Variations
Product Attributes
Product Description
Product Description
| Module No. | BM1821-2 V11 |
| Module Size | 68mm × 22mm × 17.4mm±0.5MM |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | Fixed |
| Object distance | 30CM-infinity |
| Resolution | 600LW/PH (Center) |
| PCB printing ink | black |
| interface | USB 2.0 |
| Power suuply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption | 2100mW |
| Operating system request | Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc |
| Sensor | HM2131 (1/2.7" ) |
| Seneor Package | CSP,Bare Die |
| Maximum resolution | 1920*1080 |
| Sensitivity | 4600mv /（lux-sec） |
| Pixel Size | 3µm x 3µm |
| Maximum Image Transfer Rate | MJPEG 320x240 30FPS / YUY2 320x240 20FPS MJPEG 352x288 30FPS / YUY2 352x288 20FPS MJPEG 640x480 30FPS / YUY2 640x480 20FPS MJPEG 800x600 30FPS / YUY2 800x600 10FPS MJPEG 1280x720 30FPS / YUY2 1280x720 10FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 5FPS MJPEG 640x360 60FPS / YUY2 640x480 30FPS MJPEG 800x600 60FPS / YUY2 800x600 20FPS MJPEG 1280x720 60FPS / YUY2 1280x720 10FPS |
| S/N Ratio | 38.9 db |
| Max Dynamic Range | 62 db |
| Shutter type | Electronic rolling shutter |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2/MJPEG |
| Microphone | NO |
| Lens Construction | 2G2P |
| F/No | 2.4 |
| EFL | 3.0mm |
| FOV | 100° |
| TV Distortion | <5% |
| Relative Illumination (Sensor) | 70% |
| IR Filter | 650±10nm 850±10nm |
| Module Package | Anti-electrostatic tray |
| Certifications | FCC/CE/ROSH |

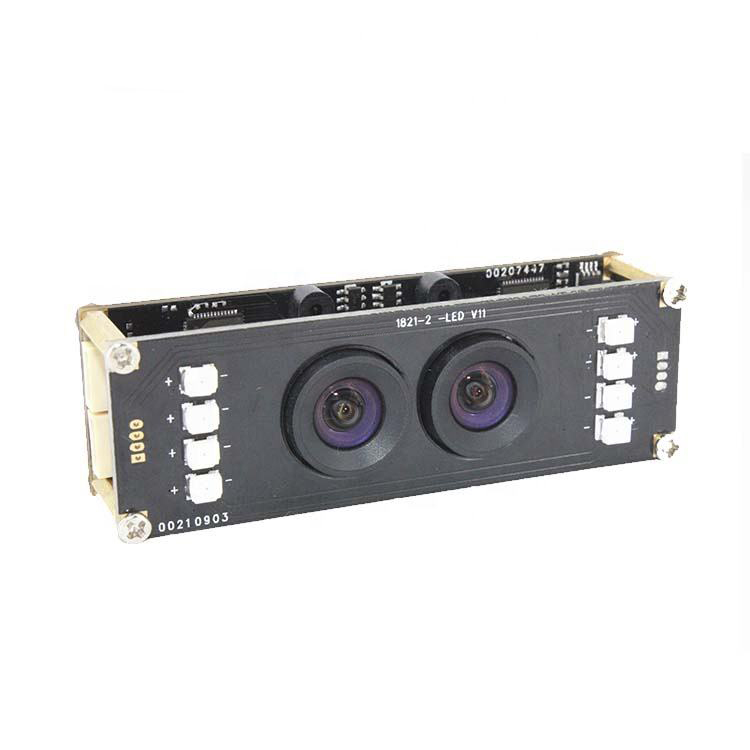

2MP Dual camera module for face recognition
1. this is 2MP 1080P dual camera module, one camera is color and another one is black +white.
2. it is can be used for body temperature , face recognition and 3D robot.
3. it is free driver, with standard UVC protocol for window /Linux/Android system.

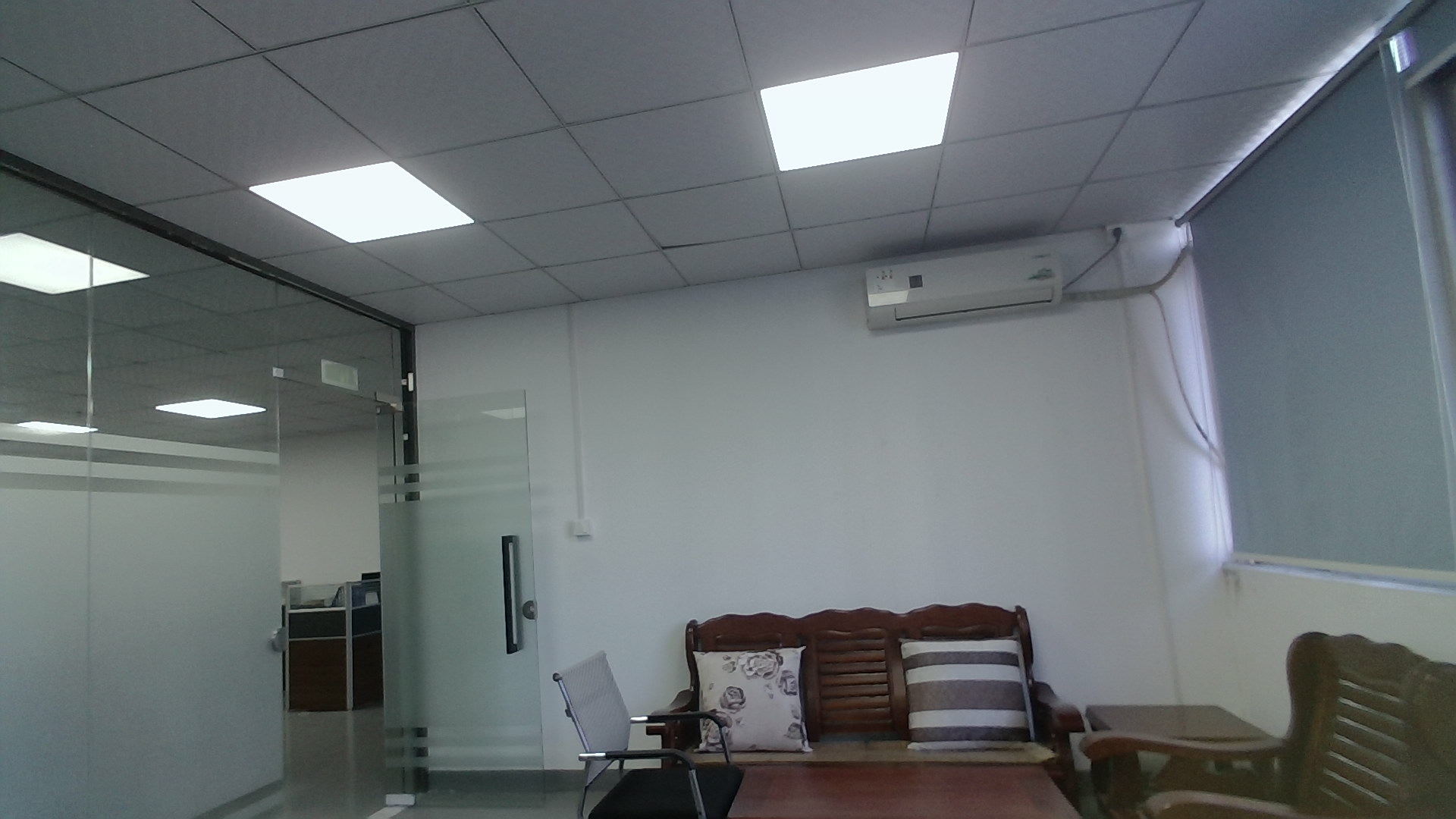

Effect Image

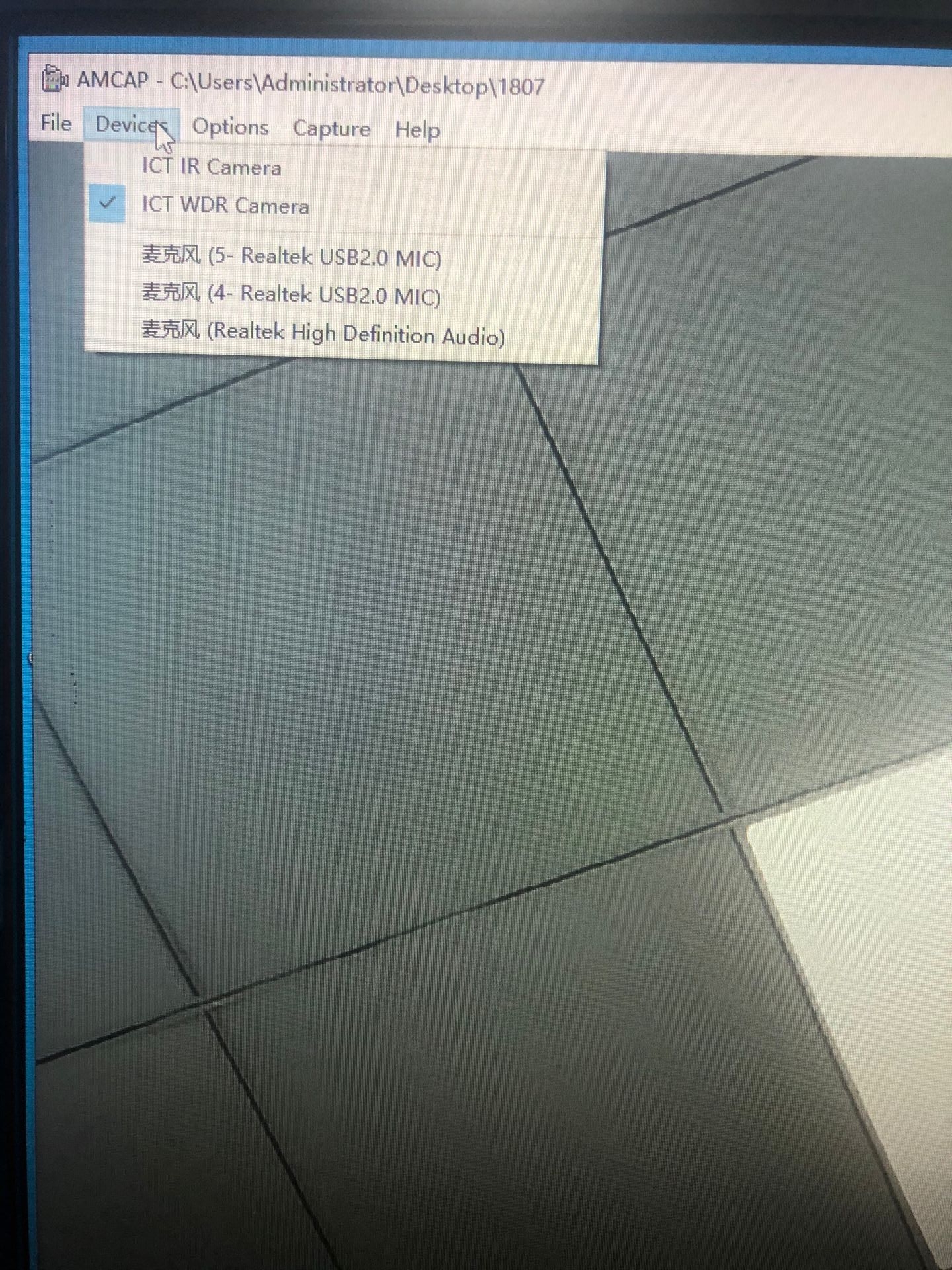

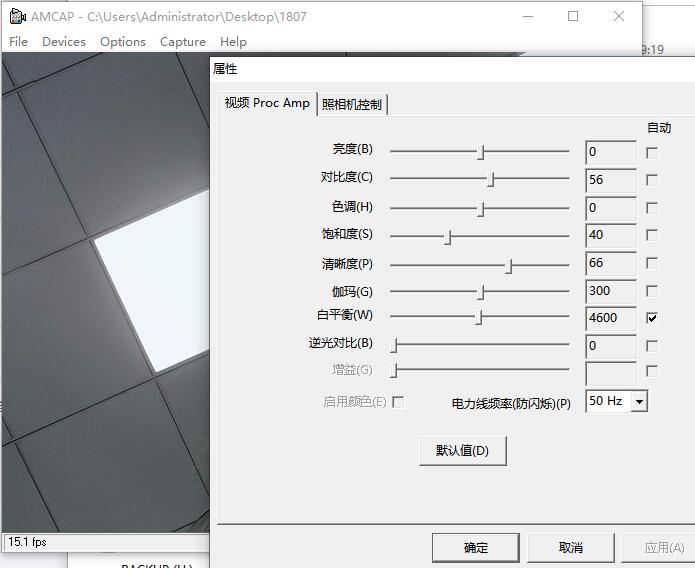

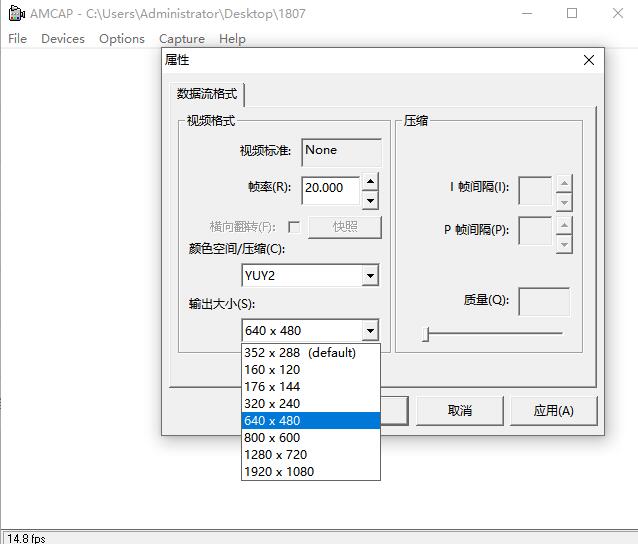

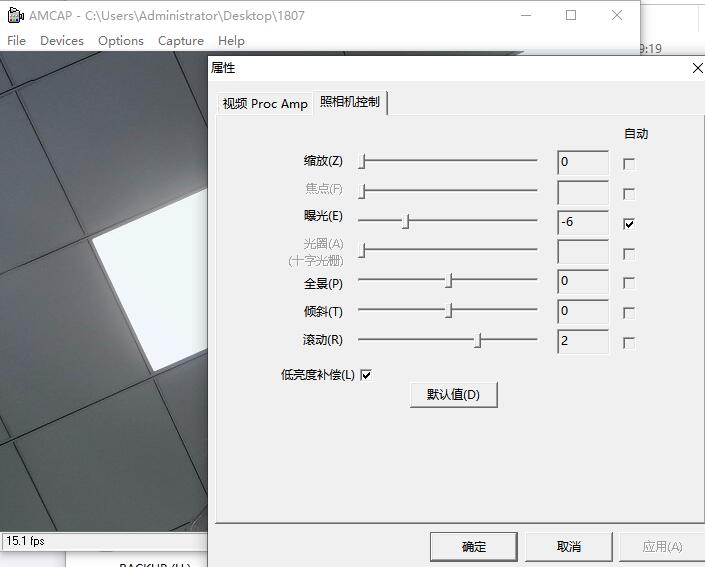

AMCAP Test Tool Parameter

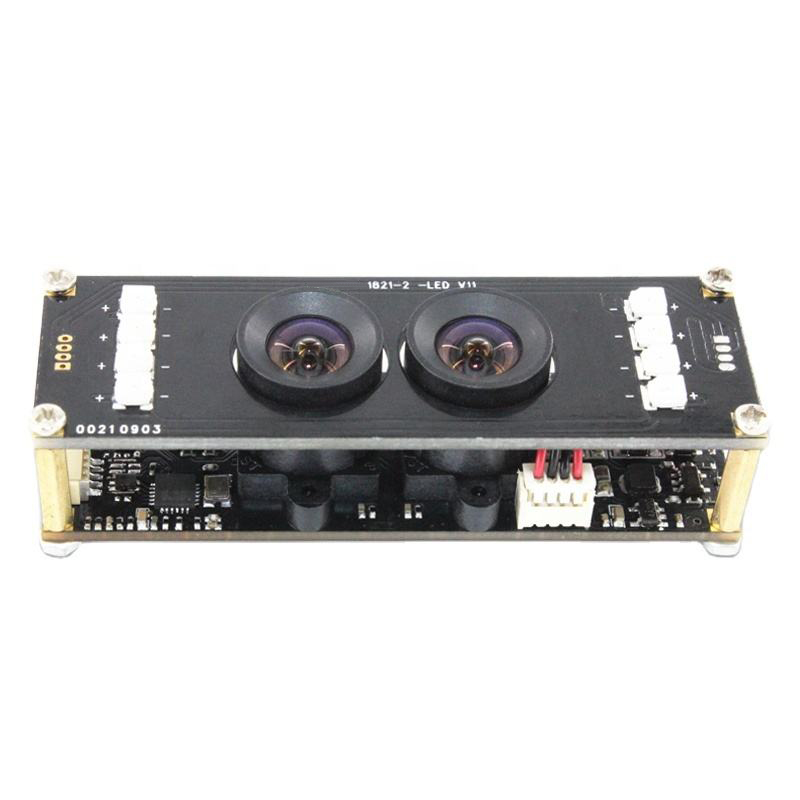

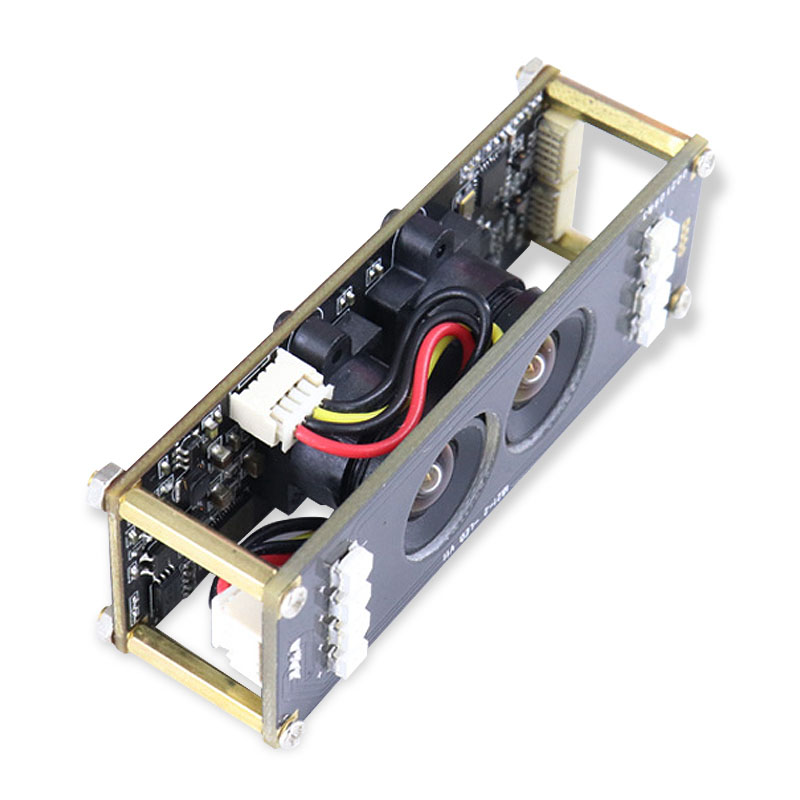

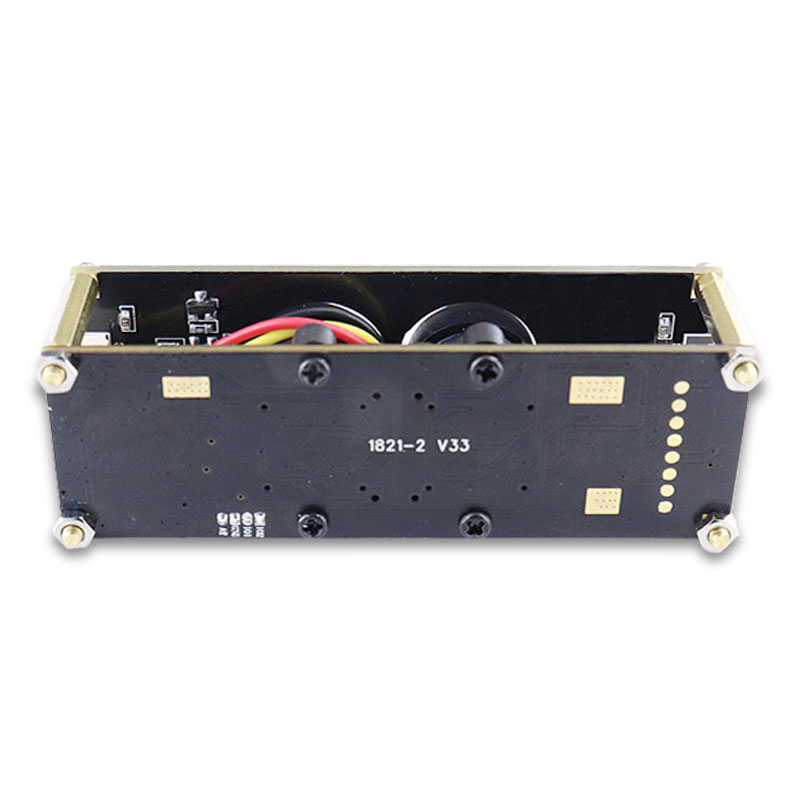

Details Images

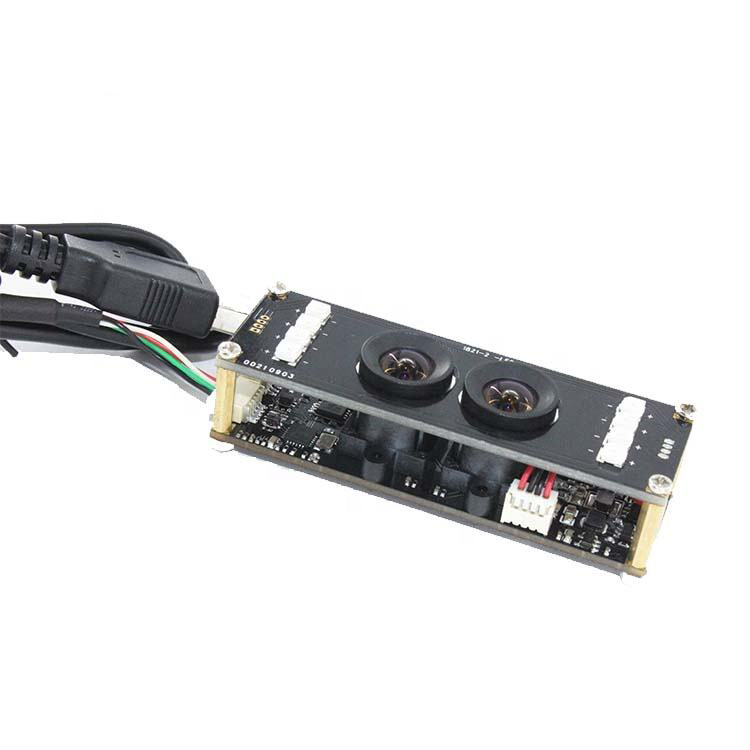

one camera is color image and another camera is black +white image
with IR Led light , we can use it at night with good image

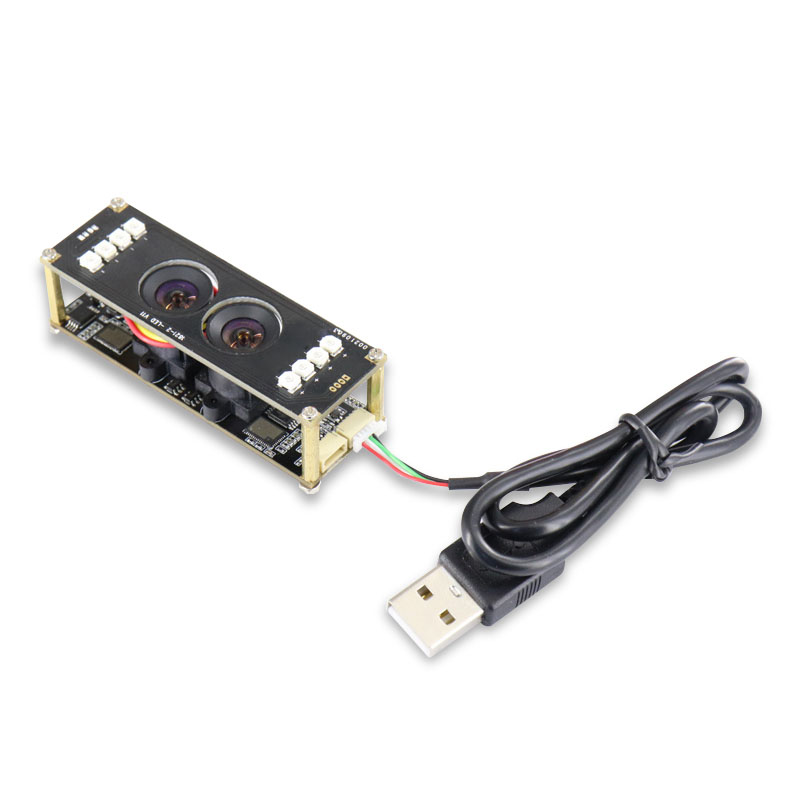

with usb cable for it, we can supply customization service
Product Usage
Product usage introduction
this dual camera module can be used in 3D robot, ATM machine and so on.

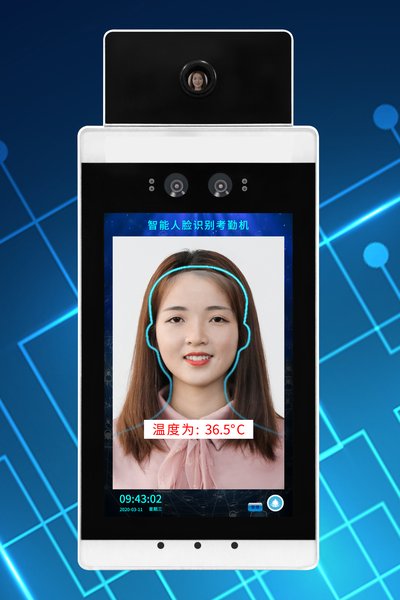

Description of product use effect
this dual camera module can be used in human body temperature detection machine
