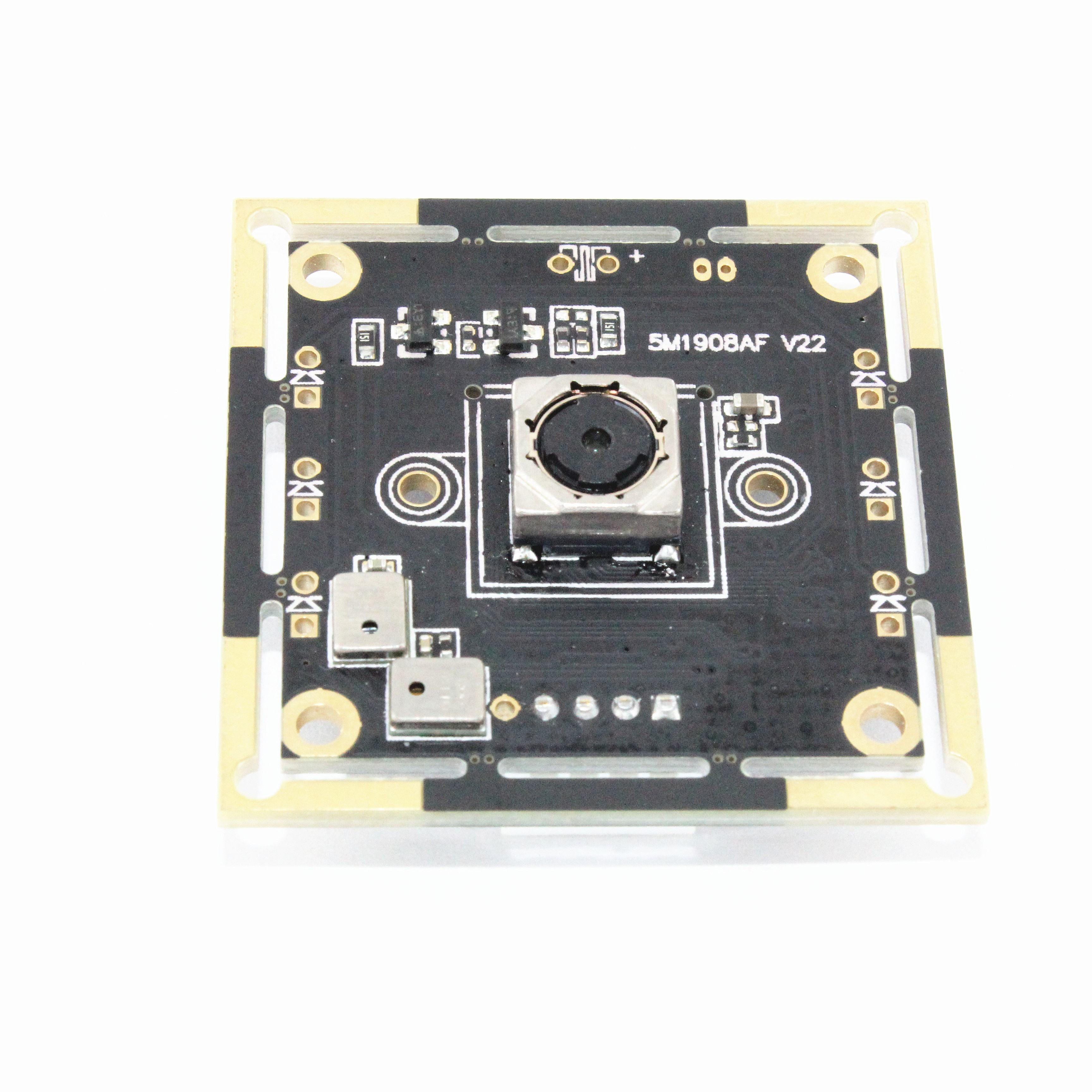

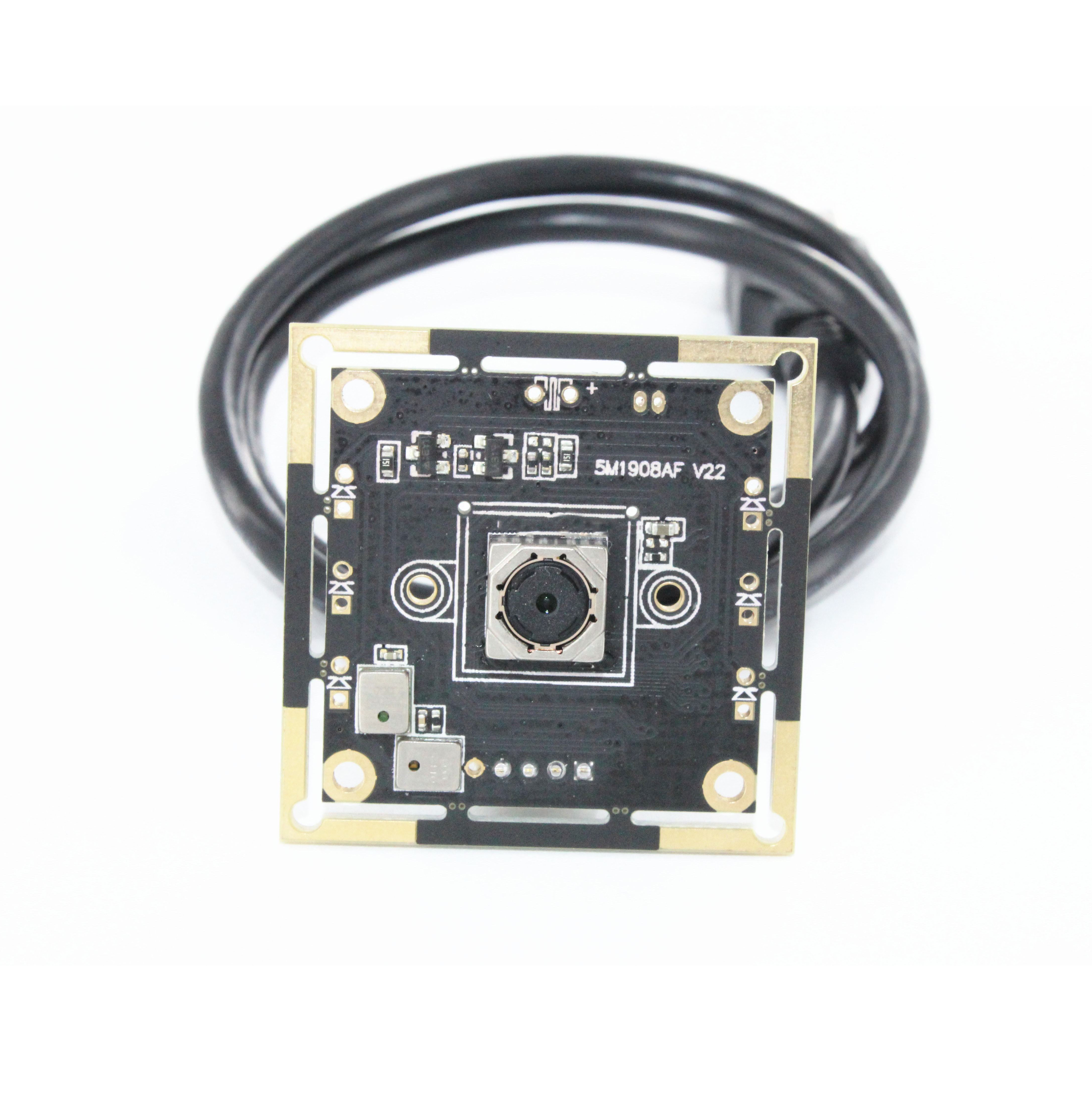

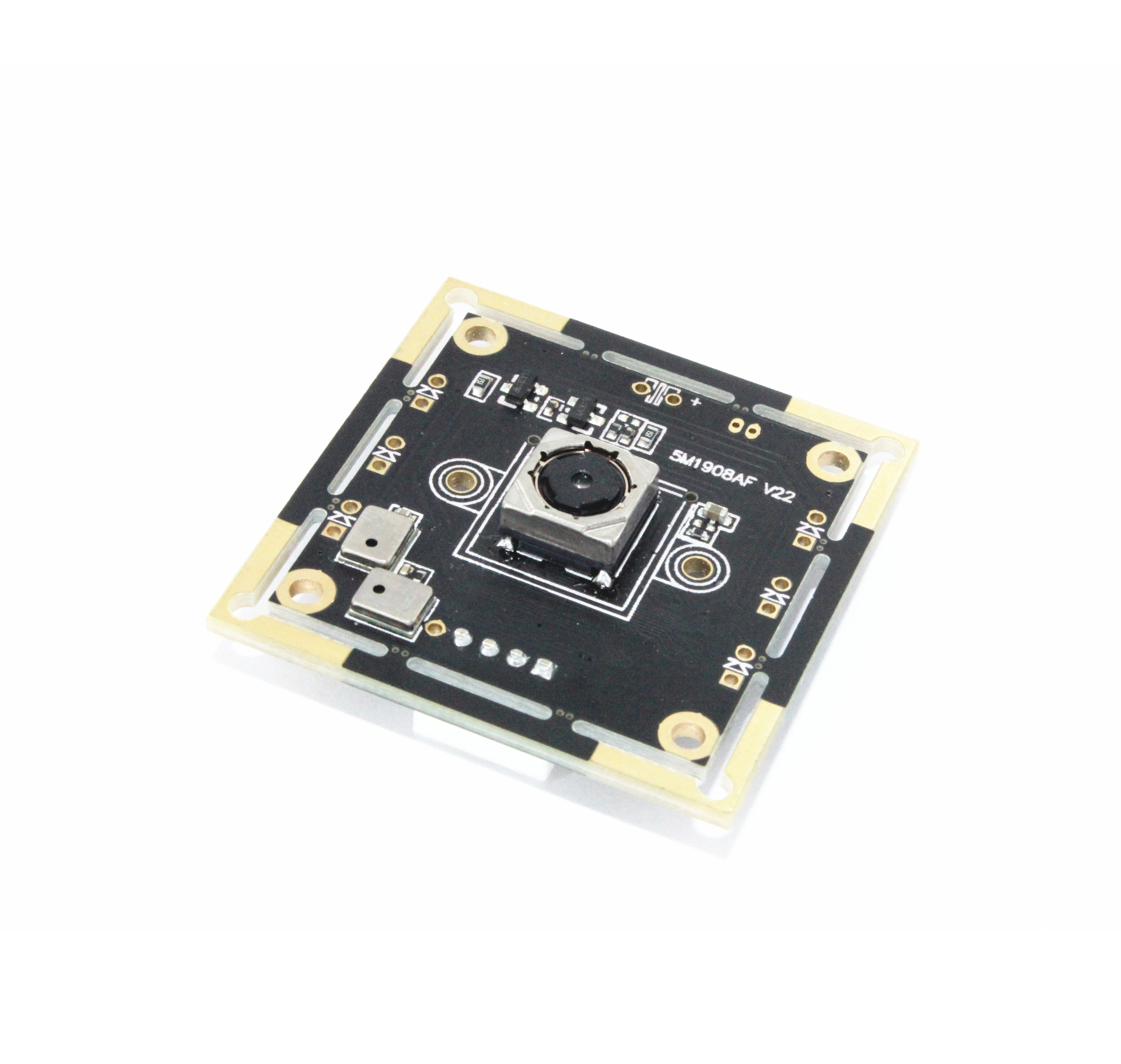

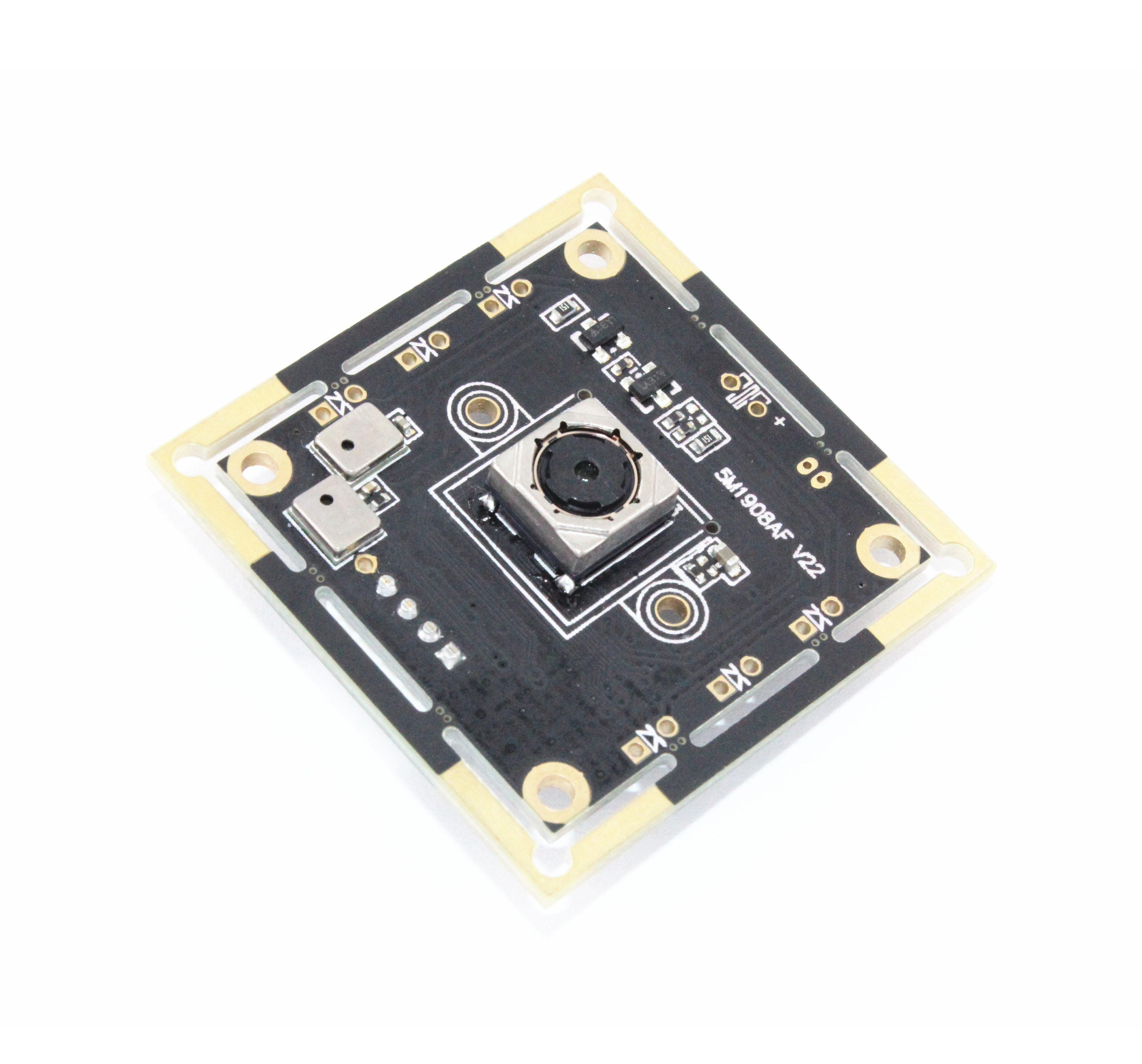

5MP Auto Focus camera module with 30FPS
$21.60
Availability:
In stock
Out of stock
Variations
Product Attributes
Product Description
Product Description
| Module No. | BM5M1908AF V22 |
| Module Size | 38mm × 38mm × 6.2mm±0.2MM |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | AUTO |
| Object distance | 30CM-infinity |
| Resolution | 800LW/PH (Center) |
| PCB printing ink | black |
| interface | USB 2.0 |
| Power suuply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption | 800 mW |
| Operating system request | Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc |
| Sensor | HM5040 (1/4" ) |
| Seneor Package | CSP,Bare Die |
| Maximum resolution | 2592*1944 |
| Sensitivity | 7500e /(lux-sec) |
| Pixel Size | 1.4µm x 1.4µm |
| Maximum Image Transfer Rate | MJPEG 640x480 30FPS / YUY2 640X480 25FPS MJPEG 800x600 30FPS / YUY2 800X600 5FPS MJPEG 1280x720 30FPS / YUY2 1280X720 5FPS MJPEG 1920x1080 30FPS / YUY2 1920X1080 3FPS MJPEG 2592x1944 30FPS / YUY2 2592x1944 3FPS |
| S/N Ratio | 38 db |
| Max Dynamic Range | 66 db |
| Shutter type | Electronic rolling shutter |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2/MJPEG |
| Microphone | Support |
| Lens Construction | 4P |
| F/No | 2.4 |
| EFL | 3.5 mm |
| FOV | 65.8° |
| TV Distortion | <1.0% |
| Relative Illumination (Sensor) | 70% |
| IR Filter | 650±10nm |
| Module Package | Anti-electrostatic tray |
| Certifications | FCC/CE/ROSH |

5MP Auto Focus camera module with 30FPS
1. this is 5MP auto focus camera module, it can reach to 30fps at 2592*1944 resolution.
2.38MM*38MM and 32MM*32MM, it can be compatible with case.

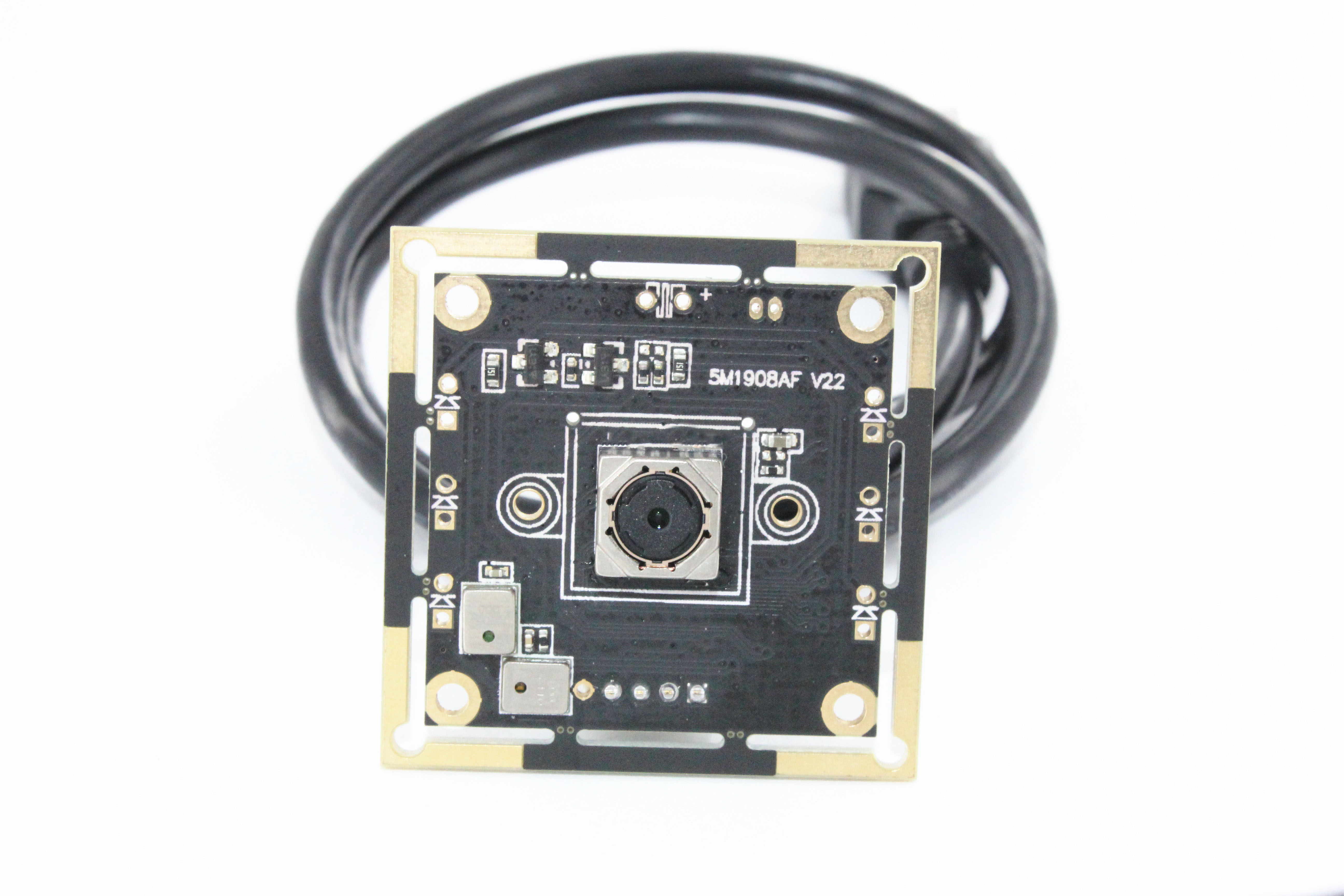

Details Images

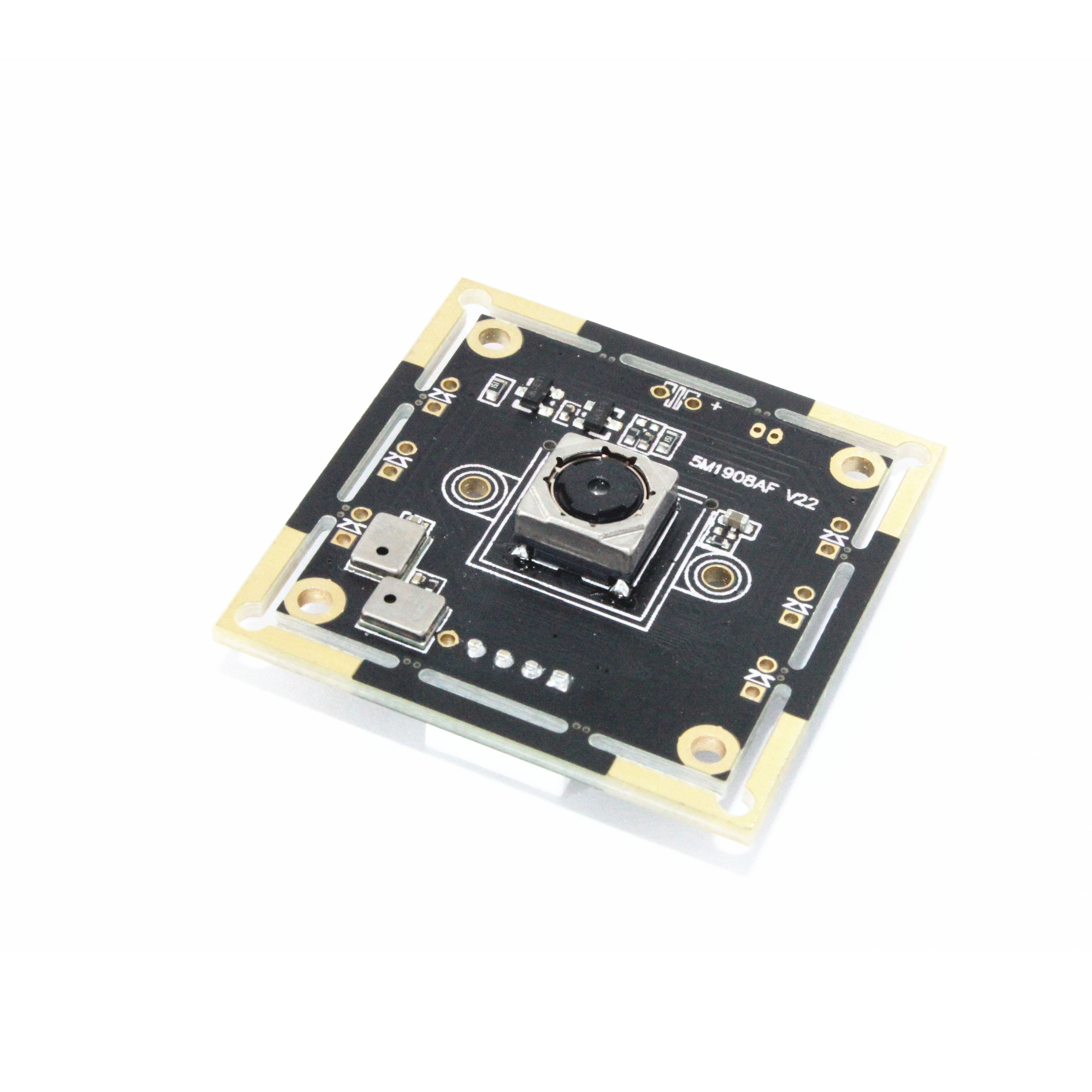

with build-in Microphone

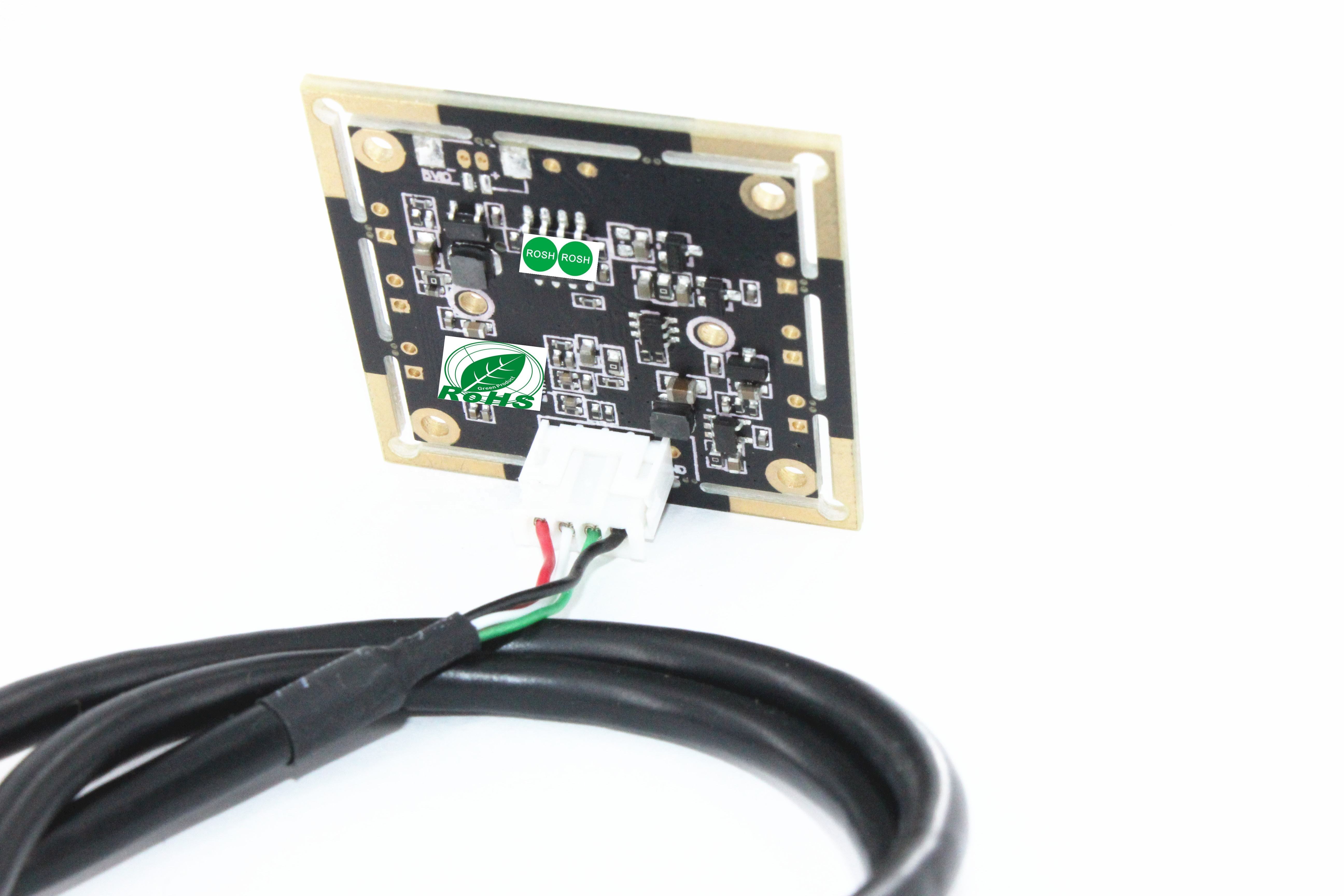

with 4PIN 2.0 interface

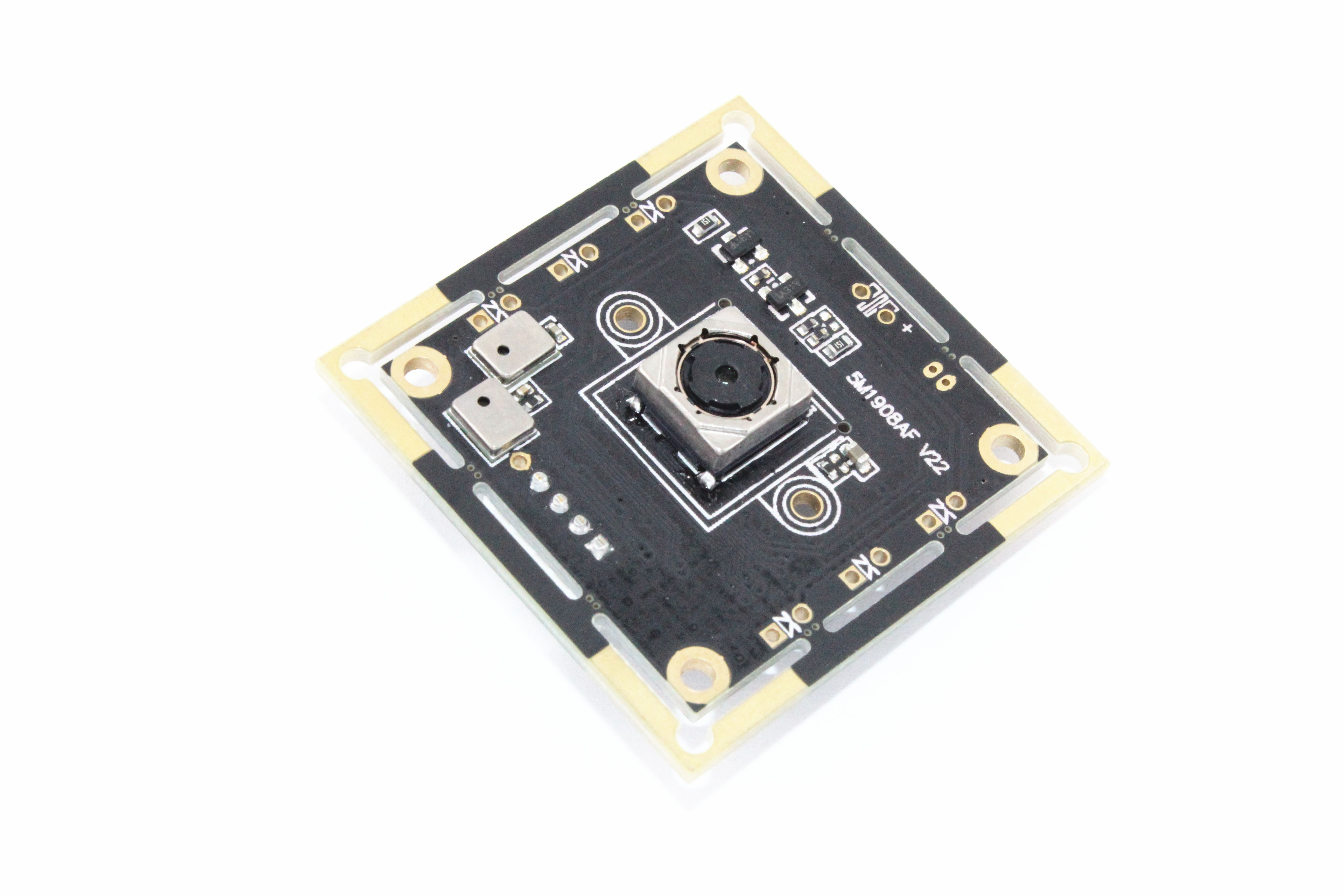

with VCM Motor, it is the auto focus camera
Product Usage

Product usage introduction
1.this camera can be installed in ATM Machine, High speed document scanner, Gate machine and so on
Description of product use effect
with good effect image
