4K Camera module for Face Recognition
$58.80
Availability:
In stock
Out of stock
Variations
Product Attributes
Product Description
Product Description
Module No. | BM4K1928 V11 |

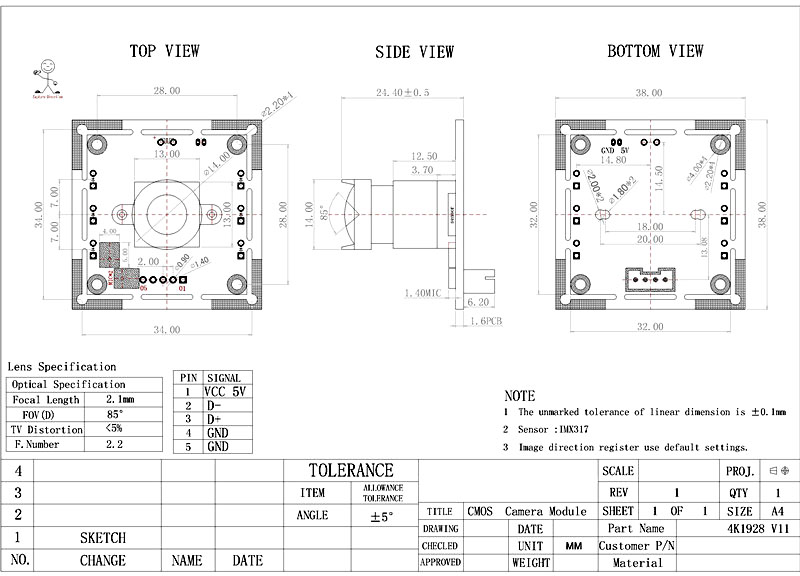

Module Size | 38mm × 38mm × 24.4mm±0.5MM |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | Fixed |
| Object distance | 30CM-infinity |
| Resolution | 800LW/PH (Center) |
| PCB printing ink | black |
| interface | USB 2.0 |
| Power suuply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption | 940mW |
| Operating system request | Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc |
| Sensor | IMX317 (1/2.5" ) |
| Seneor Package | CSP,Bare Die |
| Maximum resolution | 3840*2160 |
| Sensitivity | 760mv /（lux-sec） |
| Pixel Size | 1.62µm x 1.62µm |
| Maximum Image Transfer Rate | MJPEG 1600x1200 30FPS / YUY2 1600x1200 5FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 5FPS MJPEG 2048x1536 30FPS / YUY2 2048x1536 3FPS MJPEG 2688x1512 30FPS / YUY2 2688x1512 2FPS MJPEG 2592x1944 30FPS / YUY2 2592x1944 2FPS MJPEG 3840x2160 30FPS / YUY23840x2160 1FPS |
| S/N Ratio | 44 db |
| Max Dynamic Range | 82 db |
| Shutter type | Electronic rolling shutter |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2/MJPEG |
| Microphone | Support |
| Lens Construction | 4G |
| F/No | 2.2 |
| EFL | 2.1mm |
| FOV | 85° |
| TV Distortion | <1% |
| Relative Illumination (Sensor) | 70% |
| IR Filter | 650±10nm |
| Module Package | Anti-electrostatic tray |
| Certifications | FCC/CE/ROSH |
4K CAMERA MODULE
8MP 4K Camera module for Face Recognition/Industrial equipment/Advisement player/Monitoring equipment
Details Images

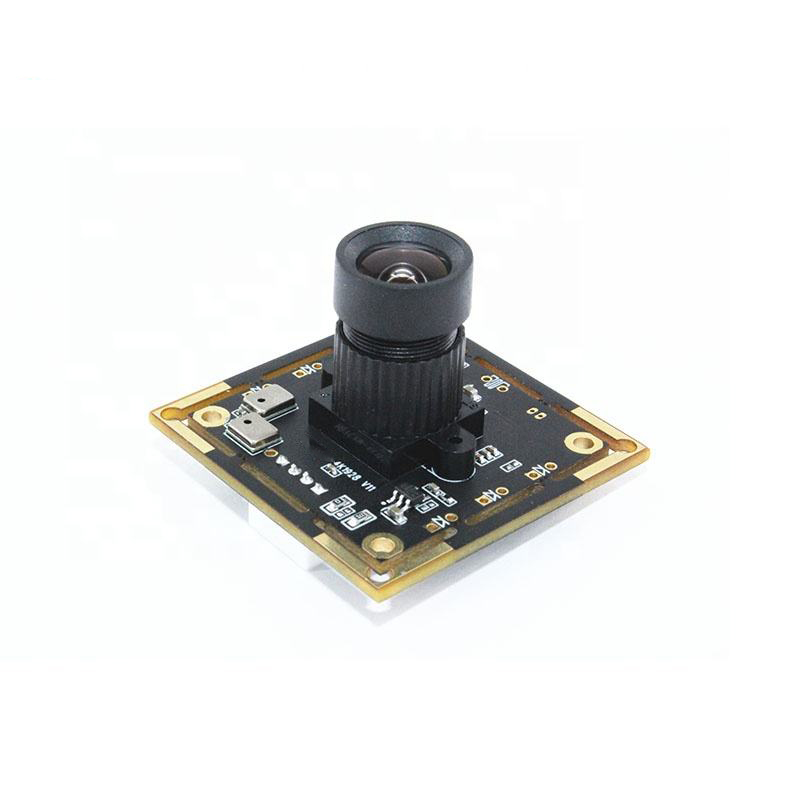

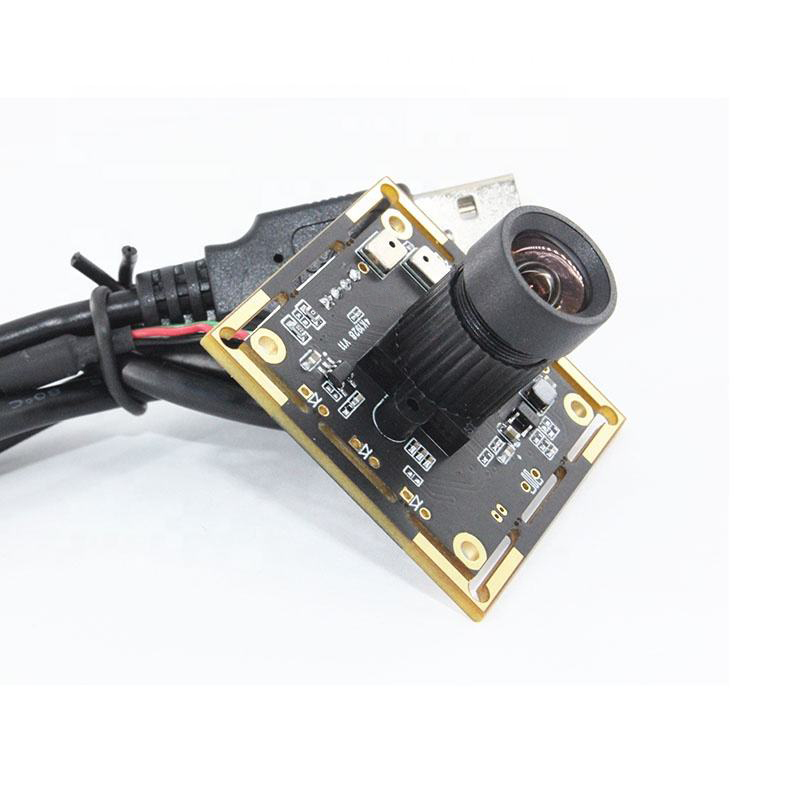

4K Camera module for Face Recognition

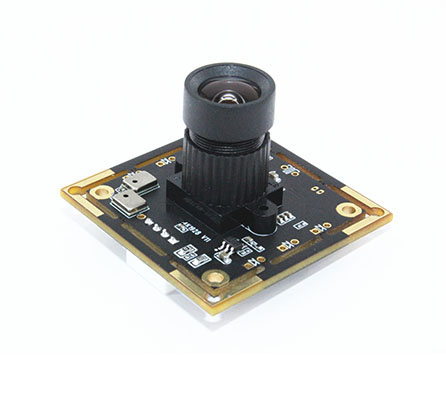

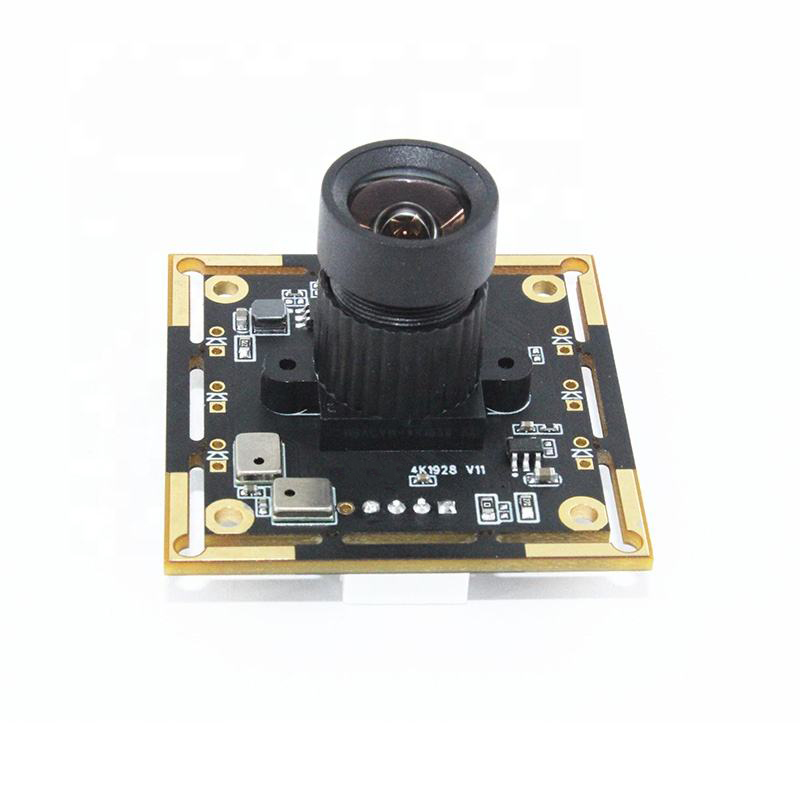

With M12 mount lens, there are many options for M12 lens,lens is adjustable and alternative

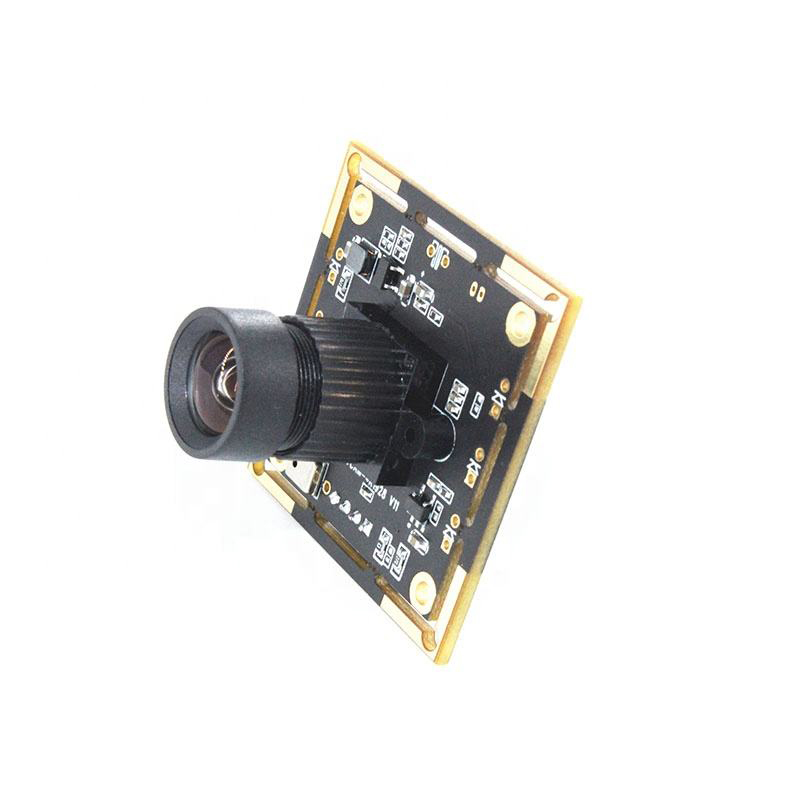

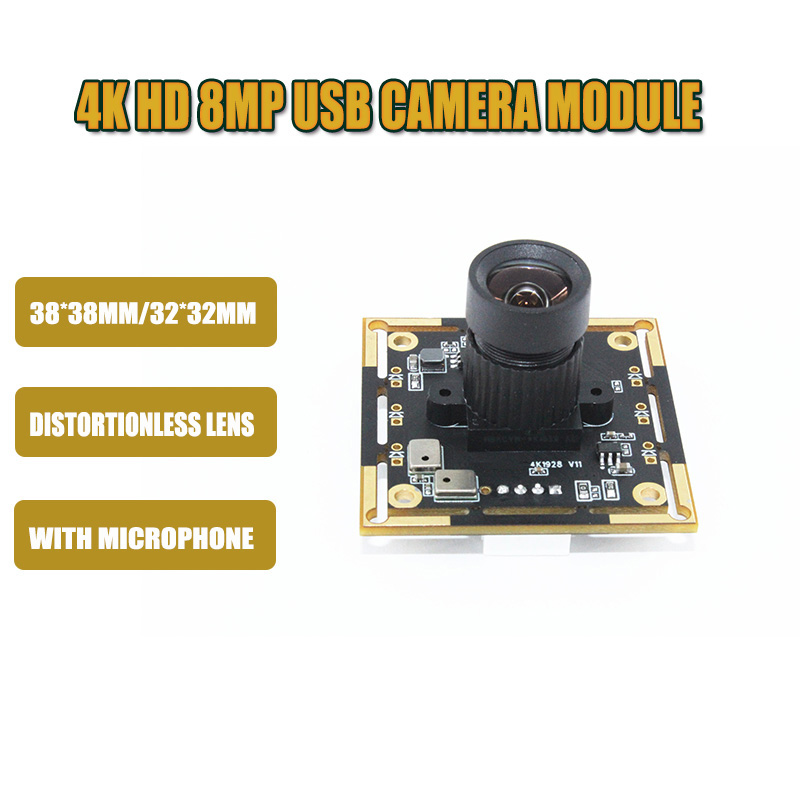

This 4K Camera Module with Microphone

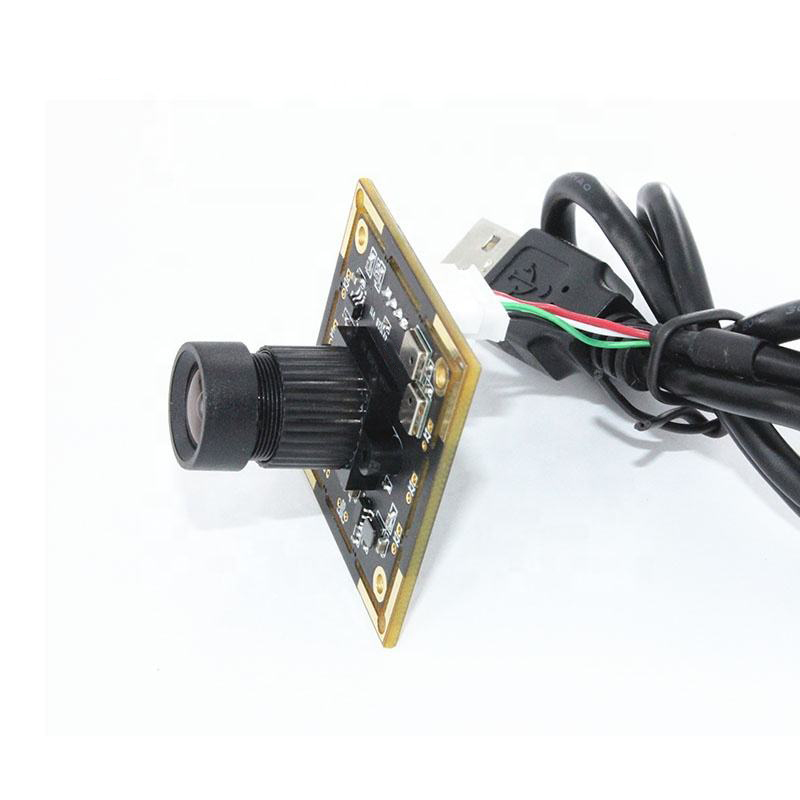

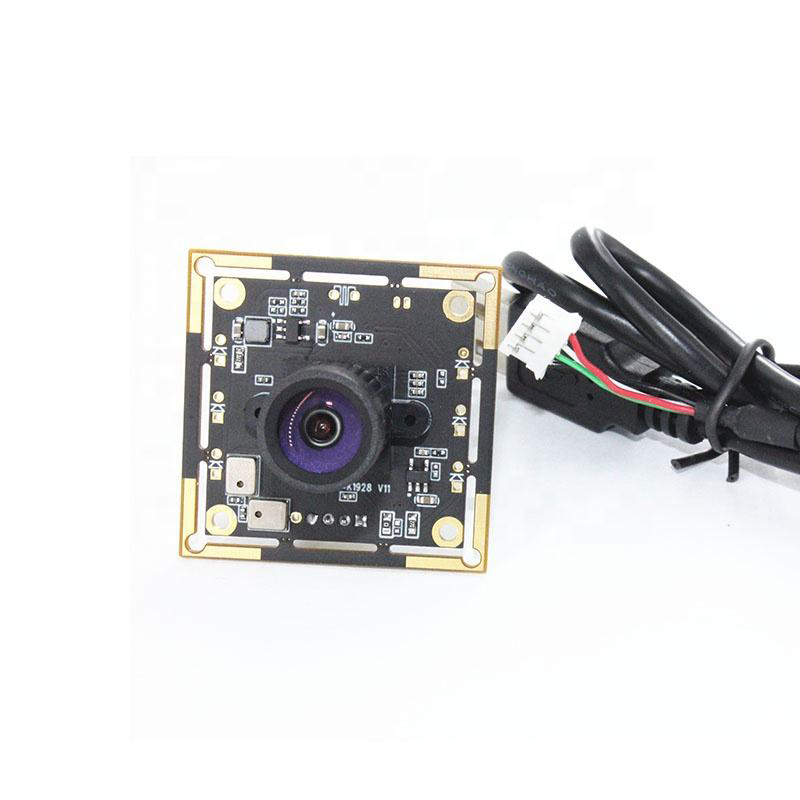

the size is 38mm*38mm, the size is compatible for many euqipments and the sample cable is free
Product Usage
Product usage introduction
this 4K Camra module can be used in face recognition access control system
Description of product use effect

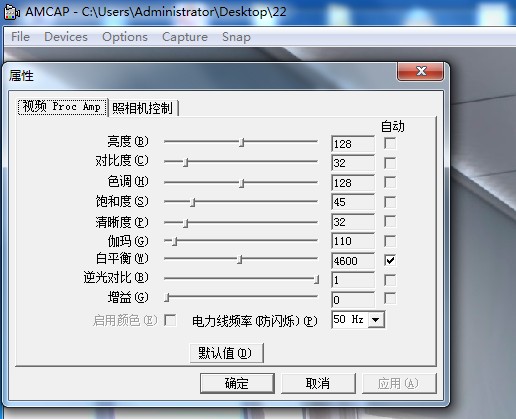

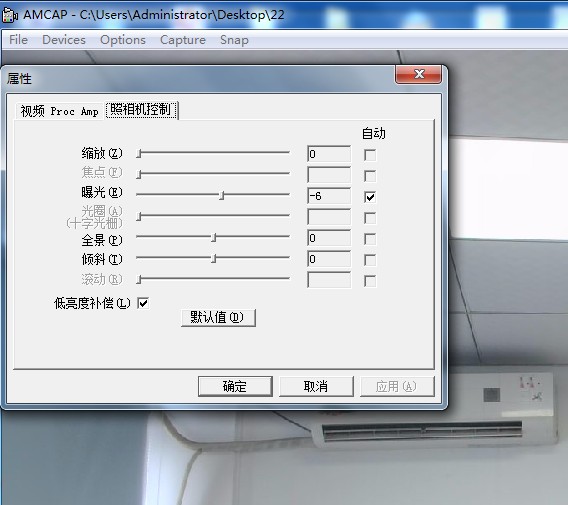

4K Ultra High Definition usb camera module, it is free driver for window/Linux/Andorid system with good quality
