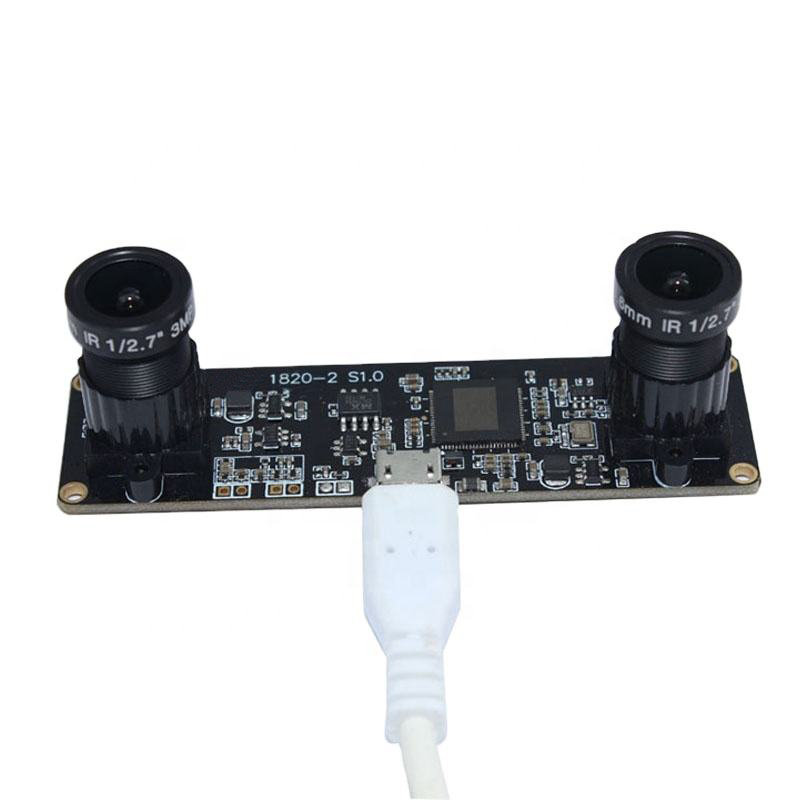

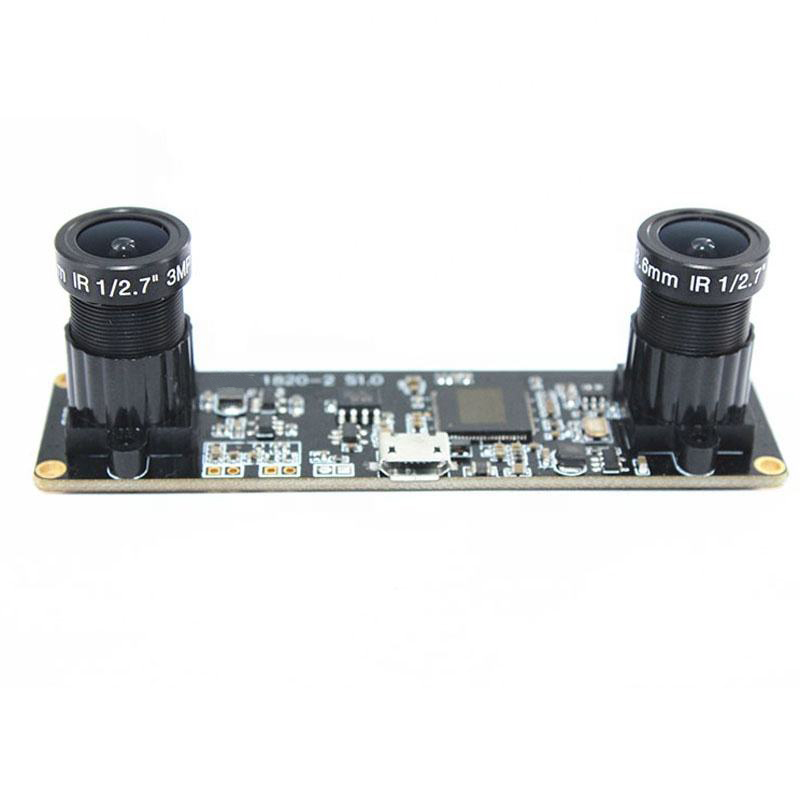

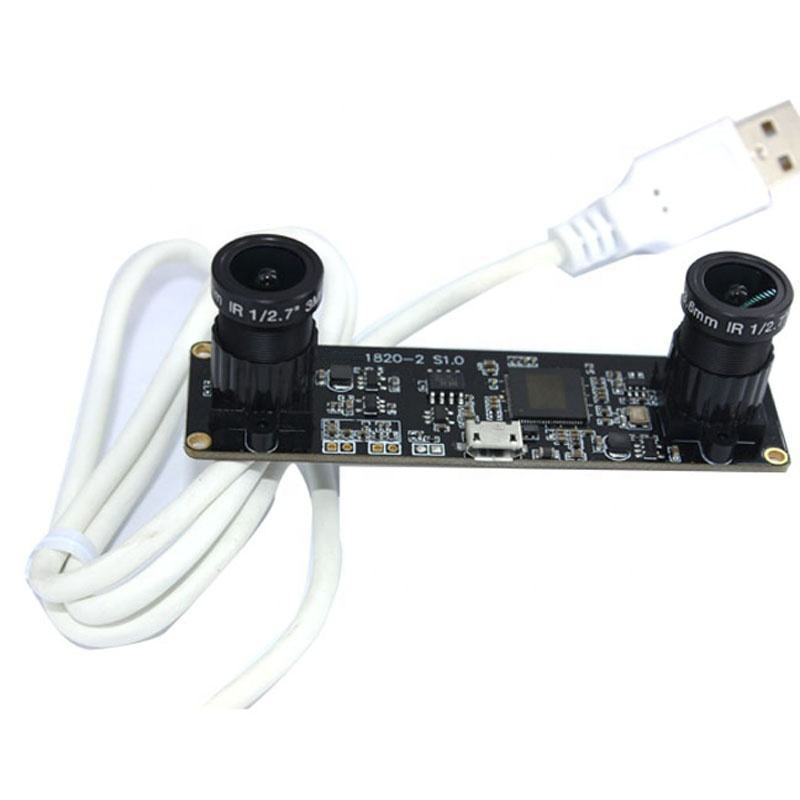

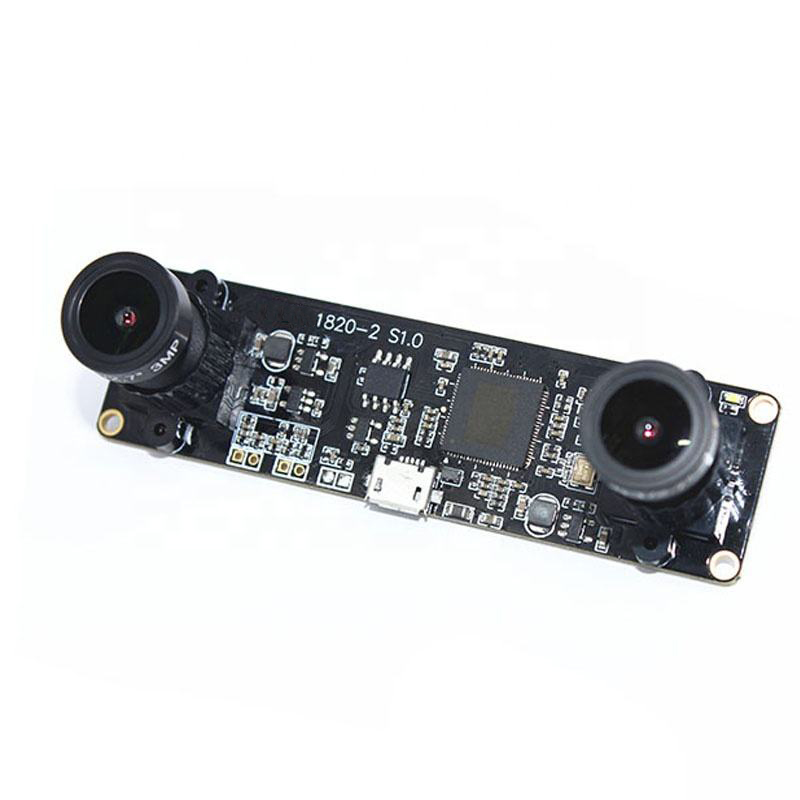

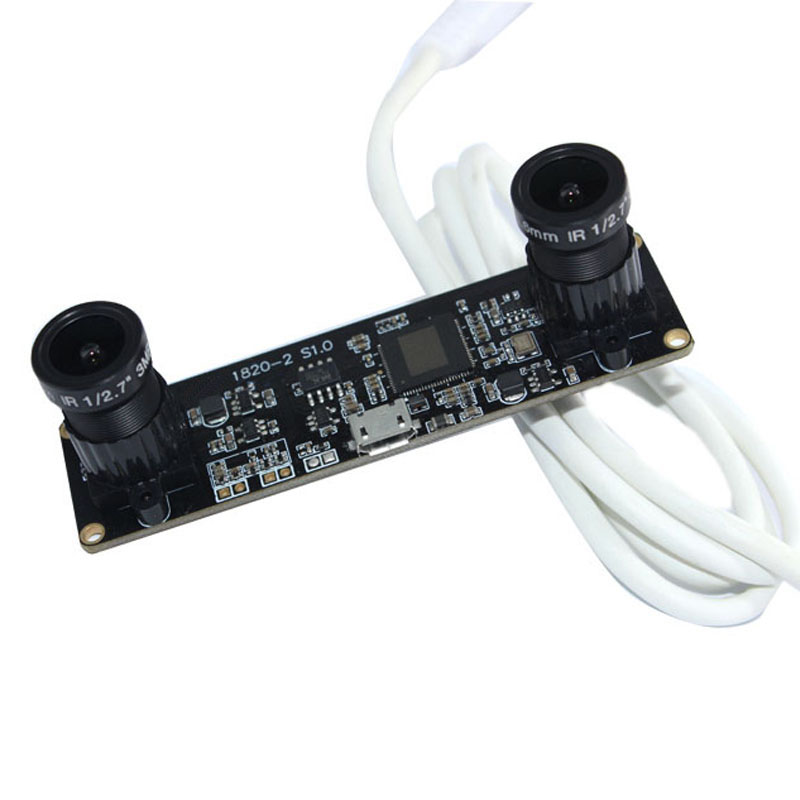

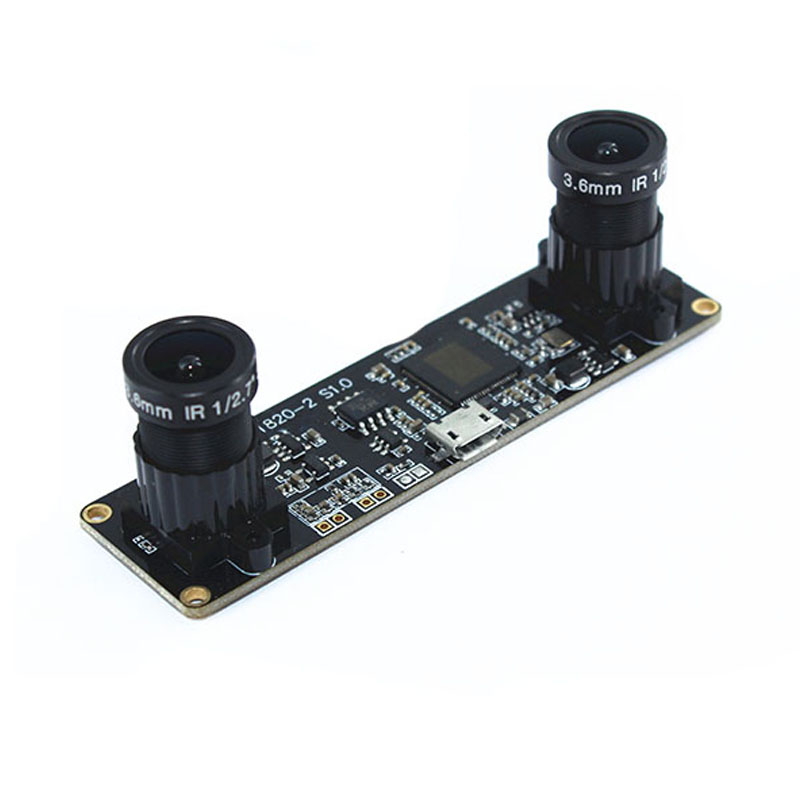

4MP 3.6mm dual lens 3D Synchronous CMOS Camera Module with USB2.0 interface
$48.00
Availability:
In stock
Out of stock
Variations
Product Attributes
Product Description
4MP 3.6mm dual lens 3D Synchronous CMOS Camera Module with USB2.0 interface !!!
| Model No. | 1820-2 S1.0 |
| Model Size | 80mm × 22mm × 24.6mm±0.5MM |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | Fixed |
| Object distance | 30CM-infinity |
| Resolution | 600LW/PH (Center) |
| PCB printing ink | Black |
| interface | USB 2.0 |
| Power supply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption | 1100mw |
| Operating system request | Win XP/win 7,8 / vista /android 4.0/ mac /Linux with uvc |
| Sensor | OV4689 (1/3" ) |
| Seneor Package | CSP,Bare Die |
| Maximum resolution | 2688*1520 |
| Sensitivity | 190mV /(lux-sec) |
| Pixel Size | 2m x 2μm |
| Maximum Image Transfer Rate | MJPEG 1920x960 30FPS / YUY2 1520x1520 5FPS MJPEG 1520x1520 30FPS / YUY2 2688x1520 1FPS MJPEG 2144x1072 30FPS / MJPEG 2432x1216 30FPS / MJPEG 2688x1520 30FPS / MJPEG 3040x1520 30FPS / |
| S/N Ratio | 38.3B |
| Max Dynamic Range | 64.6 |
| Shutter type | Electronic rolling shutter |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2/MJPEG |
| Microphone | NO |
| Lens Construction | 2G+2P |
| F/No | 2.4 |
| EFL | 3.6mm |
| FOV | 61° |
| TV Distortion | <10% |
| Relative Illumination (Sensor) | 70% |
| IR Filter | 650±10nm |
| Module Package | Anti-electrostatic tray |
| Certifications | FCC/CE/ROSH |
| USB cable | 50CM 1M 2M 3M |
| 1.The parameters of FOV are just for your reference, Different Lens has different FOV 2.The frame rate is related to Light,operating system and so on, the frame rate exist a little error. If you mind it, please don’t make an order for it. Thank you for your understanding | |
