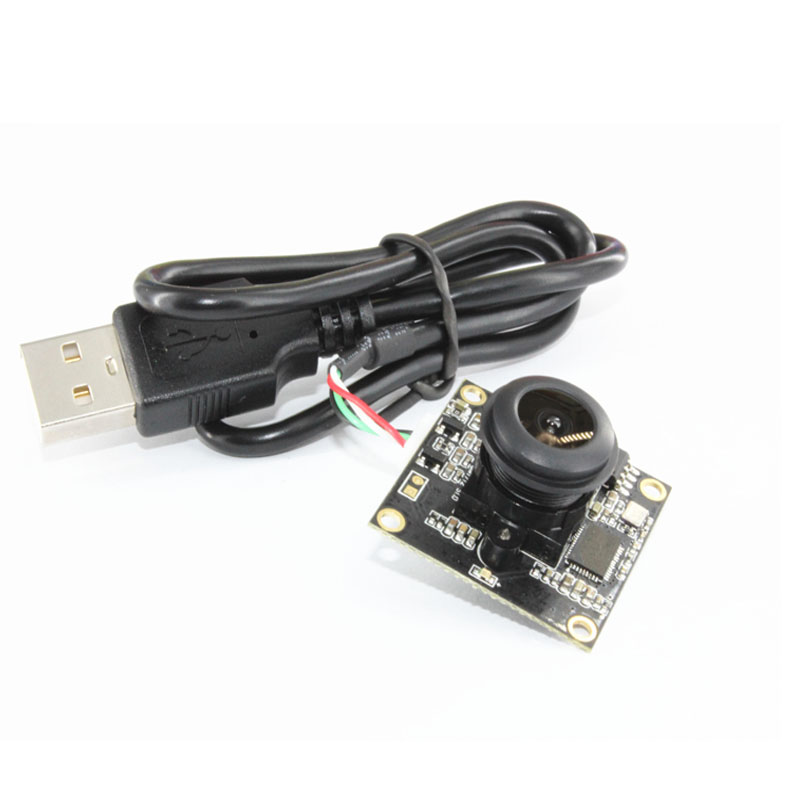

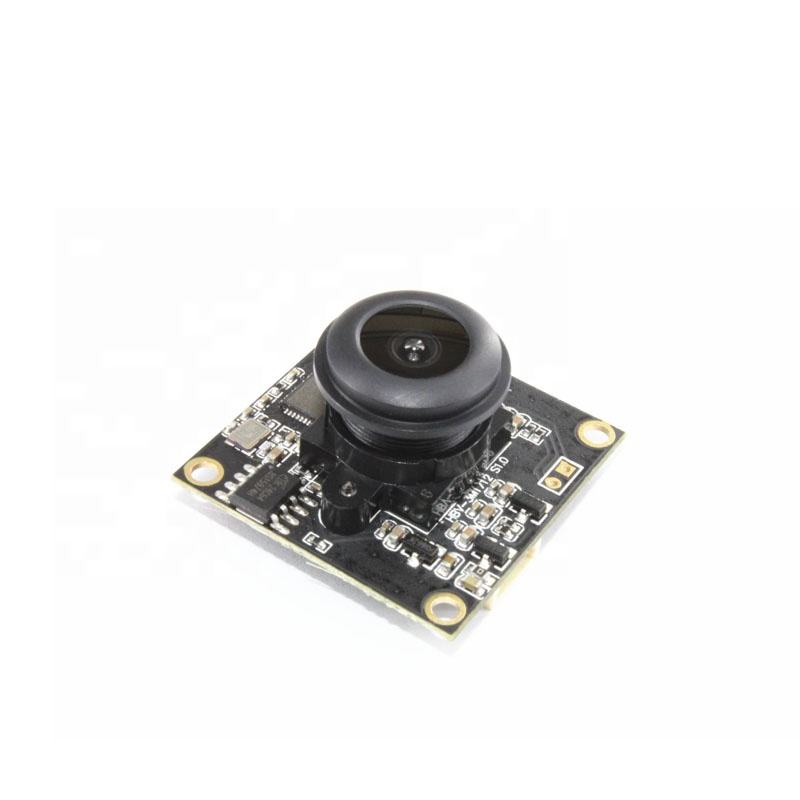

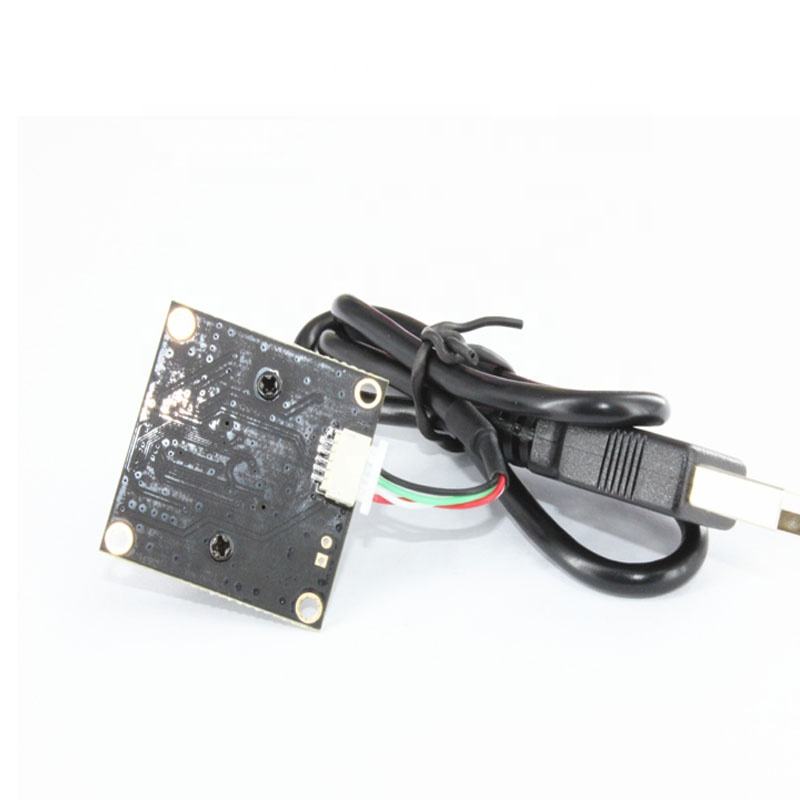

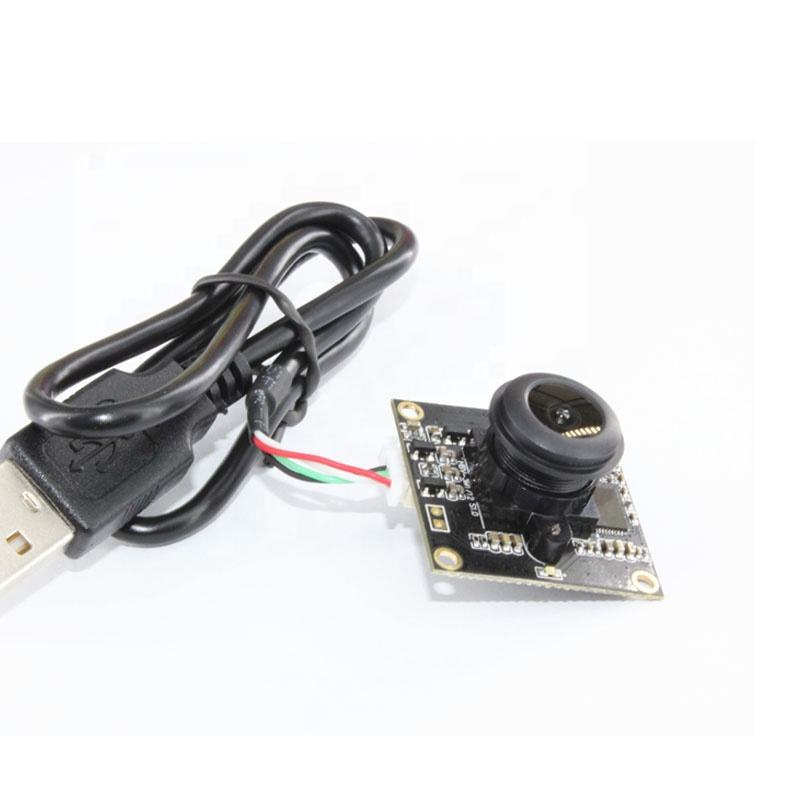

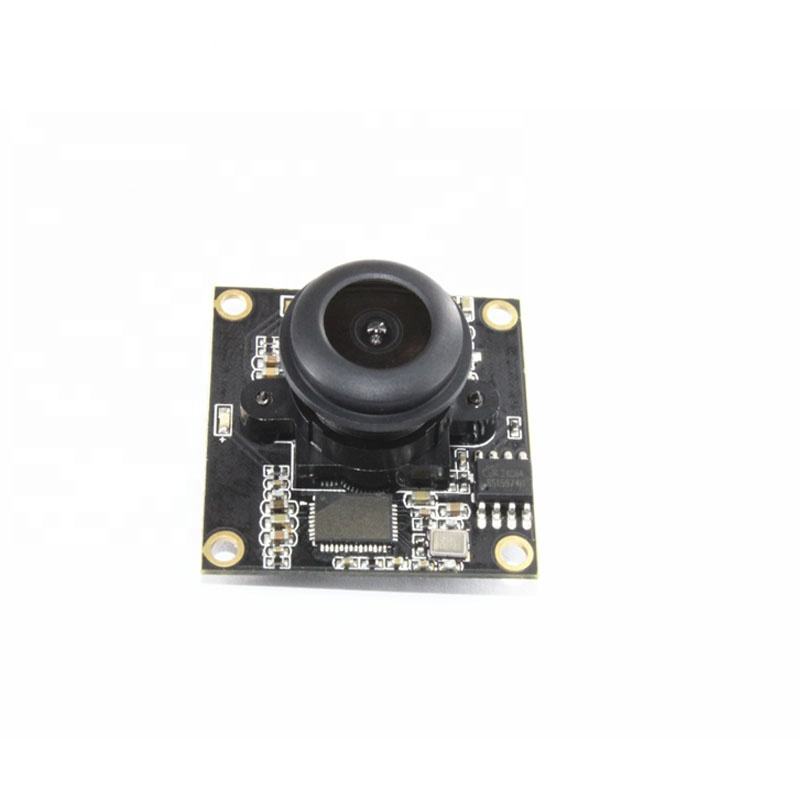

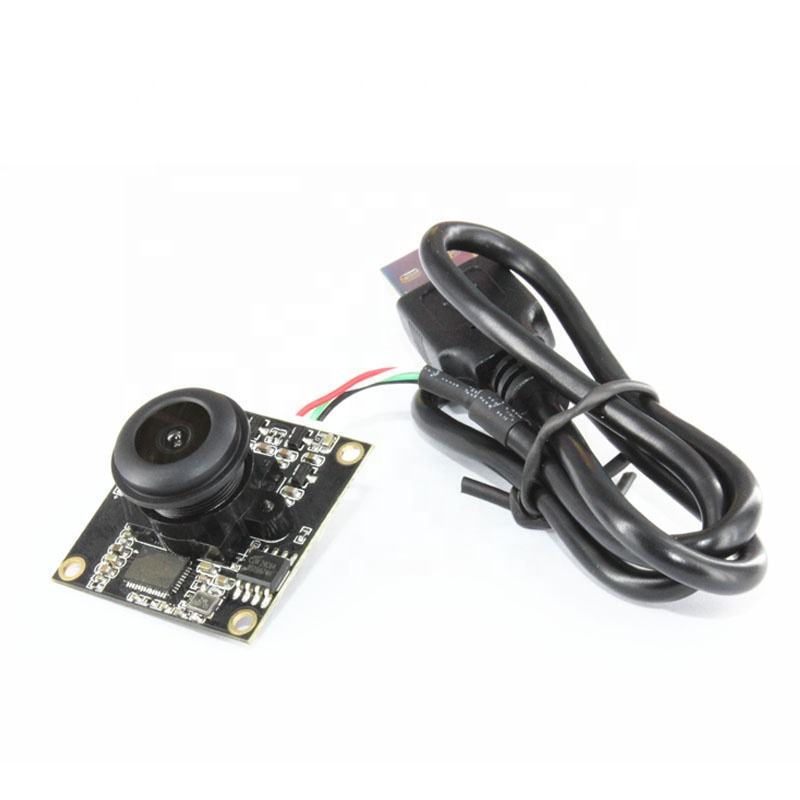

3MP OV3660 USB2.0 Camera module with 2048*1536 15fps resolution
$14.40
Availability:
In stock
Out of stock
Variations
Product Attributes
Product Description
3MP OV3660 USB2.0 Camera module with 2048*1536 15fps resolution
| Model No. | BM3M1712 S1.0 |
| Model Size | 28mm × 28mm × 14mm±0.5MM |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | Fixed |
| Object distance | 30CM-infinity |
| Resolution | 800LW/PH (Center) |
| PCB printing ink | Black |
| interface | USB 2.0 |
| Power supply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption | 600W |
| Operating system request | Win XP/win 7,8 / vista /android 4.0/ mac /Linux with uvc |
| Sensor | OV3660 (1/5" ) |
| Seneor Package | CSP,Bare Die |
| Maximum resolution | 2048*1536 |
| Sensitivity | 670mV /(lux-sec) |
| Pixel Size | 1.4μm x 1.4μm |
| Maximum Image Transfer Rate | MJPEG 320x240 30FPS / YUY2 320x240 30FPS MJPEG 352x288 30FPS / YUY2 352x288 30FPS MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 1280x720 7FPS / YUY2 1280X720 7FPS MJPEG 1920x1080 20FPS / YUY2 1920X1080 4FPS MJPEG 2048x1536 15FPS / YUY2 2048x1536 4FPS |
| S/N Ratio | 34B |
| Max Dynamic Range | 70B |
| Shutter type | Electronic rolling shutter |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2/MJPEG |
| Microphone | NO |
| Lens Construction | 4E+IR |
| F/No | 2.4 |
| EFL | 1.85m |
| FOV | 90° |
| TV Distortion | <7.6% |
| Relative Illumination (Sensor) | 70% |
| IR Filter | 650±10nm |
| Module Package | Anti-electrostatic tray |
| Certifications | FCC/CE/ROSH |
| USB cable | 40CM 1M 2M 3M |
| 1.The parameters of FOV are just for your reference, Different Lens has different FOV 2.The frame rate is related to Light,operating system and so on, the frame rate exist a little error. If you mind it, please don’t make an order for it. Thank you for your understanding | |
