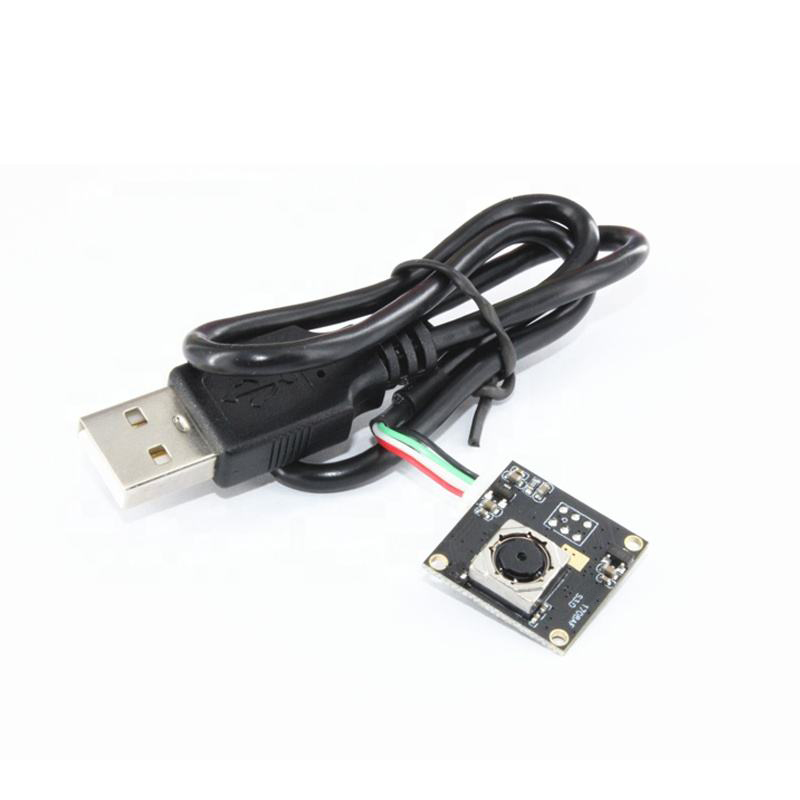

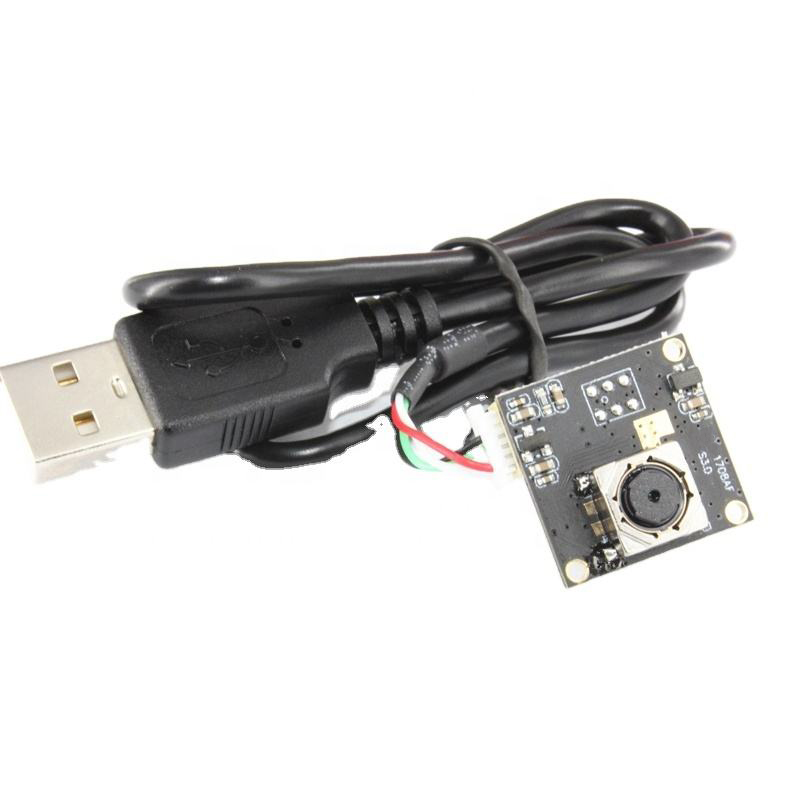

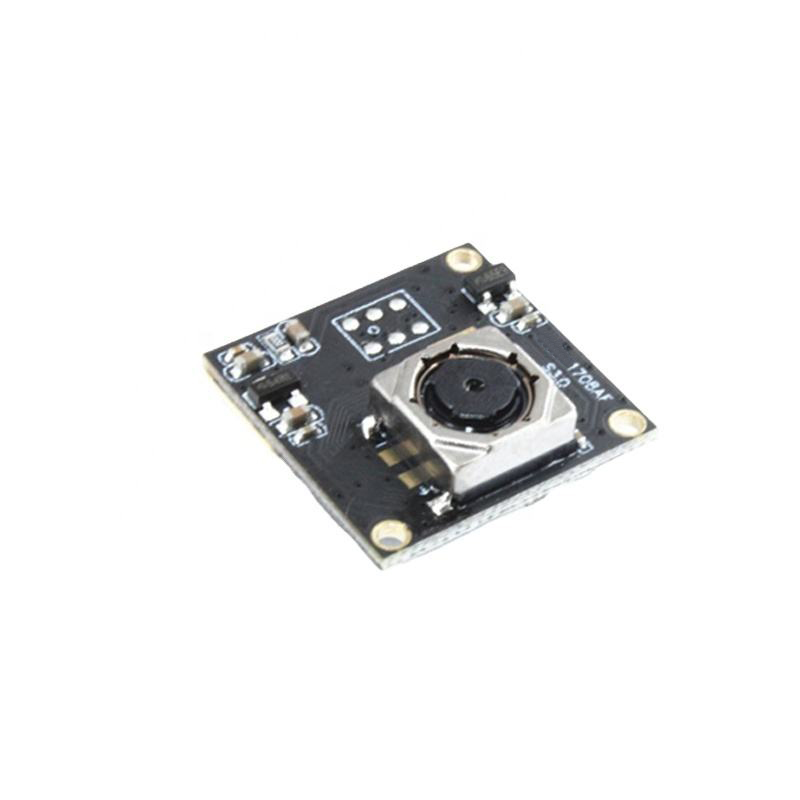

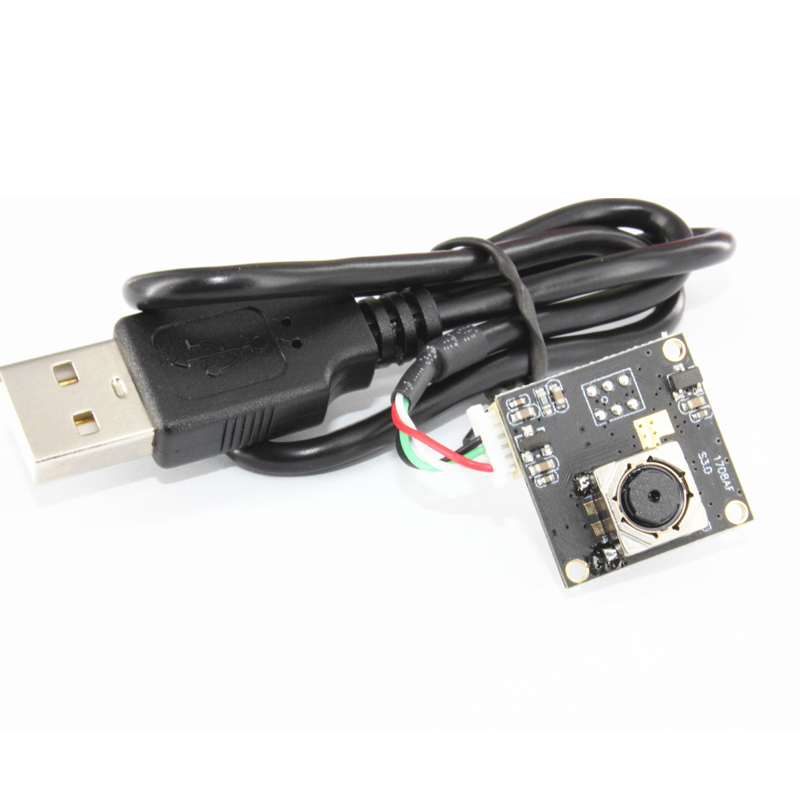

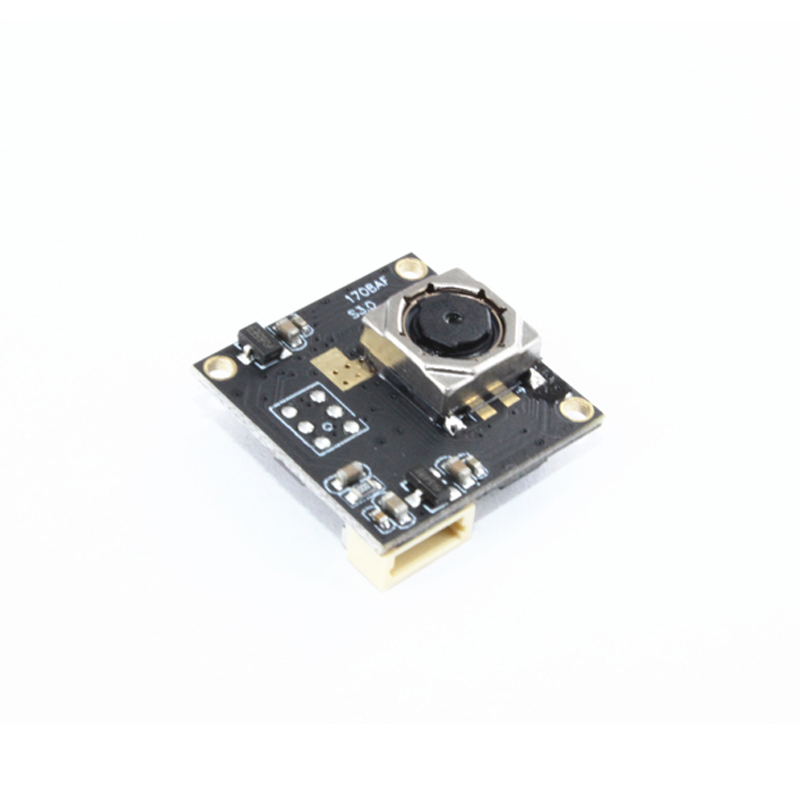

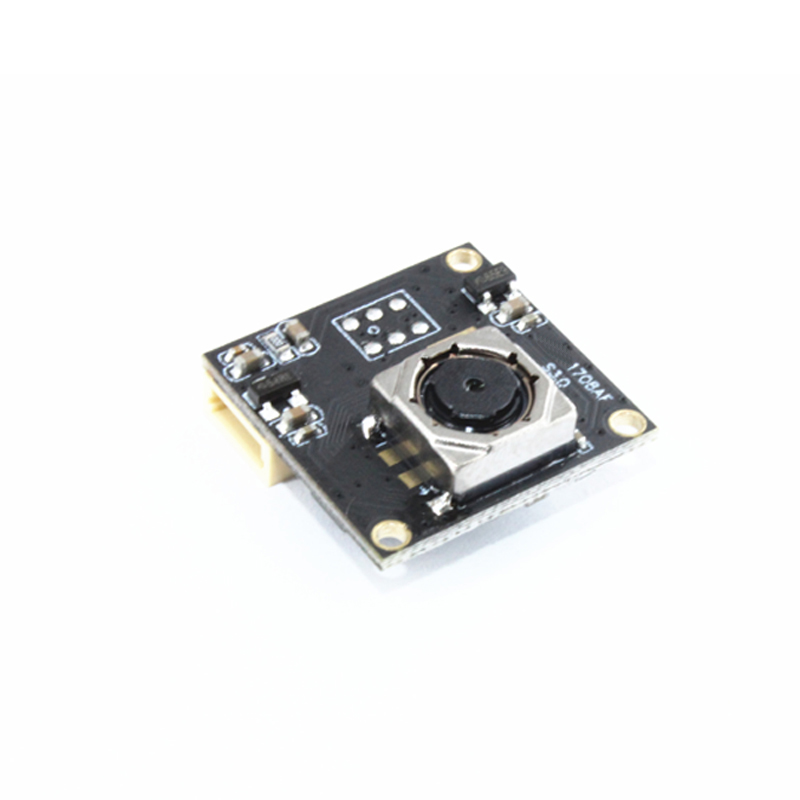

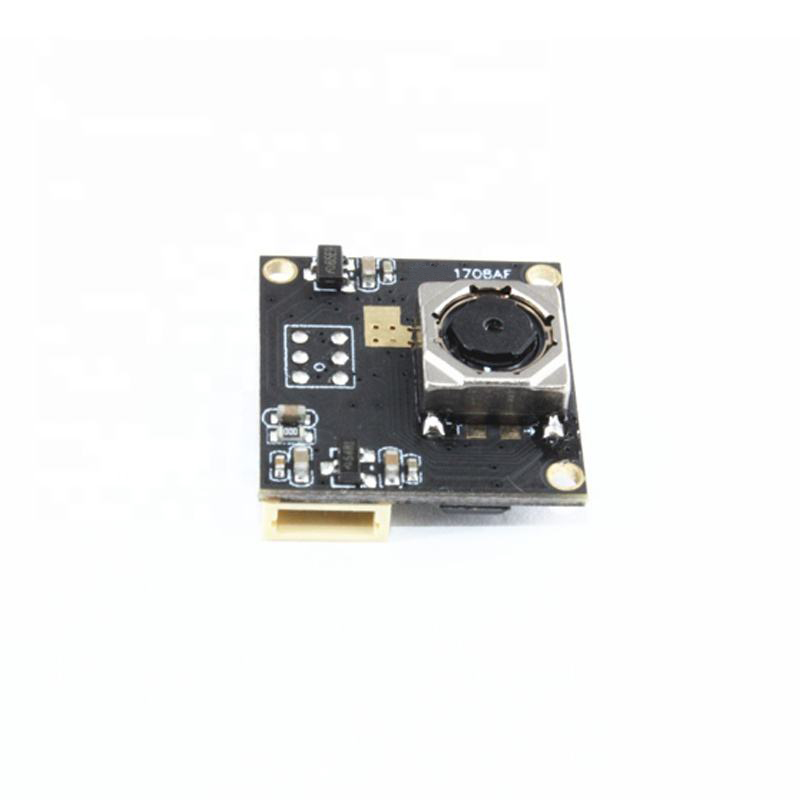

5MP Auto focus cmos camera module OV5640 with Standard UVC Protocol
$25.20
Availability:
In stock
Out of stock
Variations
Product Attributes
Product Description
5mp usb camera module
Factory direct suppliy OV5640 5mp USB2.0 auto focus camera module
| Model No. | BM1708AF V44 |
| Model Size | 19mm × 19mm × 6.05mm±0.2MM |
| Temperature (Operation) | -20°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | auto |
| Object distance | 30CM-infinity |
| Resolution | 800LW/PH (Center) |
| Interface | USB 2.0 |
| Power | USB bus power |
| Power consumption | 1270 mW |
| Package | Anti-electrostatic tray |
| Operating system request | Win XP/win 7,8 / vista /android 4.0/ mac /Linux with uvc |
| Sensor | OV5640 (1/4" ) |
| Seneor Package | CSP,Bare Die |
| Active Array Size | 2592*1944 |
| Sensitivity | 600mv /(lux-sec) |
| Pixel Size | 1.4µm x1.4µm |
| Maximum Image Transfer Rate | MJPEG 1280x720 30FPS / YUY2 1280x720 15FPS MJPEG 1280x960 30FPS / YUY2 1280x960 6FPS MJPEG 1600x1200 30FPS / YUY2 1600x1200 6FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 6FPS MJPEG 2048x1536 15FPS / YUY2 2048x1536 2FPS MJPEG 2592x1944 15FPS / YUY2 2592x1944 2FPS |
| S/N Ratio | 36 db |
| Dynamic Range | 68 db |
| Shutter type | Electronic rolling shutter |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2/MJPEG |
| Lens Construction | 4P |
| Microphone | NO |
| F/No | 2.8 |
| EFL | 3.4mm |
| FOV | 67° |
| TV Distortion | <1% |
| Relative Illumination (Sensor) | 70% |
| R Filter | 650 ± 10nm |
| Module Package | Anti-electrostatic tray |
| Package | LQFN-40pin |
