3MP USB camera for all-in-one computer
$21.60
Availability:
In stock
Out of stock
Variations
Product Attributes
Product Description
Hot Sell 3MP USB camera for all-in-one computer with factory price
Product Description
| Module No. | BM3MP19801 V22 |
| Module Size | 60mm × 8mm × 4.65mm±0.2MM |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | Fixed |
| Object distance | 30CM-infinity |
| Resolution | 800LW/PH (Center) |
| PCB printing ink | black |
| interface | USB 2.0 |
| Power suuply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption | 700 mW |
| Operating system request | Win XP/win 7,8 / vista /android 4.0/ mac /Linux with uvc |
| Sensor | 3660 (1/5" ) |
| Seneor Package | CSP,Bare Die |
| Maximum resolution | 2048*1536 |
| Sensitivity | 670mV /(lux-sec) |
| Pixel Size | 1.4µm x 1.4µm |
| Maximum Image Transfer Rate | MJPEG 320x240 30FPS / YUY2 320x240 30FPS MJPEG 352x288 30FPS / YUY2 352x288 30FPS MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 1280x720 7FPS / YUY2 1280X720 7FPS MJPEG 1920x1080 20FPS / YUY2 1920X1080 4FPS MJPEG 2048x1536 15FPS / YUY2 2048x1536 4FPS |
| S/N Ratio | 34 db |
| Max Dynamic Range | 70 db |
| Shutter type | Electronic rolling shutter |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2/MJPEG |
| Microphone | NO |
| Lens Construction | 4P |
| F/No | 2.8 |
| EFL | 3.2 mm |
| FOV | 66° |
| TV Distortion | <1.0% |
| Relative Illumination (Sensor) | 70% |
| IR Filter | 650±10nm |
| Module Package | Anti-electrostatic tray |
| Certifications | FCC/CE/ROSH |
Features
1. We can supply OEM/ODM service and customize the cameras according to your requirements
2. We are the manufacturer of camera module, we can quote the best price for you with best quality
3.our camera is free driver camera module, it can work with Windows system and some Android and Linux system with standard UVC protocol
4. we can supply sample cable to you for testing.

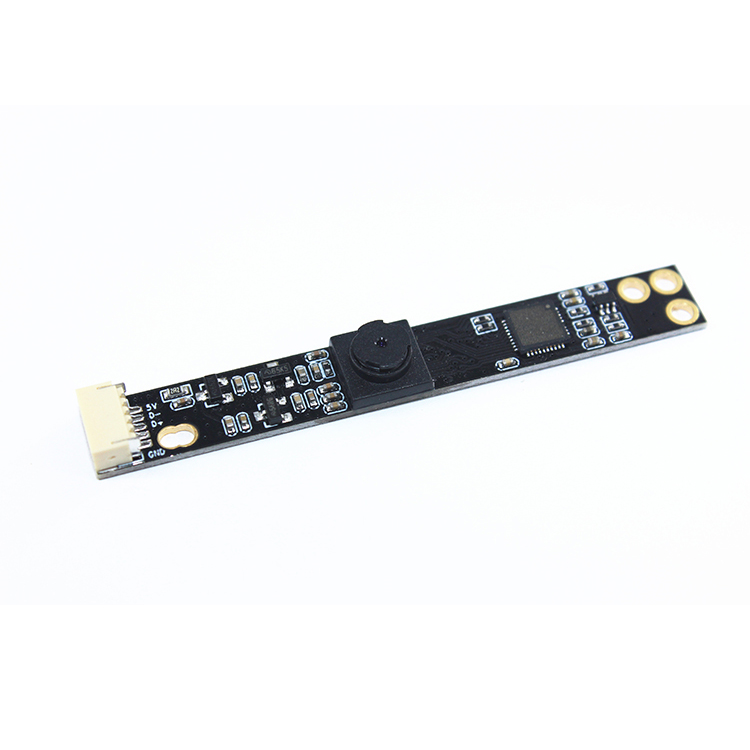

Detailed Images
