1MP global shutter camera module for Industrial equipment
$36.00
Availability:
In stock
Out of stock
Variations
Product Description
1MP global shutter camera module for Industrial equipment
Product Description
| Module No. | BM1M1911GS V22 |
| Module Size | 38mm *38mm * 16mm±0.5MM |
| Temperature(Operation) | -30°C -70°C |
| Temperature(Stable Image) | 0°C-50°C |
| Assembly technique | SMT(ROSH) |
| Focus | Fixed |
| Object distance | 30cm-infinity |
| Resolution | 600LW/PH(Center) |
| PCB printing ink | black |
| Interface | USB2.0 |
| Power supply | USB bus power |
| Supply Voltage | DC 5V±5% |
| Maximum Power consumption | 1200mW |
| Operating system request | Win XP/win 7 , 8 / vista /android 4.0/ mac /Linux with uvc |
| Sensor | OV9281 (1/4" ) |
| Seneor Package | CSP,Bare Die |
| Maximum resolution | 1280*800 |
| Sensitivity | 13000mv /(lux-sec) |
| Pixel Size | 3µm x 3µm |
| Maximum Image Transfer Rate | MJPEG 640x480 60FPS / YUY2 640x480 30FPS MJPEG 800x600 60FPS / YUY2 800x600 20FPS MJPEG 1280x720 60FPS / YUY2 1280x720 10FPS |
| S/N Ratio | 38db |
| Max Dynamic Range | 68db |
| Shutter type | Electronic rolling shutter |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2/MJPEG |
| Microphone | NO |
| Lens Construction | 2G+2P |
| F/No | 2.2 |
| EFL | 2.1 mm |
| FOV | 95° |
| TV Distortion | <5.0% |
| Relative Illumination (Sensor) | 70% |
| IR Filter | 850±10nm |
| Module Package | Anti-electrostatic tray |
| Certifications | FCC/ CE /ROSH |
Features
1. We can supply OEM/ODM service and customize the cameras according to your requirements
2. We are the manufacturer of camera module, we can quote the best price for you with best quality
3.our camera is free driver camera module, it can work with Windows system and some Android and Linux system with standard UVC protocol
4. we can supply sample cable to you for testing.

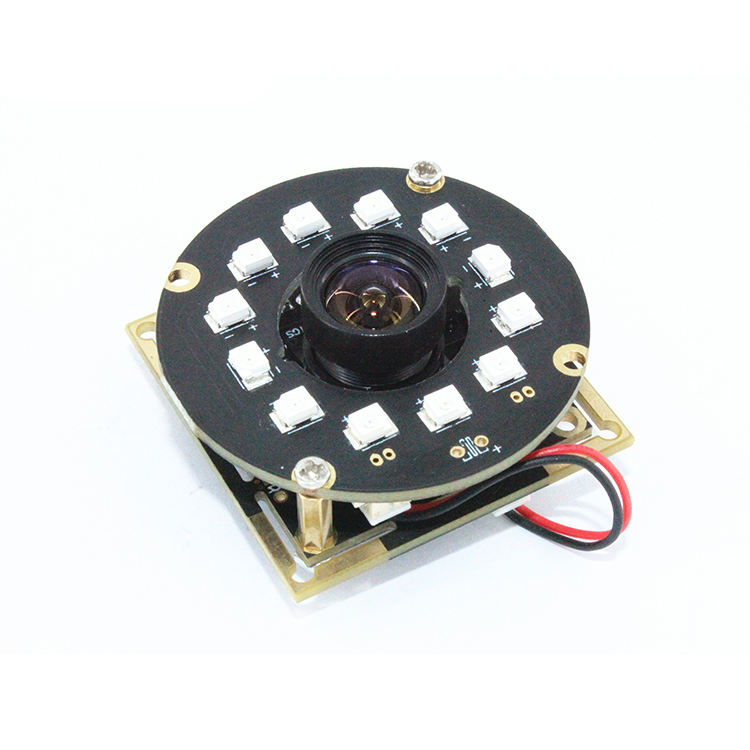

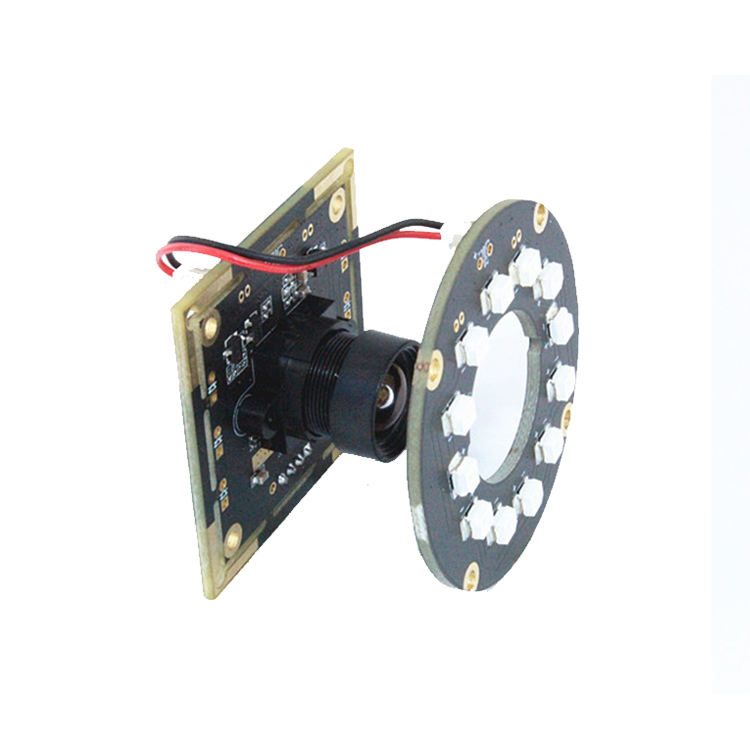

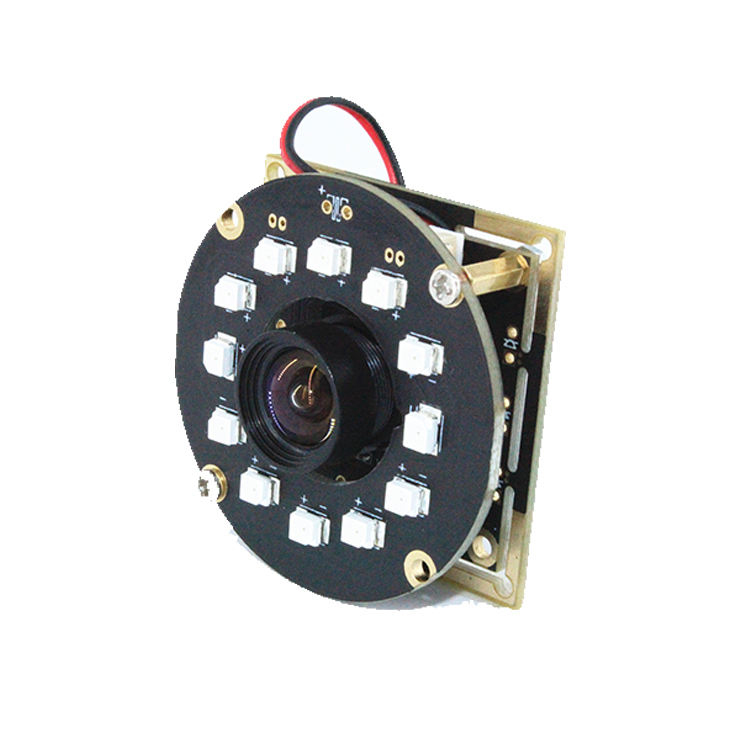

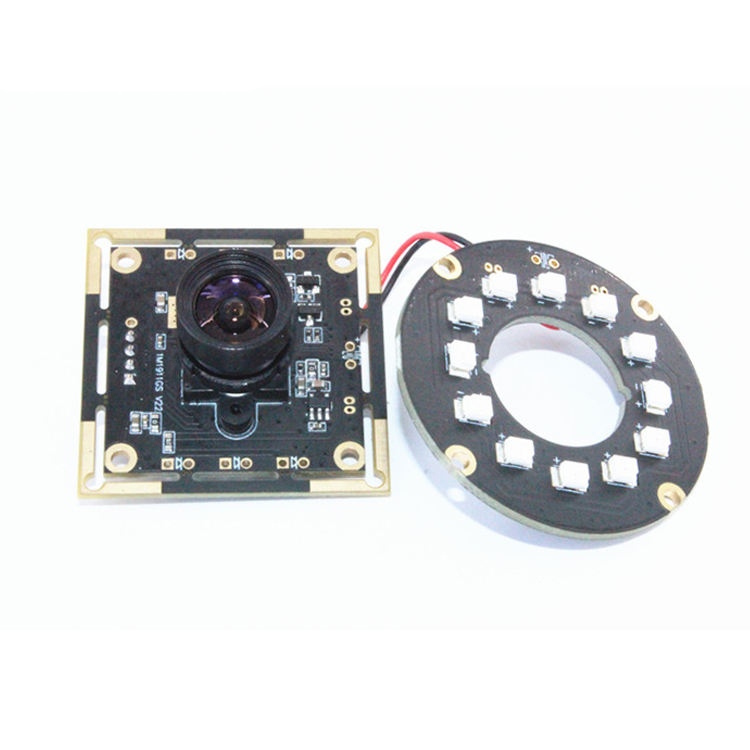

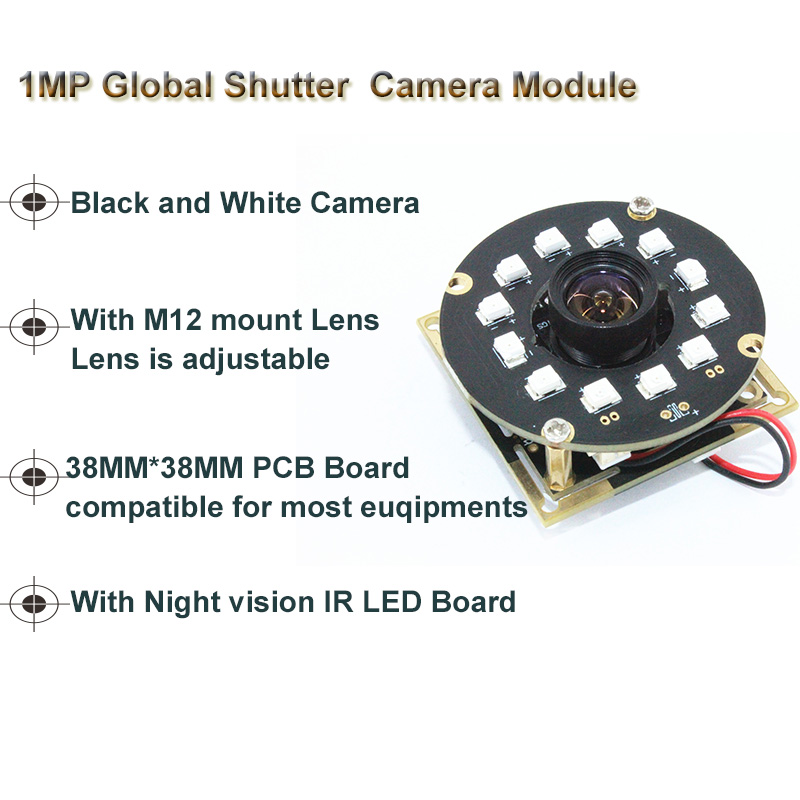

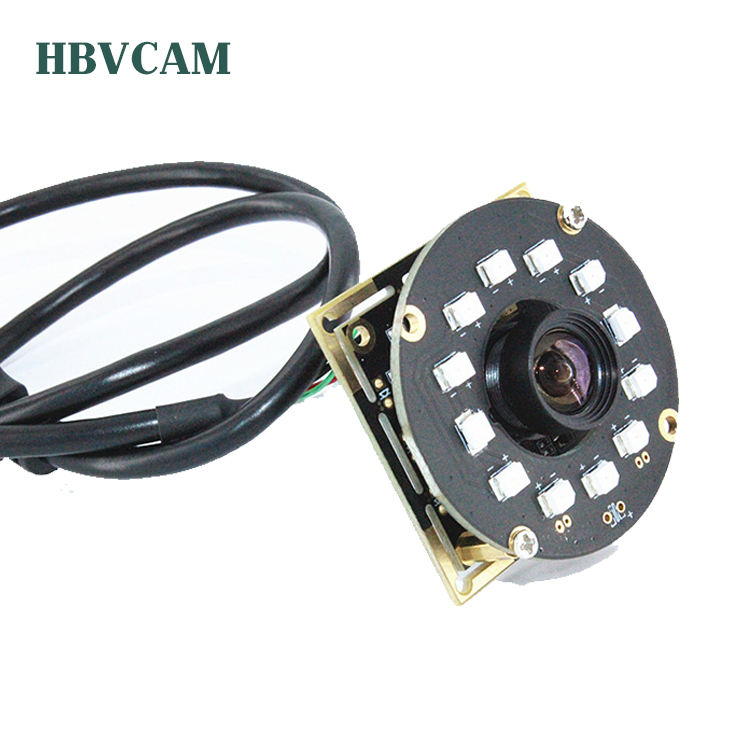

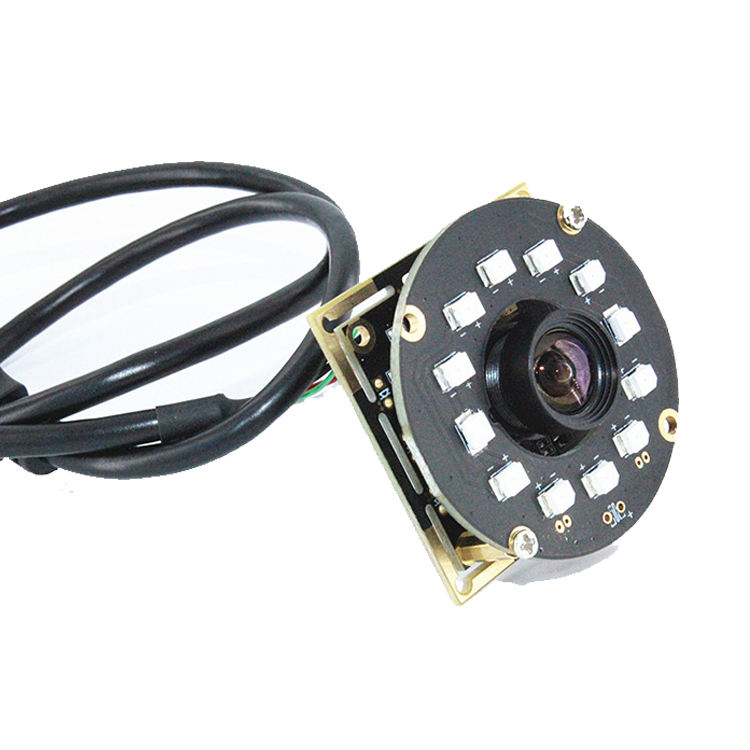

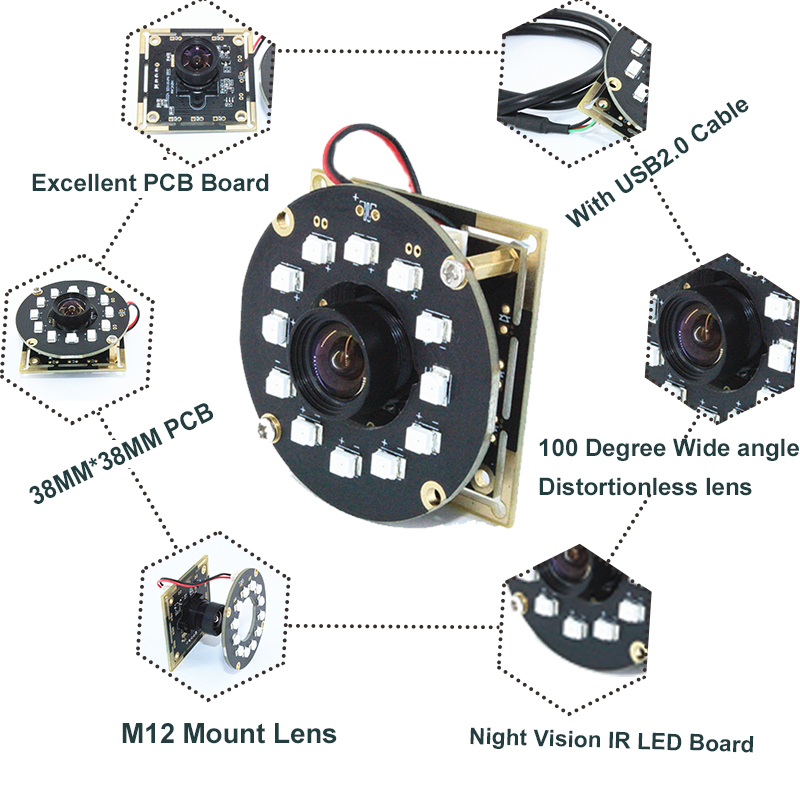

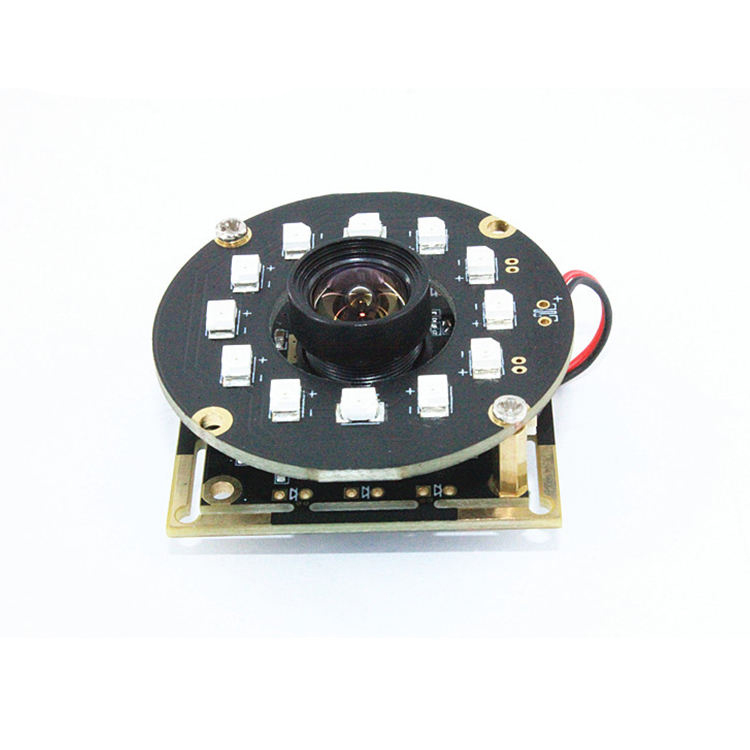

Detailed Images
