1MP OV9732 Free driver binocular camera module for 3D depth detection of human eye

$36.00

Availability:

In stock

Out of stock

SKU

217168

Product Description

Product Description

Module No.	1780-2 S2.0

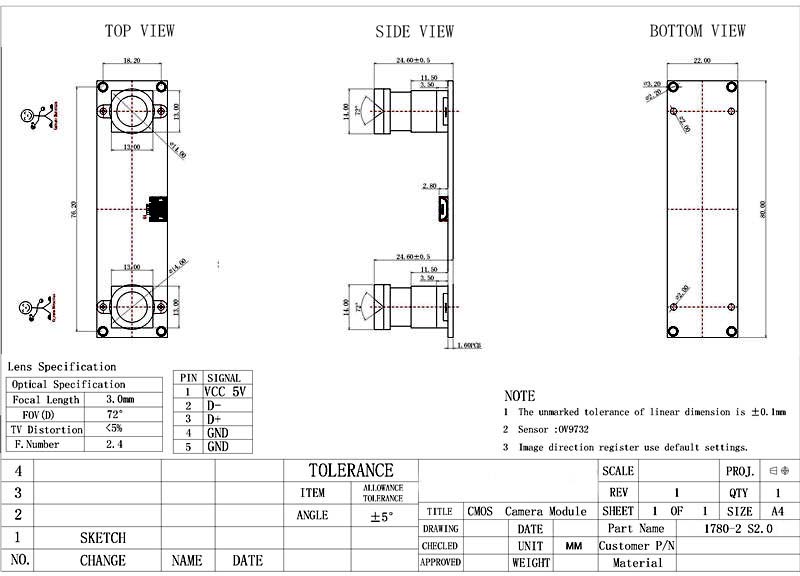

Module Size	80mm 22mm 24.6mm±0.5MM
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Fixed
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	black
interface	USB 2.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	850 mW
Operating system request	Win XP/win 7,8 / vista /android 4.0/ mac /Linux with uvc
Sensor	OV9732 (1/4" )
Seneor Package	CSP,Bare Die
Maximum resolution	2560*720
Sensitivity	2066mV /(lux-sec)
Pixel Size	3µm x 3µm
Maximum Image Transfer Rate	MJPEG 320x240 30FPS / YUY2 320x240 30FPS MJPEG 640x240 30FPS / YUY2 640x240 30FPS MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 1280x480 30FPS / YUY2 1280x480 15FPS MJPEG 1280x720 30FPS / YUY2 1280x720 8FPS MJPEG 2560x720 30FPS / YUY2 2560x720 5FPS
S/N Ratio	39db
Max Dynamic Range	72db
Shutter type	Electronic rolling shutter
AGC/AEC/Whiter balance	Auto
Output Formats	YUY2/MJPEG
Microphone	NO
Lens Construction	2G2P
F/No	2.4
EFL	3.0 mm
FOV	72°
TV Distortion	<5%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROSH

Features

1. We can supply OEM/ODM service and customize the cameras according to your requirements

2. We are the manufacturer of camera module, we can quote the best price for you with best quality

3.our camera is free driver camera module, it can work with Windows system and some Android and Linux system with standard UVC protocol

4. we can supply sample cable to you for testing.

Detailed Images
