25ch hdmi hd nvr
$68.40
Availability:
In stock
Out of stock
Variations
Product Description

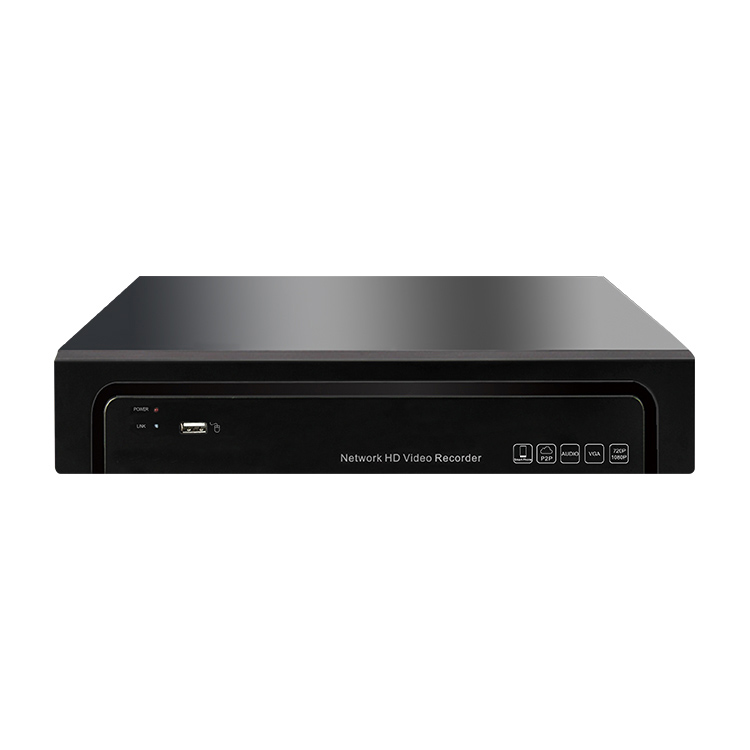

25ch hdmi hd nvr
| Video Standard | 1080P(1920×1080)30fps/960P/(1280×960)/720P(1280×720)30fps | |
| Monitoring Image Quality | 1080P(1920×1080) / 960P/(1280×960)/720P(1280×720) | |
| Image Motion Detection | Each screen can set multiple detection areas and set 6-level sensitivity | |
| Recording Playback Quality | 1/4/8ch playback simultaneously. | |
| Region Cover | Every channel can set 4 cover regions(IPC Support) | |
| Recording Mode | Support manual , auto, dynamic detection, alarm trigger record mode(Partly needs IPC Support) | |
| Backup Way | Support U disk, USB mobile HDD, USB DVD-RW. network storage and backup | |
| Operation Way | Mouse | |
| Local Login | Username and password | |
| Recording Storage | Local HDD, network | |
| External Ports | Video Input | 25×(1280*60)+sub[720*576]+4Ref.+8Play 25ch 1.3MP IP Camera |
| 16×(1920*1080)+sub[960*576]+4Ref.+4Play 16ch 2.0MP IP Camera | ||
| 9×(2048*1536)+sub[960*576]+4Ref.+4Play 9ch 3.0MP IP Camera | ||
| 9x(2592*1944)+sub [960*576]+4Ref.+1Play 9ch 5.0MP IP Camera | ||
| Audio Input | 25/16ch network audio input | |
| Video Output | 1ch VGA+1ch HDMI | |
| Audio Output | 1ch RCA output | |
| Network Port | 1 RJ45,10M/100M/1000M self-adaptive LAN port | |
| USB Port | 2 USB 2.0 ports | |
| Alarm Input | 2ch(Optional) | |
| Alarm Output | 1ch(Optional) | |
| Wireless Port | WIFI | |
| HDD | HDD Port | 2 SATA HDD Ports |
| MAX Capacity | Each port supports MAX 4TB HDD | |
IE View and CMS Show Case
Mobile App Show Case
