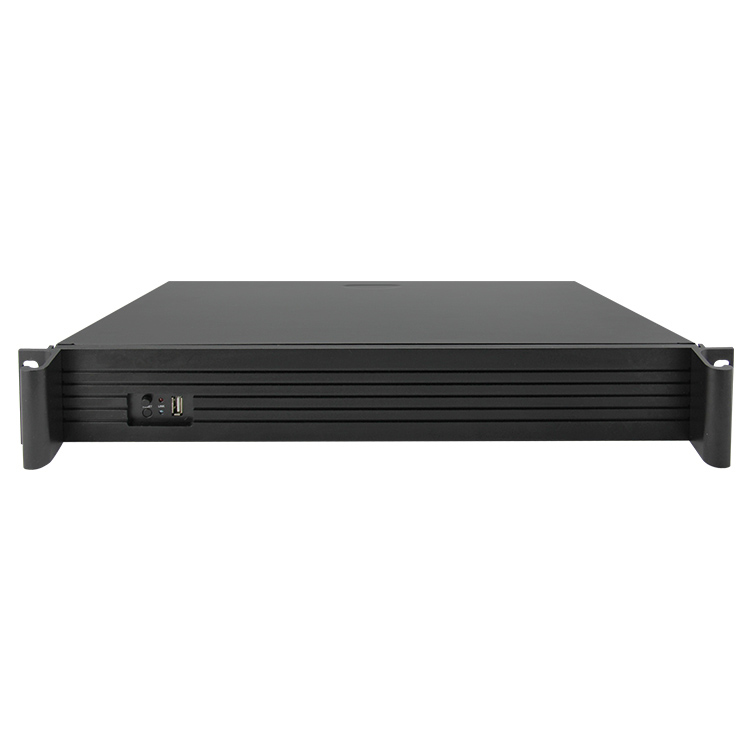

16ch h.265 4k p2p poe nvr
$362.40
Availability:
In stock
Out of stock
Variations
Product Description
16ch h.265 4k p2p poe nvr
| External Ports | Video Input | 16×(4096*2160)+sub[960*576]+4Ref.+4Play |
| 16×(2048*1536)+sub[960*576]+4Ref.+9Play | ||
| 16×(1920*1080)+sub[960*576]+4Ref.+16Play | ||
| 36×(4096*2160)+sub[960*576]+4Ref.+4Play | ||
| 36×(2048*1536)+sub[960*576]+4Ref.+9Play | ||
| 36×(1920*1080)+sub[960*576]+4Ref.+16Play | ||
| Audio Input | According to the network video channel for 1:1 audio input | |
| Video Output | 1ch VGA+1ch HDMI | |
| Audio Output | 1ch RCA Output | |
| Network Port | 1 RJ45, 10/100M self-adaptive LAN port | |
| RS485 Port | Full duplex standard 485 port. | |
| USB Port | 2 USB 2.0 ports | |
| Alarm Input | 4ch | |
| Alarm Output | 1ch | |
| HDD | HDD Port | 4 SATA HDD Port |
| MAX Capacity | Each port supports MAX 4TB HDD | |
| POE | POE Port | 16x 10/100Mbps Ethernet Ports for power |
| Consumption | 208W | |
| Standard | IEEE802.3af |
