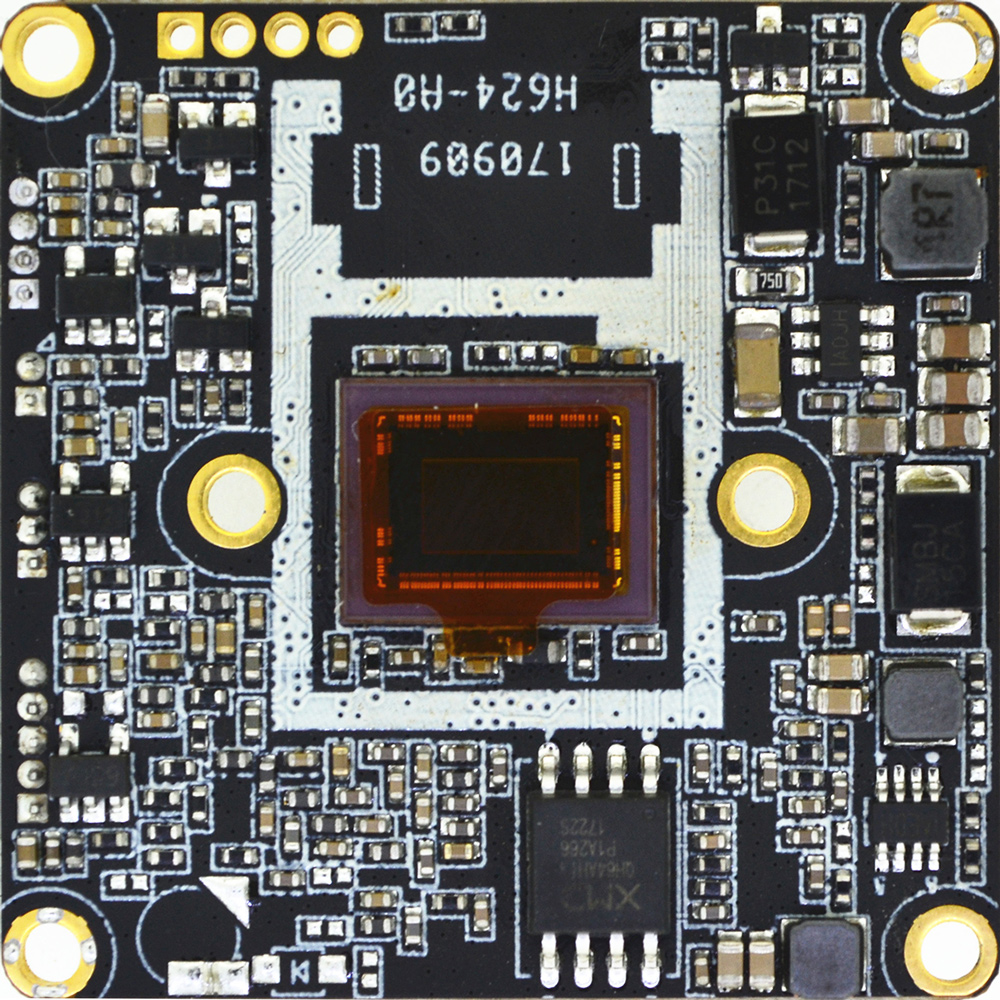

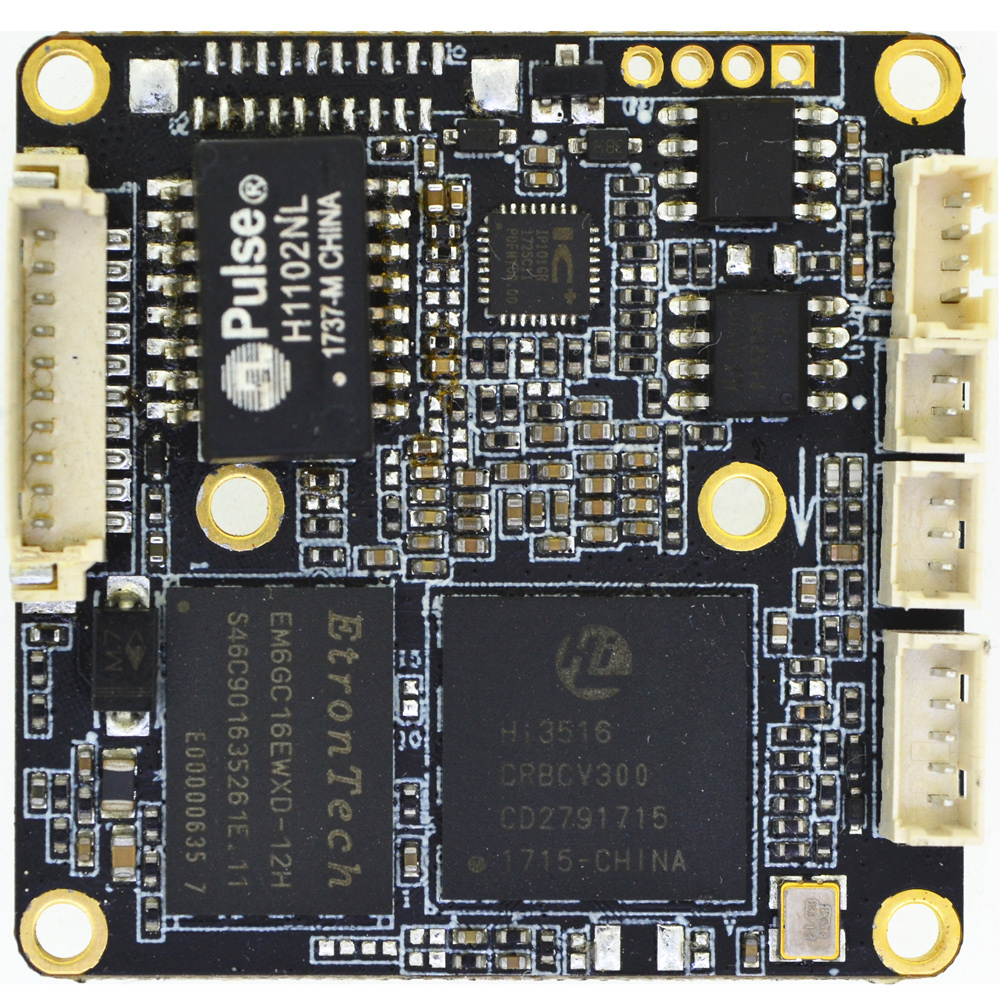

1/2.8" Sony Starlight IMX291 1080P 2MP Hisilicon Hi3516CV300 security CCTV IP Camera board Shenzhen
$25.90
Availability:
In stock
Out of stock
Variations
Product Attributes
Product Description
Technical Characteristics:
Image sensor Sony Starlight IMX291, output h.264 h.265 MJPEG, Effective resolution is 1920 * 1080 / 960P/ 720P
| Main chipset | His3516CV300 |
| Image sensor | 1/2.9”2MP Sony Starlight IMX291 |
| Features | |
| D/N | Support D/N switching(IR-CUT optional) |
| Shutter | 1/25-1/10000 |
| White balance | Auto |
| BLC | Support |
| Noise reduction | 3D-NR |
| WDR | D-WDR |
| Motion | |
| detection | Support |
| Privacy shelter | 4 areas |
| Mirror | Support |
| OSD | Support OSD setting, drag the position freely |
| Restart | Support |
| Video | |
| Compression | H.264 , H.265, H.265+ |
| Resolution | |
| Main-stream: | 1920*1080 / 1280*960/1280*720 |
| Sub-stream: | 704*576 / 640*360 / 320*240 |
| Frame rate | 20fps(50HZ), 20fps(60HZ) |
| Video | |
| adjustments | Brightness, saturability, chroma, contrast, sharpness adjustment |
| Network | |
| Ethernet | RJ-45 10M/100M |
| Wireless | Not available |
| Network | |
| protocol | HTTP, TCP/IP, IPv4, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, IP Search(Support P6S IP camera, DVR, NVS |
| and etc.) | |
| Access protocol | Support ONVIF 2.4/privacy protocol/CGI |
| Max users | 6 |
| Client | iPhone, iPad, Android, Windows |
| Audio | |
| Audio | G.711U |
| Input | 1ch Input |
| Output | 1ch Output |
| General | specifications |
| Size | (38x38) |
| Temperature | -30℃～+60℃ |
| Power | DC12V 2A |
