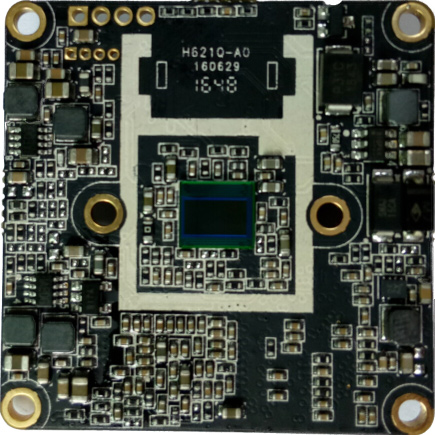

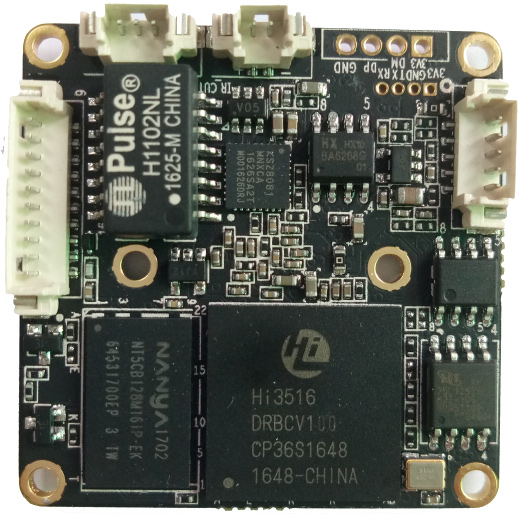

1/3” 4MP OV4689 Hisilicon Hi3516D security CCTV IP Camera board H.265 H.264
$25.40
Availability:
In stock
Out of stock
Variations
Product Attributes
Product Description
1/3" 400W OV4689 CMOS image sensor;
Support H.265/H.264/MJPEG
Support three stream, Main-stream: 2592*1520/2048*1536/1920*1080；sub-stream:704*576/640*360/352*288;tri-stream:704*576/640*360/352*288
Support WDR, 3D-NR, HLC, BLC, Auto-White balance for different environment
Support ONVIF；Can connect with other company’s NVR
ICR switching to surveille 24 hours
Support image shutter, 4 shutter area can be set
Support audio input
Support motion detection, motion detection alarm will be send to email automatically
Support OSD setting and network timing
Support mobile surveillance(iOS, android）、Web and VMS；
Support self-maintenance
Suport PoE (optional)；
| Main chipset | Hi3516D |
| Image sensor | 1/3”4MP OV4689 |
| Features | |
| D/N | Support D/N switching (support IR-CUT) |
| Shutter | 1/25-1/10000 |
| White balance | Auto |
| BLC | Support |
| Noise reduction | 3D-NR |
| WDR | D-WDR |
| Motion detection | Support |
| Privacy region | 4 areas |
| Mirror | Support |
| OSD | Support OSD setting, drag the position freely |
| Scheduled Reboot | Support |
| Video | |
| Compression | H.264, H.265, MJPEG |
| Resolution | |
| Main-stream: | 2560 * 1520 / 2048 * 1536 / 1920*1080 |
| Sub-stream: | 704 * 576 / 640 * 360 / 352 * 288 |
| Trip-stream: | 640 * 360 / 352 * 288 |
| Frame rate | 25fps(50Hz), 25fps(60Hz) |
| Bit rate | 64Kbps~12Mbps CBR / VBR adjustable |
| Video adjustments | Brightness, saturation, hue, contrast, sharpness |
| Network | |
| Ethernet | RJ-45 10M/100M |
| WiFi | Not available |
| Network protocol | HTTP, TCP/IP, IPv4, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, DDNS, FTP, IP Search (Support P6S IP camera, DVR, NVS etc.) |
| Access protocol | Support ONVIF 2.4 / privacy protocol / CGI |
| Max users | 8 |
| Client | iPhone, iPad, Android, Windows |
| Audio | |
| Audio | G.711U |
| Input | 1ch Input |
| Output | 1ch Output |
| General specifications | |
| Size | (38x38) |
| Temperature | -30℃～+60℃ |
| Power | DC12V 2A |
