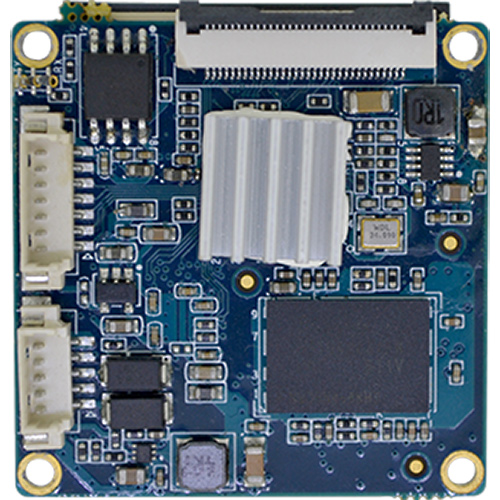

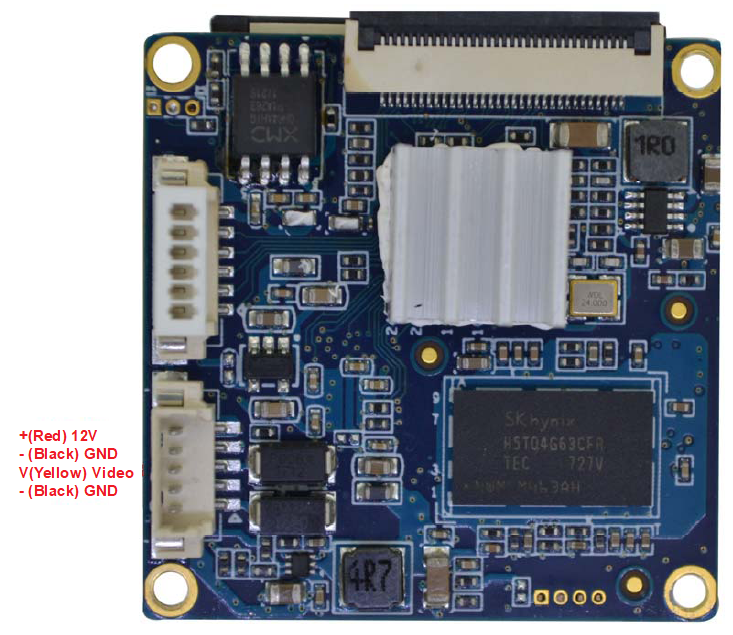

TV56S274 1/2.5" Sony IMX274 8MP 4K Hisilicon Hi3556 security CCTV TVI Camera module board
$149.50
Availability:
In stock
Out of stock
Variations
Product Attributes
Product Description
Features:

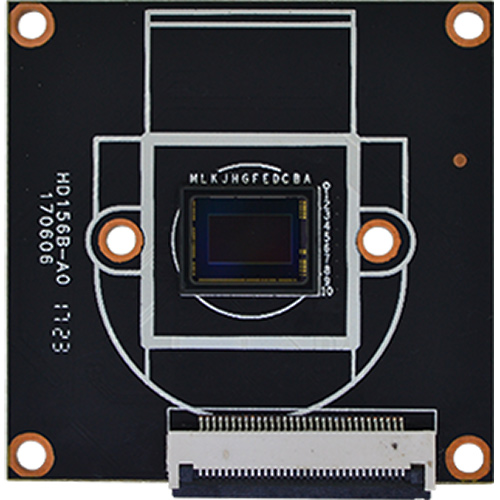

SONY 1/2.5 IMX274 image sensor with a maximum pixel size of 8.51M.
TVI 4K coaxial HD output.
With HiSilicon HI3556, it supports 3DNR, automatic white balance and automatic gain control.
Support dual filter switching, day and night effects are clear.
Power (600W) video (2KV) dual lightning protection design, small size 38*38 design;
| Main chipset | His3556 |
| Image sensor | 1/2.5”8MP Sony IMX274 |
| Features | |
| Video Standard | PAL / NTSC |
| D/N | Auto / Color / B&W |
| SNR | ≥50dB |
| Min illumination | 0.1Lux |
| BLC | Support |
| AES | Auto / 1/50 ~ 1/100000 Sec |
| AWB | Auto |
| IR control voltage | <5V |
| Video output | TVI |
| Storeage | ≈29MB / minute |
| Temperature | -20℃～+50℃ |
| Power | DC12V 230mA ±6mA |
