AH2481V810 1/2" OminiVision OV08A10 8MP 4K NVP2481 security CCTV AHD Camera module board
$109.50
Availability:
In stock
Out of stock
Variations
Product Attributes
Product Description
Features:

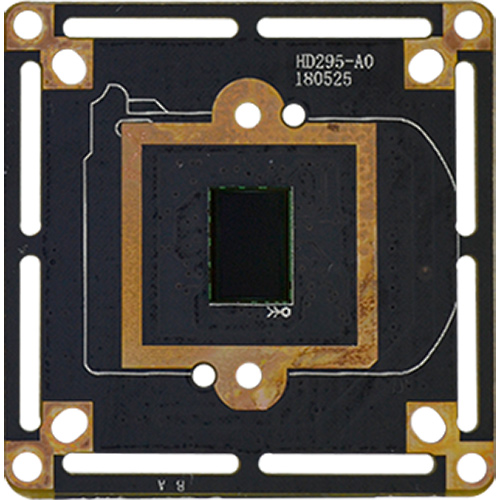

0S08A10 image sensor, the highest pixel reaches 8 MP;
AHD 4K coaxial HD output;
OSD supports 13 languages, white balance/exposure, day/night switching/2D 3D noise reduction, gain modification, digital wide dynamic, backlight compensation function;
Supported by NVP2481H DSP with OSD function (mirror, color/black and white, PAL/NTSC switching);
Support dual filter switching, day and night effects are clear. Support UTC;

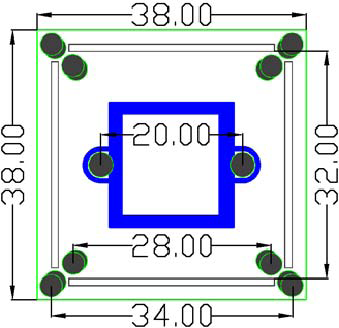

Power (600W) video (2KV) dual lightning protection design, small size 32*38 design
| Main chipset | NVP2481 |
| Image sensor | 1/2”8MP OS08A10 |
| Effective Pixels | 4K 3840 x 2160 |
| Features | |
| Video Standard | PAL / NTSC 15fps |
| D/N | Auto / Color / B&W |
| SNR | ≥50dB |
| Min illumination | 0.1Lux |
| BLC | Support |
| AES | Auto / 1/50 ~ 1/100000 Sec |
| AWB | Auto |
| OSD Languages | English/Chinese/Chinese Traditional/German/French/Italian/Spanish/Polish/Russian/Grape/Netherlands/Turkey/Japanese |
| Video output | AHD |
| Storeage | ≈29MB / minute |
| Temperature | -20℃～+50℃ |
| Power | DC12V 166mA ±6mA (9-16V) |
