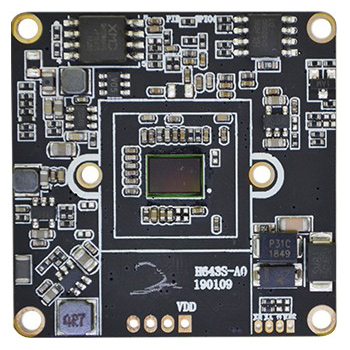

1/2.6" SC4236 3MP 1080P 2MP Hisilicon Hi3516EV200 H.265 security CCTV IP Camera Module board
$7.90
Availability:
In stock
Out of stock
Variations
Product Attributes
Product Description
Technical Characteristics:
1/2.6" 3MP SC4236 sensor; using HiSilicon chip 3516EV200; 16:9 widescreen display
Support H264, H.265
Support dual code stream, main stream: 2304×1296, 1920×1080; sub-stream: D1(704*576)/360P(640*360)/ CIF(352*288)
Support wide dynamic, 3D noise reduction, backlight compensation, automatic white balance, suitable for different monitoring environments;
Support ONVIF protocol, can access third-party NVR;
ICR filter switching function for 24-hour monitoring;
Support screen occlusion, can set 4 occlusion area blocks;
Support audio input to achieve perfect monitoring of video recording;
Support motion detection, mobile detection alarm automatically send email reminder;
Support OSD location setting, support network time;
Support mobile phone monitoring (iOS, android), web, VMS;
Support automatic maintenance function;
Supports electrodeless infrared dimming, stepless white light dimming
| Main chipset | Hisilicon Hi3516EV200 |
| Image sensor | 1/2.6”3MP SC4236 |
| Features | |
| D/N | Support D/N switching(IR-CUT optional) |
| Shutter | 1/25-1/10000 |
| White balance | Auto |
| BLC | Support |
| Noise reduction | 3D-NR |
| WDR | D-WDR |
| Motion detection | Support |
| Privacy shelter | 4 areas |
| Mirror | Support |
| OSD | Support OSD setting, drag the position freely |
| Restart | Support |
| Video | |
| Compression | H.264, H.265 |
| Resolution | |
| Main-stream: | 2304x1296 / 1920*1080 |
| Sub-stream: | 704*576 / 640*360 / 320*240 |
| Frame rate | 3MP: 20fps(50HZ), 20fps(60HZ) |
| 2MP: 25fps(50HZ), 25fps(60HZ) | |
| Video adjustments | Brightness, saturability, chroma, contrast, sharpness adjustment |
| Network | |
| Ethernet | RJ-45 10M/100M |
| Wireless | Not available |
| Network protocol | HTTP, TCP/IP, IPv4, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, IP Search(Support P6S IP camera, DVR, NVS and etc.) |
| Access protocol | Support ONVIF 2.4/privacy protocol/CGI |
| Max users | 4 |
| Client | iPhone, iPad, Android, Windows |
| Audio | |
| Audio | G.711U |
| Input | 1ch Input |
| Output | 1ch Output |
| General specifications | |
| Size | (38x38) |
| Temperature | -20℃～+65℃ |
| Power | DC12V 1A |
