1/2.7" AR0230 + OV2710 dual sensor 2MP 1080P 30fps USB2.0 UVC Camera YUY2 MJPEG

No votes have been submitted yet.

$71.90
Availability:
In stock
Out of stock
SKU
U2DS2M01
Variations

Product Description

Features

  • 2MP 1080P HD USB camera with 1/2.7" AR0230 + OV2710 Sensor

  • Using MJPEG, YUY2 encoding, has a very good indoor and outdoor effects, vivid colors

  • Support UVC protocol, free driver, plug and play.

  • Support windows, linux, Android and other embedded systems.


Module No.U2DS2M01

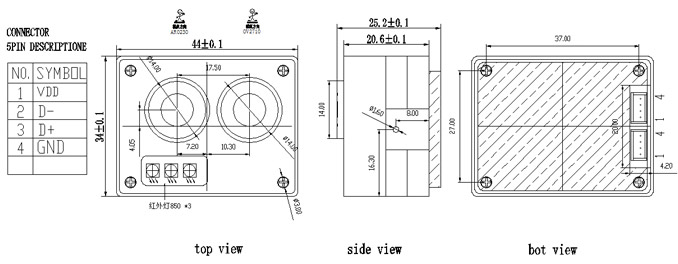

Module Size44*34*26mm
Temperature (Operation)-20 to 70°C
Temperature (Stable Image)-10 to 60°C
Object distance10cm - ∞
Resolution1100LW/H (Center)
InterfaceUSB2.0 and 1.1
Operating system requestWin2000, Win XP, Win7, Win8, Win10, Linux, Android
PackageAnti-electrostatic tray
Vorking current<450mA
Sleep model current<50mA
Sensor TypeAR0230 + OV2710
Active Array Size1920*1080
Dark current896mv/s@60°C
Sensitivity4.0v/(Lux·s)
Pixel size3.0μm*3.0μm
Maximum Image Transter Rate1920*1080 1280*720 800*600 640*480: 30fps
S/N Ratio(maximum)41db
Dynamic rangeUP to 105 db @ 8X gain
Output FormatYUY2 MJPG
Fixed Pattern Noise<0.03%

EFL3.0mm * 2
ApertureF2.4 * 2
FOV95° * 2
SensorAR0230 (Color) + OV2710( B&W)
Resulution1920*1080 * 2
Image Format1/2.7" * 2
