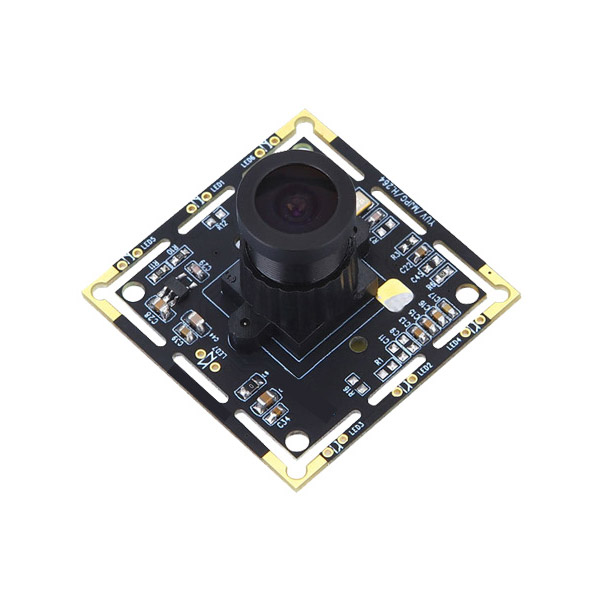

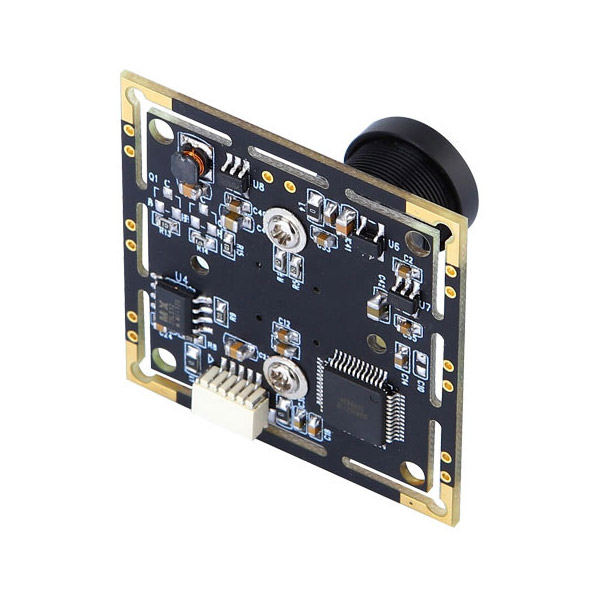

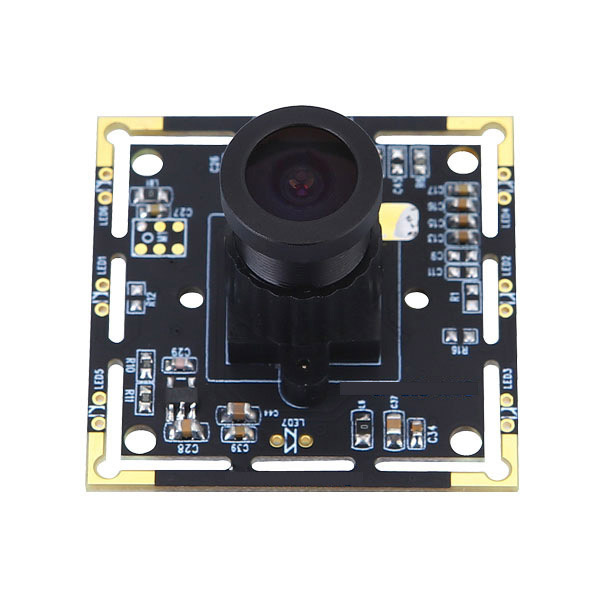

1/3.6" 1MP 720P 30fps USB2.0 UVC Camera board YUY2 MJPEG
$16.50
Availability:
In stock
Out of stock
Variations
Product Description
Features
Using 1/3.6" large-size sensor, 72OP can achieve 30FPS and can be used as an USB non-drive camera for CCTV, ATM, cloud doorbell of advertising machine and video conference. Supports Android, X86 and Linux systems, and can match different angles of lens according to actual application scenarios. 38*38mm or 32*32mm standard board size, reserved photosensitive resistor, infrared lamp, IR-CUT interface.
| Product number | U2B720 | ||
| MAX effective pixels | 1280 * 720 | ||
| Sensor Size | 1/3.6 inch | ||
| Pixel Size | 3.75μm x 3.75μm | ||
| Image area | 3.888mm(H) x 2430mm(V) | ||
| Output parameters | video format | Max Rosolution | Max Frame rate |
| YUY2/MJPEG | 720P | 30fps | |
| Interface type | USB2.0 | ||
| audio frequency | Optional | ||
| power | USB BUS POWER | ||
| Voltage | DC 5V | ||
| Main chip | DSP/SENSOR/FLASH | ||
| PCBA Size | Customized | ||
| Storage temperature | -20°C to 70°C | ||
| working temperature | 0°C to 55°C | ||
| USB Wire rod | Customized | ||
| System support | WinXP/Vista/Win7/Win8/Win10 Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC | ||
