1/2.8" IMX415 8MP 4K SigmaStar SSC328Q H.265 H.264 security CCTV IP Camera Module board
$40.90
Availability:
In stock
Out of stock
Variations
Product Attributes
Product Description
Technical Characteristics:
1. Support 2 channels of video and 1 channel of audio, two channels independent, 20 frames per second active video (8MP)
2. H.264/H.265/H.265+ video compression standard, G.711/G711A/AAC audio compression standard
3. Embedded Web Server, fully support Internet Explore monitoring, configuration, and upgrade
4. Two-way audio real-time transmission on the Internet, the video frame rate is automatically adjusted according to the bandwidth
5. Support variable bit rate, while setting the video image quality, it can also limit the video image compression code stream
6. Support DHCP, easy to realize dynamic IP address
7. Video bit rate 64Kbps-12Mbps continuously adjustable, frame rate (5-30) continuously adjustable
8. Support JPEG capture
9. Support movement detection (settable area and sensitivity) and input and output alarm
10. 10/100M Ethernet interface support
11. Support up to 5 users to access at the same time
12. Support sound linkage alarm and voice customization
13. Support regular maintenance function
14. Support IP filtering
15. Support OSD customization
16. Support client remote monitoring software
17. Support mobile phone monitoring (P2P)
18. Support Safari, Chrome, FireFox, Opera, Edge browser
19. Support soft photosensitive infrared, ordinary infrared
20. Support auto focus and PTZ
| model | E415D |
| SOC | SigmaStar SSC328Q |

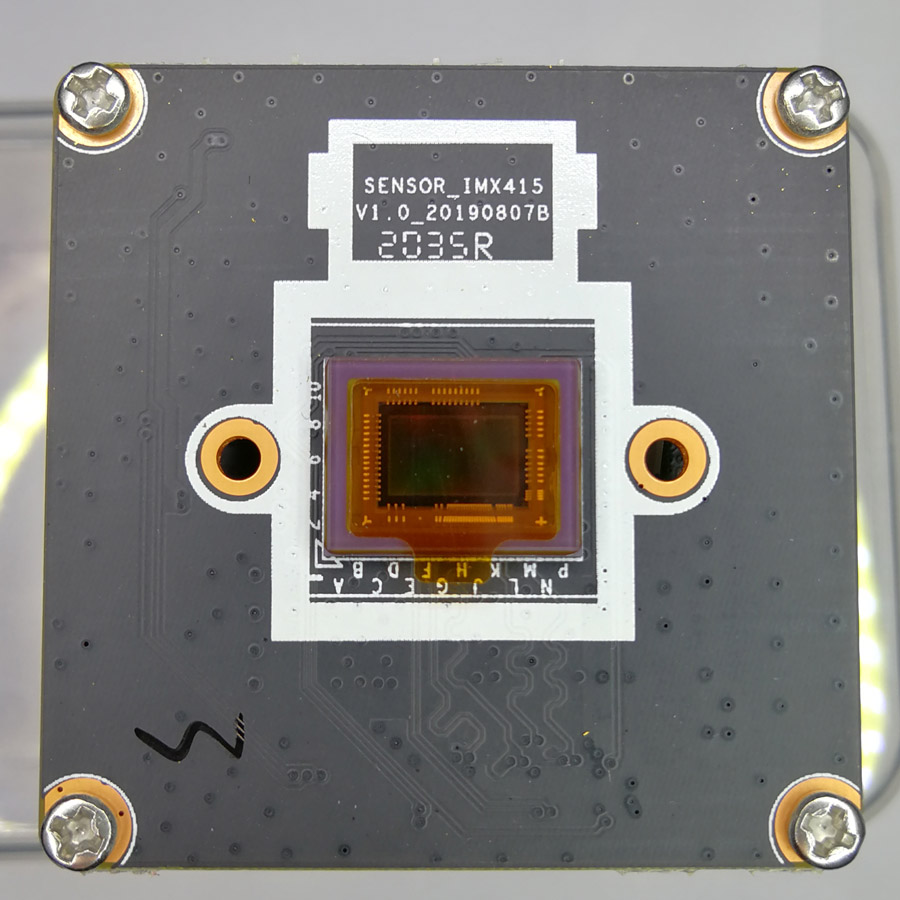

| Image sensor | 1/2.8" 8MP Sony IMX415 |
| Minimum illumination | Color 0.01 Lux |
| SNR | 72dB |
| Video processing | PAL/NTSC video standard chooseable, support AWB, support 3D DNR, support HDR, support anti-face overexposing, support defog function, H.264/H.265/H.265+ coding format, achieve ultra-low storage, code rate/frame rate adjustable |
| Image resolution | Main stream: 3840*2160@20 FPS, 3072*2048 / 2592*1944 / 2560*1440 / 2304*1296 / 2048*1536 / 1080P / 960P / 720P /D1 @30fps sub stream: 720 * 480 D1 / VGA / 640*360 / CIF @30fps support CBR/VBR |
| Audio processing | Audio linear input/output, G711U/G711A/AAC encoding, support two-way voice intercom, support MP3 file playback |
| Network interface | RJ45, 10/100m adaptive Ethernet interface, 2KV lightning protection design |
| Protocol support | Support HTTP/RTSP/ DHCP/NTP/ONVIF/P2P network protocols, and GB28181, RTMP and many kinds of NVR protocols are optional |
| storage | Optional support localized storage, supports 8G/16G/32G/64G/128G TF card |
| IO interface | Supports electric zoom and auto focus interface, with zoom lens and zoom control panel and zoom program |
| LED Board interface | External control mode, need corresponding lamp board to cooperate to use |
| IRCUT interface | IRCUT integrated switching circuit, external manual/timer to control IRCUT day/night mode |
| Business functions | IE6.0 and above (device embedded Web Server) browser mobile detection and OSD adjustable support Safari, Chrome, FireFox, Opera, Edge browser support mobile Web access JPEG screenshots P2P cloud services (danale) IP filters provide the SDK (Windows, Android, Linux) development kit support HDR up to 128 db support soft light sensitive infrared automatic zoom (optional) PTZ linkage support voice alarm linkage and customizable |
| Conventional parameters | DC12V/POE, 1.2W Max, 38 (L) *38 (W) *24 (H) mm (without lens), 0.20kg |
| Working temperature | -30~70 ℃ |
